Wilwood D154 Rear Parking Brake Kits 140-12567-DR
Wilwood D154 Rear Parking Brake Kits 140-12567-DR
4 in stock
Couldn't load pickup availability
Tags
Product Description

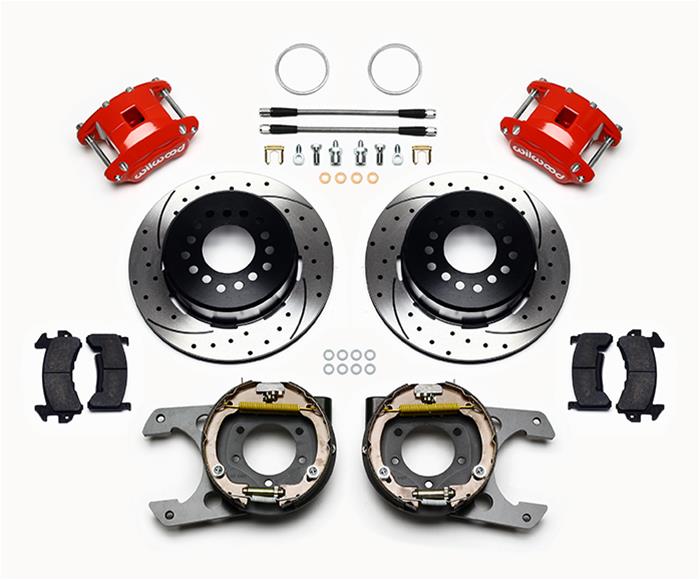

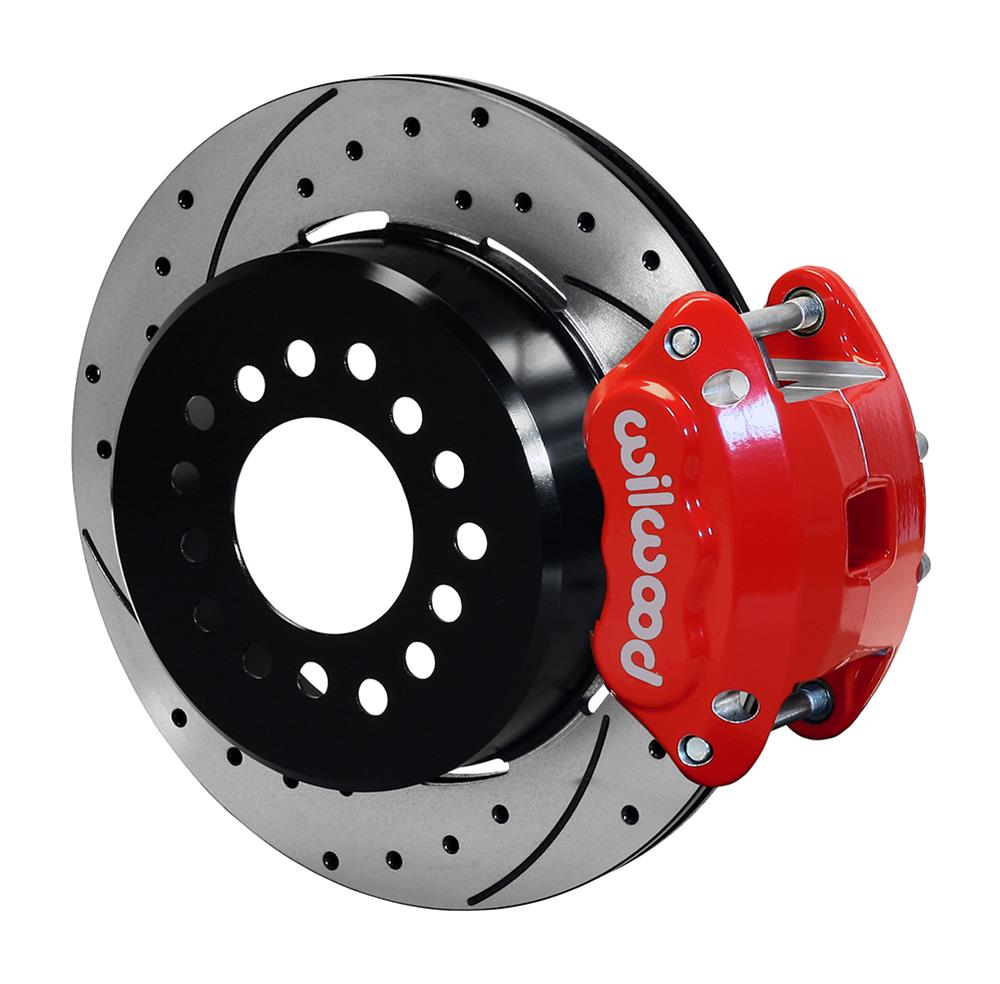

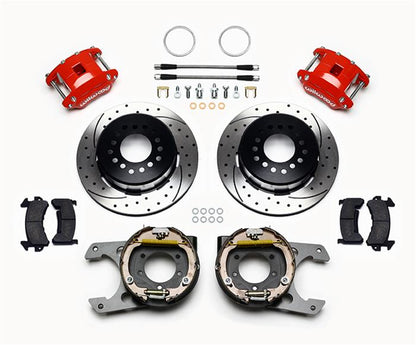

The D154 Pro Series rear disc conversion kit with integral parking brake provides high-tech styling for the street and rugged durability for the toughest off-road conditions. Experience big brake stopping power from 12.19" diameter rotors and two-piston floating mount calipers for ultimate control with big wheel and tire packages. This kit covers the full range of non-ABS Dana 35 rear axles used over a wide range of Jeep models and feature bolt-on installation and full compatibility with the OE master cylinder output. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE or aftermarket spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.
Wilwood D154 rear parking brake kits provide high performance stopping power for musclecars with rear axles that require a parking brake! Featuring forged D154 dual-piston calipers, 12.19 in. one-piece drum and rotors, and high-friction pads, these kits nicely complement your D52 or D154 calipers on OE spindles. Their neatly hidden internal shoe system allows for a clean installation and superior static holding power for parking. Optional caliper finishes and rotor designs let you customize the look and performance of your brakes. Wilwood D154 rear parking brake kits offer balanced, optimized braking for all types of custom performance street/strip and show machines!
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
The D154 Pro Series rear disc conversion kit with integral parking brake provides high-tech styling for the street and rugged durability for the toughest off-road conditions. Experience big brake stopping power from 12.19" diameter rotors and two-piston floating mount calipers for ultimate control with big wheel and tire packages. This kit covers the full range of non-ABS Dana 35 rear axles used over a wide range of Jeep models and feature bolt-on installation and full compatibility with the OE master cylinder output. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE or aftermarket spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance. |
|---|---|
| product_ |
KIT,REAR,DISC/DRUM,JEEP DANA 35,2.56 |
| product_ |
KIT,REAR,DISC/DRUM,JEEP DANA 35,2.56 OFFSET,D154,1PC ROTOR,DRILLED,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood D154 Rear Parking Brake Kits 140-12567-DR |
| brand | Wilwood Disc Brakes |
| price | 1094.86 |
| blurb | Disc Brake Kit, D154 Parking Brake, Rear, 12.19 in. Drilled/Slotted Rotor, 2-Piston Red Powdercoated Caliper, 2.56 in. OS, Jeep, Dana 35, Kit |
| title | Wilwood D154 Rear Parking Brake Kits |
| description | Wilwood D154 rear parking brake kits provide high performance stopping power for musclecars with rear axles that require a parking brake! Featuring forged D154 dual-piston calipers, 12.19 in. one-piece drum and rotors, and high-friction pads, these kits nicely complement your D52 or D154 calipers on OE spindles. Their neatly hidden internal shoe system allows for a clean installation and superior static holding power for parking. Optional caliper finishes and rotor designs let you customize the look and performance of your brakes. Wilwood D154 rear parking brake kits offer balanced, optimized braking for all types of custom performance street/strip and show machines! |
item_row
| handle | WIL-140-12567-DR |
|---|---|
| item_ |
136806 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/0cc6fd3f596de68dad5464935a2cde00.JPG |
| item_ |
140-12567-DR |
| item_ |
Wilwood D154 P/S P-B Kit Drilled-Red Jeep Dana 35 2.56 Off 5-lug w/ lines |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545016895 |
| item_ |
1094.86 |
| item_ |
1226.25 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
59.00 |
| dim_ |
16.60 |
| dim_ |
13.90 |
| dim_ |
13.90 |
| shipping_ |
29.72 |
| item_ |
wil140-12567-DR |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.560 in. |
| Product Line | Wilwood D154 Rear Parking Brake Kits |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Caliper Color | Red |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 12.19 in./309.63mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | Yes |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Axle Housing Flange Style | Dana 35 (3.188 in. x 1.59 in.) |
| Manufacturer's Part Number | 140-12567-DR |
| Rear Rotor Thickness (in.) | 0.81 |
| Rear Caliper Piston Quantity | Two |
| Brake Rotor Bolt Pattern (mm) | 5 x 127.00mm |
| Differential Case Design Type | Dana 35 |
| Brake Rotor Bolt Pattern (in.) | 5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 16 in. |
