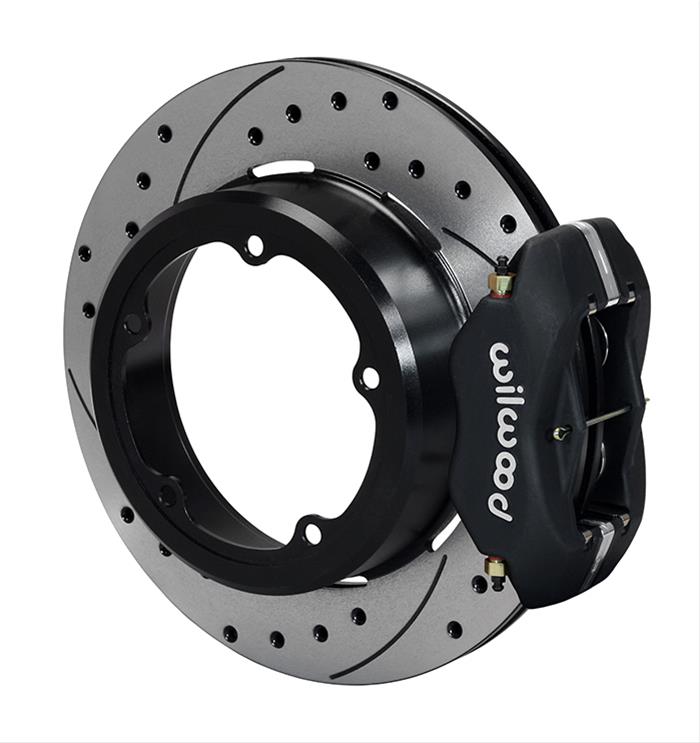

Wilwood Forged Dynalite Rear Parking Brake Kits 140-12420-D
Wilwood Forged Dynalite Rear Parking Brake Kits 140-12420-D
6 in stock
Couldn't load pickup availability
Product Description

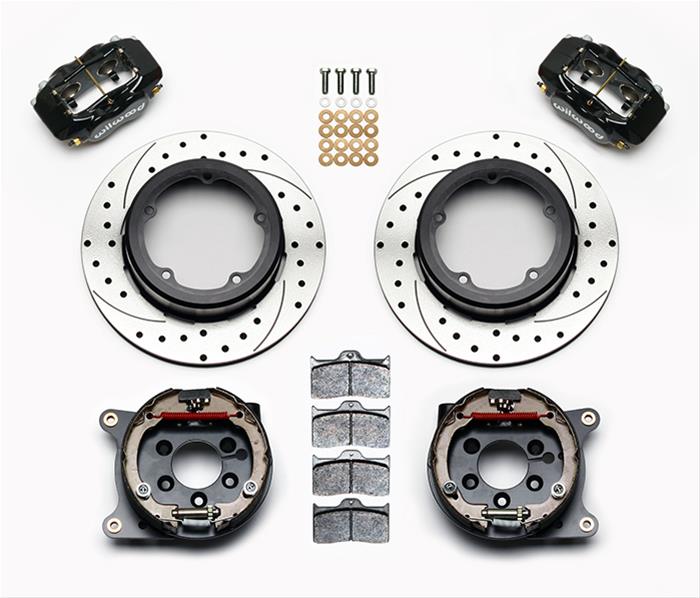

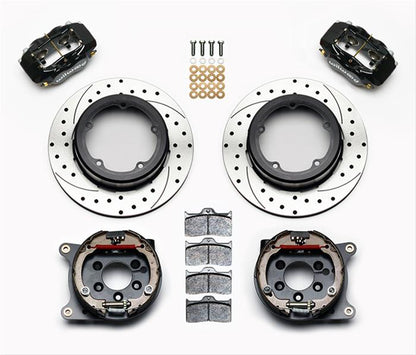

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Wilwood forged Dynalite rear parking brake kits provide the best solution for many rear axles requiring a parking brake. The forged billet Dynalite 4-piston calipers, one-piece drum/rotors, and high-friction pads provide balanced braking for all types of performance street, strip, and show machines. Their internal shoe parking brake design stays hidden, but has excellent static holding power for parking. Wilwood offers optional caliper finishes and rotor designs to enable the builder to personalize the style and optimize brake performance for every individual application.
Application Summary
Part Type
description
| market_ |
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. |
|---|---|
| product_ |
KIT,REAR,DISC/DRUM,STRANGE FLOATER,12.19 |
| product_ |
KIT,REAR,DISC/DRUM,STRANGE FLOATER,12.19 x.81 ROTOR,DRILLED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Dynalite Rear Parking Brake Kits 140-12420-D |
| brand | Wilwood Disc Brakes |
| price | 1224.93 |
| blurb | KIT, REAR, DISC/DRUM, STRANGE FLOATER, 12.19 |
| title | Wilwood Forged Dynalite Rear Parking Brake Kits |
| description | Wilwood forged Dynalite rear parking brake kits provide the best solution for many rear axles requiring a parking brake. The forged billet Dynalite 4-piston calipers, one-piece drum/rotors, and high-friction pads provide balanced braking for all types of performance street, strip, and show machines. Their internal shoe parking brake design stays hidden, but has excellent static holding power for parking. Wilwood offers optional caliper finishes and rotor designs to enable the builder to personalize the style and optimize brake performance for every individual application. |
item_row
| handle | WIL-140-12420-D |
|---|---|
| item_ |
136811 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/5f3cc488cdf2398e0d5cfed2997402a7.JPG |
| item_ |
140-12420-D |
| item_ |
Wilwood Forged Dynalite P/S Park Brake Kit Drilled Strange Eng Floater 3.49in Offset |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545016376 |
| item_ |
1224.93 |
| item_ |
1371.92 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
49.00 |
| dim_ |
16.60 |
| dim_ |
13.90 |
| dim_ |
13.90 |
| shipping_ |
17.35 |
| item_ |
wil140-12420-D |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Manufacturer's Part Number | 140-12420-D |
| Part Type | Disc Brake Kits |
| Product Line | Wilwood Forged Dynalite Rear Parking Brake Kits |
| Position | Rear |
| Front Rotor Included | No |
| Brake Rotor Bolt Pattern (in.) | 5 x 5.75 in. |
| Brake Rotor Bolt Pattern (mm) | 5 x 146.05mm |
| Differential Case Design Type | Strange |

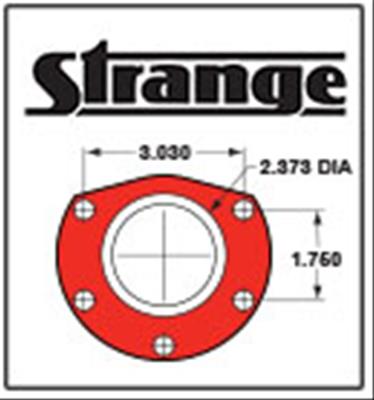

| Axle Housing Flange Style | Strange Engineering Floater (3.030 in. x 1.75 in.) |
| Rear Rotor Included | Yes |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Rotor Construction | Vented |
| Rear Rotor Diameter | 12.19 in./309.63mm |
| Rear Rotor Thickness (in.) | 0.81 |
| Front Caliper Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Piston Quantity | Four |
| Rear Caliper Material | Forged billet aluminum |
| Rear Caliper Color | Black |
| Brake Pads Included | Yes |
| Friction Material Name | BP-10 |
| Parking Brake Provision | Yes |
| Parking Brake Style | Internal drum |
| Minimum Recommended Wheel Diameter (in.) | 15 in. |
| Offset (in.) | 3.490 in. |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Remanufactured | No |
| Brake Hoses Included | No |
| Quantity | Sold as a kit. |
