Wilwood GM D154 Brake Caliper Kits 140-12102-BK
Wilwood GM D154 Brake Caliper Kits 140-12102-BK
50 in stock
Couldn't load pickup availability
Product Description

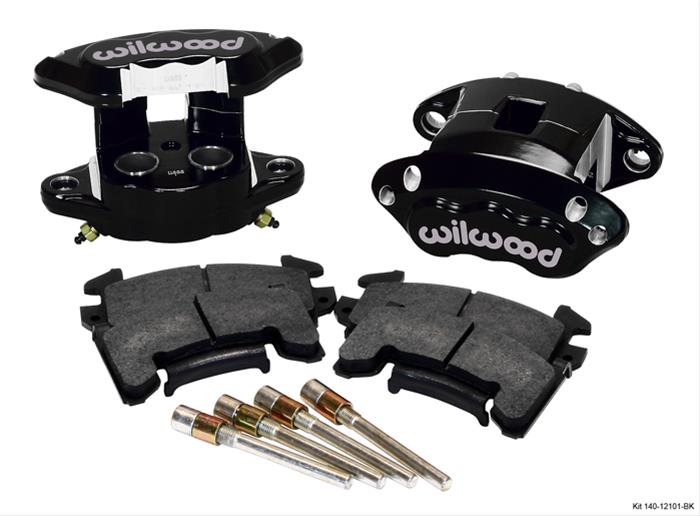

Wilwood's D154 Rear Caliper Kit offers a matching rear replacement option for our front D154 calipers. It is a direct bolt-on 2-piston replacement for the factory original single piston "Metric" calipers used on many custom application rears. With the added benefit of smaller rear piston sizing (1.96 sq-inches of area) not normally available in OEM calipers, for correct front and rear bias. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D154 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors; use the original style OE D154 brake pads and an OE M10-1.5 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. Kits contain Wilwood's hardened slide pins and BP-10 high friction pads.
End rust, bore pitting, and seal failures with Wilwood D154 caliper kits featuring forged billet aluminum bodies, stainless steel pistons, and competition-style high-temperature seals. These OE replacements are extreme-duty alternatives to your factory cast iron metric calipers. Wilwood D154 calipers mount in the stock location over stock rotors and can be used with most wheels that clear the OE calipers. Available in front and rear kits, they include hardened slide pins and BP-10 high-friction pads, offering low noise and dust. Go high performance street and strip with low maintenance, big weight savings, and high-temperature reliability from Wilwood D154 caliper kits.
Application Summary
Part Type
description
| market_ |
Wilwood''s D154 Rear Caliper Kit offers a matching rear replacement option for our front D154 calipers. It is a direct bolt-on 2-piston replacement for the factory original single piston "Metric" calipers used on many custom application rears. With the added benefit of smaller rear piston sizing (1.96 sq-inches of area) not normally available in OEM calipers, for correct front and rear bias. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D154 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors; use the original style OE D154 brake pads and an OE M10-1.5 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. Kits contain Wilwood''s hardened slide pins and BP-10 high friction pads. |
|---|---|
| product_ |
KIT,CALIPER,D154,1.12/1.12,.81 |
| product_ |
KIT,CALIPER,D154,1.12/1.12,.81 W/PADS,BLACK |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood GM D154 Brake Caliper Kits 140-12102-BK |
| brand | Wilwood Disc Brakes |
| price | 440.11 |
| blurb | Brake Calipers, GM D154, Rear, 2-piston, Aluminum, Black Powdercoated, Semi-metallic Brake Pads, Kit |
| title | Wilwood GM D154 Brake Caliper Kits |
| description | End rust, bore pitting, and seal failures with Wilwood D154 caliper kits featuring forged billet aluminum bodies, stainless steel pistons, and competition-style high-temperature seals. These OE replacements are extreme-duty alternatives to your factory cast iron metric calipers. Wilwood D154 calipers mount in the stock location over stock rotors and can be used with most wheels that clear the OE calipers. Available in front and rear kits, they include hardened slide pins and BP-10 high-friction pads, offering low noise and dust. Go high performance street and strip with low maintenance, big weight savings, and high-temperature reliability from Wilwood D154 caliper kits. |
item_row
| handle | WIL-140-12102-BK |
|---|---|
| item_ |
138674 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/136ff84cdc754312dac1523b2bb58784.JPG |
| item_ |
140-12102-BK |
| item_ |
Wilwood D154 Rear Caliper Kit - Black 1.12 / 1.12in Piston 0.81in Rotor |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545015188 |
| item_ |
440.11 |
| item_ |
475.32 |
| t14_ |
0 |
| mfr_ |
50 |
| dim_ |
15.00 |
| dim_ |
13.00 |
| dim_ |
13.00 |
| dim_ |
7.10 |
| shipping_ |
14.83 |
| item_ |
wil140-12102-BK |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold as a kit. |
| Part Type | Brake Calipers |
| Thread Size | M10 x 1.5 |
| Caliper Logo | Wilwood |
| Product Line | Wilwood GM D154 Brake Caliper Kits |
| Caliper Color | Black |
| Caliper Series | D154 |
| Remanufactured | No |
| Caliper Material | Aluminum |
| Brackets Included | No |
| Fittings Included | No |
| Brake Pad Material | Semi-metallic |
| Brake Pads Included | Yes |
| Fitting Attachment 1 | Banjo |
| Piston Diameter (in.) | 1.120 |
| Rotor Thickness (in.) | 0.810 in. |
| Caliper Piston Quantity | Two |
| Parking Brake Provision | No |
| Manufacturer's Part Number | 140-12102-BK |
