Wilwood D8-6 Brake Calipers 140-11857
Wilwood D8-6 Brake Calipers 140-11857
21 in stock
Couldn't load pickup availability
Tags
Product Description

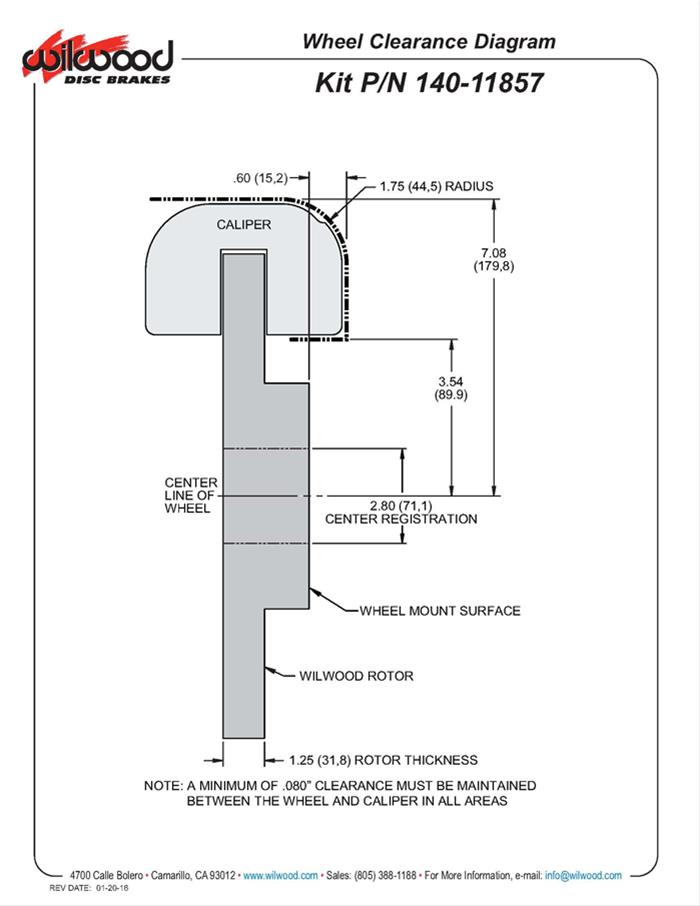

D8-6 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-6 calipers provide low-maintenance performance, a huge weight savings, high temperature reliability, and the added benefit of six piston pad clamping power. D8-6 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most '67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16" or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound "Smart Pads".
Does your Corvette need a brake caliper upgrade? These Wilwood D8-6 brake calipers are direct bolt-on replacements for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE calipers. Wilwood D8-6 brake calipers provide low-maintenance performance, a significant weight savings, high-temperature reliability, and the added benefit of 6-piston pad clamping power. D8-6 calipers mount in the stock location over stock rotors, use the original-style D8 brake pads, and fit snugly inside most '67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16 in. or wider wheel spacer for clearance. These Wilwood D8-6 brake calipers are sure to give your Corvette outstanding braking capabilities over the OE calipers.
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
D8-6 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-6 calipers provide low-maintenance performance, a huge weight savings, high temperature reliability, and the added benefit of six piston pad clamping power. D8-6 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most ''67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16" or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound "Smart Pads". |
|---|---|
| product_ |
KIT,FRONT,VETTE,65-82,D8-6 |
| product_ |
KIT,FRONT,VETTE,65-82,D8-6 CALIPERS,PAD,LINE,CLEAR |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood D8-6 Brake Calipers 140-11857 |
| brand | Wilwood Disc Brakes |
| price | 704.8 |
| blurb | Brake Calipers, D8-6, Aluminum, Gray Anodized, 6-piston, Semi-metallic Pads, Front, Chevy, Kit |
| title | Wilwood D8-6 Brake Calipers |
| description | Does your Corvette need a brake caliper upgrade? These Wilwood D8-6 brake calipers are direct bolt-on replacements for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE calipers. Wilwood D8-6 brake calipers provide low-maintenance performance, a significant weight savings, high-temperature reliability, and the added benefit of 6-piston pad clamping power. D8-6 calipers mount in the stock location over stock rotors, use the original-style D8 brake pads, and fit snugly inside most '67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16 in. or wider wheel spacer for clearance. These Wilwood D8-6 brake calipers are sure to give your Corvette outstanding braking capabilities over the OE calipers. |
item_row
| handle | WIL-140-11857 |
|---|---|
| item_ |
138202 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/5728991891ca7d0dbf8c87a1ff6091ee.JPG |
| item_ |
140-11857 |
| item_ |
Wilwood D8-6 Front Caliper Kit Clear Corvette C2 / C3 65-82 |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545014228 |
| item_ |
704.80 |
| item_ |
789.38 |
| t14_ |
4 |
| mfr_ |
24 |
| dim_ |
19.00 |
| dim_ |
13.10 |
| dim_ |
13.00 |
| dim_ |
8.80 |
| shipping_ |
14.83 |
| item_ |
wil140-11857 |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Kit also includes stainless steel braided brake hoses. |
| Quantity | Sold as a kit. |
| Part Type | Brake Calipers |
| Caliper Logo | Wilwood |
| Product Line | Wilwood D8-6 Brake Calipers |
| Caliper Color | Gray/Silver |
| Caliper Series | D8-6 |
| Remanufactured | No |
| Caliper Material | Aluminum |
| Brackets Included | No |
| Fittings Included | Yes |
| Brake Pad Material | Semi-metallic |
| Brake Pads Included | Yes |
| Caliper Piston Quantity | Six |
| Parking Brake Provision | No |
| Manufacturer's Part Number | 140-11857 |
