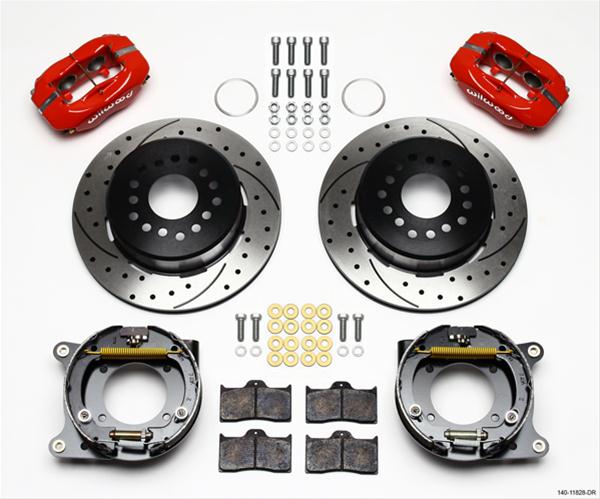

Wilwood Forged Dynalite Rear Parking Brake Kits 140-11828-DR
Wilwood Forged Dynalite Rear Parking Brake Kits 140-11828-DR
26 in stock
Couldn't load pickup availability
Tags
Product Description
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Wilwood forged Dynalite rear parking brake kits provide the best solution for many rear axles requiring a parking brake. The forged billet Dynalite 4-piston calipers, one-piece drum/rotors, and high-friction pads provide balanced braking for all types of performance street, strip, and show machines. Their internal shoe parking brake design stays hidden, but has excellent static holding power for parking. Wilwood offers optional caliper finishes and rotor designs to enable the builder to personalize the style and optimize brake performance for every individual application.
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. |
|---|---|
| product_ |
KIT,REAR,DISC/DRUM,IMPALA 59--64/VETTE |
| product_ |
KIT,REAR,DISC/DRUM,IMPALA 59--64/VETTE 57-62,12.19x.81,REAR,DRILLED,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Dynalite Rear Parking Brake Kits 140-11828-DR |
| brand | Wilwood Disc Brakes |
| price | 1148.49 |
| blurb | Disc Brakes, Dynalite Pro Series Rear Parking Disc, Solid, 12.19 in., Red, Chevy, Kit |
| title | Wilwood Forged Dynalite Rear Parking Brake Kits |
| description | Wilwood forged Dynalite rear parking brake kits provide the best solution for many rear axles requiring a parking brake. The forged billet Dynalite 4-piston calipers, one-piece drum/rotors, and high-friction pads provide balanced braking for all types of performance street, strip, and show machines. Their internal shoe parking brake design stays hidden, but has excellent static holding power for parking. Wilwood offers optional caliper finishes and rotor designs to enable the builder to personalize the style and optimize brake performance for every individual application. |
item_row
| handle | WIL-140-11828-DR |
|---|---|
| item_ |
136870 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/3b214232b60da7dc6e41c54deec413db.JPG |
| item_ |
140-11828-DR |
| item_ |
Wilwood Forged Dynalite P/S Park Brake Kit Drill-Red Impala 59-64 / Corvette 57-62 |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545014204 |
| item_ |
1148.49 |
| item_ |
1286.31 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
49.40 |
| dim_ |
16.80 |
| dim_ |
13.70 |
| dim_ |
13.60 |
| shipping_ |
17.34 |
| item_ |
wil140-11828-DR |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Kit will fit some 15.00 in. wheels, minimum 7.17 in. distance required from centerline of axle to top of caliper. |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.460 in. |
| Product Line | Wilwood Forged Dynalite Rear Parking Brake Kits |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Caliper Color | Red |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 12.19 in./309.63mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Axle Housing Flange Style | Chevrolet 55-64/Corvette 56-62 (3.396 in. x 2.65 in.) |
| Manufacturer's Part Number | 140-11828-DR |
| Rear Rotor Thickness (in.) | 0.81 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | Dual 5 x 120.65mm/5 x 127.00mm |
| Differential Case Design Type | GM 8.2 in. |
| Brake Rotor Bolt Pattern (in.) | Dual 5 x 4.75 in./5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 15 in. |
