Wilwood Forged DynaPro Low-Profile Dust Seal Rear Parking Brake Kits 140-11403-P
Wilwood Forged DynaPro Low-Profile Dust Seal Rear Parking Brake Kits 140-11403-P
4 in stock
Couldn't load pickup availability
Product Description

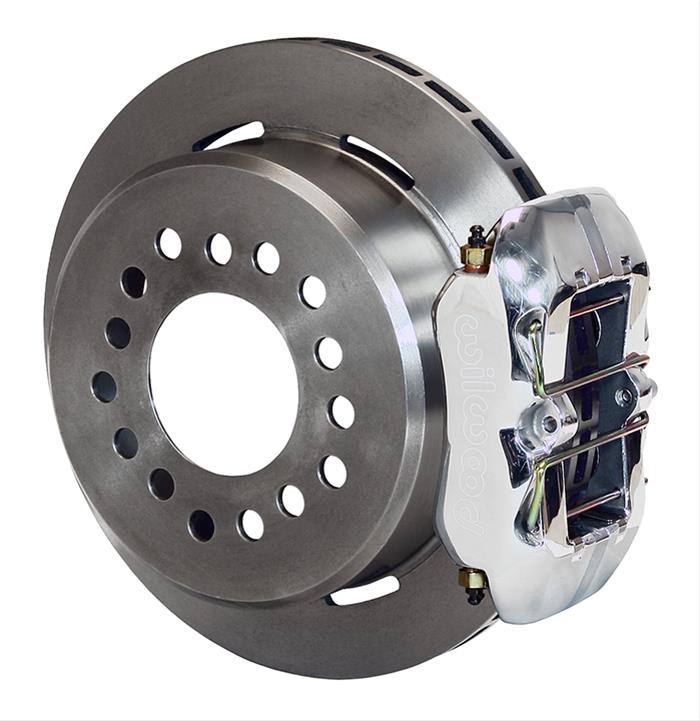

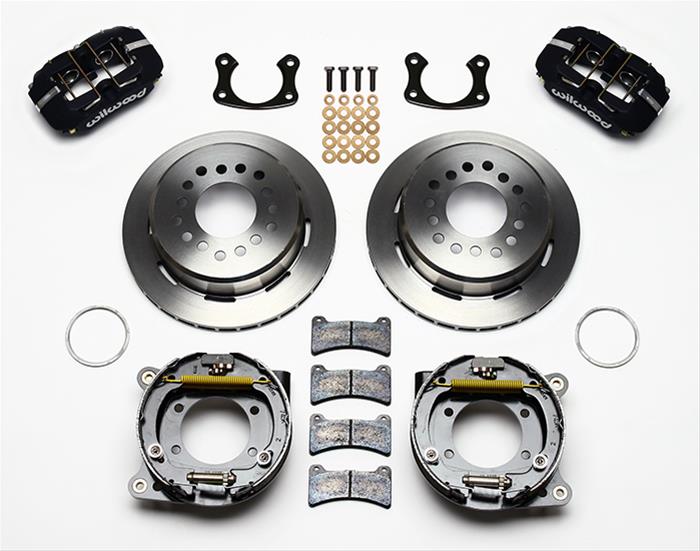

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00" to 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Wilwood Forged Dynapro Low-Profile Dust Seal Pro-Series rear disc brake kits offer a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14 in. to 15 in. rim applications. Forged billet Dynapro Low-Profile 4-piston calipers with dust seals, 11 in. one-piece hat and rotor assemblies, and high-friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Application Summary
Part Type
description
| market_ |
Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00" to 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. |
|---|---|
| product_ |
KIT,REAR,DISC/DRUM,SMALL FORD |
| product_ |
KIT,REAR,DISC/DRUM,SMALL FORD 2.50,1PC 11.0 X .81,POLISH |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged DynaPro Low-Profile Dust Seal Rear Parking Brake Kits 140-11403-P |
| brand | Wilwood Disc Brakes |
| price | 1018.24 |
| blurb | Disc Brake Kit, Forged DynaPro Low-Profile, Rear, 11 in Solid Rotor, 4-Piston Polished Caliper, 2.50 in. OS, Small Ford, Kit |
| title | Wilwood Forged DynaPro Low-Profile Dust Seal Rear Parking Brake Kits |
| description | Wilwood Forged Dynapro Low-Profile Dust Seal Pro-Series rear disc brake kits offer a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14 in. to 15 in. rim applications. Forged billet Dynapro Low-Profile 4-piston calipers with dust seals, 11 in. one-piece hat and rotor assemblies, and high-friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. |
item_row
| handle | WIL-140-11403-P |
|---|---|
| item_ |
136896 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/f842039911e7c1a915585f0ea5bd7005.JPG |
| item_ |
140-11403-P |
| item_ |
Wilwood Dynapro Low-Profile 11.00in P-Brake Kit - Polish Small Ford 2.50in Offset |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545013481 |
| item_ |
1143.24 |
| item_ |
1280.43 |
| t14_ |
0 |
| mfr_ |
6 |
| dim_ |
44.00 |
| dim_ |
16.60 |
| dim_ |
13.90 |
| dim_ |
13.90 |
| shipping_ |
16.82 |
| item_ |
wil140-11403-P |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.500 in. |
| Product Line | Wilwood Forged DynaPro Low-Profile Dust Seal Rear Parking Brake Kits |
| Rear Rotor Style | Solid surface |
| Rear Caliper Color | Polished |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 14.00 in./355.60mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |

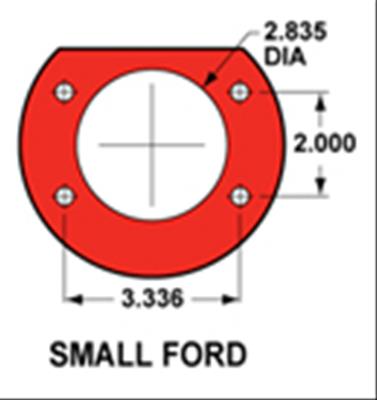

| Axle Housing Flange Style | Small Ford (3.336 in. x 2.00 in.) |
| Manufacturer's Part Number | 140-11403-P |
| Rear Rotor Thickness (in.) | 0.81 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 14 in. |
