Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits 140-11348
Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits 140-11348
19 in stock
Couldn't load pickup availability
Product Description

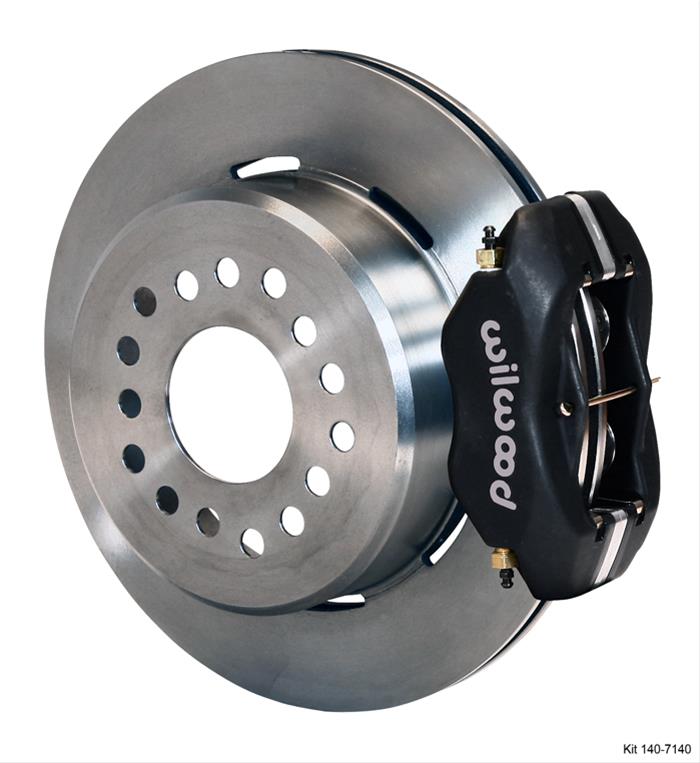

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

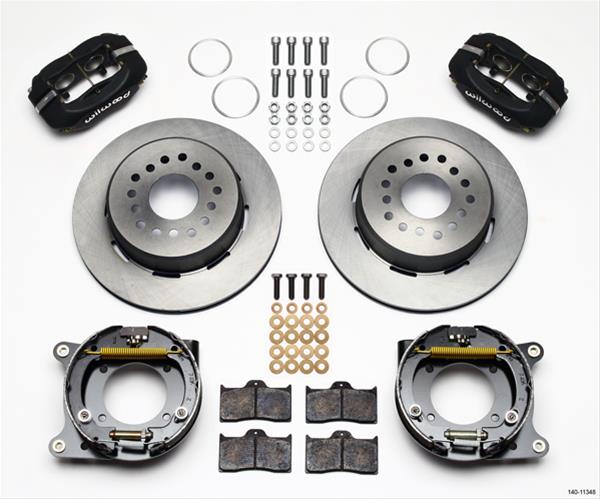

Do you want to get rid of your old-fashioned rear drums and upgrade to modern disc brakes without giving up the parking brake? Wilwood has the answer with their high performance Forged Dynalite Pro series disc rear parking brake kits. They combine forged, 4-piston, forged billet Dynalite calipers and big solid or vented iron rotors with integral parking brake "hats." This gives you big-time stopping power and still maintains the parking function. These kits also include preassembled parking brake mechanisms, PolyMatrix brake pads, mounting brackets, and all necessary installation hardware.
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. |
|---|---|
| product_ |
KIT,REAR,DISC/DRUM,55-57 CHEVY,5 LUG |
| product_ |
KIT,REAR,DISC/DRUM,55-57 CHEVY,5 LUG 2.34 OFFSET,1PC ROTOR,BLACK |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits 140-11348 |
| brand | Wilwood Disc Brakes |
| price | 1023.49 |
| blurb | Disc Brake Kit, Dynalite Pro, Rear, Solid Rotor, 4-Piston Caliper, Black, GM, Kit |
| title | Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits |
| description | Do you want to get rid of your old-fashioned rear drums and upgrade to modern disc brakes without giving up the parking brake? Wilwood has the answer with their high performance Forged Dynalite Pro series disc rear parking brake kits. They combine forged, 4-piston, forged billet Dynalite calipers and big solid or vented iron rotors with integral parking brake "hats." This gives you big-time stopping power and still maintains the parking function. These kits also include preassembled parking brake mechanisms, PolyMatrix brake pads, mounting brackets, and all necessary installation hardware. |
item_row
| handle | WIL-140-11348 |
|---|---|
| item_ |
136979 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/b42e8515cc9ac94007d0156110e0d11e.JPG |
| item_ |
140-11348 |
| item_ |
Wilwood Forged Dynalite P/S Park Brake Kit 55-57 Chevy 2.34in Offset |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545012637 |
| item_ |
1023.49 |
| item_ |
1146.31 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
50.00 |
| dim_ |
16.60 |
| dim_ |
13.90 |
| dim_ |
13.90 |
| shipping_ |
17.34 |
| item_ |
wil140-11348 |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|

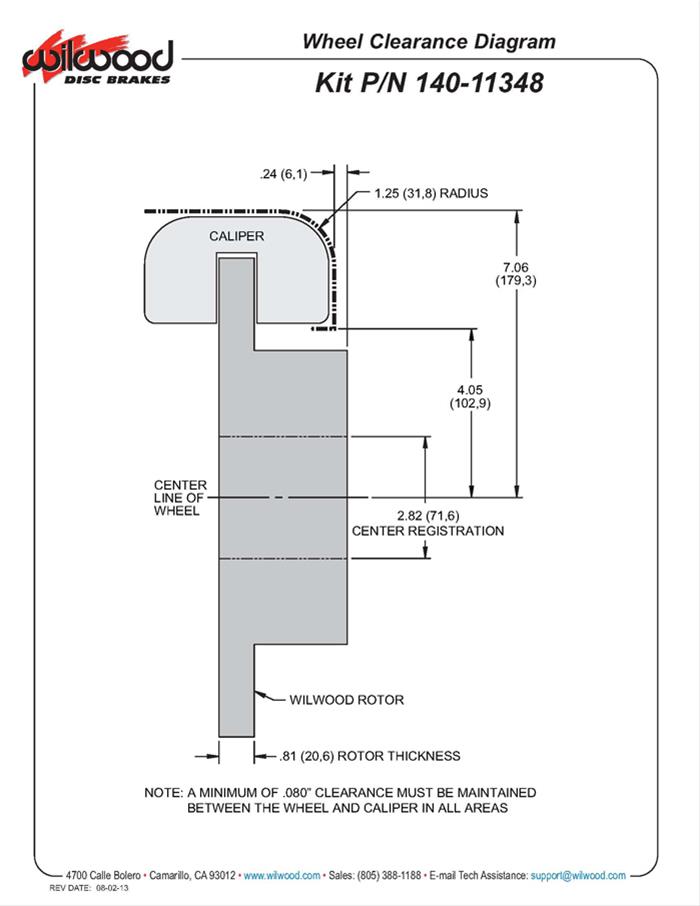

| Notes | Kit may fit some 15 inch wheels. Check wheel clearance diagram in kit installation instructions before purchase. |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.340 in. |
| Product Line | Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits |
| Rear Rotor Style | Solid surface |
| Rear Caliper Color | Black |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 12.19 in./309.63mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |

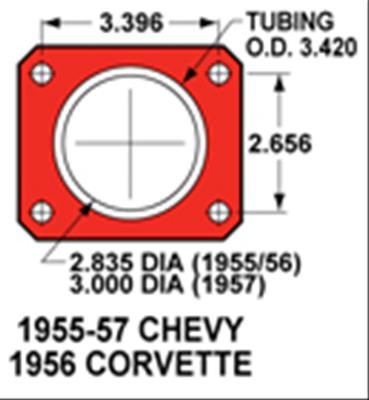

| Axle Housing Flange Style | Chevrolet 55-64/Corvette 56-62 (3.396 in. x 2.65 in.) |
| Manufacturer's Part Number | 140-11348 |
| Rear Rotor Thickness (in.) | 0.81 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 15 in. |
