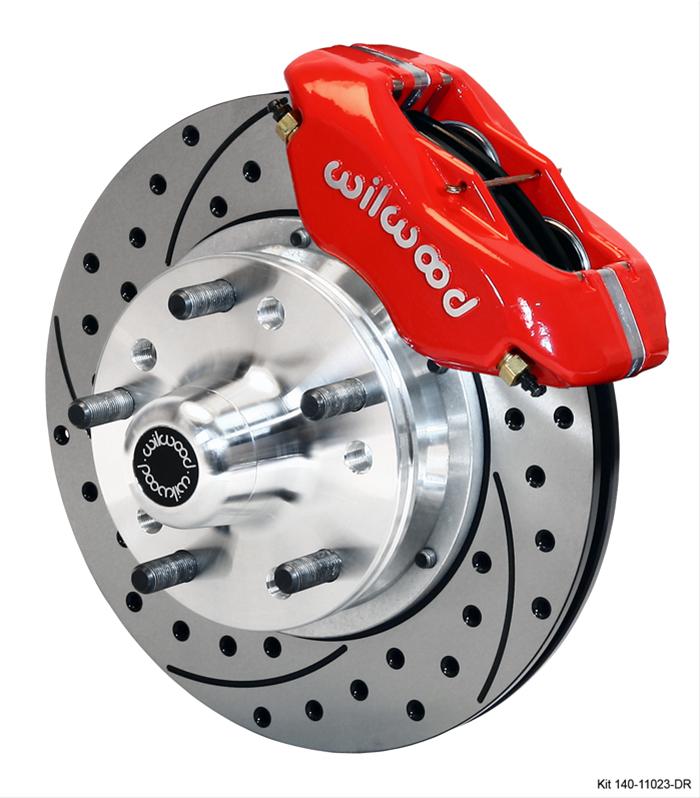

Wilwood Forged Dynalite Pro Series Front Disc Brake Kits 140-11023-DR
Wilwood Forged Dynalite Pro Series Front Disc Brake Kits 140-11023-DR
17 in stock
Couldn't load pickup availability
Tags
Product Description

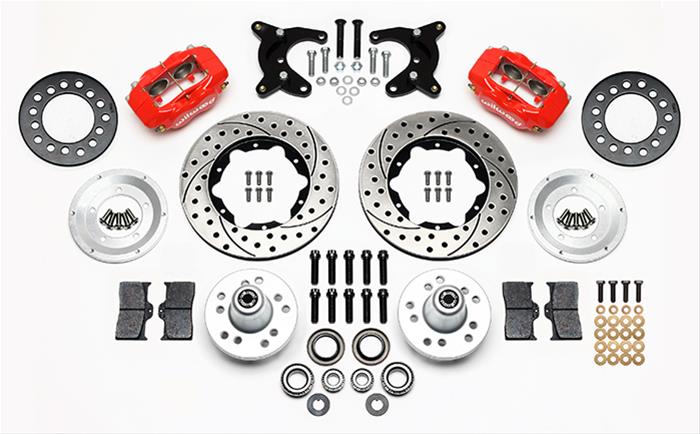

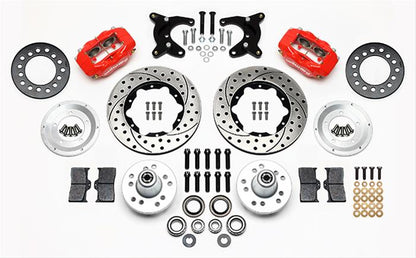

Wilwood's new limited offset FDL Pro-Series Front Hub Kits for Dodge & Plymouth 1965-1972 A-Body vehicles, offer disc brake upgrade solutions for OEM 10" inch drum brake spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit widens the track with by only +.20" from original Drum brake position. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete calipers, rotors, hub assembly, brackets and hardware. Requires purchase of additional brake lines shown below.
Wilwood's Forged Dynalite Pro series front disc brake kits are designed to provide unmatched performance with classic, high-tech styling for a wide variety of street rods, musclecars, hot rods, and heavy drag cars. The kits combine the powerful clamping force of Dynalite calipers with the added performance and cooling capacity of competition-style vented rotors. Other features include hubs, brake pads, caliper brackets, mounting hardware, and detailed instructions for an easy bolt-on installation. In addition to everything else, these kits can also cut as much as 35 lbs. off of your front-end.
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
Wilwood''s new limited offset FDL Pro-Series Front Hub Kits for Dodge & Plymouth 1965-1972 A-Body vehicles, offer disc brake upgrade solutions for OEM 10" inch drum brake spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit widens the track with by only +.20" from original Drum brake position. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete calipers, rotors, hub assembly, brackets and hardware. Requires purchase of additional brake lines shown below. |
|---|---|
| product_ |
KIT,FRONT,FDL,A BODY,65-72,10in. DRUM |
| product_ |
KIT,FRONT,FDL,A BODY,65-72,10in. DRUM 11.00 ROTOR,VENTED,DRILLED,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Dynalite Pro Series Front Disc Brake Kits 140-11023-DR |
| brand | Wilwood Disc Brakes |
| price | 1099.3 |
| blurb | Disc Brakes, Dynalite Pro, Front, Cross-drilled/Slotted Surface Rotors, 4-piston Calipers, Red, Dodge, Kit |
| title | Wilwood Forged Dynalite Pro Series Front Disc Brake Kits |
| description | Wilwood's Forged Dynalite Pro series front disc brake kits are designed to provide unmatched performance with classic, high-tech styling for a wide variety of street rods, musclecars, hot rods, and heavy drag cars. The kits combine the powerful clamping force of Dynalite calipers with the added performance and cooling capacity of competition-style vented rotors. Other features include hubs, brake pads, caliper brackets, mounting hardware, and detailed instructions for an easy bolt-on installation. In addition to everything else, these kits can also cut as much as 35 lbs. off of your front-end. |
item_row
| handle | WIL-140-11023-DR |
|---|---|
| item_ |
138471 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/0ad89c20c9e45c62b716082a126c1f02.JPG |
| item_ |
140-11023-DR |
| item_ |
Wilwood Forged Dynalite Front Kit 11.00in Drilled Red 65-72 CDP A Body - 10in Drum |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545012149 |
| item_ |
1099.30 |
| item_ |
1231.22 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
41.10 |
| dim_ |
12.80 |
| dim_ |
12.70 |
| dim_ |
11.80 |
| shipping_ |
16.43 |
| item_ |
wil140-11023-DR |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|

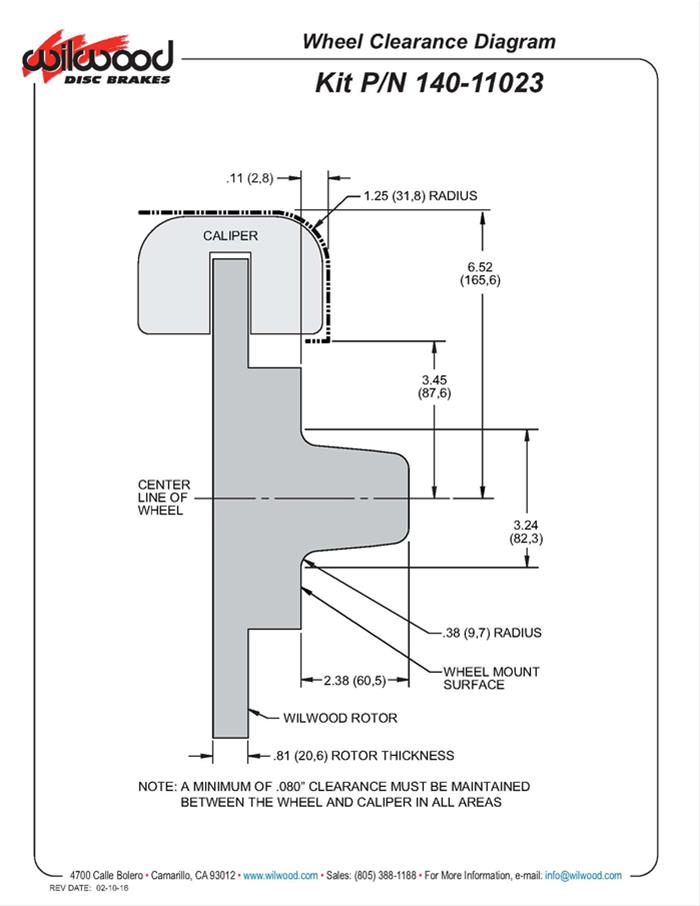

| Notes | Includes 1/2 in.-20 wheel studs. Fits applications with factory 10 inch drum brake spindles. Wilwood hubs in this kit require a larger center hole in wheel than factory hub. Please verify that your wheel has a center hole at least 3.050 inch in diameter. |
| Position | Front |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 0.200 in. |
| Product Line | Wilwood Forged Dynalite Pro Series Front Disc Brake Kits |
| Front Rotor Style | Cross-drilled/Slotted surface |
| Front Caliper Color | Red |
| Rear Rotor Included | No |
| Brake Hoses Included | No |
| Front Rotor Diameter | 11.00 in./279.40mm |
| Front Rotor Included | Yes |
| Rear Caliper Included | No |
| Brake Booster Included | No |
| Front Caliper Included | Yes |
| Front Caliper Material | Forged billet aluminum |
| Front Spindles Included | No |
| Parking Brake Provision | No |
| Front Rotor Construction | Vented |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 140-11023-DR |
| Front Rotor Thickness (in.) | 0.81 in. |
| Brake Rotor Bolt Pattern (mm) | Dual 5 x 101.60mm/5 x 114.30mm |
| Front Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (in.) | Dual 5 x 4.00 in./5 x 4.50 in. |
| Minimum Recommended Wheel Diameter (in.) | 14 in. |
