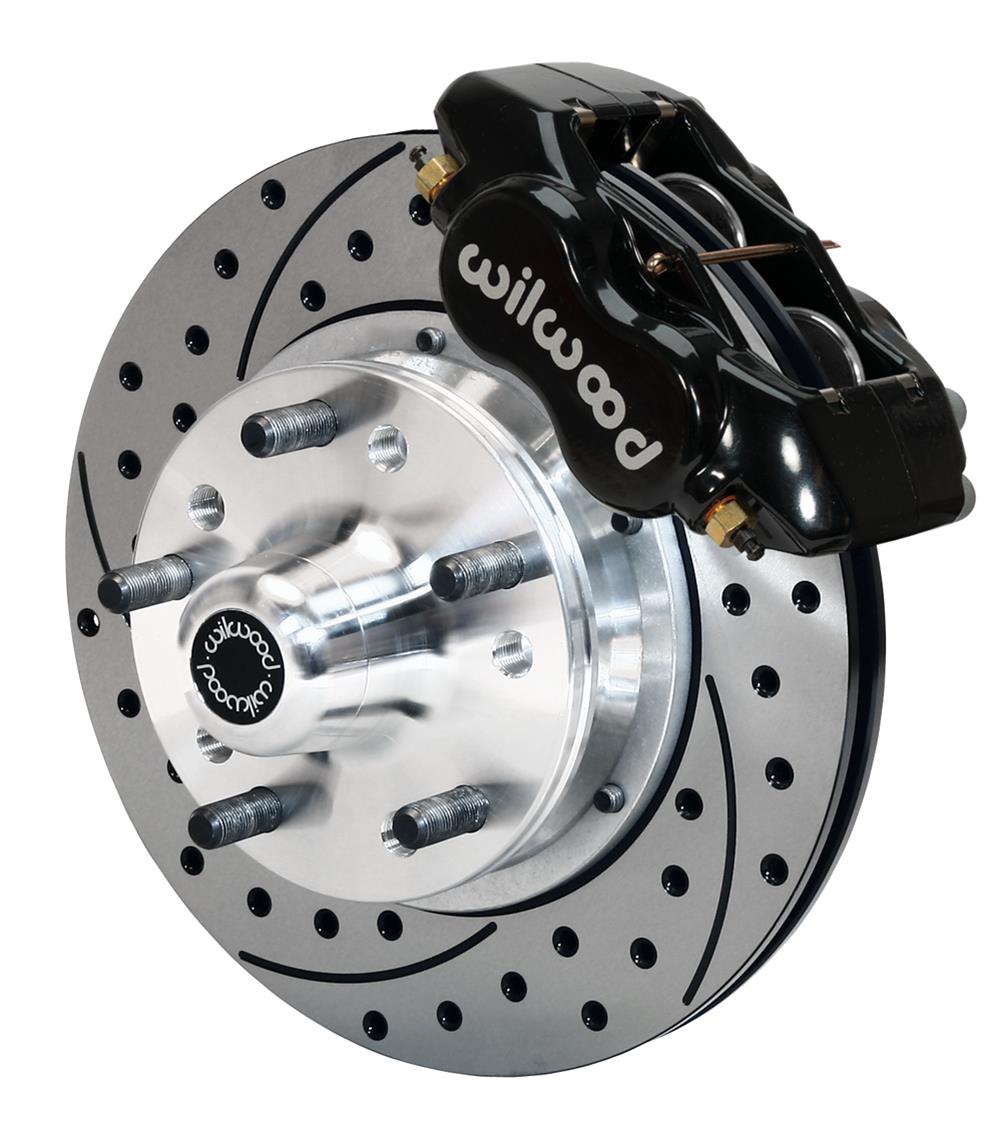

Wilwood Forged Dynalite Pro Series Front Disc Brake Kits 140-10996-D

Wilwood Forged Dynalite Pro Series Front Disc Brake Kits 140-10996-D

$1,303.42 AUD
$1,216.52 AUD $1,303.42 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

51 in stock

Product Description

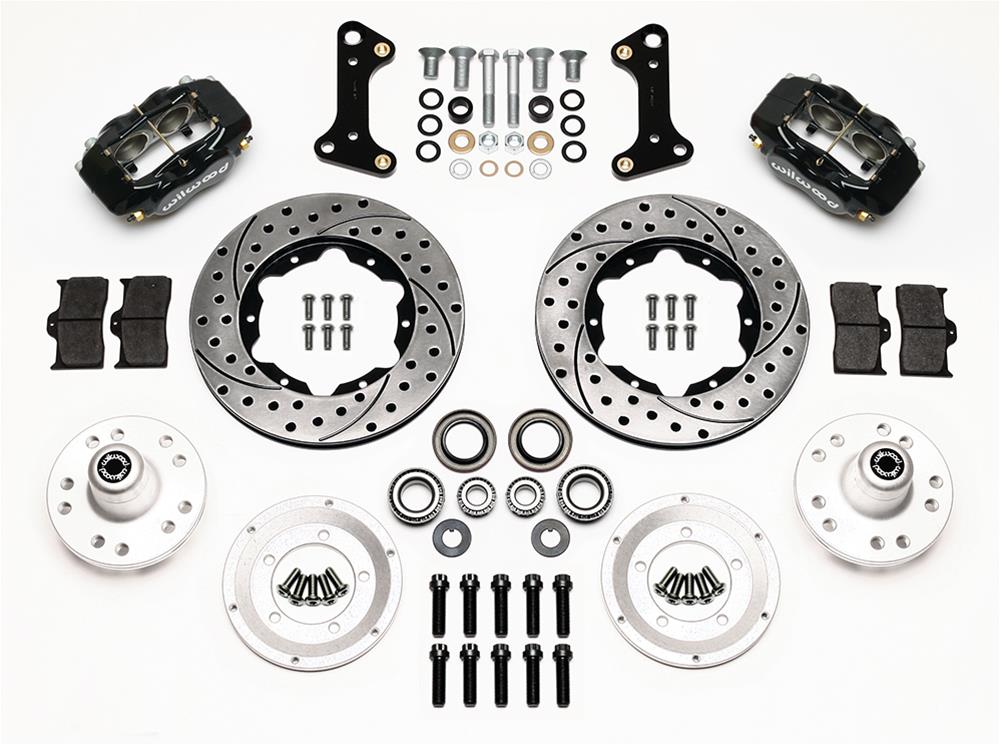

Wilwood's new limited offset FDL Pro-Series Front Hub Kits for GM 1967-1969 F-Body and 1964-1974 A-Body vehicles offer disc brake upgrade solutions for both OEM Disc & Drum spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit widens the track by only +.19" from original drum brake position or narrows by -.31" from the original disc brake rotor assembly. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Installation requires purchase of additional brake lines shown below.

Wilwood's Forged Dynalite Pro series front disc brake kits are designed to provide unmatched performance with classic, high-tech styling for a wide variety of street rods, musclecars, hot rods, and heavy drag cars. The kits combine the powerful clamping force of Dynalite calipers with the added performance and cooling capacity of competition-style vented rotors. Other features include hubs, brake pads, caliper brackets, mounting hardware, and detailed instructions for an easy bolt-on installation. In addition to everything else, these kits can also cut as much as 35 lbs. off of your front-end.

Application Summary

Fitment

Buick Apollo 1973–1974 Buick Gran Sport 1965–1967 Buick Skylark 1964–1972 Buick Riviera 1971
Chevrolet Camaro 1967–1969 Chevrolet Chevelle 1967–1972 Chevrolet Chevy II 1964, 1967–1968 Chevrolet El Camino 1967–1972 Chevrolet Monte Carlo 1970–1972 Chevrolet Nova 1969–1974
GMC Sprint 1971–1972
Oldsmobile 442 1967–1971 Oldsmobile Cutlass 1967–1972 Oldsmobile Cutlass Supreme 1971–1972 Oldsmobile Omega 1973–1974 Oldsmobile Vista Cruiser 1967–1972
Pontiac Firebird 1967–1969 Pontiac Grand Prix 1969 Pontiac GTO 1967–1971 Pontiac LeMans 1964–1972 Pontiac Ventura 1971–1974 Pontiac Tempest 1967

Part Type

Overview

Brand Wilwood Disc Brakes
Notes Includes 1/2 in.-20 wheel studs. Rotors feature a black electroplated finish.
Position Front
Quantity Sold as a kit.
Part Type Disc Brake Kits
Product Line Wilwood Forged Dynalite Pro Series Front Disc Brake Kits
Front Rotor Style Cross-drilled/Slotted surface
Front Caliper Color Black
Rear Rotor Included No
Brake Hoses Included No
Front Rotor Diameter 11.00 in./279.40mm
Front Rotor Included Yes
Rear Caliper Included No
Brake Booster Included No
Front Caliper Included Yes
Front Caliper Material Forged billet aluminum
Front Spindles Included No
Parking Brake Provision No
Front Rotor Construction Vented
Master Cylinder Included No
Manufacturer's Part Number 140-10996-D
Front Rotor Thickness (in.) 0.81 in.
Brake Rotor Bolt Pattern (mm) Dual 5 x 114.30mm/5 x 120.65mm
Front Caliper Piston Quantity Four
Brake Rotor Bolt Pattern (in.) Dual 5 x 4.50 in./5 x 4.75 in.
Minimum Recommended Wheel Diameter (in.) 14 in.
