Wilwood AERO4 Big Brake Rear Parking Brake Kits 140-10951-D
Wilwood AERO4 Big Brake Rear Parking Brake Kits 140-10951-D
8 in stock
Couldn't load pickup availability
Product Description

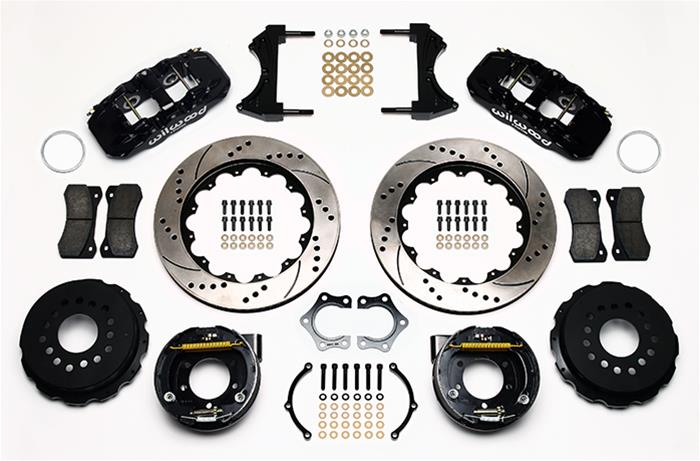

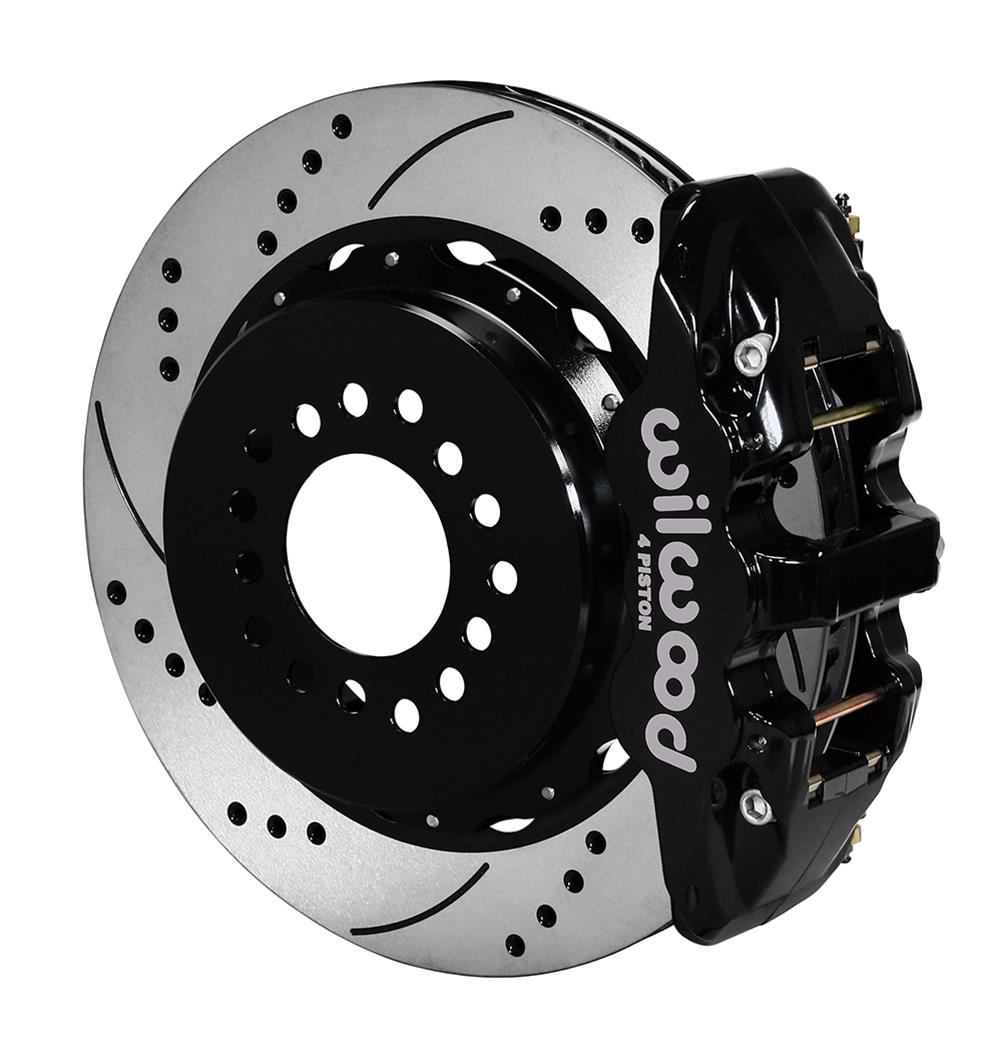

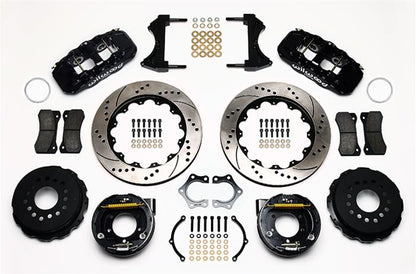

AERO4 Rear Parking Brake kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. Forged AERO4 four piston calipers, 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.
Wilwood AERO4 Big Brake rear parking brake kits replace the factory disc brakes and use the OE parking brake assembly as a complement to front big brake upgrades on late model trucks, SUVs, and high performance vehicles. High-capacity braking from the AERO4 calipers (black or red powdercoat), high-friction BP compound pads, and oversized rotors (slotted or drilled/slotted) are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Wilwood AERO4 Big Brake rear parking brake kits provide enhanced brake performance, increased durability, and high-tech style to complement big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
Application Summary
Part Type
description
| market_ |
AERO4 Rear Parking Brake kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. Forged AERO4 four piston calipers, 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application. |
|---|---|
| product_ |
KIT,REAR,MOPAR/DANA,GREEN/SNAP RING,2.36 |
| product_ |
KIT,REAR,MOPAR/DANA,GREEN/SNAP RING,2.36 OFFSET,AERO4,14.00 ROTOR,SRP |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood AERO4 Big Brake Rear Parking Brake Kits 140-10951-D |
| brand | Wilwood Disc Brakes |
| price | 2275.99 |
| blurb | W4A Rear Kit,14.00", Drilled |
| title | Wilwood AERO4 Big Brake Rear Parking Brake Kits |
| description | Wilwood AERO4 Big Brake rear parking brake kits replace the factory disc brakes and use the OE parking brake assembly as a complement to front big brake upgrades on late model trucks, SUVs, and high performance vehicles. High-capacity braking from the AERO4 calipers (black or red powdercoat), high-friction BP compound pads, and oversized rotors (slotted or drilled/slotted) are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Wilwood AERO4 Big Brake rear parking brake kits provide enhanced brake performance, increased durability, and high-tech style to complement big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements. |
item_row
| handle | WIL-140-10951-D |
|---|---|
| item_ |
137864 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/73c42d791ec7949907a3ea7b9719ea8f.JPG |
| item_ |
140-10951-D |
| item_ |
Wilwood AERO4 Rear P-Brake Kit 14.00in Drilled Mopar/Dana 2.36in Off w/Snap Ring Brng |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545011258 |
| item_ |
2275.99 |
| item_ |
2549.11 |
| t14_ |
0 |
| mfr_ |
12 |
| dim_ |
81.00 |
| dim_ |
16.00 |
| dim_ |
15.80 |
| dim_ |
15.50 |
| shipping_ |
34.21 |
| item_ |
wil140-10951-D |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Fits multiple vehicles with 8.75 in. Mopar/9.75 in. Mopar/Dana 60 rear end. |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.360 in. |
| Product Line | Wilwood AERO4 Big Brake Rear Parking Brake Kits |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Caliper Color | Black |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 14.00 in./355.60mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | No |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Axle Housing Flange Style | Mopar/Dana 60 5-Bolt (2.875 in. Bearing) |
| Manufacturer's Part Number | 140-10951-D |
| Rear Rotor Thickness (in.) | 1.10 |
| Rear Caliper Piston Quantity | Four |
| Differential Case Design Type | Chrysler 8.75/9.75 in./Dana 60 |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 18 in. |
