Wilwood AERO4 Big Brake Rear Brake Kits 140-10945-R
Wilwood AERO4 Big Brake Rear Brake Kits 140-10945-R
5 in stock
Couldn't load pickup availability
Product Description

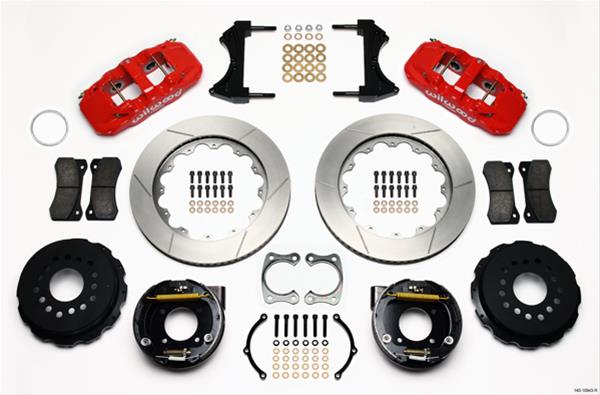

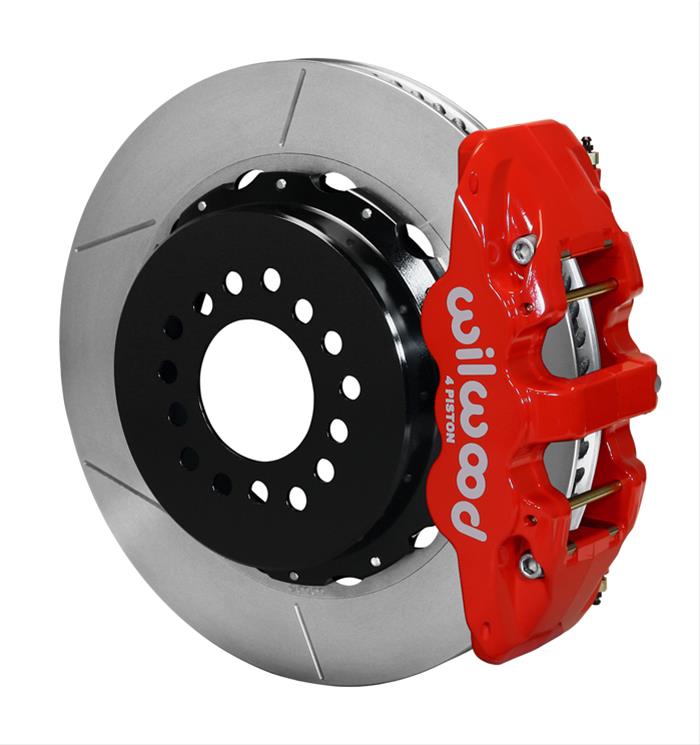

AERO4 Rear Parking Brake kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. Forged AERO4 four piston calipers, 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.
Maximize your braking power with AERO4 radial rear disc kits from Wilwood! They provide the ultimate Big Brake solution for muscle car rear axles that require a parking brake. The 4-piston calipers, 2-piece rotors, and high performance BP-10 compound pads deliver both optimized and balanced braking to complement front big brake upgrades on all types of custom, show, and high performance street machines. Plus, the neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs are offered to further personalize style and performance for every application. Order the Wilwood AERO4 Big Brake rear brake kit designed for fitment with your axle and wheel bolt pattern.
Application Summary
Part Type
description
| market_ |
AERO4 Rear Parking Brake kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. Forged AERO4 four piston calipers, 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application. |
|---|---|
| product_ |
KIT,REAR,12 BOLT CHEVY,3.15 BEARING,2.81 |
| product_ |
KIT,REAR,12 BOLT CHEVY,3.15 BEARING,2.81 OFFSET,AERO4,14.00 ROTOR,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood AERO4 Big Brake Rear Brake Kits 140-10945-R |
| brand | Wilwood Disc Brakes |
| price | 2150.99 |
| blurb | Disc Brakes, Rear, AERO4, Big Brake, Slotted Rotors, 4-Piston Red Calipers, Chevy, Kit |
| title | Wilwood AERO4 Big Brake Rear Brake Kits |
| description | Maximize your braking power with AERO4 radial rear disc kits from Wilwood! They provide the ultimate Big Brake solution for muscle car rear axles that require a parking brake. The 4-piston calipers, 2-piece rotors, and high performance BP-10 compound pads deliver both optimized and balanced braking to complement front big brake upgrades on all types of custom, show, and high performance street machines. Plus, the neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs are offered to further personalize style and performance for every application. Order the Wilwood AERO4 Big Brake rear brake kit designed for fitment with your axle and wheel bolt pattern. |
item_row
| handle | WIL-140-10945-R |
|---|---|
| item_ |
137886 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/ba74265ab1d3853635856f835c07fa77.JPG |
| item_ |
140-10945-R |
| item_ |
Wilwood AERO4 Rear P-Brake Kit 14.00in Red Chevy 12 Bolt-Spec 3.15in Brng |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545011036 |
| item_ |
2275.99 |
| item_ |
2549.11 |
| t14_ |
0 |
| mfr_ |
7 |
| dim_ |
83.00 |
| dim_ |
16.00 |
| dim_ |
15.80 |
| dim_ |
15.50 |
| shipping_ |
34.75 |
| item_ |
wil140-10945-R |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | For Chevy 12-bolt special rear end applications.Uses 3.15 in. fixed bearings. |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.810 in. |
| Product Line | Wilwood AERO4 Big Brake Rear Brake Kits |
| Rear Rotor Style | Slotted surface |
| Rear Caliper Color | Red |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 14.00 in./355.60mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Axle Housing Flange Style | Chevrolet Special (3.072 in. x 2.40 in.) |
| Manufacturer's Part Number | 140-10945-R |
| Rear Rotor Thickness (in.) | 1.10 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm |
| Differential Case Design Type | GM 8.875 in. (12-bolt), passenger car |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 18 in. |
