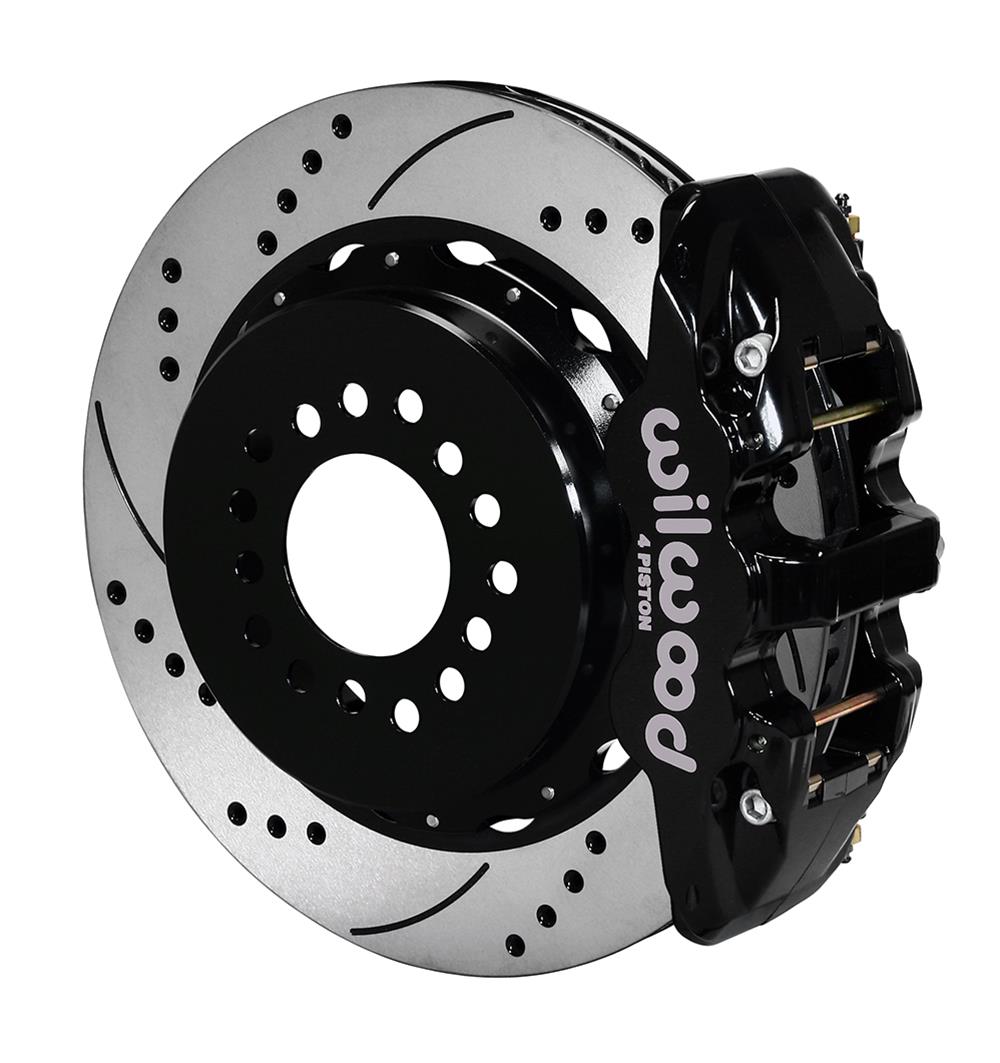

Wilwood AERO4 Big Brake Rear Parking Brake Kits 140-10945-D
Wilwood AERO4 Big Brake Rear Parking Brake Kits 140-10945-D
5 in stock
Couldn't load pickup availability
Product Description

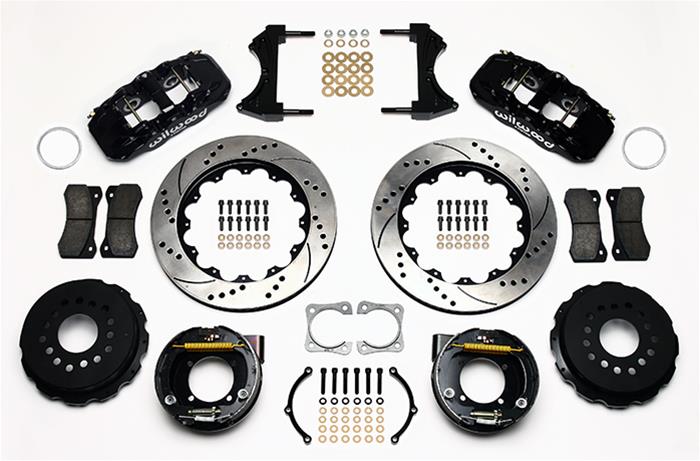

AERO4 Rear Parking Brake kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. Forged AERO4 four piston calipers, 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.
Wilwood AERO4 Big Brake rear parking brake kits replace the factory disc brakes and use the OE parking brake assembly as a complement to front big brake upgrades on late model trucks, SUVs, and high performance vehicles. High-capacity braking from the AERO4 calipers (black or red powdercoat), high-friction BP compound pads, and oversized rotors (slotted or drilled/slotted) are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Wilwood AERO4 Big Brake rear parking brake kits provide enhanced brake performance, increased durability, and high-tech style to complement big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
Application Summary
Part Type
description
| market_ |
AERO4 Rear Parking Brake kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. Forged AERO4 four piston calipers, 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application. |
|---|---|
| product_ |
KIT,REAR,12 BOLT CHEVY,3.15 BEARING,2.81 |
| product_ |
KIT,REAR,12 BOLT CHEVY,3.15 BEARING,2.81 OFFSET,AERO4,14.00 ROTOR,SRP |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood AERO4 Big Brake Rear Parking Brake Kits 140-10945-D |
| brand | Wilwood Disc Brakes |
| price | 2275.99 |
| blurb | Disc Brake Kit, AERO4 Big Brake Parking, Rear,14 in Slotted/Drilled Rotor, 4-Piston Black Powdercoat Caliper, 2.81 in. OS, Chevy Special, Kit |
| title | Wilwood AERO4 Big Brake Rear Parking Brake Kits |
| description | Wilwood AERO4 Big Brake rear parking brake kits replace the factory disc brakes and use the OE parking brake assembly as a complement to front big brake upgrades on late model trucks, SUVs, and high performance vehicles. High-capacity braking from the AERO4 calipers (black or red powdercoat), high-friction BP compound pads, and oversized rotors (slotted or drilled/slotted) are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Wilwood AERO4 Big Brake rear parking brake kits provide enhanced brake performance, increased durability, and high-tech style to complement big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements. |
item_row
| handle | WIL-140-10945-D |
|---|---|
| item_ |
137888 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/5188b336092f4d13118397e0dafe473a.JPG |
| item_ |
140-10945-D |
| item_ |
Wilwood AERO4 Rear P-Brake Kit 14.00in Drilled Chevy 12 Bolt-Spec 3.15in Brng |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545011012 |
| item_ |
2275.99 |
| item_ |
2549.11 |
| t14_ |
0 |
| mfr_ |
7 |
| dim_ |
74.30 |
| dim_ |
16.20 |
| dim_ |
15.90 |
| dim_ |
15.20 |
| shipping_ |
34.75 |
| item_ |
wil140-10945-D |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Uses a 3.15 in. fixed bearing. |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.810 in. |
| Product Line | Wilwood AERO4 Big Brake Rear Parking Brake Kits |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Caliper Color | Black |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 14.00 in./355.60mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Axle Housing Flange Style | Chevrolet Special (3.072 in. x 2.40 in.) |
| Manufacturer's Part Number | 140-10945-D |
| Rear Rotor Thickness (in.) | 1.10 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm |
| Differential Case Design Type | GM 8.875 in. (12-bolt), passenger car |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 18 in. |
