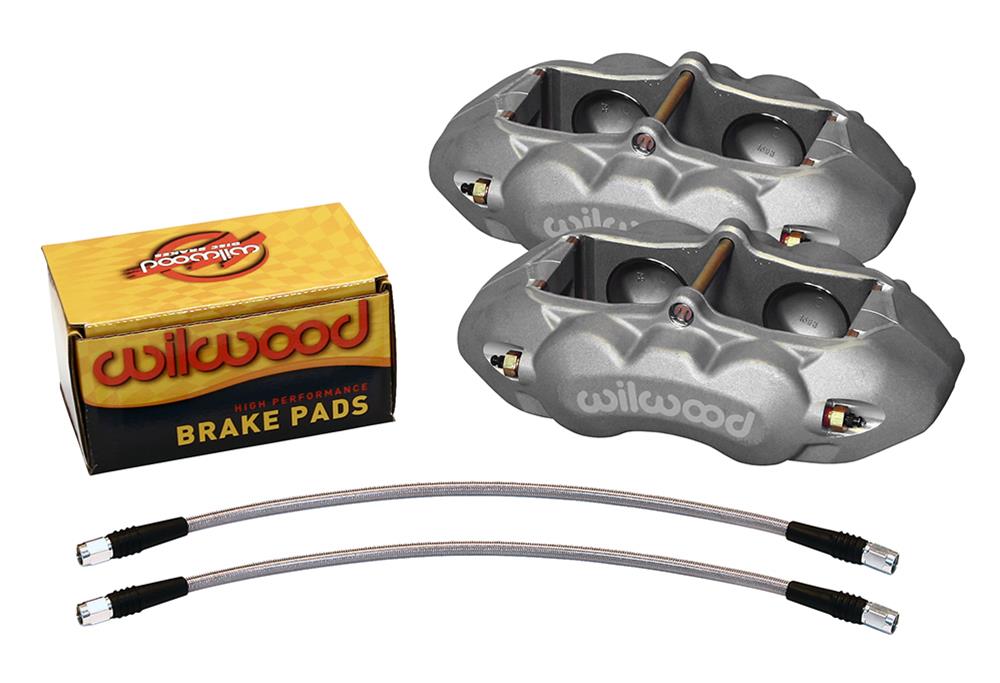

Wilwood D8-4 Brake Calipers 140-10789
Wilwood D8-4 Brake Calipers 140-10789
54 in stock
Couldn't load pickup availability
Tags
Product Description

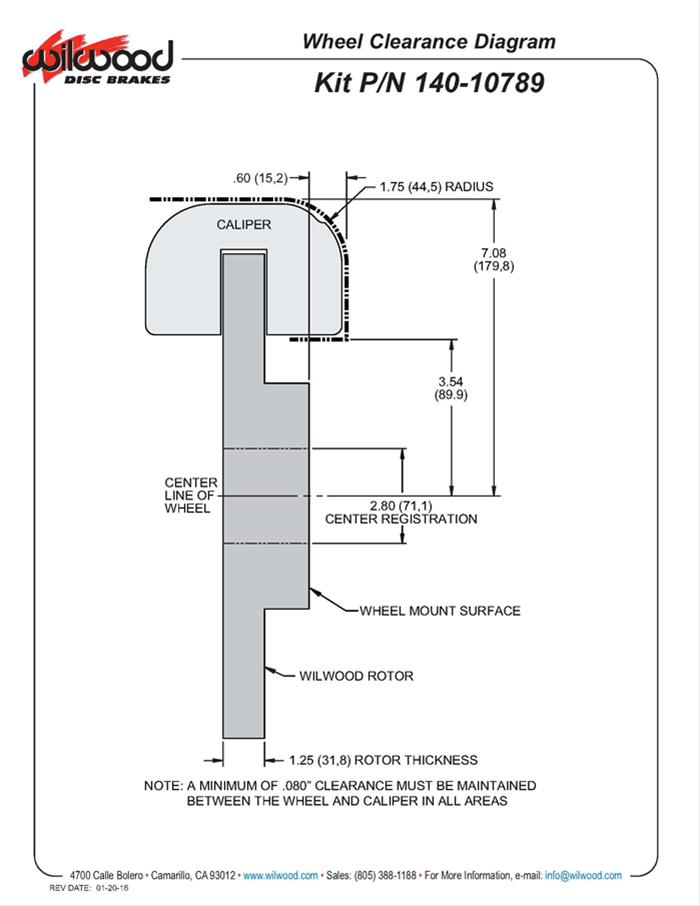

D8-4 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-4 calipers provide low-maintenance performance, a huge weight savings, and high temperature reliability for street or track. D8-4 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most '67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16" or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound "Smart Pads"
When you need replacement calipers for your C2 or C3 Corvette, try on a set of Wilwood D8-4 brake calipers. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failure. These calipers are direct bolt-on replacements for your factory original calipers mounting in the stock location over stock rotors using original-style brake pads. D8-4 calipers fit and install like stock--even the factory piston sizes were duplicated--but with Wilwood's in-house design and 3-D technology they offer lighter weight, unyielding strength and superior piston design to generate a positive pedal response with high clamping efficiency. The world of motion is yours--and your vette's-with the stopping power of Wilwood D8-4 front and rear brake calipers.
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
D8-4 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-4 calipers provide low-maintenance performance, a huge weight savings, and high temperature reliability for street or track. D8-4 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most ''67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16" or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound "Smart Pads" |
|---|---|
| product_ |
KIT,FRONT,VETTE,65-82,D8-4 |
| product_ |
KIT,FRONT,VETTE,65-82,D8-4 CALIPERS,PAD,LINE,CLEAR |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood D8-4 Brake Calipers 140-10789 |
| brand | Wilwood Disc Brakes |
| price | 577.49 |
| blurb | Brake Calipers, D8-4, Aluminum, Gray Anodized, 4-piston, Lines, Pads, Front, Chevy, Kit |
| title | Wilwood D8-4 Brake Calipers |
| description | When you need replacement calipers for your C2 or C3 Corvette, try on a set of Wilwood D8-4 brake calipers. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failure. These calipers are direct bolt-on replacements for your factory original calipers mounting in the stock location over stock rotors using original-style brake pads. D8-4 calipers fit and install like stock--even the factory piston sizes were duplicated--but with Wilwood's in-house design and 3-D technology they offer lighter weight, unyielding strength and superior piston design to generate a positive pedal response with high clamping efficiency. The world of motion is yours--and your vette's-with the stopping power of Wilwood D8-4 front and rear brake calipers. |
item_row
| handle | WIL-140-10789 |
|---|---|
| item_ |
138546 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/e9b7777ab219c17f8027223ec8d95abc.JPG |
| item_ |
140-10789 |
| item_ |
Wilwood D8-4 Front Caliper Kit Clear Corvette C2 / C3 65-82 |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545010466 |
| item_ |
577.49 |
| item_ |
646.79 |
| t14_ |
3 |
| mfr_ |
50 |
| dim_ |
18.70 |
| dim_ |
13.10 |
| dim_ |
13.00 |
| dim_ |
8.40 |
| shipping_ |
14.83 |
| item_ |
wil140-10789 |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Kit contains 2 calipers, two brake lines and 1 set of pads. |
| Quantity | Sold as a kit. |
| Part Type | Brake Calipers |
| Caliper Logo | Wilwood |
| Product Line | Wilwood D8-4 Brake Calipers |
| Caliper Color | Gray/Silver |
| Caliper Series | D8-4 |
| Remanufactured | No |
| Caliper Material | Aluminum |
| Brackets Included | No |
| Fittings Included | No |
| Brake Pad Material | High-friction metallic |
| Brake Pads Included | Yes |
| Piston Diameter (in.) | 1.876 |
| Rotor Thickness (in.) | 1.250 in. |
| Caliper Piston Quantity | Four |
| Parking Brake Provision | No |
| Manufacturer's Part Number | 140-10789 |
