Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits 140-10012
Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits 140-10012
50 in stock
Couldn't load pickup availability
Product Description
Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13" or 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

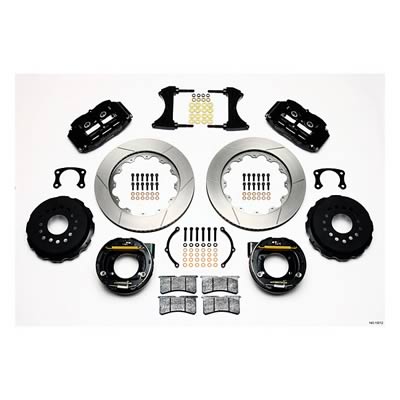

Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits are the perfect addition to front Big Brake upgrades for incredible stopping power. These disc brake kits feature FNSL4R 4-piston oversize forged billet aluminum calipers, 13 or 14 in. 2-piece premium rotors, and high performance BP-10 compound pads. Also included is a high-quality, drum-style parking brake assembly. The neatly hidden internal shoe system provides a clean installation, with superior static holding power for parking. Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits provide the extra power to reel in your beast. Order the kit designed for your vehicle application.
Application Summary
Part Type
description
| market_ |
Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13" or 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application. |
|---|---|
| product_ |
KIT,REAR,BIG FORD,NEW,2.50 OFF,FNSL4R |
| product_ |
KIT,REAR,BIG FORD,NEW,2.50 OFF,FNSL4R 14.00 ROTOR |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits 140-10012 |
| brand | Wilwood Disc Brakes |
| price | 1993.49 |
| blurb | Disc Brake Kit, 4R Big Brakes, Rear, Slotted Rotor, 4-Piston Caliper, Black, Big Ford Ends, Kit |
| title | Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits |
| description | Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits are the perfect addition to front Big Brake upgrades for incredible stopping power. These disc brake kits feature FNSL4R 4-piston oversize forged billet aluminum calipers, 13 or 14 in. 2-piece premium rotors, and high performance BP-10 compound pads. Also included is a high-quality, drum-style parking brake assembly. The neatly hidden internal shoe system provides a clean installation, with superior static holding power for parking. Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits provide the extra power to reel in your beast. Order the kit designed for your vehicle application. |
item_row
| handle | WIL-140-10012 |
|---|---|
| item_ |
138022 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/751e4602344cfca44f0b6702c6f82a79.JPG |
| item_ |
140-10012 |
| item_ |
Wilwood Narrow Superlite 4R Rear P-Brk Kit 14.00in New Big Ford 2.50in Offset |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545008302 |
| item_ |
2118.49 |
| item_ |
2372.71 |
| t14_ |
0 |
| mfr_ |
50 |
| dim_ |
67.70 |
| dim_ |
16.00 |
| dim_ |
15.60 |
| dim_ |
15.00 |
| shipping_ |
31.10 |
| item_ |
wil140-10012 |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | New Style Big Ford housing end (3.562 in. x 2.00 in.). Measures 3.562 in. top bolts center to center, 3.562 in. bottom bolts center to center and 2.000 in. top to bottom bolts center to center. 3.150 in. center bore. |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.500 in. |
| Product Line | Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits |
| Rear Rotor Style | Slotted surface |
| Rear Caliper Color | Black |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 14.00 in./355.60mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Axle Housing Flange Style | Big Ford New Style/Torino (3.562 in. x 2.00 in.) |
| Manufacturer's Part Number | 140-10012 |
| Rear Rotor Thickness (in.) | 1.10 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 18 in. |
