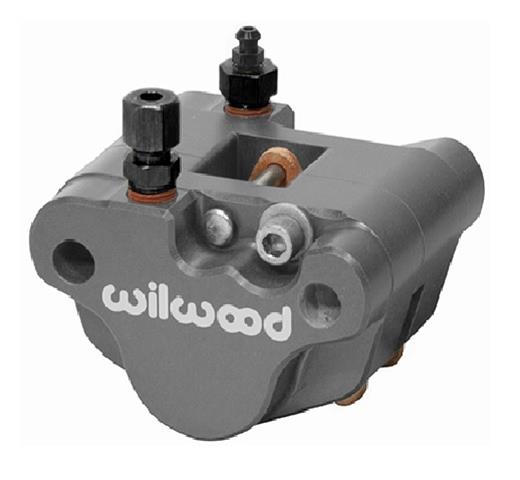

Wilwood Billet Go-Kart Calipers 120-5498
Wilwood Billet Go-Kart Calipers 120-5498
26 in stock
Couldn't load pickup availability
/update?link=products%2Fwil-120-5498_cu_xl.jpg){kind=link}
Product Description
Our Kart/Jr. Dragster Caliper is designed specifically for racing. A unique self retracting and adjusting piston system has been incorporated which enables the piston to retract as the brake line pressure is reduced. The caliper can be mounted on either side of the vehicle and comes in three rotor widths. At just 1.20 pounds, the caliper comes with high performance, high friction brake pads. Additional features include deep cup stainless steel piston for reduced heat transfer, cotter pin, pad retainer, internal fluid passage and blue anodized finish. A specifically designed master cylinder is also available for use with this caliper.
Wilwood Billet Go-Kart calipers feature a unique self-retracting and adjusting piston system, enabling the piston to retract as the brake line pressure is reduced. They can be mounted on either side of the vehicle, and at just 1.20 lbs., the calipers come with high performance, high-friction brake pads. The Wilwood Billet Go-Kart calipers also have a deep-cup stainless steel piston for reduced heat transfer, a cotter pin, a pad retainer, and an internal fluid passage. Order the caliper model best suited for your application needs.
Application Summary
Part Type
description
| market_ |
Our Kart/Jr. Dragster Caliper is designed specifically for racing. A unique self retracting and adjusting piston system has been incorporated which enables the piston to retract as the brake line pressure is reduced. The caliper can be mounted on either side of the vehicle and comes in three rotor widths. At just 1.20 pounds, the caliper comes with high performance, high friction brake pads. Additional features include deep cup stainless steel piston for reduced heat transfer, cotter pin, pad retainer, internal fluid passage and blue anodized finish. A specifically designed master cylinder is also available for use with this caliper. |
|---|---|
| product_ |
CALIPER,BILLET,GO-KART,.12 ROTOR,1.00 |
| product_ |
CALIPER,BILLET,GO-KART,.12 ROTOR,1.00 SINGLE INLET |
| product_ |
BRAKE CALIPER |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Billet Go-Kart Calipers 120-5498 |
| brand | Wilwood Disc Brakes |
| price | 152.32 |
| blurb | Brake Caliper, Billet Go-Kart Series, Aluminum, Gray Anodized, 1-piston, Front, Each |
| title | Wilwood Billet Go-Kart Calipers |
| description | Wilwood Billet Go-Kart calipers feature a unique self-retracting and adjusting piston system, enabling the piston to retract as the brake line pressure is reduced. They can be mounted on either side of the vehicle, and at just 1.20 lbs., the calipers come with high performance, high-friction brake pads. The Wilwood Billet Go-Kart calipers also have a deep-cup stainless steel piston for reduced heat transfer, a cotter pin, a pad retainer, and an internal fluid passage. Order the caliper model best suited for your application needs. |
item_row
| handle | WIL-120-5498 |
|---|---|
| item_ |
139732 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/1cd2f355a2f0eff68b209bb1a791a120.JPG |
| item_ |
120-5498 |
| item_ |
Wilwood Caliper-Kart 1.00in Pistons .125in Disc |
| item_ |
Brake (Other) |
| item_ |
Brake Calipers - Perf |
| item_ |
889545004168 |
| item_ |
152.32 |
| item_ |
164.51 |
| t14_ |
2 |
| mfr_ |
27 |
| dim_ |
1.50 |
| dim_ |
5.80 |
| dim_ |
4.20 |
| dim_ |
3.40 |
| shipping_ |
14.52 |
| item_ |
wil120-5498 |
| taxonomy_ |
5367 |
| collection_ |
273461575722 |
| collection_ |
Brake (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold individually. |
| Part Type | Brake Calipers |
| Thread Size | 1/8 in. NPT |
| Caliper Logo | Wilwood |
| Product Line | Wilwood Billet Go-Kart Calipers |
| Caliper Color | Gray/Silver |
| Caliper Series | Billet Go-Kart |
| Remanufactured | No |
| Caliper Material | Aluminum |
| Brackets Included | No |
| Fittings Included | Yes |
| Brake Pads Included | Yes |
| Piston Diameter (in.) | 0.790 |
| Rotor Thickness (in.) | 0.120 in. |
| Caliper Piston Quantity | One |
| Parking Brake Provision | No |
| Manufacturer's Part Number | 120-5498 |
