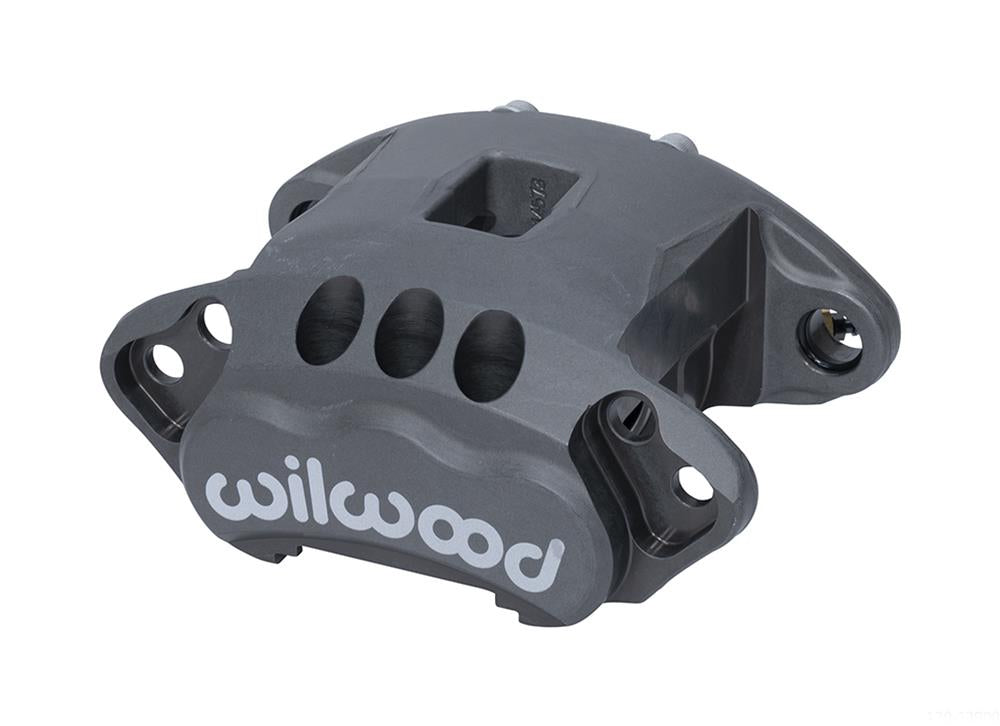

Wilwood D154-R Single Piston Lightweight Calipers 120-14876
Wilwood D154-R Single Piston Lightweight Calipers 120-14876
50 in stock
Couldn't load pickup availability
/update?link=products%2Fwil-120-14876_xl_4ab71f45-fa92-4716-895c-b67aebd11877.jpg){kind=link}
Product Description
Wilwood's newest race caliper, the D154-R starts with a forged aluminum Type III hard anodized body with stainless steel piston. With a choice of 2.50” or 2.00” pistons and covering rotors from .81” to 1.04” thickness up to 12.19” diameter. Caliper fluid inlet port centered directly behind the piston eliminates any interference with slide pins. Lower deflection rate and higher volumetric efficiency than all the competitions’ heavier cast models, D154-R calipers with a 2.50" piston weighs only 3.3 pounds and use standard metric D154 pads. Caliper mounting uses stock height and offset.
Wilwood D154-R single piston lightweight calipers start with a forged aluminum Type III hard anodized body with stainless steel piston and then have excess material removed to reduce weight without hurting strength. They offer a choice of 2.000 in. or 2.500 in. piston and they fit rotors from .810 in. to 1.040 in. thickness up to 12.19 in. diameter. The fluid inlet port is centered directly behind the piston and eliminates any interference with slide pins. Wilwood D154-R designs lower the deflection rate and has higher volumetric efficiency than heavier cast models. The D154-R calipers with the 2.500 in. piston weighs only 3.3 pounds and uses standard metric D154 pads.
Application Summary
Part Type
description
| market_ |
Wilwood''s newest race caliper, the D154-R starts with a forged aluminum Type III hard anodized body with stainless steel piston. With a choice of 2.50” or 2.00” pistons and covering rotors from .81” to 1.04” thickness up to 12.19” diameter. Caliper fluid inlet port centered directly behind the piston eliminates any interference with slide pins. Lower deflection rate and higher volumetric efficiency than all the competitions’ heavier cast models, D154-R calipers with a 2.50" piston weighs only 3.3 pounds and use standard metric D154 pads. Caliper mounting uses stock height and offset. |
|---|---|
| product_ |
CALIPER,D154-R,2.00,1.04 ROTOR,ANO |
| product_ |
BRAKE CALIPER |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood D154-R Single Piston Lightweight Calipers 120-14876 |
| brand | Wilwood Disc Brakes |
| price | 158.65 |
| blurb | Brake Caliper, D154-R Single Piston Floating, Aluminum, Gray Anodized, Wilwood Logo, One Piston, 2 in. Diameter, Each |
| title | Wilwood D154-R Single Piston Lightweight Calipers |
| description | Wilwood D154-R single piston lightweight calipers start with a forged aluminum Type III hard anodized body with stainless steel piston and then have excess material removed to reduce weight without hurting strength. They offer a choice of 2.000 in. or 2.500 in. piston and they fit rotors from .810 in. to 1.040 in. thickness up to 12.19 in. diameter. The fluid inlet port is centered directly behind the piston and eliminates any interference with slide pins. Wilwood D154-R designs lower the deflection rate and has higher volumetric efficiency than heavier cast models. The D154-R calipers with the 2.500 in. piston weighs only 3.3 pounds and uses standard metric D154 pads. |
item_row
| handle | WIL-120-14876 |
|---|---|
| item_ |
321155 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/7c659bc995226ffa784aa598651b6d15.JPG |
| item_ |
120-14876 |
| item_ |
Wilwood Caliper-GM D154-R 2.00in Piston 1.04in Disc |
| item_ |
Brake (Other) |
| item_ |
Brake Calipers - Perf |
| item_ |
889545084269 |
| item_ |
158.65 |
| item_ |
171.35 |
| t14_ |
0 |
| mfr_ |
8 |
| dim_ |
3.50 |
| dim_ |
9.00 |
| dim_ |
6.00 |
| dim_ |
4.00 |
| shipping_ |
14.52 |
| item_ |
wil120-14876 |
| taxonomy_ |
5367 |
| collection_ |
273461575722 |
| collection_ |
Brake (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold individually. |
| Part Type | Brake Calipers |
| Thread Size | 1/8 in. NPT |
| Caliper Logo | Wilwood |
| Product Line | Wilwood D154-R Single Piston Lightweight Calipers |
| Caliper Color | Gray/Silver |
| Caliper Series | D154 |
| Remanufactured | No |
| Caliper Material | Aluminum |
| Brackets Included | No |
| Fittings Included | No |
| Brake Pads Included | No |
| Piston Diameter (in.) | 2.000 |
| Rotor Thickness (in.) | 1.040 in. |
| Caliper Piston Quantity | One |
| Parking Brake Provision | No |
| Manufacturer's Part Number | 120-14876 |
