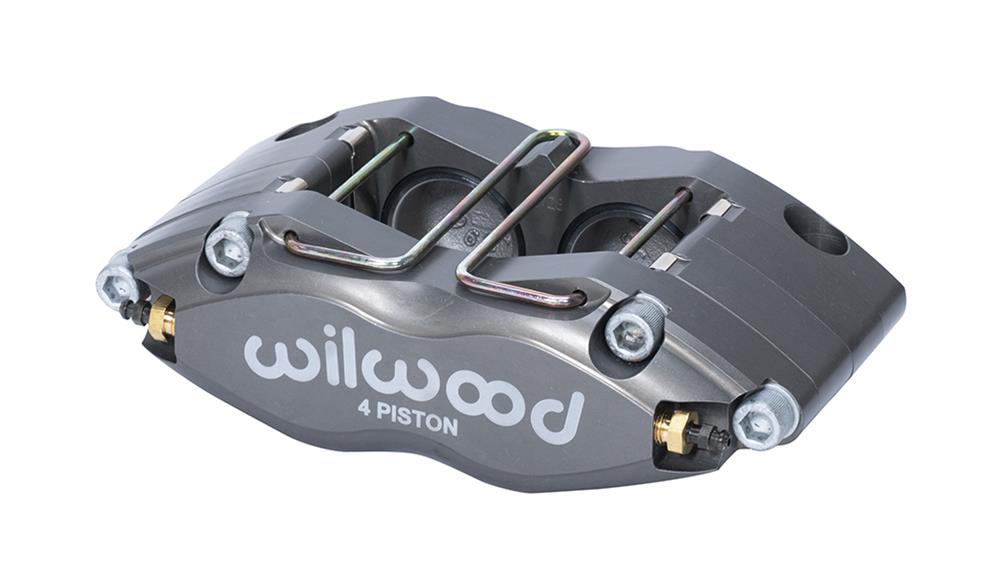

Wilwood DynaPro Dust-Boot Calipers 120-14709
Wilwood DynaPro Dust-Boot Calipers 120-14709
24 in stock
Couldn't load pickup availability
Product Description
Dynapro four piston dust seal radial mount calipers (DPR-DS) are an example of Wilwood’s continuing upgrade and improvement processes. Combine pure race technology with a new generation of Wilwood performance enhancements. The Dynapro-DS combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. The addition of dust wiper seals allow this caliper to be used in localities that require a method of environmental sealing. With an overall weight as light as 3.58 pounds, the Dynapro series of calipers has become a favored choice for a broad range of sports, rally, and off-road driving applications.
Wilwood DynaPro dust-boot calipers were developed for applications that require or prefer a dust-booted piston. The design offers added protection against road or track-born dirt and debris on low-to-intermediate temperature range applications that may also operate in harsh environments. DynaPro pistons are clear anodized to eliminate corrosion, while providing added lubricity for drag-free operation within the bores. The dust boots work in conjunction with high-temperature, square-faced internal seals in the caliper bores to deliver optimum performance, ultimate reliability, and quick turnaround at pad service intervals. Wilwood DynaPro dust-boot calipers feature: * Stress-flow forged premium-grade billet aluminum for superior strength * FEA generated body design provides firm, responsive pedal with outstanding stopping power * Quick-E-Clip pad retainers allow for fast pad service without caliper removal * Calipers are available in a variety of colors and sizes (for fitment with pistons and rotors)
Application Summary
Part Type
description
| market_ |
Dynapro four piston dust seal radial mount calipers (DPR-DS) are an example of Wilwood’s continuing upgrade and improvement processes. Combine pure race technology with a new generation of Wilwood performance enhancements. The Dynapro-DS combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. The addition of dust wiper seals allow this caliper to be used in localities that require a method of environmental sealing. With an overall weight as light as 3.58 pounds, the Dynapro series of calipers has become a favored choice for a broad range of sports, rally, and off-road driving applications. |
|---|---|
| product_ |
CALIPER,DPR-DS,1.75,1.00 ROTOR,DUST SEAL |
| product_ |
CALIPER,DPR-DS,1.75,1.00 ROTOR,DUST SEAL ANO |
| product_ |
BRAKE CALIPER |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood DynaPro Dust-Boot Calipers 120-14709 |
| brand | Wilwood Disc Brakes |
| price | 298.32 |
| blurb | Brake Caliper, DynaPro Dust Boot Radial Mount, 4-Piston, Aluminum, Gray Anodized, 1.00 in. Rotor, Front or Rear, Each |
| title | Wilwood DynaPro Dust-Boot Calipers |
| description | Wilwood DynaPro dust-boot calipers were developed for applications that require or prefer a dust-booted piston. The design offers added protection against road or track-born dirt and debris on low-to-intermediate temperature range applications that may also operate in harsh environments. DynaPro pistons are clear anodized to eliminate corrosion, while providing added lubricity for drag-free operation within the bores. The dust boots work in conjunction with high-temperature, square-faced internal seals in the caliper bores to deliver optimum performance, ultimate reliability, and quick turnaround at pad service intervals. Wilwood DynaPro dust-boot calipers feature: * Stress-flow forged premium-grade billet aluminum for superior strength * FEA generated body design provides firm, responsive pedal with outstanding stopping power * Quick-E-Clip pad retainers allow for fast pad service without caliper removal * Calipers are available in a variety of colors and sizes (for fitment with pistons and rotors) |
item_row
| handle | WIL-120-14709 |
|---|---|
| item_ |
581744 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
|
| item_ |
120-14709 |
| item_ |
Wilwood 1.75 DPR-DS Caliper 1.00 Rotor Dust Seal |
| item_ |
Miscellaneous |
| item_ |
Uncategorized |
| item_ |
889545083583 |
| item_ |
298.32 |
| item_ |
322.19 |
| t14_ |
0 |
| mfr_ |
16 |
| dim_ |
4.15 |
| dim_ |
8.88 |
| dim_ |
5.88 |
| dim_ |
4.00 |
| shipping_ |
14.52 |
| item_ |
wil120-14709 |
| taxonomy_ |
|
| collection_ |
274103042090 |
| collection_ |
Miscellaneous |
| status | Active |
| item_ |
1 |
| item_ |
Uncategorized |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold individually. |
| Part Type | Brake Calipers |
| Thread Size | 1/8 in. NPT |
| Caliper Logo | Wilwood |
| Product Line | Wilwood DynaPro Dust-Boot Calipers |
| Caliper Color | Gray/Silver |
| Caliper Series | DynaPro Dust-Boot |
| Remanufactured | No |
| Caliper Material | Aluminum |
| Brackets Included | No |
| Fittings Included | No |
| Brake Pads Included | No |
| Fitting Attachment 1 | Female threads |
| Piston Diameter (in.) | 1.750/1.750 |
| Rotor Thickness (in.) | 1.000 in. |
| Caliper Piston Quantity | Four |
| Parking Brake Provision | No |
| Manufacturer's Part Number | 120-14709 |
