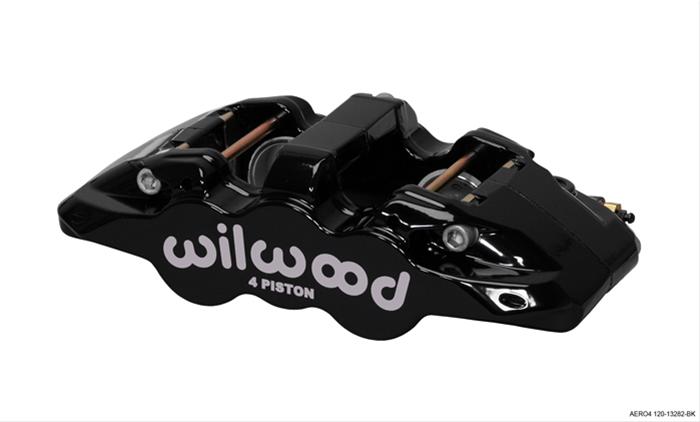

Wilwood AERO4 Radial Mount Calipers 120-13281-BK
Wilwood AERO4 Radial Mount Calipers 120-13281-BK
20 in stock
Couldn't load pickup availability
/update?link=products%2Fwil-120-13281-bk_xl_0f614ee0-3742-4120-af34-750251ce12c2.jpg){kind=link}
Product Description
The new Aero4 forged four piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.88" to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new Aero4 is the latest innovation to the W4A / W6A series of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly.
Wilwood AERO4 radial mount calipers deliver heavy-duty stopping power for the road or track. They incorporate race technology into a body design with widespread adaptability. Radial mounting, two options for piston volume, and a wide range of rotor diameters give these calipers the versatility necessary to suit all types of heavyweight braking requirements. Wilwood Aero bodies are stress-flow forged from premium-grade aluminum alloy billet, to create calipers with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load. They are equipped with either stainless or high-temperature Thermlock pistons. For stopping power you need, trust Wilwood Aero4 radial mount calipers.
Application Summary
Part Type
description
| market_ |
The new Aero4 forged four piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.88" to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new Aero4 is the latest innovation to the W4A / W6A series of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly. |
|---|---|
| product_ |
CALIPER,AERO4,1.62/1.38,1.25 ROTOR,R/H |
| product_ |
CALIPER,AERO4,1.62/1.38,1.25 ROTOR,R/H BLACK |
| product_ |
BRAKE CALIPER |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood AERO4 Radial Mount Calipers 120-13281-BK |
| brand | Wilwood Disc Brakes |
| price | 522.89 |
| blurb | Caliper, W4A, Radial Mount, Four Piston, Aluminum, Black Powdercoated, Each |
| title | Wilwood AERO4 Radial Mount Calipers |
| description | Wilwood AERO4 radial mount calipers deliver heavy-duty stopping power for the road or track. They incorporate race technology into a body design with widespread adaptability. Radial mounting, two options for piston volume, and a wide range of rotor diameters give these calipers the versatility necessary to suit all types of heavyweight braking requirements. Wilwood Aero bodies are stress-flow forged from premium-grade aluminum alloy billet, to create calipers with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load. They are equipped with either stainless or high-temperature Thermlock pistons. For stopping power you need, trust Wilwood Aero4 radial mount calipers. |
item_row
| handle | WIL-120-13281-BK |
|---|---|
| item_ |
139586 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/ceba1e3bfd09d75c661068434f7a692e.JPG |
| item_ |
120-13281-BK |
| item_ |
Wilwood Caliper-Aero4-R/H - Black 1.62/1.38in Pistons 1.25in Disc |
| item_ |
Brake (Other) |
| item_ |
Brake Calipers - Perf |
| item_ |
889545003208 |
| item_ |
522.89 |
| item_ |
564.72 |
| t14_ |
5 |
| mfr_ |
17 |
| dim_ |
7.00 |
| dim_ |
12.50 |
| dim_ |
7.00 |
| dim_ |
3.40 |
| shipping_ |
14.83 |
| item_ |
wil120-13281-BK |
| taxonomy_ |
5367 |
| collection_ |
273461575722 |
| collection_ |
Brake (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold individually. |
| Part Type | Brake Calipers |
| Thread Size | 1/8 in. NPT |
| Caliper Logo | Wilwood |
| Product Line | Wilwood AERO4 Radial Mount Calipers |
| Caliper Color | Black |
| Caliper Series | W4A Radial Mount |
| Remanufactured | No |
| Caliper Material | Aluminum |
| Brackets Included | No |
| Fittings Included | No |
| Brake Pads Included | No |
| Fitting Attachment 1 | Female threads |
| Piston Diameter (in.) | 1.620/1.380 |
| Rotor Thickness (in.) | 1.250 in. |
| Caliper Piston Quantity | Four |
| Parking Brake Provision | No |
| Manufacturer's Part Number | 120-13281-BK |
