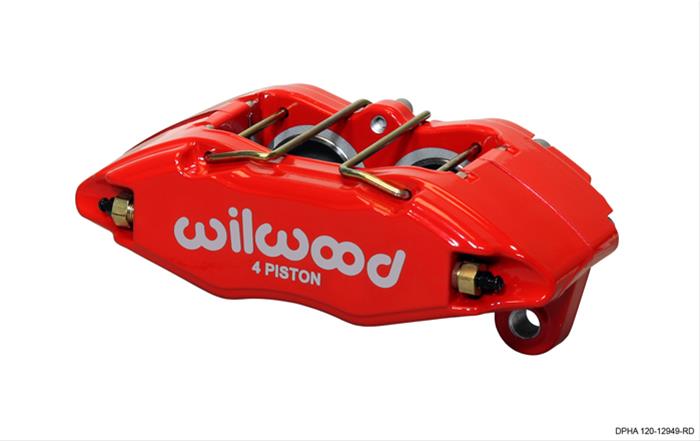

Wilwood Forged DPHA Front Calipers 120-12949-RD
Wilwood Forged DPHA Front Calipers 120-12949-RD
58 in stock
Couldn't load pickup availability
/update?link=products%2Fwil-120-12949-rd_vv_xl.jpg){kind=link}
Product Description
The Forged DynaPro Honda/Acura (DPHA) caliper represents the newest generation of calipers designed exclusively as a direct bolt-on for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum 15" wheels. Designed around Wilwood's proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with most OE master cylinders and will maintain ABS function. DPHA calipers are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood's signature logo.
Wilwood forged DPHA front calipers are DynaPro Series 4-piston calipers designed exclusively as direct bolt-ons for use on Honda® and Acura® models originally equipped with 262mm diameter rotors. They bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotors, accept the OE brake hose, and clear many factory aluminum 15 in. wheels. DynaPro Honda®/Acura® (DPHA) calipers have forged billet bodies to deliver high-strength clamping force and positive stopping power. Plus, the stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble-free for many more miles. Wilwood DPHA calipers work perfectly with most OE master cylinders, will maintain ABS functions, and are available in several high-gloss, high-temperature, and brake fluid-resistant sealed powdercoat colors with the Wilwood signature logo.
Application Summary
Part Type
description
| market_ |
The Forged DynaPro Honda/Acura (DPHA) caliper represents the newest generation of calipers designed exclusively as a direct bolt-on for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum 15" wheels. Designed around Wilwood''s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with most OE master cylinders and will maintain ABS function. DPHA calipers are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood''s signature logo. |
|---|---|
| product_ |
CALIPER,DPHA,HONDA/ACURA,1.62,.83 ROTOR |
| product_ |
CALIPER,DPHA,HONDA/ACURA,1.62,.83 ROTOR RED |
| product_ |
BRAKE CALIPER |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged DPHA Front Calipers 120-12949-RD |
| brand | Wilwood Disc Brakes |
| price | 242.54 |
| blurb | Brake Caliper, Forged Dynapro Low-Profile Lug Mount, Front, Aluminum, Red, 4-piston, for use on Acura®, Each |
| title | Wilwood Forged DPHA Front Calipers |
| description | Wilwood forged DPHA front calipers are DynaPro Series 4-piston calipers designed exclusively as direct bolt-ons for use on Honda® and Acura® models originally equipped with 262mm diameter rotors. They bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotors, accept the OE brake hose, and clear many factory aluminum 15 in. wheels. DynaPro Honda®/Acura® (DPHA) calipers have forged billet bodies to deliver high-strength clamping force and positive stopping power. Plus, the stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble-free for many more miles. Wilwood DPHA calipers work perfectly with most OE master cylinders, will maintain ABS functions, and are available in several high-gloss, high-temperature, and brake fluid-resistant sealed powdercoat colors with the Wilwood signature logo. |
item_row
| handle | WIL-120-12949-RD |
|---|---|
| item_ |
139135 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/42d8c379fab237ebd6490746dad45484.JPG |
| item_ |
120-12949-RD |
| item_ |
Wilwood Caliper-Dynapro Honda/Acura - Red 1.62in Pistons .83in Disc |
| item_ |
Brake (Other) |
| item_ |
Brake Calipers - Perf |
| item_ |
889545002911 |
| item_ |
242.54 |
| item_ |
261.95 |
| t14_ |
12 |
| mfr_ |
50 |
| dim_ |
4.00 |
| dim_ |
9.40 |
| dim_ |
6.40 |
| dim_ |
4.50 |
| shipping_ |
14.52 |
| item_ |
wil120-12949-RD |
| taxonomy_ |
5367 |
| collection_ |
273461575722 |
| collection_ |
Brake (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | For use with Honda® and Acura® stock spindles, on models with 262mm rotors only. Bolts to factory mounts. Clears most stock 15 in. wheels. |
| Quantity | Sold individually. |
| Part Type | Brake Calipers |
| Thread Size | M10 x 1.5 |
| Caliper Logo | Wilwood |
| Product Line | Wilwood Forged DPHA Front Calipers |
| Bracket Color | Red |
| Caliper Color | Red |
| Caliper Series | Dynapro |
| Remanufactured | No |
| Bracket Material | Aluminum |
| Caliper Material | Aluminum |
| Brackets Included | Yes |
| Fittings Included | No |
| Brake Pads Included | No |
| Piston Diameter (in.) | 1.620 |
| Rotor Thickness (in.) | 0.830 in. |
| Caliper Piston Quantity | Four |
| Parking Brake Provision | No |
| Manufacturer's Part Number | 120-12949-RD |
