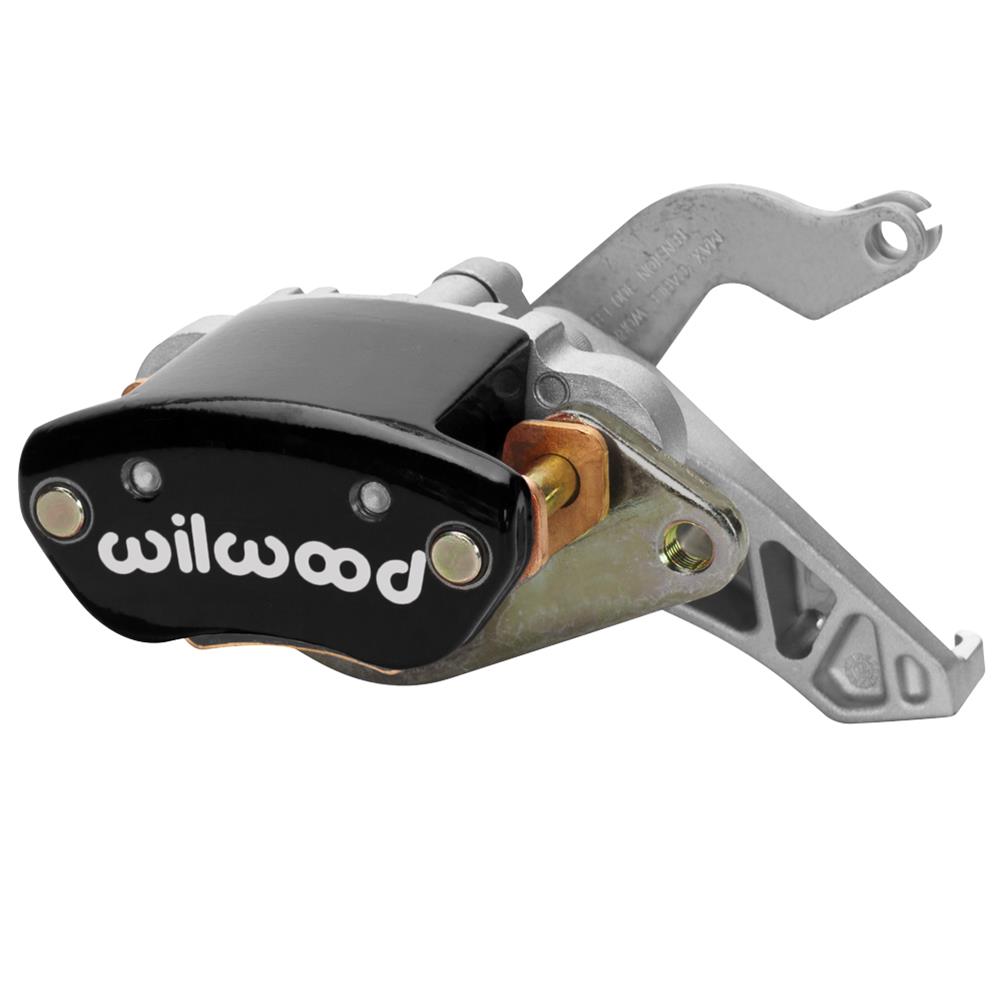

Wilwood MC4 Mechanical Parking Brake Calipers 120-12069-BK
Wilwood MC4 Mechanical Parking Brake Calipers 120-12069-BK
57 in stock
Couldn't load pickup availability
/update?link=products%2Fwil-120-12069-bk_kk_xl_f05af4d4-ecd4-4a8f-828e-76fe7075a989.jpg){kind=link}
Product Description
Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810" thick, with 11.00" - 12.88" diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields.
Wilwood MC4 mechanical parking brake calipers are the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Wilwood MC4 calipers feature diecast bodies with a forged billet anvil for superior strength under load. They're lightweight and built with noise-dampening features for quiet, rattle-free operation. They are fitted with fully dust booted aluminum pistons to keep moisture and debris out, composite metallic (CM) high-friction, high static-hold brake pads, and they include a steel bracket for convenient mounting. The calipers are available in a choice of high-gloss, high-temp, brake fluid resistant powdercoatings and feature Wilwood's signature logo. These multi-use, cable-operated brake calipers combine high-output performance with simplicity in design and construction. So, choose the right stopping solution for your vehicle--Wilwood MC4 mechanical parking brake calipers.
Application Summary
Part Type
description
| market_ |
Wilwood''s MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810" thick, with 11.00" - 12.88" diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields. |
|---|---|
| product_ |
CALIPER,MC4,MECH P-BRAKE,1.19,.81 ROTOR |
| product_ |
CALIPER,MC4,MECH P-BRAKE,1.19,.81 ROTOR R/H,BLACK |
| product_ |
BRAKE CALIPER |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood MC4 Mechanical Parking Brake Calipers 120-12069-BK |
| brand | Wilwood Disc Brakes |
| price | 138.08 |
| blurb | Parking Brake Caliper, MC4, Mechanical, 1-piston, 1/8-27 in. NPT, Aluminum, Black Powdercoated, Each |
| title | Wilwood MC4 Mechanical Parking Brake Calipers |
| description | Wilwood MC4 mechanical parking brake calipers are the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Wilwood MC4 calipers feature diecast bodies with a forged billet anvil for superior strength under load. They're lightweight and built with noise-dampening features for quiet, rattle-free operation. They are fitted with fully dust booted aluminum pistons to keep moisture and debris out, composite metallic (CM) high-friction, high static-hold brake pads, and they include a steel bracket for convenient mounting. The calipers are available in a choice of high-gloss, high-temp, brake fluid resistant powdercoatings and feature Wilwood's signature logo. These multi-use, cable-operated brake calipers combine high-output performance with simplicity in design and construction. So, choose the right stopping solution for your vehicle--Wilwood MC4 mechanical parking brake calipers. |
item_row
| handle | WIL-120-12069-BK |
|---|---|
| item_ |
139114 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/591914daa0fd4caa8d4a933f7b091185.JPG |
| item_ |
120-12069-BK |
| item_ |
Wilwood Caliper-MC4 Mechanical-R/H - Black w/ Logo 1.19in Piston .81in Disc |
| item_ |
Brake (Other) |
| item_ |
Brake Calipers - Perf |
| item_ |
889545002614 |
| item_ |
138.08 |
| item_ |
149.13 |
| t14_ |
6 |
| mfr_ |
50 |
| dim_ |
3.70 |
| dim_ |
6.90 |
| dim_ |
6.20 |
| dim_ |
5.90 |
| shipping_ |
14.52 |
| item_ |
wil120-12069-BK |
| taxonomy_ |
5367 |
| collection_ |
273461575722 |
| collection_ |
Brake (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold individually. |
| Part Type | Brake Calipers |
| Caliper Logo | Wilwood |
| Product Line | Wilwood MC4 Mechanical Parking Brake Calipers |
| Bracket Color | Natural |
| Caliper Color | Black |
| Caliper Series | MC4 |
| Remanufactured | No |
| Bracket Material | Aluminum |
| Caliper Material | Aluminum |
| Brackets Included | Yes |
| Fittings Included | No |
| Brake Pads Included | Yes |
| Piston Diameter (in.) | 1.190 |
| Rotor Thickness (in.) | 0.810 in. |
| Caliper Piston Quantity | One |
| Parking Brake Provision | Yes |
| Manufacturer's Part Number | 120-12069-BK |
