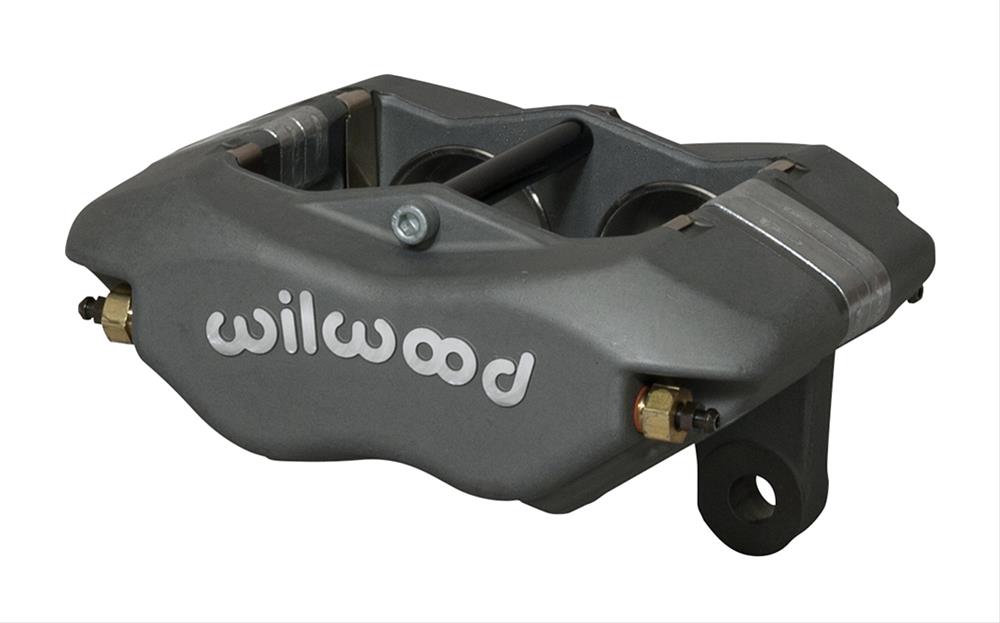

Wilwood Narrow-Mount Dynalite Brake Calipers 120-11576
Wilwood Narrow-Mount Dynalite Brake Calipers 120-11576
28 in stock
Couldn't load pickup availability
/update?link=products%2Fwil-120-11576_xl.jpg){kind=link}
Product Description
Wilwood's new Forged Narrow Mount Dynalite (FNDL) calipers are ideal for and widely used in many competition applications including late models,modifieds, sprints, off road and road racing. Computer generated design and stress analysis technology, is the latest innovation from Wilwood providing substantial improvements in strength and performance over all comparable caliper models.Forged Narrow Mount Dynalites are the strongest calipers in the class. FNDL calipers are a direct replacement for all previous Wilwood NDL's and similar competitive brands with 3.50" centered mounting tabs. A total of five bolts provide superior bridge strength and positive retention of the top loaded 7816 or 7216 type brake pads. The full range of PolyMatrix pad compounds is available to match the brake response and heat range requirements of any competition application.
Wilwood narrow-mount Dynalite brake calipers, or NDL's, feature an FEA-generated radial transition design that eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. This design substantially increases resistance to deflection and caliper separation under severe loads. These narrow-mount Dynalite brake calipers are equipped with Wilwood's SRS stainless steel bridge wear plates, which are designed to eliminate bridge wear caused by pad gouging and extend the service life of the caliper. Internal fluid passages get rid of the need for external tubes. Four-corner bleed screws ensure simple and effective air evacuation from the system. Their high-luster Type III Mil-Spec hard anodized finish, stainless steel pistons, and high-temperature seals make Wilwood narrow-mount Dynalite brake calipers the perfect choice for your late model, modified, Sprint, off-road, or road-racing vehicle. Order the model designed for your vehicle's application.
Application Summary
Part Type
description
| market_ |
Wilwood''s new Forged Narrow Mount Dynalite (FNDL) calipers are ideal for and widely used in many competition applications including late models,modifieds, sprints, off road and road racing. Computer generated design and stress analysis technology, is the latest innovation from Wilwood providing substantial improvements in strength and performance over all comparable caliper models.Forged Narrow Mount Dynalites are the strongest calipers in the class. FNDL calipers are a direct replacement for all previous Wilwood NDL''s and similar competitive brands with 3.50" centered mounting tabs. A total of five bolts provide superior bridge strength and positive retention of the top loaded 7816 or 7216 type brake pads. The full range of PolyMatrix pad compounds is available to match the brake response and heat range requirements of any competition application. |
|---|---|
| product_ |
CALIPER,FNDL,1.38/1.38,1.25 ROTOR,BLACK |
| product_ |
BRAKE CALIPER |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Narrow-Mount Dynalite Brake Calipers 120-11576 |
| brand | Wilwood Disc Brakes |
| price | 157.68 |
| blurb | Brake Caliper, Narrow-Mount Dynalite, Aluminum, Gray Anodized, 4-piston, Each |
| title | Wilwood Narrow-Mount Dynalite Brake Calipers |
| description | Wilwood narrow-mount Dynalite brake calipers, or NDL's, feature an FEA-generated radial transition design that eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. This design substantially increases resistance to deflection and caliper separation under severe loads. These narrow-mount Dynalite brake calipers are equipped with Wilwood's SRS stainless steel bridge wear plates, which are designed to eliminate bridge wear caused by pad gouging and extend the service life of the caliper. Internal fluid passages get rid of the need for external tubes. Four-corner bleed screws ensure simple and effective air evacuation from the system. Their high-luster Type III Mil-Spec hard anodized finish, stainless steel pistons, and high-temperature seals make Wilwood narrow-mount Dynalite brake calipers the perfect choice for your late model, modified, Sprint, off-road, or road-racing vehicle. Order the model designed for your vehicle's application. |
item_row
| handle | WIL-120-11576 |
|---|---|
| item_ |
139017 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/e303b5db70b539760b6db8951d8f6c2b.JPG |
| item_ |
120-11576 |
| item_ |
Wilwood Caliper-Forged Narrow Dynalite 3.50in Mount 1.38in Pistons 1.25in Disc |
| item_ |
Brake (Other) |
| item_ |
Brake Calipers - Perf |
| item_ |
889545001570 |
| item_ |
157.68 |
| item_ |
170.30 |
| t14_ |
4 |
| mfr_ |
50 |
| dim_ |
4.00 |
| dim_ |
7.90 |
| dim_ |
5.50 |
| dim_ |
4.10 |
| shipping_ |
14.52 |
| item_ |
wil120-11576 |
| taxonomy_ |
5367 |
| collection_ |
273461575722 |
| collection_ |
Brake (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold individually. |
| Part Type | Brake Calipers |
| Thread Size | 1/8 in. NPT |
| Caliper Logo | Wilwood |
| Product Line | Wilwood Narrow-Mount Dynalite Brake Calipers |
| Caliper Color | Gray/Silver |
| Caliper Series | Dynalite |
| Remanufactured | No |
| Caliper Material | Aluminum |
| Brackets Included | No |
| Fittings Included | No |
| Brake Pads Included | No |
| Fitting Attachment 1 | Female threads |
| Piston Diameter (in.) | 1.380 |
| Rotor Thickness (in.) | 1.250 in. |
| Caliper Piston Quantity | Four |
| Parking Brake Provision | No |
| Manufacturer's Part Number | 120-11576 |
