Turbosmart Gen-V Anti-Lag Valves TS-0552-1402
Turbosmart Gen-V Anti-Lag Valves TS-0552-1402
Low stock: 3 left
Couldn't load pickup availability
Product Description

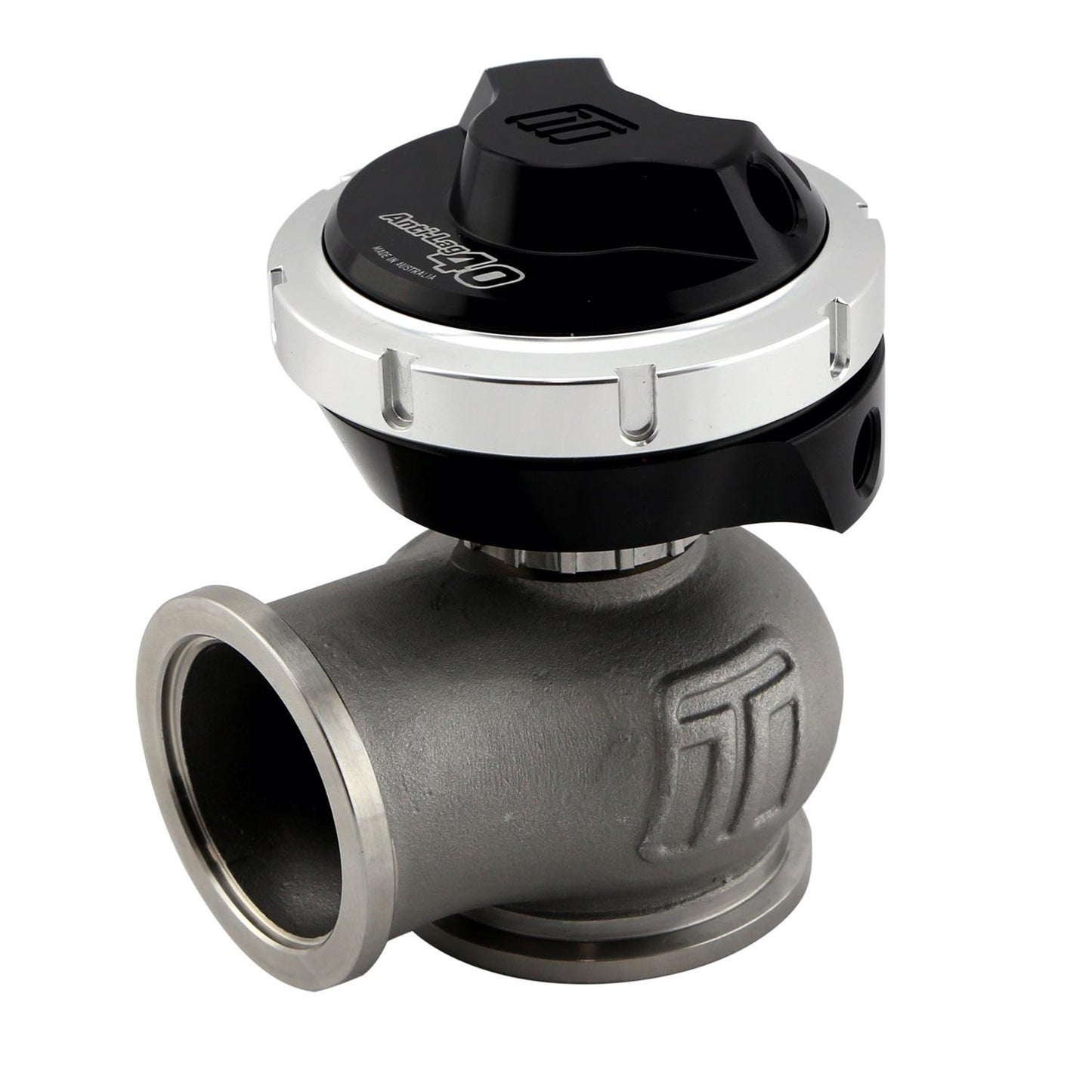

The Turbosmart ALV40 (Anti-Lag Valve) is a fresh air anti-lag bypass valve for motorsport applications. Featuring a 40mm valve diameter and a purpose-designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication.
An all-new addition to the Turbosmart lineup is the fresh air Gen-V (Anti-Lag Valve (ALV40) for motorsport applications. They feature a 40mm valve diameter, a purpose-designed actuator housing—and multiple fittings for ease of fitment and fabrication. The anti-lag valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel. With the throttle at low opening angles, this allows for safer spooling of the turbocharger—without the potentially damaging throttle-based late combustion anti-lag that can induce high engine stresses and break connecting rods. The ALV is a sealed twin chamber design, with the top port being the primary control port. The spring is designed to open under vacuum conditions to allow for the air to bypass into the exhaust manifold; while the lower chamber is for twin port control methods—to control the valve irrespective of manifold pressure. The shaft seal allows for leak-proof operation.
Application Summary
Universal
Part Type
Turbocharger Wastegate
Additional Information 2
- Behind every Turbosmart product stands a long and rich racing history. While a majority of Turbosmart products are used on street cars, their design and testing procedure is identical to the high-end purpose-made racing products. Before reaching the consumer, Turbosmart products are subjected to a range of tests performed in the most demanding environment ? the race track.
description
| aaia_ |
Turbocharger Wastegate |
|---|---|
| application_ |
Universal |
| associated_ |
Behind every Turbosmart product stands a long and rich racing history. While a majority of Turbosmart products are used on street cars, their design and testing procedure is identical to the high-end purpose-made racing products. Before reaching the consumer, Turbosmart products are subjected to a range of tests performed in the most demanding environment ? the race track. |
| market_ |
The Turbosmart ALV40 (Anti-Lag Valve) is a fresh air anti-lag bypass valve for motorsport applications. Featuring a 40mm valve diameter and a purpose-designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication. |
| product_ |
Gen-V ALV40 (Anti-Lag Valve) |
| product_ |
Gen-V Anti-Lag Valve |
s_item
| department | Air & Fuel Delivery |
|---|---|
| section | Superchargers & Turbochargers |
| name | Turbosmart Gen-V Anti-Lag Valves TS-0552-1402 |
| brand | Turbosmart |
| price | 458.95 |
| blurb | Turbocharger Componet, Anti-Lag Valve, 40mm, Each |
| title | Turbosmart Gen-V Anti-Lag Valves |
| description | An all-new addition to the Turbosmart lineup is the fresh air Gen-V (Anti-Lag Valve (ALV40) for motorsport applications. They feature a 40mm valve diameter, a purpose-designed actuator housing—and multiple fittings for ease of fitment and fabrication. The anti-lag valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel. With the throttle at low opening angles, this allows for safer spooling of the turbocharger—without the potentially damaging throttle-based late combustion anti-lag that can induce high engine stresses and break connecting rods. The ALV is a sealed twin chamber design, with the top port being the primary control port. The spring is designed to open under vacuum conditions to allow for the air to bypass into the exhaust manifold; while the lower chamber is for twin port control methods—to control the valve irrespective of manifold pressure. The shaft seal allows for leak-proof operation. |
item_row
| handle | TUR-TS-0552-1402 |
|---|---|
| item_ |
199307 |
| brand_ |
82 |
| brand_ |
Turbosmart |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/a883ecf0e81ecc67bac1c6633619bf44.JPG |
| item_ |
TS-0552-1402 |
| item_ |
Turbosmart WG40ALV Gen V Comp-Gate 40mm - 5 PSI Black |
| item_ |
Forced Induction |
| item_ |
Wastegates |
| item_ |
9329677020731 |
| item_ |
458.95 |
| item_ |
509.94 |
| t14_ |
0 |
| mfr_ |
1 |
| dim_ |
2.80 |
| dim_ |
6.70 |
| dim_ |
5.60 |
| dim_ |
5.20 |
| shipping_ |
15.39 |
| item_ |
turTS-0552-1402 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| bodyHtml | Turbosmart TS-0552-1402 Wastegates The Turbosmart ALV40 (Anti-Lag Valve) is a fresh air anti-lag bypass valve for motorsport applications. Featuring a 40mm valve diameter and a purpose-designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication. An all-new addition to the Turbosmart lineup is the fresh air Gen-V (Anti-Lag Valve (ALV40) for motorsport applications. They feature a 40mm valve diameter, a purpose-designed actuator housing—and multiple fittings for ease of fitment and fabrication. The anti-lag valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel. With the throttle at low opening angles, this allows for safer spooling of the turbocharger—without the potentially damaging throttle-based late combustion anti-lag that can induce high engine stresses and break connecting rods.
The ALV is a sealed twin chamber design, with the top port being the primary control port. The spring is designed to open under vacuum conditions to allow for the air to bypass into the exhaust manifold; while the lower chamber is for twin port control methods—to control the valve irrespective of manifold pressure. The shaft seal allows for leak-proof operation. |
Overview
| Brand | Turbosmart |
|---|---|
| Quantity | Sold individually. |
| Part Type | Turbocharger Components |
| Product Line | Turbosmart Gen-V Anti-Lag Valves |
| Manufacturer's Part Number | TS-0552-1402 |
| Turbocharger Component Type | Anti-lag valve |
