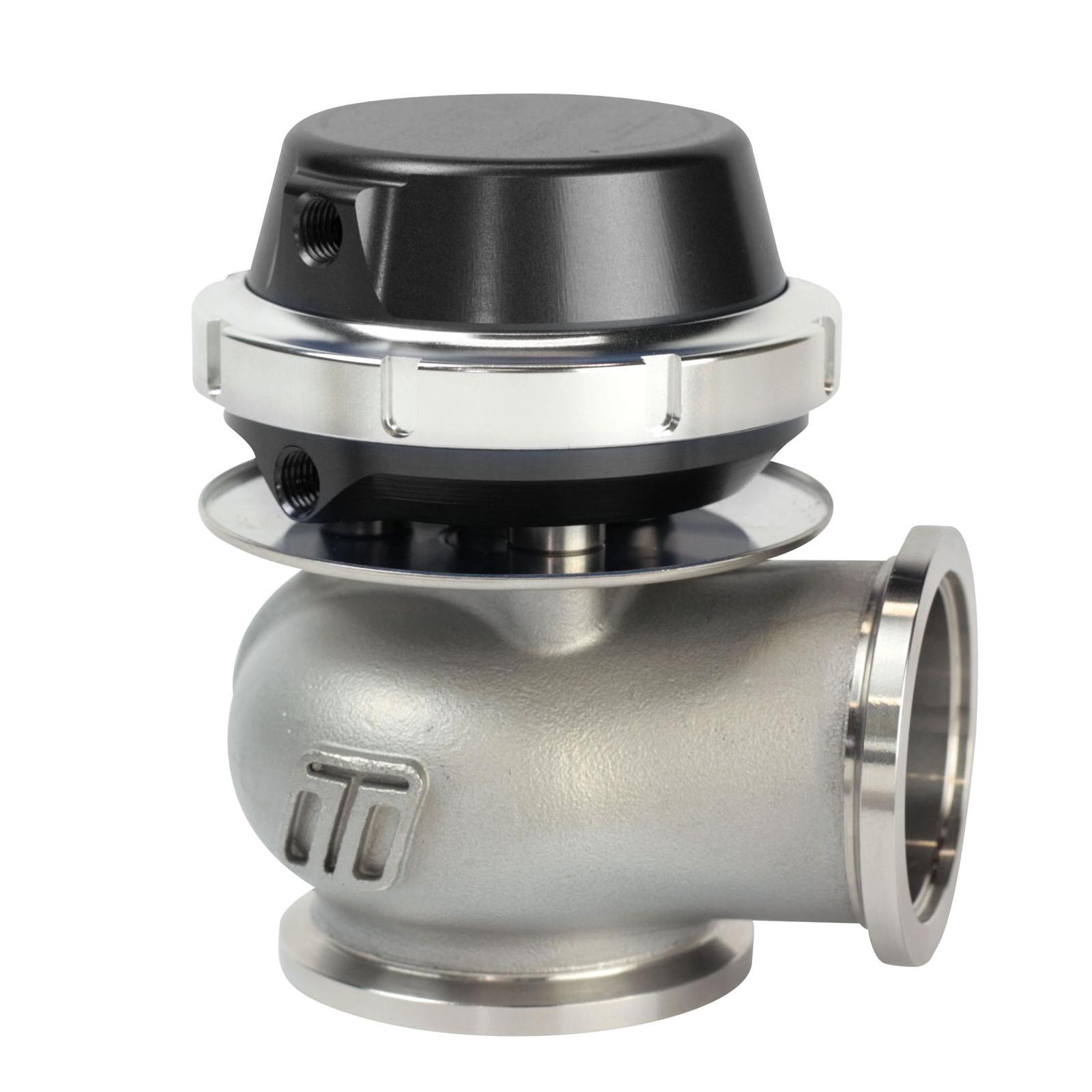

Turbosmart Comp-Gate 40 Wastegates TS-0505-1006
Turbosmart Comp-Gate 40 Wastegates TS-0505-1006
Regular price
$377.94 AUD
Regular price
$349.94 AUD
Sale price
$377.94 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
24 in stock
Couldn't load pickup availability
Product Description
IT'S BACK. The Gen4 CompGate40 and HyperGate45 have been approved for continuation and re-introduction at an all-new price!
Turbosmart Comp-Gate 40 wastegates are a suitable choice for all street and race turbocharged vehicles with an external wastegate turbo system. These wastegates are designed to fit into tight engine bays, while still offering superior flow and heat-handling capabilities. Turbosmart Comp-Gate 40 wastegates feature a revolutionary actuator housing that allows for easy spring changes and gives you the ability to index the cap orientation in 12 different positions.
Extended Description
- Turbosmart's Comp-Gate40 (40mm) external wastegate was designed to fit into tight engine bays while still offering superior flow and heat handling capabilities.
Application Summary
Part Type
Turbocharger Wastegate
Additional Information 2
- Turbosmart's Comp-Gate40 (40mm) external wastegate was designed to fit into tight engine bays while still offering superior flow and heat handling capabilities. The revolutionary actuator housing is 25% smaller than previous designs and allows for easy spring changes (from 3psi to 26psi available) with our locking cap design and gives the ability to index the cap orientation in 12 different positions. Features Solid 1 Piece Coated Stainless Steel Valve and Silicon Nomex Diaphragm for true reliability and performance.Supplied With: Springs, Inlet and outlet Weld Flanges, Inlet and outlet V-Band clamps, Valve seat, 2 x 1/16th blanking plugs, 2 x 1/16th Vacuum nipples, Locking Ring removal tool.
description
| aaia_ |
Turbocharger Wastegate |
|---|---|
| associated_ |
Turbosmart''s Comp-Gate40 (40mm) external wastegate was designed to fit into tight engine bays while still offering superior flow and heat handling capabilities. The revolutionary actuator housing is 25% smaller than previous designs and allows for easy spring changes (from 3psi to 26psi available) with our locking cap design and gives the ability to index the cap orientation in 12 different positions. Features Solid 1 Piece Coated Stainless Steel Valve and Silicon Nomex Diaphragm for true reliability and performance.Supplied With: Springs, Inlet and outlet Weld Flanges, Inlet and outlet V-Band clamps, Valve seat, 2 x 1/16th blanking plugs, 2 x 1/16th Vacuum nipples, Locking Ring removal tool. |
| market_ |
IT''S BACK. The Gen4 CompGate40 and HyperGate45 have been approved for continuation and re-introduction at an all-new price! |
| product_ |
Turbosmart''s Comp-Gate40 (40mm) external wastegate was designed to fit into tight engine bays while still offering superior flow and heat handling capabilities. |
| product_ |
WG40 Compgate 40mm - 7 PSI BLACK |
| product_ |
Universal |
s_item
| department | Air & Fuel Delivery |
|---|---|
| section | Superchargers & Turbochargers |
| name | Turbosmart Comp-Gate 40 Wastegates TS-0505-1006 |
| brand | Turbosmart |
| price | 299.95 |
| blurb | Wastegate, Comp-Gate, Mechanical, 40mm Relief Diameter, Each |
| title | Turbosmart Comp-Gate 40 Wastegates |
| description | Turbosmart Comp-Gate 40 wastegates are a suitable choice for all street and race turbocharged vehicles with an external wastegate turbo system. These wastegates are designed to fit into tight engine bays, while still offering superior flow and heat-handling capabilities. Turbosmart Comp-Gate 40 wastegates feature a revolutionary actuator housing that allows for easy spring changes and gives you the ability to index the cap orientation in 12 different positions. |
item_row
| handle | TUR-TS-0505-1006 |
|---|---|
| item_ |
21112 |
| brand_ |
82 |
| brand_ |
Turbosmart |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/4014153d654ba86d65c533e24a10e242.JPG |
| item_ |
TS-0505-1006 |
| item_ |
Turbosmart WG40 Compgate 40mm - 7 PSI BLACK |
| item_ |
Forced Induction |
| item_ |
Wastegates |
| item_ |
9329677010275 |
| item_ |
299.95 |
| item_ |
333.28 |
| t14_ |
4 |
| mfr_ |
10 |
| dim_ |
2.90 |
| dim_ |
6.50 |
| dim_ |
5.60 |
| dim_ |
5.10 |
| shipping_ |
15.39 |
| item_ |
turTS-0505-1006 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| bodyHtml | Turbosmart TS-0505-1006 Wastegates IT'S BACK. The Gen4 CompGate40 and HyperGate45 have been approved for continuation and re-introduction at an all-new price! Turbosmart Comp-Gate 40 wastegates are a suitable choice for all street and race turbocharged vehicles with an external wastegate turbo system. These wastegates are designed to fit into tight engine bays, while still offering superior flow and heat-handling capabilities. Turbosmart Comp-Gate 40 wastegates feature a revolutionary actuator housing that allows for easy spring changes and gives you the ability to index the cap orientation in 12 different positions. |
Overview
| Brand | Turbosmart |
|---|---|
| Notes | Comes fitted with a 7 psi spring. Designed to fit 1.750 in. o.d. pipe. |
| Quantity | Sold individually. |
| Part Type | Wastegates |
| Product Line | Turbosmart Comp-Gate 40 Wastegates |
| Wastegate Type | Mechanical |
| Wastegate Style | Diaphragm |
| Wastegate Location | External |
| Wastegate Base Finish | Natural |
| Wastegate Base Material | Stainless steel |
| Wastegate Top Cap Color | Black |
| Manufacturer's Part Number | TS-0505-1006 |
| Wastegate Top Cap Material | Aluminum |
| External Wastegate Relief Diameter | 40mm |
