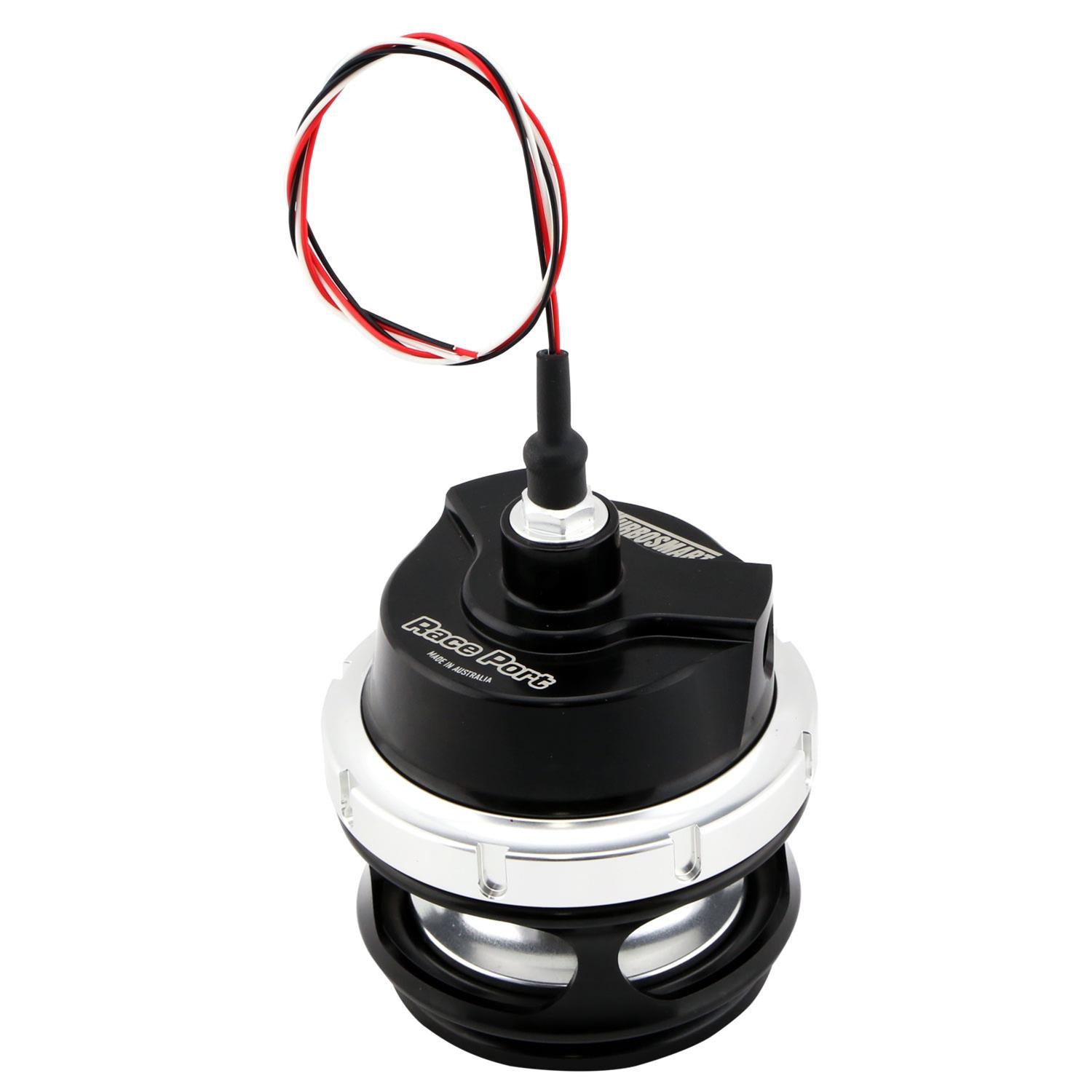

Turbosmart Gen-V Race Port Blow-Off Valves TS-0204-1232
Turbosmart Gen-V Race Port Blow-Off Valves TS-0204-1232
Out of stock
Couldn't load pickup availability
Product Description
The GenV RacePort 'Sensor Cap' allows you to monitor the blow off valve (BOV) position for diagnostic or tuning purposes, a truly unique solution and the first of its kind on the market.
Turbosmart Gen-V Race Port blow-off valves are small, lightweight, high performance components for forced-induction competition level engines. Featuring unique collar designs and internal flow structures, they are 46 to 50 percent lighter and 25 percent smaller than the competition, while flowing 330 cfm, making Turbosmart Gen-V Race Port blow-off valves the highest flowing BOVs of their type on the market. They are offered in several different anodized colors and versions to fit your race application. All are supplied with vacuum fittings, V-band assemblies, and installed springs. Additional features: * Billet 6000 Series aluminum construction * Quick-release V-band collar for ease of installation and removal * MIL-Spec hard-anodized valve guide and stem * High-temperature silicone Nomex® diaphragm * Twin 1/8 in. NPT pressure ports for convenient positioning * 2.0 in. inlet flows over 330 cfm * Collar secured cap for quick spring changes * Most Race Ports have blue spring rated -18 to -14 InHg installed * Female flange version available to suit other manufacturer's 50mm flanges (no weld-on fitting supplied) and is 46 percent lighter * HE (Hall Effect) sensor cap versions allow you to monitor blow-off valve position for diagnostic or tuning purposes * Supercharger-specific versions have a soft pink spring rated -4 InHg installed, so it can stay open at idle, when supercharger is still producing boost
Extended Description
- BOV Raceport Gen V HE Sensor Black
Application Summary
Universal
Part Type
Turbocharger Blow Off Valve
Additional Information 2
- Behind every Turbosmart product stands a long and rich racing history. While a majority of Turbosmart products are used on street cars, their design and testing procedure is identical to the high-end purpose-made racing products. Before reaching the consumer, Turbosmart products are subjected to a range of tests performed in the most demanding environment ? the race track.
description
| aaia_ |
Turbocharger Blow Off Valve |
|---|---|
| application_ |
Universal |
| associated_ |
Behind every Turbosmart product stands a long and rich racing history. While a majority of Turbosmart products are used on street cars, their design and testing procedure is identical to the high-end purpose-made racing products. Before reaching the consumer, Turbosmart products are subjected to a range of tests performed in the most demanding environment ? the race track. |
| market_ |
The GenV RacePort ''Sensor Cap'' allows you to monitor the blow off valve (BOV) position for diagnostic or tuning purposes, a truly unique solution and the first of its kind on the market. |
| product_ |
BOV Raceport Gen V HE Sensor Black |
| product_ |
Blow Off Valve |
| product_ |
BOV Raceport Gen V With HE Position Sensor Cap Black |
| product_ |
TurboSmart Raceport Gen V HE Sensor Cap - Black |
s_item
| department | Air & Fuel Delivery |
|---|---|
| section | Superchargers & Turbochargers |
| name | Turbosmart Gen-V Race Port Blow-Off Valves TS-0204-1232 |
| brand | Turbosmart |
| price | 461.95 |
| blurb | Blow-Off Valves, Gen-V Race Port, Includes HE Position Sensor Cap, Adjustable, Aluminum Flange, Billet Aluminum, Black Anodized, Universal, Each |
| title | Turbosmart Gen-V Race Port Blow-Off Valves |
| description | Turbosmart Gen-V Race Port blow-off valves are small, lightweight, high performance components for forced-induction competition level engines. Featuring unique collar designs and internal flow structures, they are 46 to 50 percent lighter and 25 percent smaller than the competition, while flowing 330 cfm, making Turbosmart Gen-V Race Port blow-off valves the highest flowing BOVs of their type on the market. They are offered in several different anodized colors and versions to fit your race application. All are supplied with vacuum fittings, V-band assemblies, and installed springs. Additional features: * Billet 6000 Series aluminum construction * Quick-release V-band collar for ease of installation and removal * MIL-Spec hard-anodized valve guide and stem * High-temperature silicone Nomex® diaphragm * Twin 1/8 in. NPT pressure ports for convenient positioning * 2.0 in. inlet flows over 330 cfm * Collar secured cap for quick spring changes * Most Race Ports have blue spring rated -18 to -14 InHg installed * Female flange version available to suit other manufacturer's 50mm flanges (no weld-on fitting supplied) and is 46 percent lighter * HE (Hall Effect) sensor cap versions allow you to monitor blow-off valve position for diagnostic or tuning purposes * Supercharger-specific versions have a soft pink spring rated -4 InHg installed, so it can stay open at idle, when supercharger is still producing boost |
item_row
| handle | TUR-TS-0204-1232 |
|---|---|
| item_ |
199503 |
| brand_ |
82 |
| brand_ |
Turbosmart |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/ac21900ea99d25253cb0fa126ecc7735.JPG |
| item_ |
TS-0204-1232 |
| item_ |
TurboSmart Raceport Gen V HE Sensor Cap - Black |
| item_ |
Forced Induction |
| item_ |
Blow Off Valves |
| item_ |
9329677020991 |
| item_ |
461.95 |
| item_ |
513.28 |
| t14_ |
0 |
| mfr_ |
1 |
| dim_ |
1.10 |
| dim_ |
5.00 |
| dim_ |
3.60 |
| dim_ |
3.30 |
| shipping_ |
15.86 |
| item_ |
turTS-0204-1232 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| bodyHtml | Turbosmart TS-0204-1232 Blow Off Valves The GenV RacePort 'Sensor Cap' allows you to monitor the blow off valve (BOV) position for diagnostic or tuning purposes, a truly unique solution and the first of its kind on the market. Turbosmart Gen-V Race Port blow-off valves are small, lightweight, high performance components for forced-induction competition level engines. Featuring unique collar designs and internal flow structures, they are 46 to 50 percent lighter and 25 percent smaller than the competition, while flowing 330 cfm, making Turbosmart Gen-V Race Port blow-off valves the highest flowing BOVs of their type on the market. They are offered in several different anodized colors and versions to fit your race application. All are supplied with vacuum fittings, V-band assemblies, and installed springs.
Additional features:
* Billet 6000 Series aluminum construction
* Quick-release V-band collar for ease of installation and removal
* MIL-Spec hard-anodized valve guide and stem
* High-temperature silicone Nomex® diaphragm
* Twin 1/8 in. NPT pressure ports for convenient positioning
* 2.0 in. inlet flows over 330 cfm
* Collar secured cap for quick spring changes
* Most Race Ports have blue spring rated -18 to -14 InHg installed
* Female flange version available to suit other manufacturer's 50mm flanges (no weld-on fitting supplied) and is 46 percent lighter
* HE (Hall Effect) sensor cap versions allow you to monitor blow-off valve position for diagnostic or tuning purposes
* Supercharger-specific versions have a soft pink spring rated -4 InHg installed, so it can stay open at idle, when supercharger is still producing boost |
Overview
| Brand | Turbosmart |
|---|---|
| Quantity | Sold individually. |
| Part Type | Blow-Off Valves |
| Adjustable | Yes |
| Product Line | Turbosmart Gen-V Race Port Blow-Off Valves |
| Blow-Off Valve Color | Black anodized |
| Steel Flange Included | No |
| Blow-Off Valve Material | Billet aluminum |
| Aluminum Flange Included | Yes |
| Manufacturer's Part Number | TS-0204-1232 |
