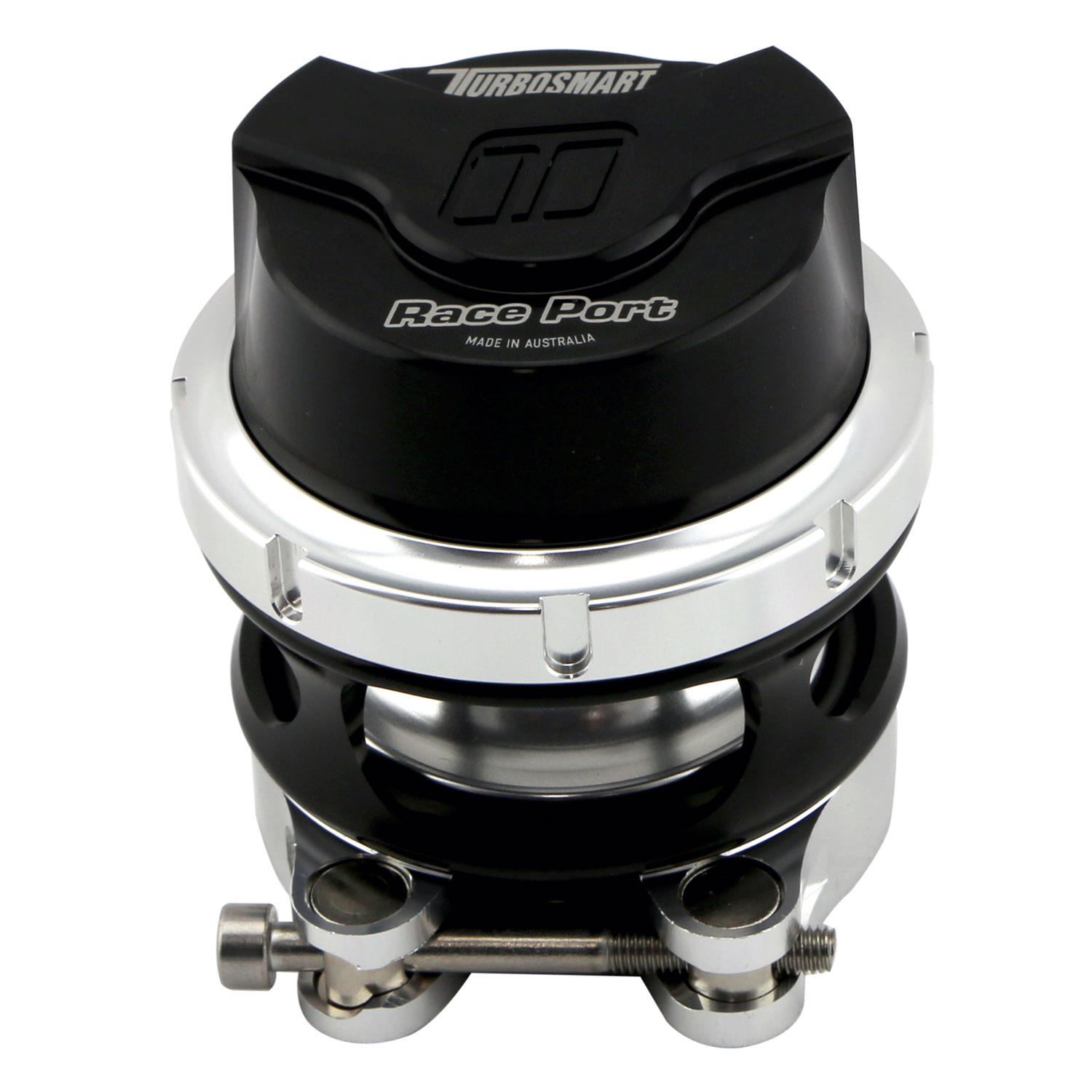

Turbosmart Gen-V Race Port Blow-Off Valves TS-0204-1142
Turbosmart Gen-V Race Port Blow-Off Valves TS-0204-1142
19 in stock
Couldn't load pickup availability
Product Description
The RacePort Series Blow Off Valve is famous for being an amazingly small and light BOV for supercharged competition-level engines. Featuring our unique collar design and internal flow structures, it is 50% lighter and 25% smaller than the competition while flowing 330 CFM - making it the highest flowing BOV of its type on the market.
Turbosmart Gen-V Race Port blow-off valves are small, lightweight, high performance components for forced-induction competition level engines. Featuring unique collar designs and internal flow structures, they are 46 to 50 percent lighter and 25 percent smaller than the competition, while flowing 330 cfm, making Turbosmart Gen-V Race Port blow-off valves the highest flowing BOVs of their type on the market. They are offered in several different anodized colors and versions to fit your race application. All are supplied with vacuum fittings, V-band assemblies, and installed springs. Additional features: * Billet 6000 Series aluminum construction * Quick-release V-band collar for ease of installation and removal * MIL-Spec hard-anodized valve guide and stem * High-temperature silicone Nomex® diaphragm * Twin 1/8 in. NPT pressure ports for convenient positioning * 2.0 in. inlet flows over 330 cfm * Collar secured cap for quick spring changes * Most Race Ports have blue spring rated -18 to -14 InHg installed * Female flange version available to suit other manufacturer's 50mm flanges (no weld-on fitting supplied) and is 46 percent lighter * HE (Hall Effect) sensor cap versions allow you to monitor blow-off valve position for diagnostic or tuning purposes * Supercharger-specific versions have a soft pink spring rated -4 InHg installed, so it can stay open at idle, when supercharger is still producing boost
Extended Description
- The Highest-flowing BOV in the Turbosmart range has just been redesigned and now features our unique collar design.
Application Summary
Universal
Part Type
Turbocharger Blow Off Valve
Additional Information 2
- Behind every Turbosmart product stands a long and rich racing history. While a majority of Turbosmart products are used on street cars, their design and testing procedure is identical to the high-end purpose-made racing products. Before reaching the consumer, Turbosmart products are subjected to a range of tests performed in the most demanding environment ? the race track.
description
| aaia_ |
Turbocharger Blow Off Valve |
|---|---|
| application_ |
Universal |
| associated_ |
Behind every Turbosmart product stands a long and rich racing history. While a majority of Turbosmart products are used on street cars, their design and testing procedure is identical to the high-end purpose-made racing products. Before reaching the consumer, Turbosmart products are subjected to a range of tests performed in the most demanding environment ? the race track. |
| market_ |
The RacePort Series Blow Off Valve is famous for being an amazingly small and light BOV for supercharged competition-level engines. Featuring our unique collar design and internal flow structures, it is 50% lighter and 25% smaller than the competition while flowing 330 CFM - making it the highest flowing BOV of its type on the market. |
| product_ |
The Highest-flowing BOV in the Turbosmart range has just been redesigned and now features our unique collar design. |
| product_ |
Blow Off Valve |
| product_ |
Blow Off Valve Raceport Female- GenV Black No Weld Flange |
| product_ |
Turbosmart Raceport Gen-V Universal - Black (No Weld Flange) Female (Fits Competitors Flange) |
s_item
| department | Air & Fuel Delivery |
|---|---|
| section | Superchargers & Turbochargers |
| name | Turbosmart Gen-V Race Port Blow-Off Valves TS-0204-1142 |
| brand | Turbosmart |
| price | 279.95 |
| blurb | Blow-Off Valve, Gen-V, Adjustable, Aluminum, Female Flange, Black Anodized, Each |
| title | Turbosmart Gen-V Race Port Blow-Off Valves |
| description | Turbosmart Gen-V Race Port blow-off valves are small, lightweight, high performance components for forced-induction competition level engines. Featuring unique collar designs and internal flow structures, they are 46 to 50 percent lighter and 25 percent smaller than the competition, while flowing 330 cfm, making Turbosmart Gen-V Race Port blow-off valves the highest flowing BOVs of their type on the market. They are offered in several different anodized colors and versions to fit your race application. All are supplied with vacuum fittings, V-band assemblies, and installed springs. Additional features: * Billet 6000 Series aluminum construction * Quick-release V-band collar for ease of installation and removal * MIL-Spec hard-anodized valve guide and stem * High-temperature silicone Nomex® diaphragm * Twin 1/8 in. NPT pressure ports for convenient positioning * 2.0 in. inlet flows over 330 cfm * Collar secured cap for quick spring changes * Most Race Ports have blue spring rated -18 to -14 InHg installed * Female flange version available to suit other manufacturer's 50mm flanges (no weld-on fitting supplied) and is 46 percent lighter * HE (Hall Effect) sensor cap versions allow you to monitor blow-off valve position for diagnostic or tuning purposes * Supercharger-specific versions have a soft pink spring rated -4 InHg installed, so it can stay open at idle, when supercharger is still producing boost |
item_row
| handle | TUR-TS-0204-1142 |
|---|---|
| item_ |
217987 |
| brand_ |
82 |
| brand_ |
Turbosmart |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/4d56a336e62f928ac36a9831d3c65fda.JPG |
| item_ |
TS-0204-1142 |
| item_ |
Turbosmart Raceport Gen-V Universal - Black (No Weld Flange) Female (Fits Competitors Flange) |
| item_ |
Forced Induction |
| item_ |
Blow Off Valves |
| item_ |
9329677021486 |
| item_ |
279.95 |
| item_ |
311.06 |
| t14_ |
40 |
| mfr_ |
10 |
| dim_ |
1.00 |
| dim_ |
5.00 |
| dim_ |
3.60 |
| dim_ |
3.40 |
| shipping_ |
15.86 |
| item_ |
turTS-0204-1142 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| bodyHtml | Turbosmart TS-0204-1142 Blow Off Valves The RacePort Series Blow Off Valve is famous for being an amazingly small and light BOV for supercharged competition-level engines. Featuring our unique collar design and internal flow structures, it is 50% lighter and 25% smaller than the competition while flowing 330 CFM - making it the highest flowing BOV of its type on the market. Turbosmart Gen-V Race Port blow-off valves are small, lightweight, high performance components for forced-induction competition level engines. Featuring unique collar designs and internal flow structures, they are 46 to 50 percent lighter and 25 percent smaller than the competition, while flowing 330 cfm, making Turbosmart Gen-V Race Port blow-off valves the highest flowing BOVs of their type on the market. They are offered in several different anodized colors and versions to fit your race application. All are supplied with vacuum fittings, V-band assemblies, and installed springs.
Additional features:
* Billet 6000 Series aluminum construction
* Quick-release V-band collar for ease of installation and removal
* MIL-Spec hard-anodized valve guide and stem
* High-temperature silicone Nomex® diaphragm
* Twin 1/8 in. NPT pressure ports for convenient positioning
* 2.0 in. inlet flows over 330 cfm
* Collar secured cap for quick spring changes
* Most Race Ports have blue spring rated -18 to -14 InHg installed
* Female flange version available to suit other manufacturer's 50mm flanges (no weld-on fitting supplied) and is 46 percent lighter
* HE (Hall Effect) sensor cap versions allow you to monitor blow-off valve position for diagnostic or tuning purposes
* Supercharger-specific versions have a soft pink spring rated -4 InHg installed, so it can stay open at idle, when supercharger is still producing boost |
Overview
| Brand | Turbosmart |
|---|---|
| Notes | Female flange, does not include weld on fitting. |
| Quantity | Sold individually. |
| Part Type | Blow-Off Valves |
| Adjustable | Yes |
| Product Line | Turbosmart Gen-V Race Port Blow-Off Valves |
| Blow-Off Valve Color | Black anodized |
| Steel Flange Included | No |
| Blow-Off Valve Material | Aluminum |
| Aluminum Flange Included | No |
| Manufacturer's Part Number | TS-0204-1142 |
