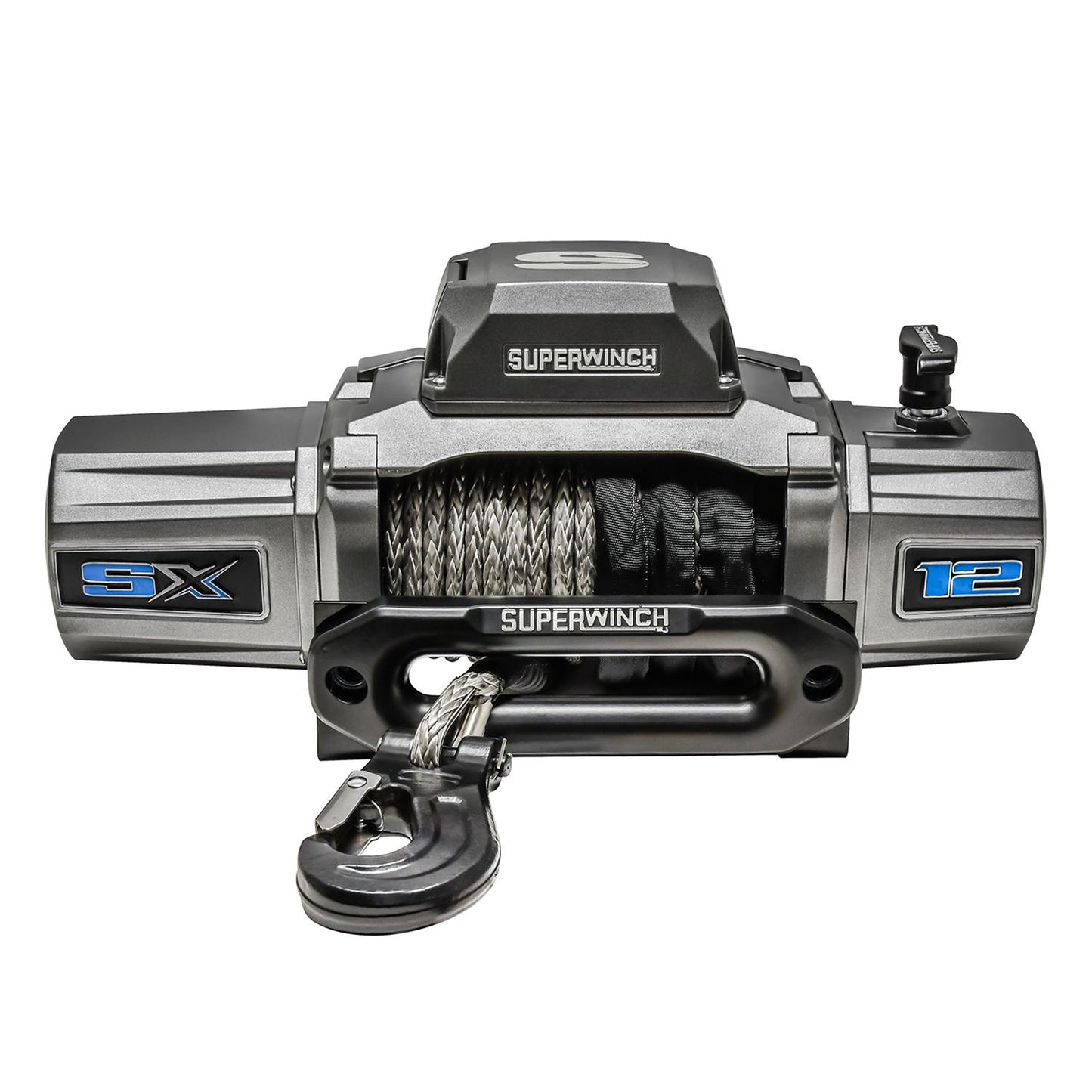

Superwinch SX12000 Series Winches 1712201

Superwinch SX12000 Series Winches 1712201

Regular price $997.19 USD
Regular price Sale price $997.19 USD
Sale Sold out
Shipping calculated at checkout.

111 in stock

Product Description

The SX 12000SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8" diameter synthetic rope, a 12' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX 12000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.

Superwinch SX12000 Series winches provide the ideal combination of power, speed, and innovation. Featuring a patented drum light, relocatable diecast aluminum control box, and a 12 ft. lighted wired remote, the SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design with class leading characteristics not found on other high performance winches. Providing 12,000 lbs. of raw pulling power, Superwinch SX 12000 winches are built to last and available in two different models. Features: * Rated line pull of 12,000 lbs. with 6.0 hp sealed motor * Relocatable diecast aluminum control box * 12 ft. handheld wired remote features flashlight with built-in ION battery * Pull-and-turn clutch handle * 3-stage planetary gearing with 218:1 ratio * Patented drum light * Heavy-duty clevis winch hook * 100 percent full load holding automatic mechanical brake * IP 68 rated against water and dust * Durable metallic graphite powdercoat finish * SX12000 winch includes 85 ft. of 3/8 in. wire rope and stainless steel 4-way roller fairlead * SX12000SR winch includes 80 ft. of 3/8 in. synthetic rope, aluminum Hawse fairlead, and handheld wireless remote

Extended Description

  • SX 12000SR Winch
  • 12000 lbs., 12 VDC, 3/8 in x 80 ft. Synthetic Rope
  • Handheld Remote Control
  • 6.0 HP
  • Automatic Brake
  • 3-Stage Planetary
  • Aluminum Hawse Fairlead

Application Summary

12;000 lbs.; 12 VDC; 3/8 in x 80 ft. synthetic rope; ergo handheld remote control; 6.0 HP; automatic brake; 3-stage planetary; 231:1 gear ratio; ergo pull and turn freespool clutch; aluminum hawse fairlead

Part Type

Overview

Brake Yes
Brand Superwinch
Volts 12 V
Weight 61.000 lbs.
Quantity Sold individually.
Part Type Winches
Power Out Yes
Drive Gear Planetary
Remote Type Wired/Wireless
Winch Style Electric
Product Line Superwinch SX12000 Series Winches
Remote Style Hand-held
Free-Spooling Yes
Remote Included Yes
Winch Line Type Cable
Motor Horsepower 6.00 hp
Pull Rating (lbs.) 12,000 lbs.
Winch Fairlead Type Hawse
Winch Line Included Yes
Winch Line Material Synthetic
Gear Reduction Ratio 218:1
Mounting Hole Quantity 4 holes
Winch Line Length (ft.) 80.00 ft.
Remote Cord Length (ft.) 12.00 ft.
Winch Line Diameter (in.) 3/8 in.
Conforms to J706 Standards Yes
Manufacturer's Part Number 1712201
Mounting Pattern Width (in.) 4.500 in.
Mounting Pattern Length (in.) 10.000 in.
