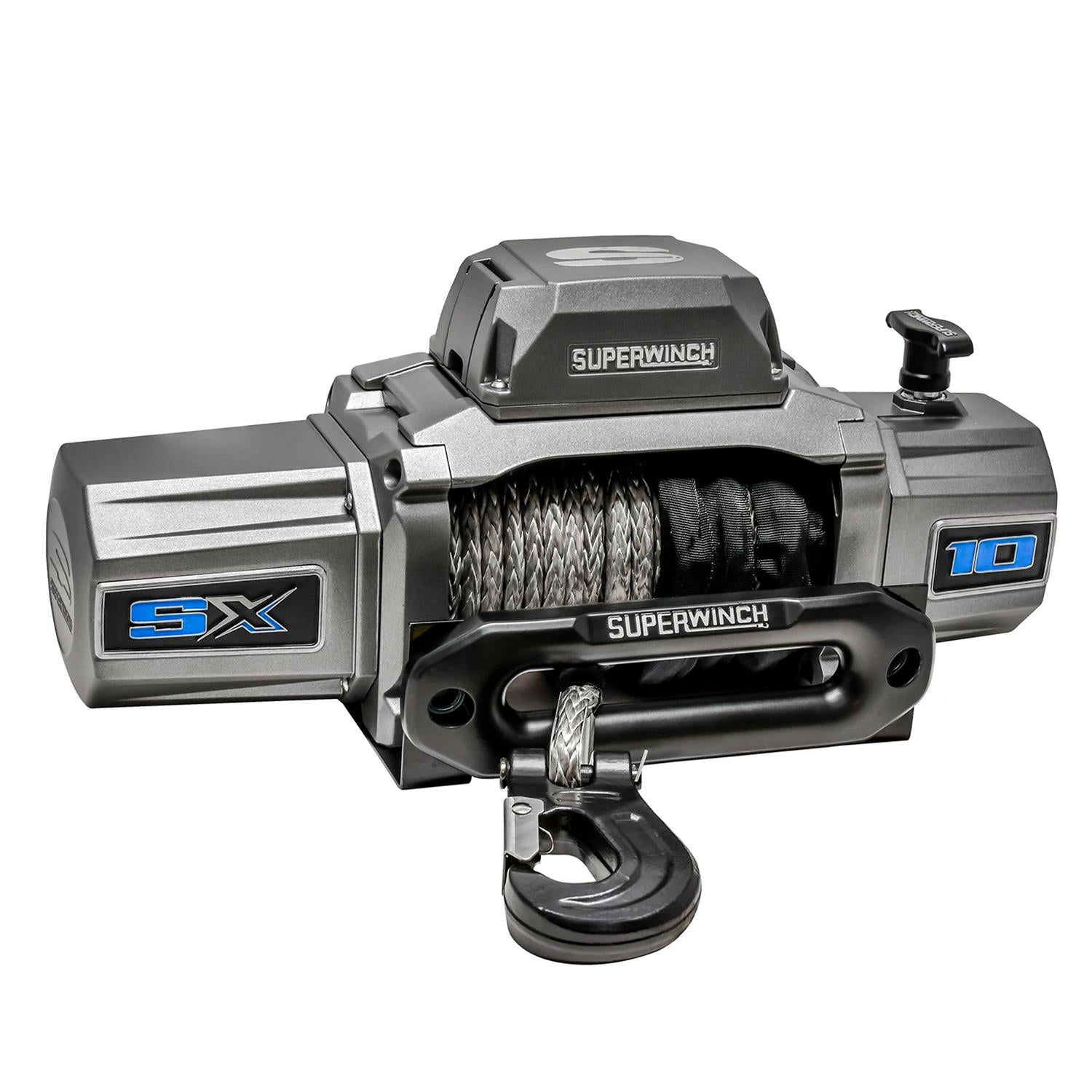

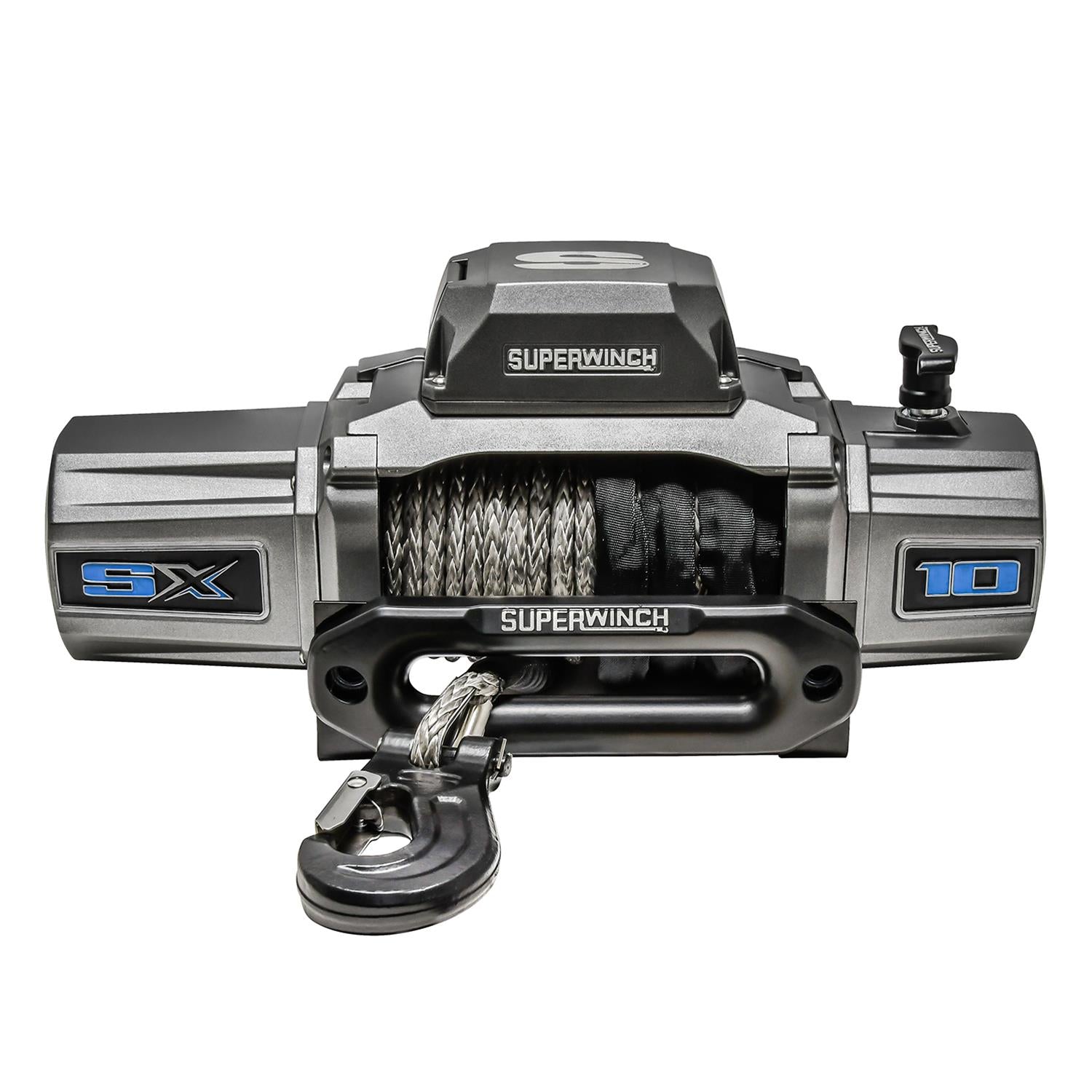

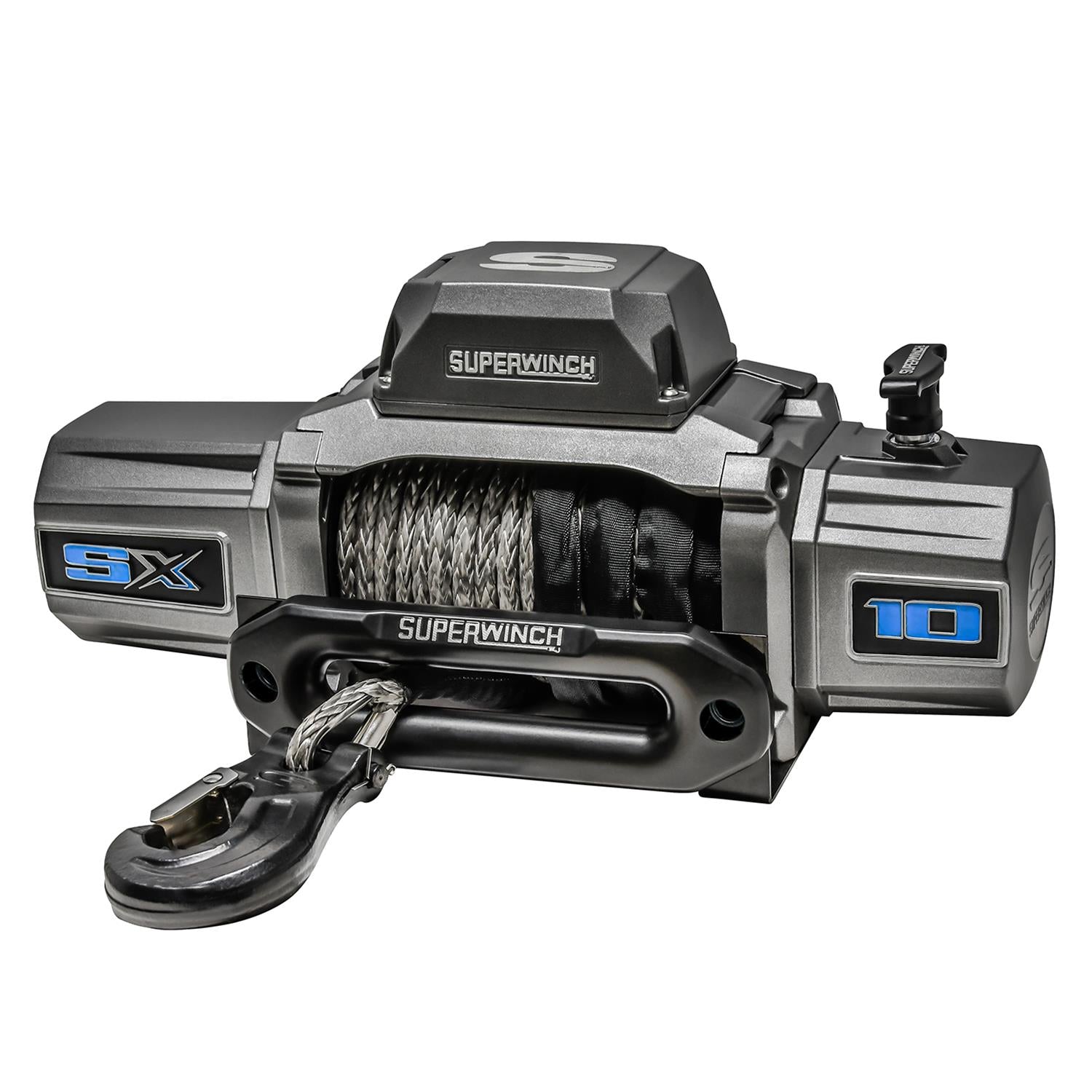

Superwinch SX10000 Series Winches 1710201
Superwinch SX10000 Series Winches 1710201
63 in stock
Couldn't load pickup availability
Product Description
The SX 10000SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8" diameter synthetic rope, a 12' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX 10000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.
Superwinch SX10000 Series winches provide the ideal combination of power, speed, and innovation. Featuring a patented drum light, relocatable diecast aluminum control box, and a 12 ft. lighted wired remote, the SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design with class leading characteristics not found on other high performance winches. Providing 10,000 lbs. of raw pulling power, Superwinch SX 10000 models are built to last and available in two different models. Features: * Rated line pull of 10,000 lbs. with 5.5 hp sealed motor * Relocatable diecast aluminum control box * 12 ft. handheld wired remote features flashlight with built-in ION battery * Pull-and-turn clutch handle * 3-stage planetary gearing with 218:1 ratio * Patented drum light * Heavy-duty clevis winch hook * 100 percent full load holding automatic mechanical brake * IP 68 rated against water and dust * Durable metallic graphite powdercoat finish * SX10000 winch includes 85 ft. of 3/8 in. wire rope and stainless steel 4-way roller fairlead * SX10000SR winch includes 80 ft. of 3/8 in. synthetic rope, aluminum Hawse fairlead, and handheld wireless remote
Extended Description
- SX 10000SR Winch
- 10000 lbs.
- 12 VDC
- 3/8 in. X 80 ft. Synthetic Rope
- Handheld Remote Control
- 5.5 HP
- Automatic Brake
- 3-Stage Planetary
- Aluminum Hawse Fairlead
Application Summary
10;000 lbs.; 12 VDC; 3/8 in x 80 ft. synthetic rope; ergo handheld remote control; 5.5 HP; automatic brake; 3-stage planetary; 218:1 gear ratio; ergo pull and turn freespool clutch; aluminum hawse fairlead
Part Type
description
| application_ |
10;000 lbs.; 12 VDC; 3/8 in x 80 ft. synthetic rope; ergo handheld remote control; 5.5 HP; automatic brake; 3-stage planetary; 218:1 gear ratio; ergo pull and turn freespool clutch; aluminum hawse fairlead |
|---|---|
| market_ |
The SX 10000SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8" diameter synthetic rope, a 12'' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today''s modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX 10000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all. |
| product_ |
SX 10000SR Winch; 10000 lbs.; 12 VDC; 3/8 in. X 80 ft. Synthetic Rope; Handheld Remote Control; 5.5 HP; Automatic Brake; 3-Stage Planetary; Aluminum Hawse Fairlead; |
| product_ |
Winch |
| product_ |
SX 10000SR Winch |
| product_ |
Superwinch 10000 LBS 12 VDC 3/8in x 80ft Synthetic Rope SX 10000 Winch |
s_item
| department | Trailer/Towing/Winches |
|---|---|
| section | Winches |
| name | Superwinch SX10000 Series Winches 1710201 |
| brand | Superwinch |
| price | 763.99 |
| blurb | Winches, Winch 10,000 lbs. 12 VDC 3/8 in x 80 ft. synthetic rope 5.5 HP 218:1 gear ratio |
| title | Superwinch SX10000 Series Winches |
| description | Superwinch SX10000 Series winches provide the ideal combination of power, speed, and innovation. Featuring a patented drum light, relocatable diecast aluminum control box, and a 12 ft. lighted wired remote, the SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design with class leading characteristics not found on other high performance winches. Providing 10,000 lbs. of raw pulling power, Superwinch SX 10000 models are built to last and available in two different models. Features: * Rated line pull of 10,000 lbs. with 5.5 hp sealed motor * Relocatable diecast aluminum control box * 12 ft. handheld wired remote features flashlight with built-in ION battery * Pull-and-turn clutch handle * 3-stage planetary gearing with 218:1 ratio * Patented drum light * Heavy-duty clevis winch hook * 100 percent full load holding automatic mechanical brake * IP 68 rated against water and dust * Durable metallic graphite powdercoat finish * SX10000 winch includes 85 ft. of 3/8 in. wire rope and stainless steel 4-way roller fairlead * SX10000SR winch includes 80 ft. of 3/8 in. synthetic rope, aluminum Hawse fairlead, and handheld wireless remote |
item_row
| handle | SUW-1710201 |
|---|---|
| item_ |
428381 |
| brand_ |
295 |
| brand_ |
Superwinch |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/5c2f14170b9313b37af706186e416b0d.JPG |
| item_ |
1710201 |
| item_ |
Superwinch 10000 LBS 12V DC 3/8in x 80ft Synthetic Rope SX 10000 Winch |
| item_ |
External Accessories |
| item_ |
Winches |
| item_ |
022705003889 |
| item_ |
763.99 |
| item_ |
|
| t14_ |
107 |
| mfr_ |
|
| dim_ |
66.50 |
| dim_ |
23.90 |
| dim_ |
12.90 |
| dim_ |
12.00 |
| shipping_ |
30.70 |
| item_ |
suw1710201 |
| taxonomy_ |
5384 |
| collection_ |
274120507434 |
| collection_ |
External Accessories |
| status | Active |
| item_ |
1 |
| item_ |
Winches & Hitches |
| productTaxonomy | 5384 |
Overview
| Brake | Yes |
|---|---|
| Brand | Superwinch |
| Volts | 12 V |
| Weight | 61.000 lbs. |
| Quantity | Sold individually. |
| Part Type | Winches |
| Power Out | Yes |
| Drive Gear | Planetary |
| Remote Type | Wired/Wireless |
| Winch Style | Electric |
| Product Line | Superwinch SX10000 Series Winches |
| Remote Style | Hand-held |
| Free-Spooling | Yes |
| Remote Included | Yes |
| Winch Line Type | Cable |
| Motor Horsepower | 5.50 hp |
| Pull Rating (lbs.) | 10,000 lbs. |
| Winch Fairlead Type | Hawse |
| Winch Line Included | Yes |
| Winch Line Material | Synthetic |
| Gear Reduction Ratio | 218:1 |
| Mounting Hole Quantity | 4 holes |
| Winch Line Length (ft.) | 80.00 ft. |
| Remote Cord Length (ft.) | 12.00 ft. |
| Winch Line Diameter (in.) | 3/8 in. |
| Conforms to J706 Standards | Yes |
| Manufacturer's Part Number | 1710201 |
| Mounting Pattern Width (in.) | 4.500 in. |
| Mounting Pattern Length (in.) | 10.000 in. |
