Superwinch S Series Trailer Winches 1475200
Superwinch S Series Trailer Winches 1475200
Low stock: 3 left
Couldn't load pickup availability
Product Description

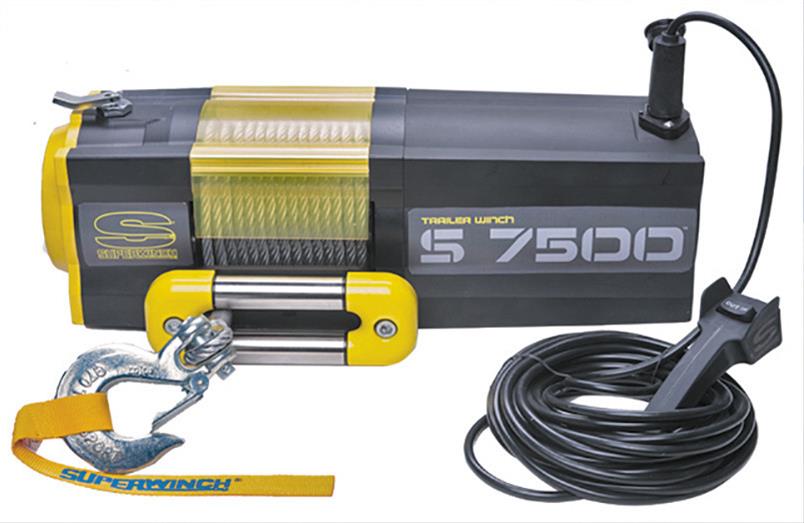

The S7500 Winch pulls 7,500 lbs with a 3.6 hp permanent magnet motor driven through an all steel 3-stage planetary gear box. The tinted protective cover protects the cable, drum and operators fingers. Machined aluminum free-spool lever can be easily operated by foot. Innovative 2-hole drum prevents steel cable from detaching from drum.
Superwinch S Series trailer winches are known for their reliability, brute strength, and durability. "S" stands for simple, and they feature more power and capacity, lower amp draw, and a foot-activated aluminum "kick-flip lever" to control freespool with ease. And now there are more ways to control your winch. Choose the line material, length, and pull rating needed for your application. Superwinch S Series trailer winches—smart and simple with no parts to rust!
Extended Description
- S7500 Winch
- 7500 lbs
- 12 Vdc
- 5/16 In X 54 ft Steel Rope
- 30.5 ft Handheld Remote Control
- 3.6 hp
- Mechanical Brake
- 3-Stage Planetary
- 249:1 Gear Ratio
- 2-Way Fairlead
Application Summary
7;500 lbs; 12 VDC; 5/16 in x 54 ft steel rope; 30.5 ft handheld remote control; 3.6 Hp; mechanical brake; 3-stage planetary; 249:1 gear ratio; 2-way fairlead
Part Type
description
| application_ |
7;500 lbs; 12 VDC; 5/16 in x 54 ft steel rope; 30.5 ft handheld remote control; 3.6 Hp; mechanical brake; 3-stage planetary; 249:1 gear ratio; 2-way fairlead |
|---|---|
| label_ |
7;500 lbs; 12 VDC; 5/16 in x 54 ft steel rope; 30.5 ft handheld remote control; |
| market_ |
The S7500 Winch pulls 7,500 lbs with a 3.6 hp permanent magnet motor driven through an all steel 3-stage planetary gear box. The tinted protective cover protects the cable, drum and operators fingers. Machined aluminum free-spool lever can be easily operated by foot. Innovative 2-hole drum prevents steel cable from detaching from drum. |
| product_ |
S7500 Winch; 7500 lbs; 12 Vdc; 5/16 In X 54 ft Steel Rope; 30.5 ft Handheld Remote Control; 3.6 hp; Mechanical Brake; 3-Stage Planetary; 249:1 Gear Ratio; 2-Way Fairlead; |
| product_ |
Winch |
| product_ |
S7500 Winch |
| product_ |
Superwinch 7500 LBS 12 VDC 5/16in x 54ft Steel Rope S7500 Winch |
s_item
| department | Trailer/Towing/Winches |
|---|---|
| section | Winches |
| name | Superwinch S Series Trailer Winches 1475200 |
| brand | Superwinch |
| price | 673.99 |
| blurb | Winch, S Series Trailer Winch, Electric, 12 V, 55 ft. Length Steel Cable, 30 ft. Wired Remote, Each |
| title | Superwinch S Series Trailer Winches |
| description | Superwinch S Series trailer winches are known for their reliability, brute strength, and durability. "S" stands for simple, and they feature more power and capacity, lower amp draw, and a foot-activated aluminum "kick-flip lever" to control freespool with ease. And now there are more ways to control your winch. Choose the line material, length, and pull rating needed for your application. Superwinch S Series trailer winches—smart and simple with no parts to rust! |
item_row
| handle | SUW-1475200 |
|---|---|
| item_ |
309500 |
| brand_ |
295 |
| brand_ |
Superwinch |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/3ad7131900d19ec7633aac6270767c2b.JPG |
| item_ |
1475200 |
| item_ |
Superwinch 7500 LBS 12V DC 5/16in x 54ft Steel Rope S7500 Winch |
| item_ |
External Accessories |
| item_ |
Winches |
| item_ |
022705006040 |
| item_ |
673.99 |
| item_ |
|
| t14_ |
1 |
| mfr_ |
|
| dim_ |
63.20 |
| dim_ |
21.90 |
| dim_ |
13.20 |
| dim_ |
8.80 |
| shipping_ |
30.54 |
| item_ |
suw1475200 |
| taxonomy_ |
5384 |
| collection_ |
274120507434 |
| collection_ |
External Accessories |
| status | Active |
| item_ |
1 |
| item_ |
Winches & Hitches |
| productTaxonomy | 5384 |
Overview
| Brake | Yes |
|---|---|
| Brand | Superwinch |
| Volts | 12 V |
| Weight | 55.000 lbs. |
| Quantity | Sold individually. |
| Part Type | Winches |
| Power Out | Yes |
| Drive Gear | 3-stage planetary |
| Remote Type | Wired |
| Winch Style | Electric |
| Product Line | Superwinch S Series Trailer Winches |
| Remote Style | Hand-held |
| Free-Spooling | Yes |
| Remote Included | Yes |
| Winch Line Type | Cable |
| Motor Horsepower | 3.60 hp |
| Pull Rating (lbs.) | 7,500 lbs. |
| Winch Fairlead Type | Roller |
| Winch Line Included | Yes |
| Winch Line Material | Steel |
| Gear Reduction Ratio | 249:1 |
| Mounting Hole Quantity | 4 holes |
| Winch Line Length (ft.) | 55.00 ft. |
| Remote Cord Length (ft.) | 30.00 ft. |
| Winch Line Diameter (in.) | 5/16 in. |
| Conforms to J706 Standards | No |
| Manufacturer's Part Number | 1475200 |
| Mounting Pattern Width (in.) | 4.490 in. |
| Mounting Pattern Length (in.) | 6.000 in. |
