SKUNK2 RACING 344-05-1360
873265013043

Skunk2 Racing Alpha Valve Springs/Retainer Kits 344-05-1360

Skunk2 Racing Alpha Valve Springs/Retainer Kits 344-05-1360

Regular price $429.59 AUD
Regular price $375.89 AUD Sale price $429.59 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 1 left

Product Description

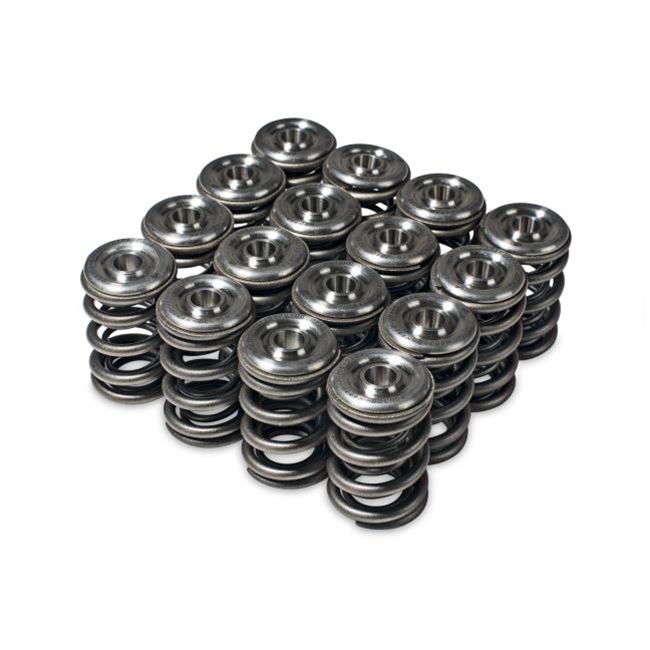

Skunk2 H Series Alpha Valve Spring and Titanium Retainer Kit for H22A

Skunk2's Racing Alpha valve springs/retainer kits include their high-quality dual valve springs and race-proven titanium retainers that are the result of nearly two decades of racing and engine building experience. Each Alpha valve spring is manufactured exclusively from super-clean, chrome-silicone wire milled in Japan. By using inner and outer springs mated together through a slight interference fit and with differing frequencies, Alpha valve springs are able to prevent valve float and maintain valvetrain stability at engine speeds in excess of 10,000 rpm. The titanium retainers are designed to significantly reduce valvetrain mass, resulting in more horsepower and improved valvetrain stability. They feature radius-cut edges for additional rocker arm clearance and reduced weight, strategically positioned lightening grooves, and reduced overall heights for better valve seal clearance and even further weight reduction. Only medical-grade titanium that is ultrasonically inspected and certified is used. They are CNC machined, inspected to ensure proper hole diameter and taper, and serialized. For exceptional performance, reliability, and quality, choose a Skunk2 Racing Alpha valve spring/retainer kit packaged for your vehicle.

Extended Description

  • Alpha Series Valve Spring And Retainer Kit
  • Seat Pressure 50 Lbs At 1.400 in.
  • Open Pressure 205 Lbs At 0.900 in.
  • Coil Bind 0.880 in.
  • Incl. Dual Valve Springs/Titanium Retainers

Application Summary

Fitment

Honda Prelude 1993–2001

Part Type

Additional Information 2

  • Specifications:
  • Seat Pressure: 50 lbs at 1.400in.
  • Open Pressure: 205 lbs at 0.900in.
  • Coil Bind: 0.880in.

Overview

Brand Skunk 2
Quantity Sold as a set of 16.
Part Type Valve Springs
Product Line Skunk2 Racing Alpha Valve Springs/Retainer Kits
Locks Included No
Retainer Material Titanium
Retainers Included Yes
Valve Spring Style Standard
Valve Springs Coated No
Coil Bind Height (in.) 0.880 in.
Damper Spring Included No
Valve Stem Seals Included No
Manufacturer's Part Number 344-05-1360
Number of Springs Per Valve Dual
