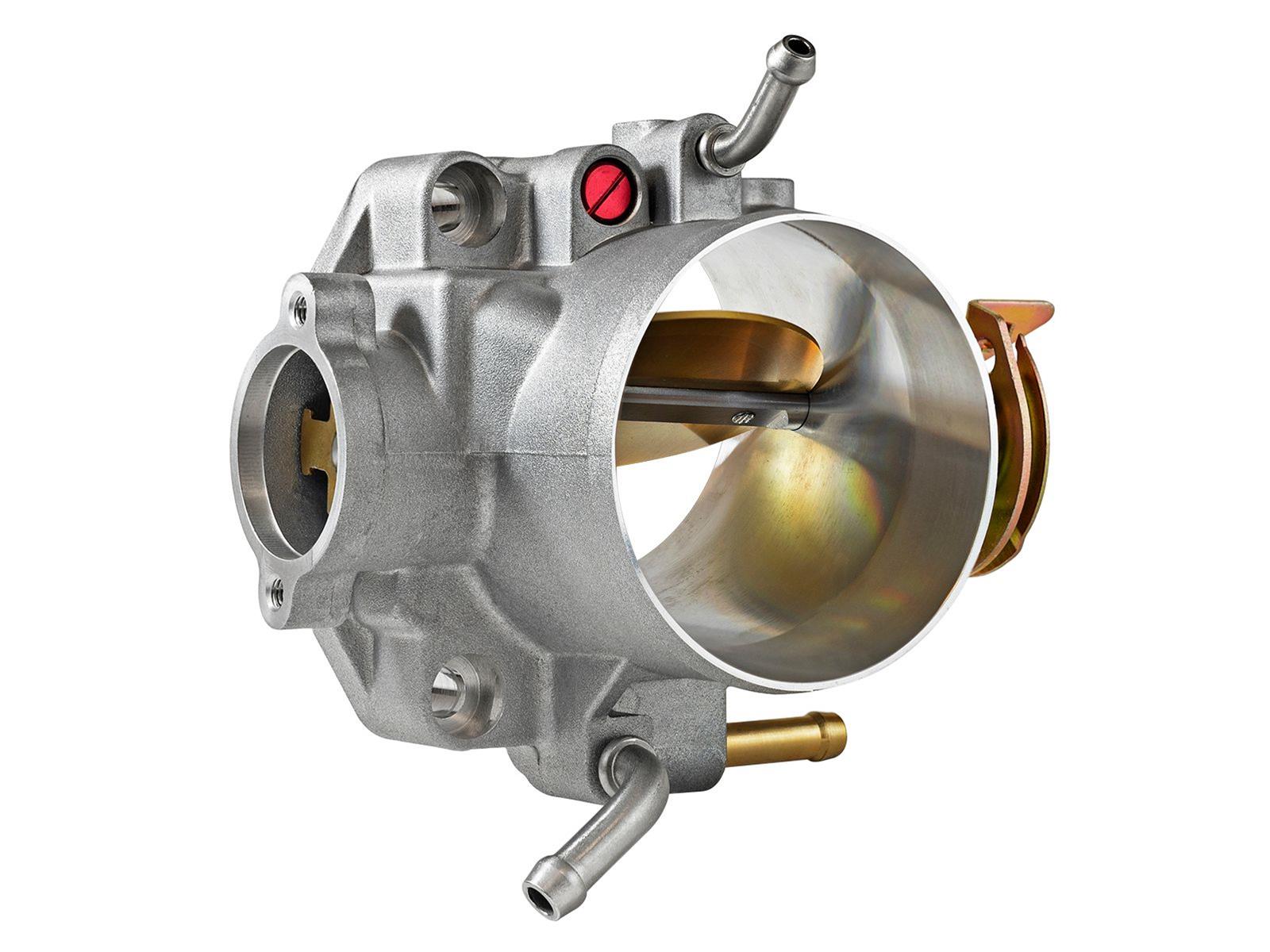

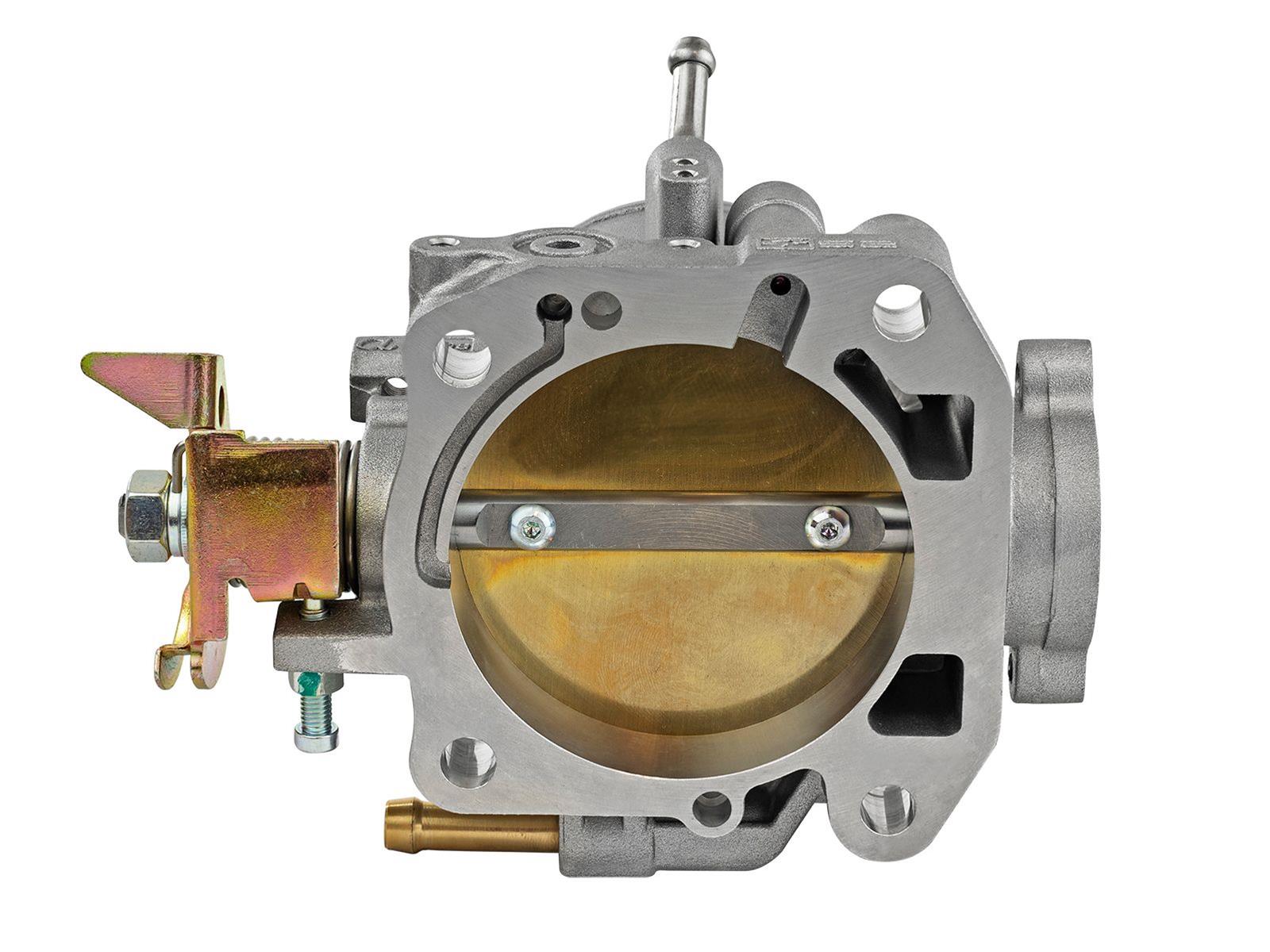

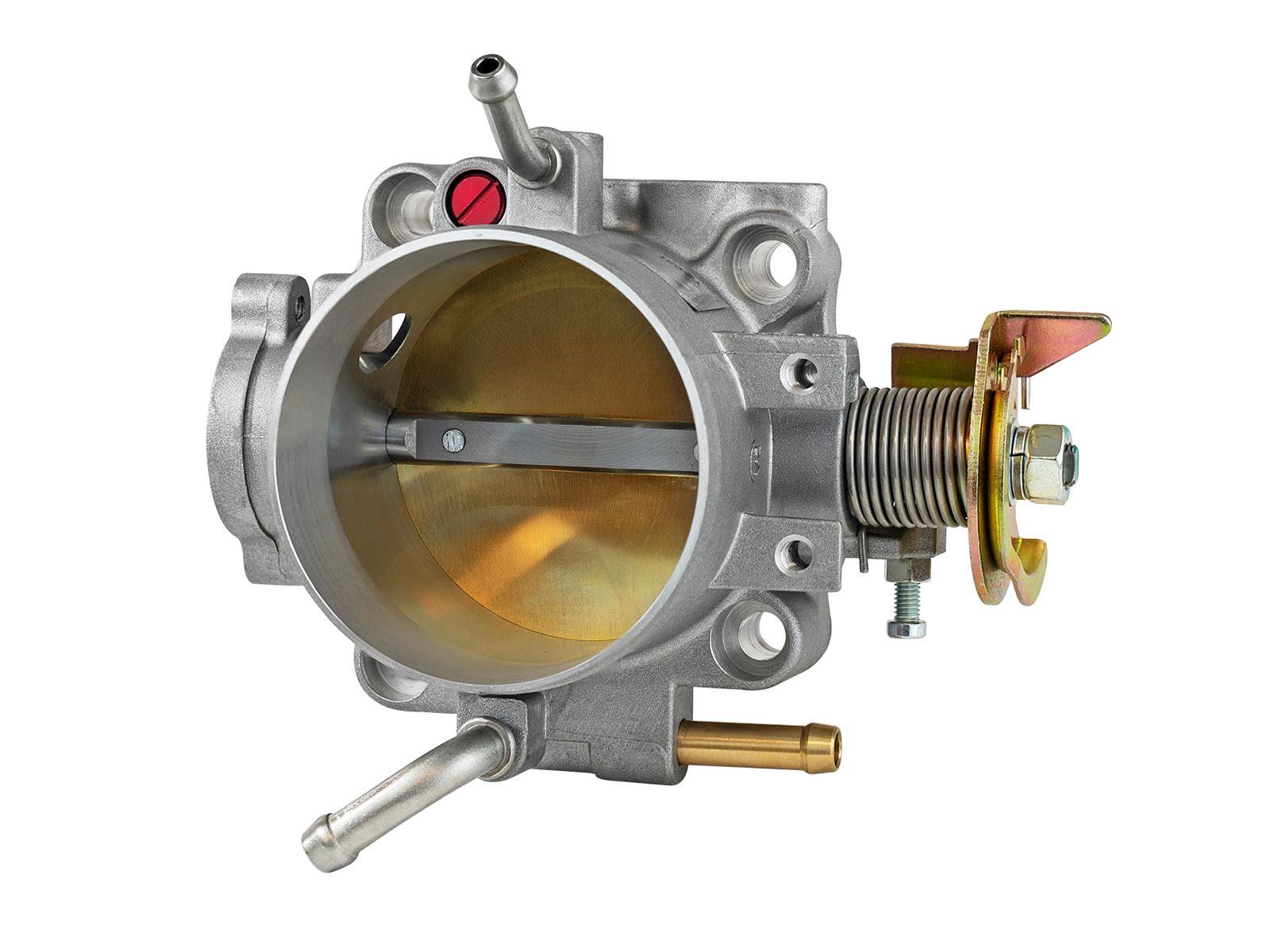

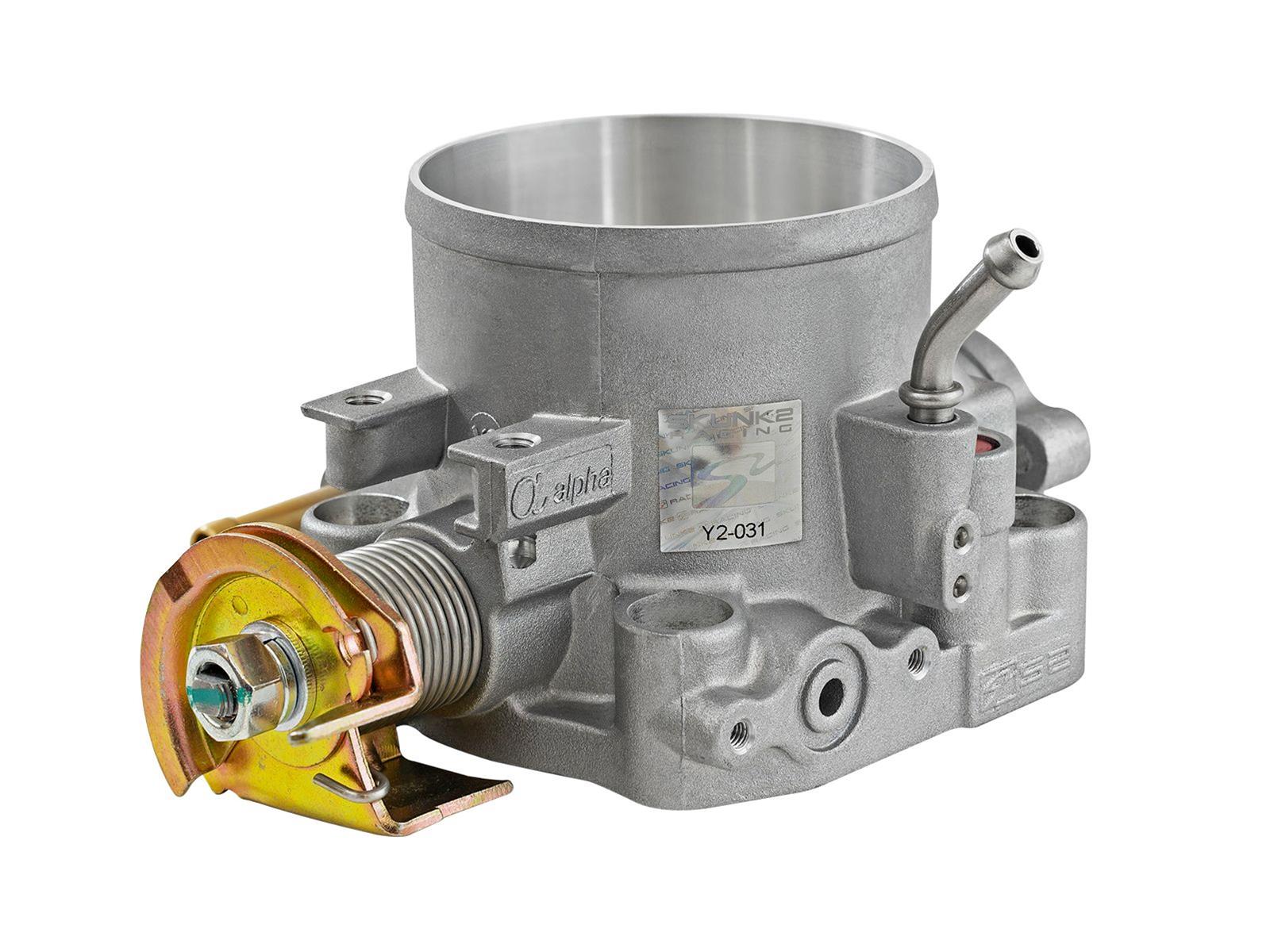

Skunk2 Racing Alpha Throttle Bodies 309-05-1050
Skunk2 Racing Alpha Throttle Bodies 309-05-1050
20 in stock
Couldn't load pickup availability
Tags
Product Description
Skunk2 is proud to introduce its 70mm Alpha Series Throttle Body for Hondas B-series engines (also compatible with D-, F-, and H-series) in its exclusive, fine shot-blasted surface finish. Skunk2’s 70mm Alpha Series Throttle Body is designed to be used with Skunk2’s Pro Series Intake Manifolds as well as OEM and other aftermarket intake manifolds for bolt-on horsepower and torque gains by maximizing engine airflow, all at a competitive price. Skunk2’s Alpha Series Throttle Bodies are precision die-cast from high-quality materials and include features previously offered only in our Pro Series line, like countersunk, stainless steel mounting bolts, solid brass throttle plates, fully machined bores, and idle adjustment screws for fine tuning. All Skunk2 throttle bodies undergo an extensive design and testing process to produce a throttle body that doesnt just provide more flow but retains smooth drivability and OEM throttle characteristics. A larger throttle body is key to producing additional power throughout the powerband on modified engines with increased airflow demands. Skunk2’s Alpha Series Throttle Bodies for B-series engines feature a large, 66mm bore, which results in significant horsepower gains throughout the powerband on heavily modified, naturally aspirated applications and even more on forced induction ones. Skunk2’s 66mm Alpha Series Throttle Body offers Skunk2 performance, industry-leading customer service, and a limited-lifetime warranty policy, all at a price comparable to lesser budget-minded throttle bodies. Unlike the budget-minded throttle bodies, though, only Skunk2 Alpha Series Throttle Bodies ensure precise fitment and the peace of mind of knowing that a Skunk2 representative is just a phone call or email away.
Skunk2 Racing Alpha throttle bodies are designed to be used with Skunk2 Pro Series intake manifolds, OEM, and other aftermarket intake manifolds for bolt-on horsepower and torque gains by maximizing engine airflow, all at a competitive price. A larger throttle body is key to producing additional power throughout the powerband. Sealed ball bearings, a precision machined throttle plate, and a honed oversized bore ensures smooth operation on the most aggressive naturally aspirated and forced induction applications.
Extended Description
- Alpha Series Throttle Body
- 70mm Tb Opening
- For Use w/Skunk2 Pro Series Intake Manifold Or Similar
- Cast Aluminum
Application Summary
Fitment
Fitment
Part Type
Additional Information 2
- Note: Due to Larger Diameter.. You Must Use A Skunk2 Pro Series Intake Manifold or Make Adjustments to Intake Manifold Throttle Body Flange to Match Bore and Keep IAC (Idle Air Control) Passage Separate. Not compatible with B18C GS-R intake manifold. Not
description
| associated_ |
Note: Due to Larger Diameter.. You Must Use A Skunk2 Pro Series Intake Manifold or Make Adjustments to Intake Manifold Throttle Body Flange to Match Bore and Keep IAC (Idle Air Control) Passage Separate. Not compatible with B18C GS-R intake manifold. Not |
|---|---|
| market_ |
Skunk2 is proud to introduce its 70mm Alpha Series Throttle Body for Hondas B-series engines (also compatible with D-, F-, and H-series) in its exclusive, fine shot-blasted surface finish. Skunk2’s 70mm Alpha Series Throttle Body is designed to be used with Skunk2’s Pro Series Intake Manifolds as well as OEM and other aftermarket intake manifolds for bolt-on horsepower and torque gains by maximizing engine airflow, all at a competitive price. Skunk2’s Alpha Series Throttle Bodies are precision die-cast from high-quality materials and include features previously offered only in our Pro Series line, like countersunk, stainless steel mounting bolts, solid brass throttle plates, fully machined bores, and idle adjustment screws for fine tuning. All Skunk2 throttle bodies undergo an extensive design and testing process to produce a throttle body that doesnt just provide more flow but retains smooth drivability and OEM throttle characteristics. A larger throttle body is key to producing additional power throughout the powerband on modified engines with increased airflow demands. Skunk2’s Alpha Series Throttle Bodies for B-series engines feature a large, 66mm bore, which results in significant horsepower gains throughout the powerband on heavily modified, naturally aspirated applications and even more on forced induction ones. Skunk2’s 66mm Alpha Series Throttle Body offers Skunk2 performance, industry-leading customer service, and a limited-lifetime warranty policy, all at a price comparable to lesser budget-minded throttle bodies. Unlike the budget-minded throttle bodies, though, only Skunk2 Alpha Series Throttle Bodies ensure precise fitment and the peace of mind of knowing that a Skunk2 representative is just a phone call or email away. |
| product_ |
Alpha Series Throttle Body; 70mm Tb Opening; For Use w/Skunk2 Pro Series Intake Manifold Or Similar; Cast Aluminum; |
| product_ |
Alpha Series Throttle Body |
| product_ |
Alpha T-Body; 70mm B |
s_item
| department | Air & Fuel Delivery |
|---|---|
| section | Fuel Injection |
| name | Skunk2 Racing Alpha Throttle Bodies 309-05-1050 |
| brand | Skunk 2 |
| price | 125.99 |
| blurb | Throttle Body, Alpha, Throttle Body Injection, 70mm Venturi, Cable Activation, Cast Aluminum, Natural, for use on Acura®, for use on Honda®, Each |
| title | Skunk2 Racing Alpha Throttle Bodies |
| description | Skunk2 Racing Alpha throttle bodies are designed to be used with Skunk2 Pro Series intake manifolds, OEM, and other aftermarket intake manifolds for bolt-on horsepower and torque gains by maximizing engine airflow, all at a competitive price. A larger throttle body is key to producing additional power throughout the powerband. Sealed ball bearings, a precision machined throttle plate, and a honed oversized bore ensures smooth operation on the most aggressive naturally aspirated and forced induction applications. |
item_row
| handle | SKK-309-05-1050 |
|---|---|
| item_ |
273423 |
| brand_ |
119 |
| brand_ |
Skunk2 Racing |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/75a872e4e21f29433d9b801bed805456.JPG |
| item_ |
309-05-1050 |
| item_ |
Skunk2 Alpha Series Honda/Acura (D/B/H/F Series) 70mm Cast Throttle Body (OEM Look) |
| item_ |
Engine Components |
| item_ |
Throttle Bodies |
| item_ |
873265004331 |
| item_ |
125.99 |
| item_ |
132.29 |
| t14_ |
77 |
| mfr_ |
|
| dim_ |
2.00 |
| dim_ |
7.00 |
| dim_ |
6.10 |
| dim_ |
4.10 |
| shipping_ |
14.52 |
| item_ |
skk309-05-1050 |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
Overview
| Brand | Skunk 2 |
|---|---|
| Quantity | Sold individually. |
| Part Type | Throttle Bodies |
| Product Line | Skunk2 Racing Alpha Throttle Bodies |
| Gaskets Included | Yes |
| Venturi Quantity | 1 |
| Hardware Included | Yes |
| IAC Motor Included | No |
| Injectors Included | No |
| TPS Sensor Included | No |
| Throttle Body Style | Throttle body injection, TBI |
| Throttle Body Finish | Natural |
| Venturi Diameter (mm) | 70.00mm |
| Throttle Body Material | Cast aluminum |
| Throttle Body Actuation | Cable |
| Manufacturer's Part Number | 309-05-1050 |
