Skunk2 Racing Ultra Race Intake Manifolds 307-05-8080
Skunk2 Racing Ultra Race Intake Manifolds 307-05-8080
Out of stock
Couldn't load pickup availability
Tags
Product Description

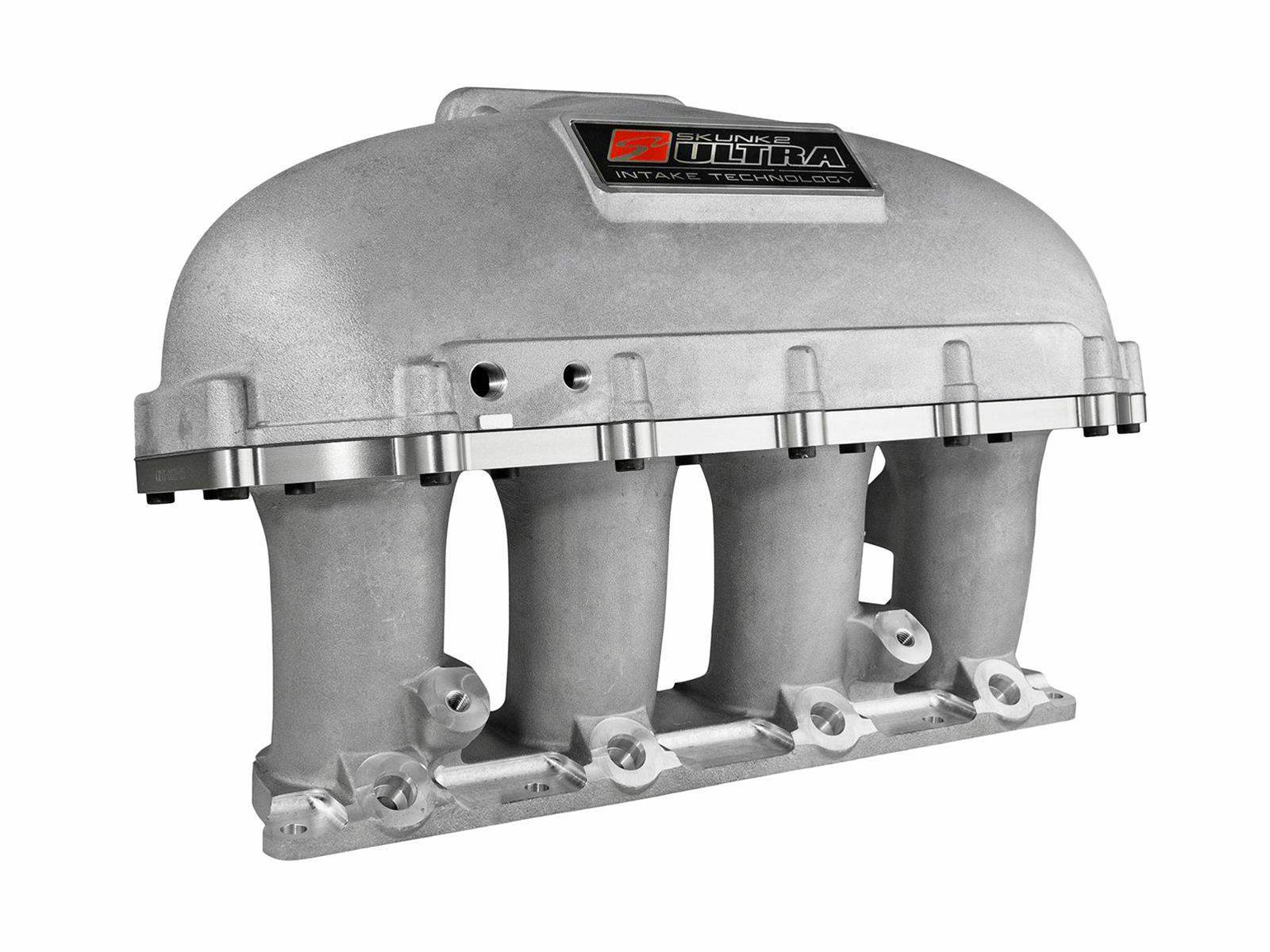

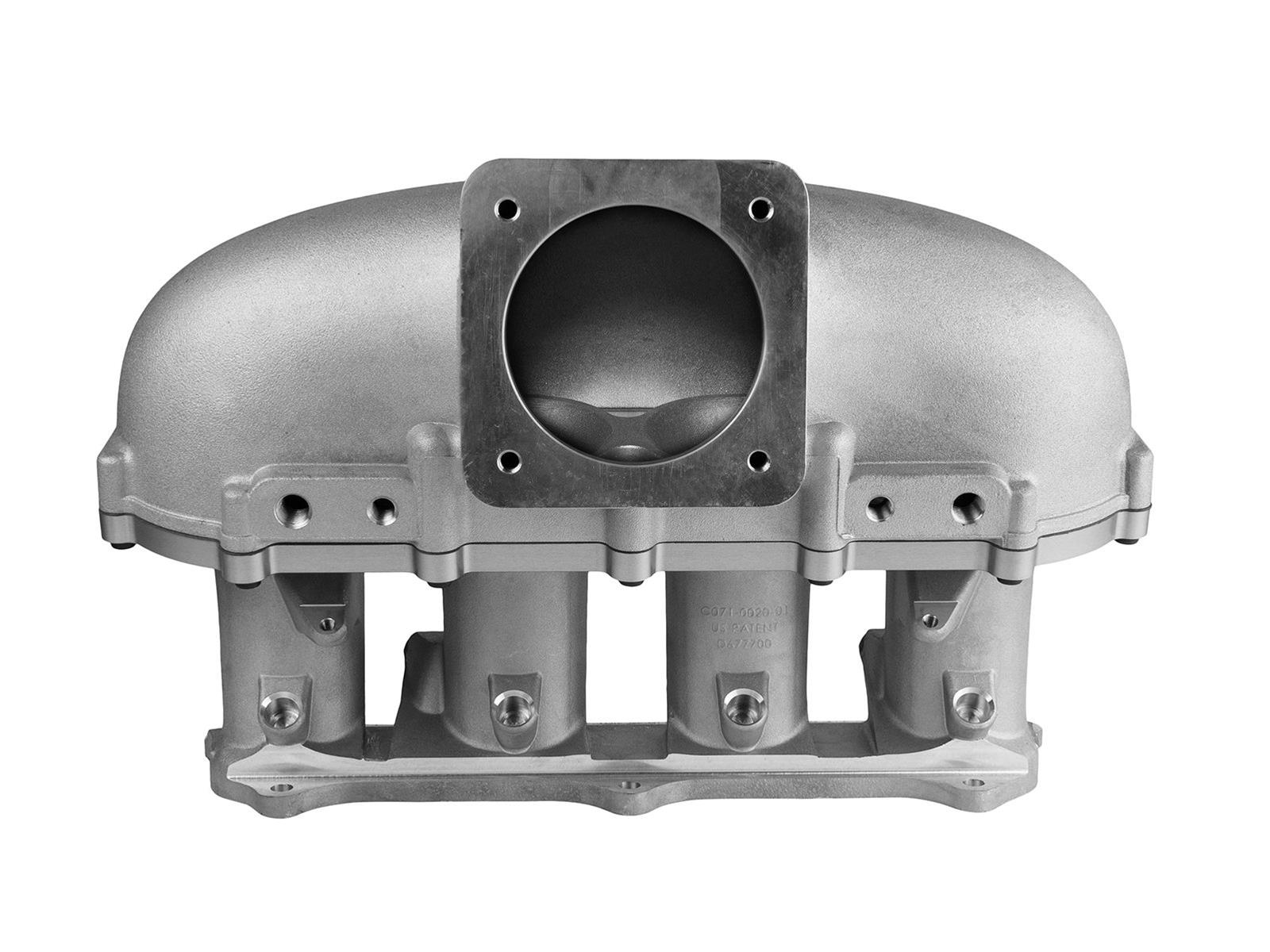

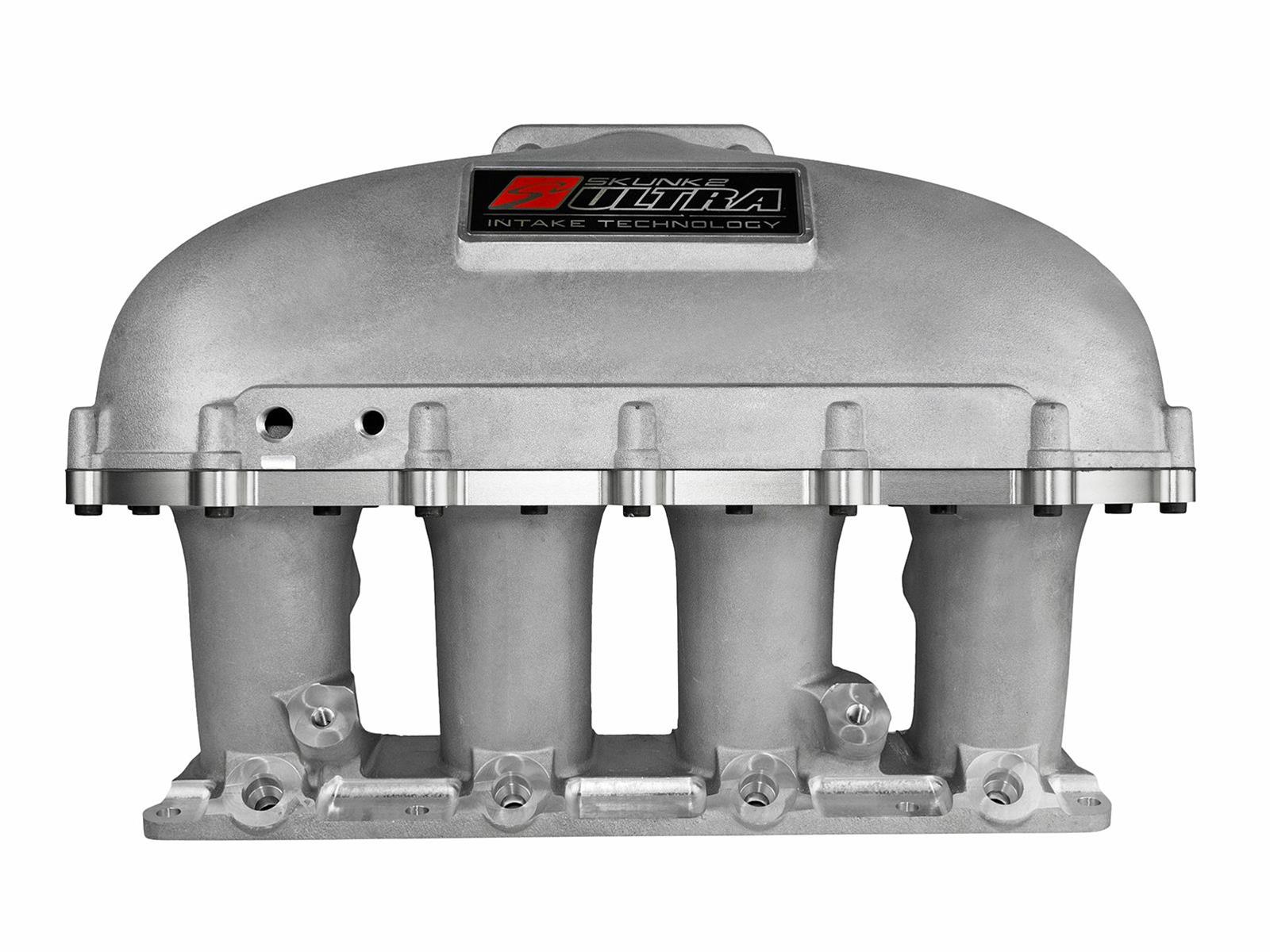

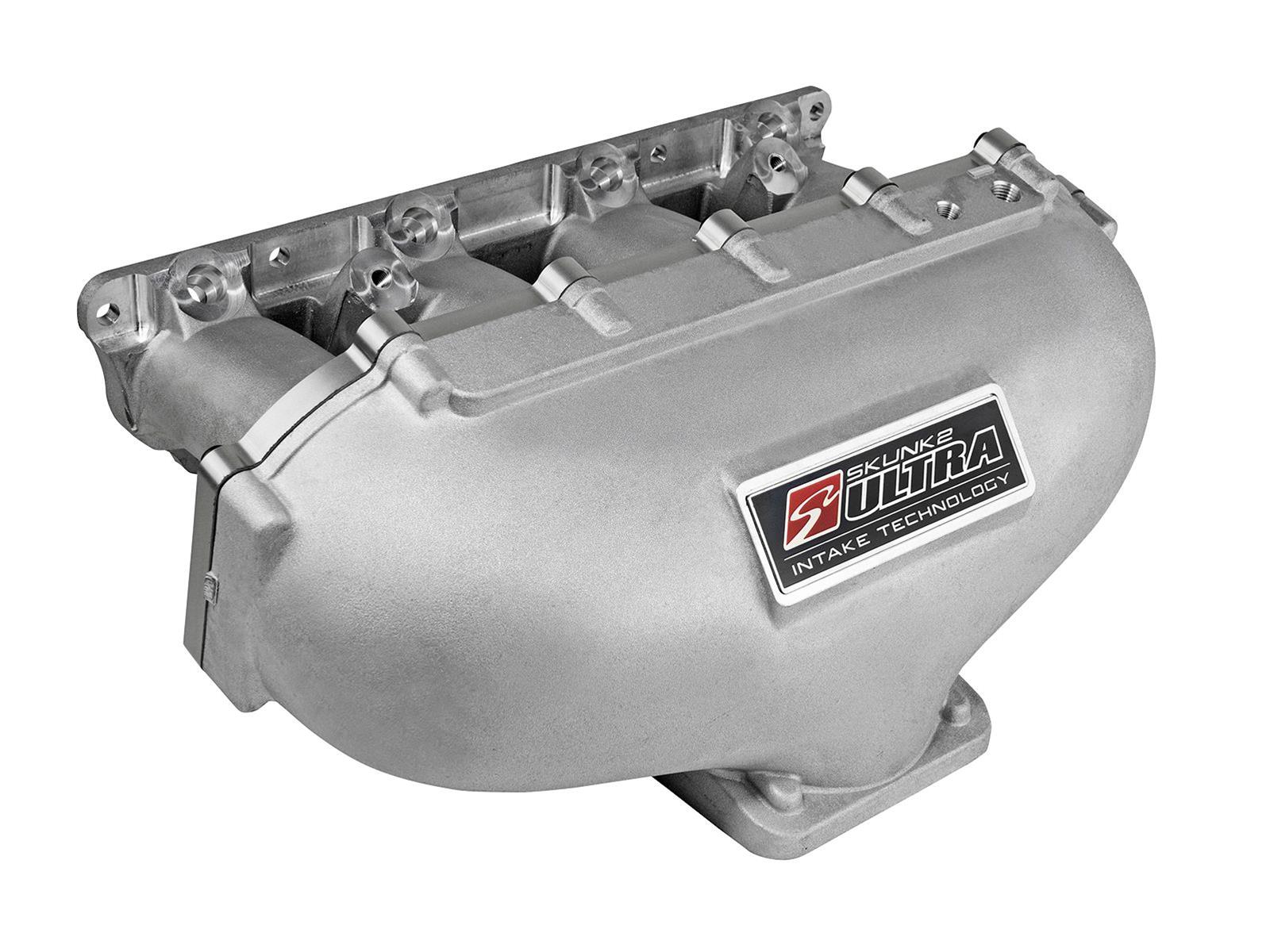

The engineers at Skunk2 Racing have worked tirelessly to develop the next generation of high performance intake manifolds and are proud to announce the release of the much anticipated Ultra Series Intake Manifold. Years of R&D have culminated in a multi-piece cast aluminum intake manifold that offers advantages that only a modular design could allow. Building upon the performance legacy of our Pro Series Intake Manifold, as well as using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. In addition to CFD testing, the Ultra Series Intake Manifold has undergone extensive in-house dyno and on-car testing which has led to a design that is less restrictive, yielding both torque and power gains well over many of the competitors. Ultra Series Intake Manifolds are made from high-grade 356 aluminum alloy for a strong and lightweight design, CNC-machined for a precise fit, and individually inspected for quality assurance. The large 90mm throttle body opening, 87mm velocity stacks, and hi-velocity intake runners with smooth transitions allow the Ultra Series Manifold to outflow the competition. Designed to be used with built, high-horsepower naturally aspirated or forced induction setups, the Skunk2 Ultra Series Intake Manifold helps provide a new level affordable high-end intake technology to the marketplace.
Skunk2 Racing offers Ultra Race intake manifolds for a variety of cars, including models from Honda© and Acura©. The high performance intakes are ideal for RSX/RSX Type S applications, as well as any swap using the K20A, K20A2, K20Z1, K2$A1 engines or cylinder heads. These much-anticipated Ultra Race manifolds are the result of years worth of research/development and building upon the performance legacy of Skunk2's Pro Series intake manifold. Using the latest in CFD (Computational Fluid Dynamics) software, Skunk2 Racing has created a 3-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors. Many options are available; order the Ultra Race model recommended for your vehicle.
Extended Description
- Ultra Series Race Intake Manifold
- 5L Volume
- 90mm TB Inlet/5.0 Ford Bolt Pattern
- Centerfeed
- w/Prb Cylinder Head
- Silver Adapter
Application Summary
Fitment
Fitment
Part Type
Additional Information 2
- The K Series Ultra Street Manifold uses the EARLY PRB/PRC style cylinder head and throttle body mounting flange pattern but can be installed on the LATE RBC/RBB style cylinder heads through the use of an aftermarket Water Bypass Adapter and associated t
description
| associated_ |
The K Series Ultra Street Manifold uses the EARLY PRB/PRC style cylinder head and throttle body mounting flange pattern but can be installed on the LATE RBC/RBB style cylinder heads through the use of an aftermarket Water Bypass Adapter and associated t |
|---|---|
| market_ |
The engineers at Skunk2 Racing have worked tirelessly to develop the next generation of high performance intake manifolds and are proud to announce the release of the much anticipated Ultra Series Intake Manifold. Years of R&D have culminated in a multi-piece cast aluminum intake manifold that offers advantages that only a modular design could allow. Building upon the performance legacy of our Pro Series Intake Manifold, as well as using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. In addition to CFD testing, the Ultra Series Intake Manifold has undergone extensive in-house dyno and on-car testing which has led to a design that is less restrictive, yielding both torque and power gains well over many of the competitors. Ultra Series Intake Manifolds are made from high-grade 356 aluminum alloy for a strong and lightweight design, CNC-machined for a precise fit, and individually inspected for quality assurance. The large 90mm throttle body opening, 87mm velocity stacks, and hi-velocity intake runners with smooth transitions allow the Ultra Series Manifold to outflow the competition. Designed to be used with built, high-horsepower naturally aspirated or forced induction setups, the Skunk2 Ultra Series Intake Manifold helps provide a new level affordable high-end intake technology to the marketplace. |
| product_ |
Ultra Series Race Intake Manifold; 5L Volume; 90mm TB Inlet/5.0 Ford Bolt Pattern; Centerfeed; w/Prb Cylinder Head; Silver Adapter; |
| product_ |
Ultra Series Race Intake Manifold |
| product_ |
RACE ULTRA K SILVER |
s_item
| department | Air & Fuel Delivery |
|---|---|
| section | Intake Manifolds |
| name | Skunk2 Racing Ultra Race Intake Manifolds 307-05-8080 |
| brand | Skunk 2 |
| price | 841.99 |
| blurb | Intake Manifold, Ultra Series Race Intake Manifold w/ Removable Plenum Silver 02-15 Honda Civic Si K20A2 |
| title | Skunk2 Racing Ultra Race Intake Manifolds |
| description | Skunk2 Racing offers Ultra Race intake manifolds for a variety of cars, including models from Honda© and Acura©. The high performance intakes are ideal for RSX/RSX Type S applications, as well as any swap using the K20A, K20A2, K20Z1, K2$A1 engines or cylinder heads. These much-anticipated Ultra Race manifolds are the result of years worth of research/development and building upon the performance legacy of Skunk2's Pro Series intake manifold. Using the latest in CFD (Computational Fluid Dynamics) software, Skunk2 Racing has created a 3-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors. Many options are available; order the Ultra Race model recommended for your vehicle. |
item_row
| handle | SKK-307-05-8080 |
|---|---|
| item_ |
81729 |
| brand_ |
119 |
| brand_ |
Skunk2 Racing |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/9dd3aeb37e874a7fa4b7b9e532343950.JPG |
| item_ |
307-05-8080 |
| item_ |
Skunk2 Ultra Series K Series Race Centerfeed Complete Intake Manifold |
| item_ |
Engine Components |
| item_ |
Intake Manifolds |
| item_ |
873265005925 |
| item_ |
841.99 |
| item_ |
884.09 |
| t14_ |
24 |
| mfr_ |
|
| dim_ |
17.40 |
| dim_ |
19.80 |
| dim_ |
14.90 |
| dim_ |
9.10 |
| shipping_ |
14.83 |
| item_ |
skk307-05-8080 |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Verifying |
| item_ |
1 |
| productTaxonomy | 5372 |
Overview
| EGR | No |
|---|---|
| Brand | Skunk 2 |
| Notes | Intake uses PRB/PRC style cylinder head and throttle body flanges. RBC/RBB style cylinder heads will require an aftermarket water bypass adapter and Skunk2 DBW throttle body adapter. |
| Quantity | Sold individually. |
| Part Type | Intake Manifolds, Fuel Injected |
| Base Color | Natural |
| Product Line | Skunk2 Racing Ultra Race Intake Manifolds |
| Base Material | Aluminum |
| Plenum Finish | Natural |
| Plenum Material | Aluminum |
| Runners Included | Yes |
| Runners Removable | Yes |
| Injectors Included | No |
| Fuel Injection Style | Multi-port |
| Throttle Body Included | No |
| Intake Section Included | Complete |
| Throttle Body Bore Size | 90mm |
| Engine Block Deck Height | Standard deck |
| Manufacturer's Part Number | 307-05-8080 |
| Supplemental Boss Quantity | Four |
| Cylinder Head Configuration | Stock |
| Supplemental Bosses Cast-In | Yes |
| Supplemental Bosses Machined | Yes |
| Aftermarket Fuel Rail Required | No |
| Multi-Port Fuel Rails Included | No |
