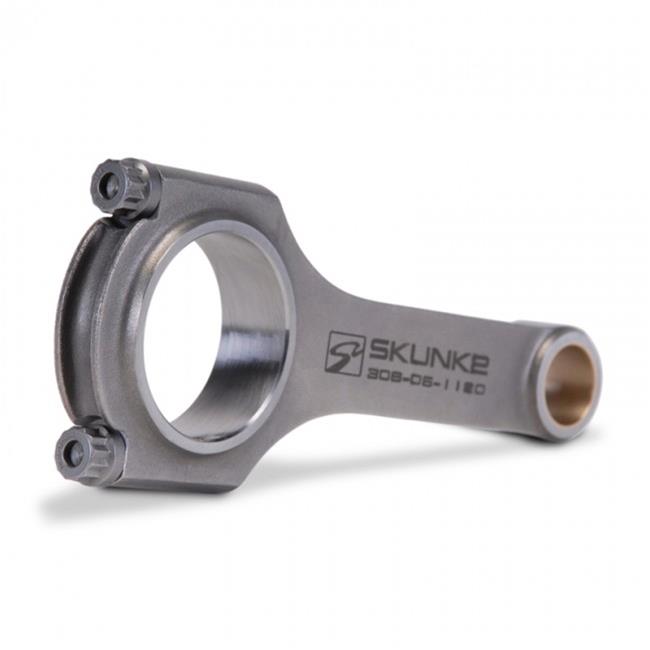

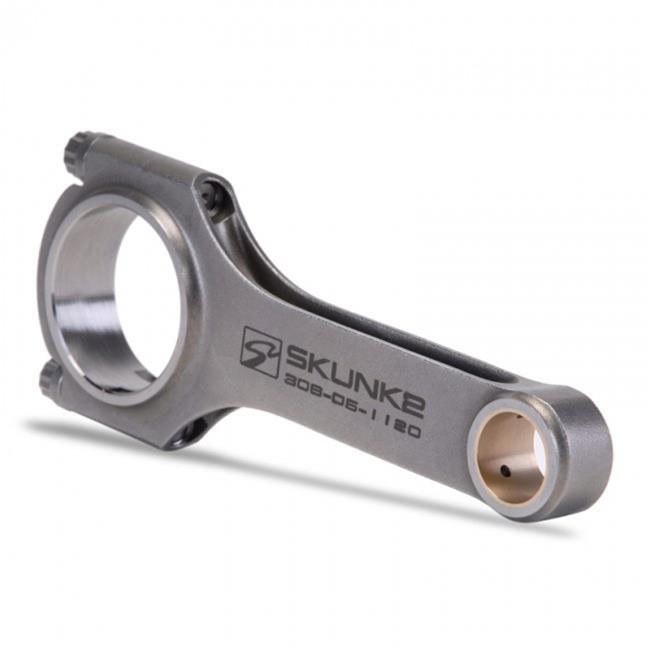

Skunk2 Racing Alpha Series Connecting Rods 306-05-1190
Skunk2 Racing Alpha Series Connecting Rods 306-05-1190
6 in stock
Couldn't load pickup availability
Tags
Product Description
Alpha Series Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2’s rigid specifications.
Skunk2 Racing Alpha Series connecting rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. As the strongest materials available, not all 4340 chromoly is the same, and as such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series connecting rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2's rigid specifications. Select the application needed.
Extended Description
- Alpha Series Connecting Rod Set
- 138.63mm Length
- 457 Grams
- Rated to 900HP
- H-Beam
- Long Rod
- Incl. 3/8 ARP2000 Bolts/Lube
- 4340 Chromoly Steel
- Set of 4
Application Summary
Fitment
Fitment
Part Type
Additional Information 2
- Set of 4
- Precision Machined
- Length: 138.63mm
- Weight: 510 grams

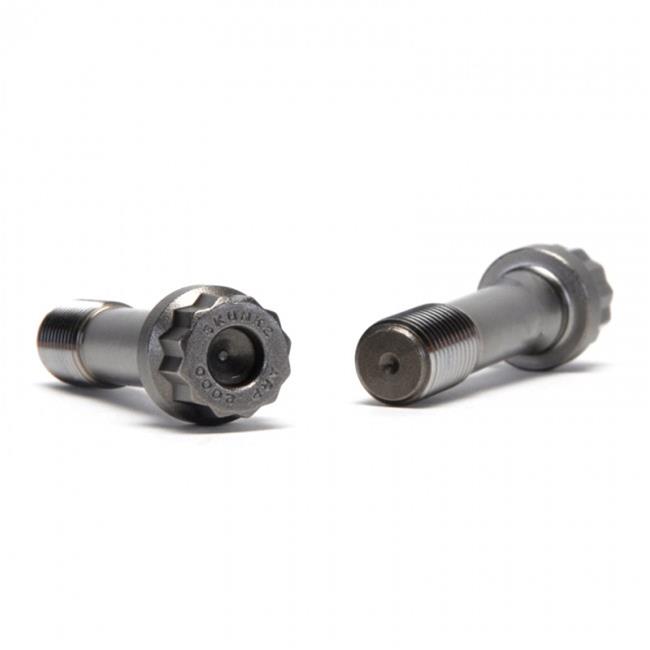

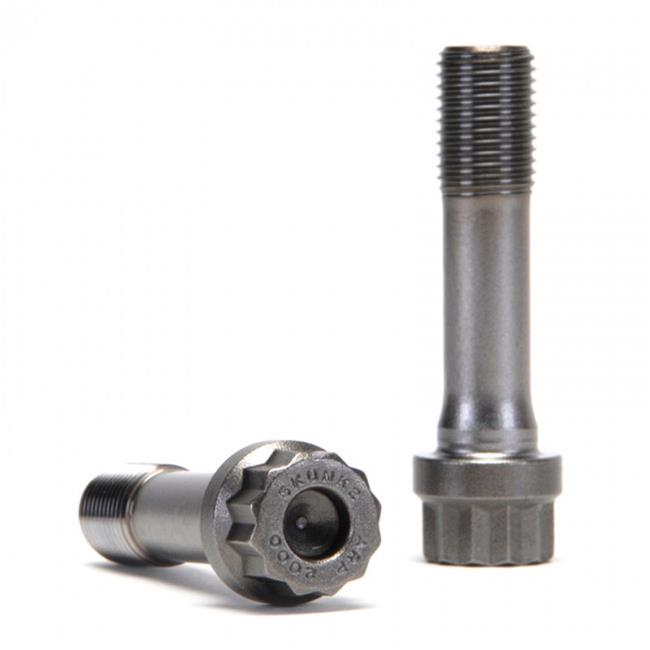

- 3/8-Inch ARP2000/Skunk2 bolts
- Shot-peened for reduced fatigue
- Bronze wrist pin bushings
- Laser-etched Skunk2 logo for authenticity
- Fatter
- H-beam design without drastic weight increase
description
| associated_ |
Set of 4; Precision Machined; Length: 138.63mm; Weight: 510 grams; 3/8-Inch ARP2000/Skunk2 bolts; Shot-peened for reduced fatigue; Bronze wrist pin bushings; Laser-etched Skunk2 logo for authenticity; Fatter; H-beam design without drastic weight increase; |
|---|---|
| market_ |
Alpha Series Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2’s rigid specifications. |
| product_ |
Alpha Series Connecting Rod Set; 138.63mm Length; 457 Grams; Rated to 900HP; H-Beam; Long Rod; Incl. 3/8 ARP2000 Bolts/Lube; 4340 Chromoly Steel; Set of 4; |
| product_ |
Alpha Series Connecting Rod Set |
| product_ |
Alpha Conn. Rods; D1 |
s_item
| department | Engines & Components |
|---|---|
| section | Connecting Rods |
| name | Skunk2 Racing Alpha Series Connecting Rods 306-05-1190 |
| brand | Skunk 2 |
| price | 410.99 |
| blurb | Connecting Rods, Alpha Series Forged 4340 Chromoly Steel Long Connecting Rods 88-00 Honda Civic Ex D16 |
| title | Skunk2 Racing Alpha Series Connecting Rods |
| description | Skunk2 Racing Alpha Series connecting rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. As the strongest materials available, not all 4340 chromoly is the same, and as such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series connecting rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2's rigid specifications. Select the application needed. |
item_row
| handle | SKK-306-05-1190 |
|---|---|
| item_ |
273388 |
| brand_ |
119 |
| brand_ |
Skunk2 Racing |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/9e65e265143acb940f0be0079512378d.JPG |
| item_ |
306-05-1190 |
| item_ |
Skunk2 Alpha Series Honda D16/Z6 Connecting Rods (Long Rods) |
| item_ |
Engine Components |
| item_ |
Connecting Rods - 4Cyl |
| item_ |
873265001057 |
| item_ |
410.99 |
| item_ |
431.54 |
| t14_ |
3 |
| mfr_ |
|
| dim_ |
4.70 |
| dim_ |
10.20 |
| dim_ |
4.90 |
| dim_ |
4.10 |
| shipping_ |
14.52 |
| item_ |
skk306-05-1190 |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
Overview
| Brand | Skunk 2 |
|---|---|
| Notes | Connecting rods are meant to be used with Vitara pistons. |
| Quantity | Sold as a set of 4. |
| Part Type | Connecting Rods |
| Magnafluxed | Yes |
| Product Line | Skunk2 Racing Alpha Series Connecting Rods |
| Remanufactured | No |
| Wrist Pin Style | Floating |
| Weight Matched Set | Yes |
| Big End Width (in.) | 0.897 |
| Cap Retention Style | Cap screw |
| Pin End Width (in.) | 0.718 in. |
| Connecting Rod Color | Shot-peened |
| Pin End Bore Diameter | 0.748 in. |
| Clearanced for Stroker | No |
| Connecting Rod Material | Chromoly 4340 steel |
| Connecting Rod Beam Style | H-beam |
| Connecting Rod Bolt Brand | ARP |
| Manufacturer's Part Number | 306-05-1190 |
| Big End Bore Diameter (in.) | 1.8900 |
| Advertised Horsepower Rating | 900 hp |
| Connecting Rod Bolt Diameter | 3/8 in. |
| Connecting Rod Bolt Material | ARP2000 alloy |
| Connecting Rod Bolt Head Style | 12-point |
| Fastener Tensile Strength (psi) | 200,000 psi |
| Approximate Connecting Rod Weight (g) | 510 |
| Connecting Rod Length Center to Center (in.) | 5.458 in. |
