Rock Jock Johnny Joint Rod Ends CE-9112M2
Rock Jock Johnny Joint Rod Ends CE-9112M2
18 in stock
Couldn't load pickup availability
/update?link=products%2Frkj-ce-9112m2_xl_d15949c1-ecf9-41e7-af16-9964690ec142.jpg){kind=link}
Tags
Product Description

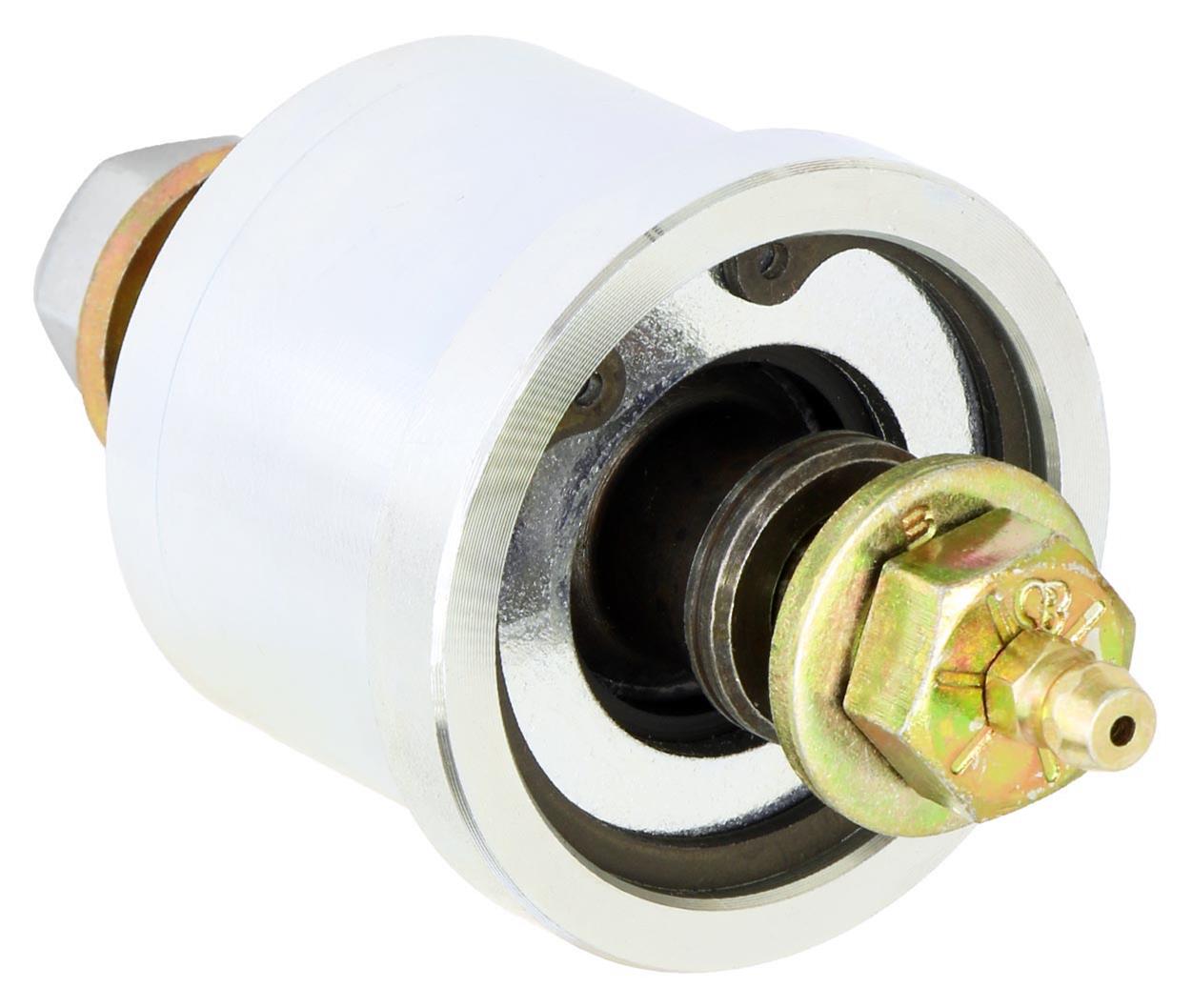

This is the specially machined Johnny Joint(R) rod end out of our CE-9102K front end housing kit. This joints outer shell is machined to 1.795 in. o.d. with a flanged edge and is designed to be driven into the bushing bore on the gear case casting side of the TJ/LJ/XJ/MJ Dana 30 or 44 frontend housings to replace the stock rubber bushing. Features a 1/2 in. thru bolt hole and includes a 1/2 in. greasable bolt.
Rock Jock Johnny Joint rod ends offer 30 degrees (up to 40 degrees on some units) of unrestricted movement in any direction, as compared to 22 degrees on common Heim joints. They come with high-density "tough 88" urethane bushings that are very durable and impervious to weather. Higher density, one-piece bushings are used in narrow-bodied joints to handle heavy load applications, such as traction bars. All Johnny Joints are greasable for long-lasting durability and quiet operation—and are fully rebuildable. Johnny Joints are available in a variety of sizes with a nearly infinite range of narrow and wide-style configurations, including: * Forged steel * Billet steel * Specialty joints * Right hand and left hand threads * Male and female threaded * Weld-on joints—internally or externally greasable * 4130 chromoly outer shells with heat-treated steel balls and 4340 chromoly side-retaining washers * Housing kits for Jeep upper control arms
Extended Description
- Machined Johnny Joint®
- Press-In
- w/1/2 in. Bolt-Fits Housing
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
This is the specially machined Johnny Joint(R) rod end out of our CE-9102K front end housing kit. This joints outer shell is machined to 1.795 in. o.d. with a flanged edge and is designed to be driven into the bushing bore on the gear case casting side of the TJ/LJ/XJ/MJ Dana 30 or 44 frontend housings to replace the stock rubber bushing. Features a 1/2 in. thru bolt hole and includes a 1/2 in. greasable bolt. |
|---|---|
| product_ |
Machined Johnny Joint®; Press-In; w/1/2 in. Bolt-Fits Housing; |
| product_ |
Machined Johnny Joint® |
| product_ |
SuspLinkArmJt |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Rock Jock Johnny Joint Rod Ends CE-9112M2 |
| brand | Rock Jock |
| price | 73 |
| blurb | Rod End, Johnny Joint, Weld-in, 1-piece, Steel, 0.500 in. Bore, Each |
| title | Rock Jock Johnny Joint Rod Ends |
| description | Rock Jock Johnny Joint rod ends offer 30 degrees (up to 40 degrees on some units) of unrestricted movement in any direction, as compared to 22 degrees on common Heim joints. They come with high-density "tough 88" urethane bushings that are very durable and impervious to weather. Higher density, one-piece bushings are used in narrow-bodied joints to handle heavy load applications, such as traction bars. All Johnny Joints are greasable for long-lasting durability and quiet operation—and are fully rebuildable. Johnny Joints are available in a variety of sizes with a nearly infinite range of narrow and wide-style configurations, including: * Forged steel * Billet steel * Specialty joints * Right hand and left hand threads * Male and female threaded * Weld-on joints—internally or externally greasable * 4130 chromoly outer shells with heat-treated steel balls and 4340 chromoly side-retaining washers * Housing kits for Jeep upper control arms |
item_row
| handle | ROK-CE-9112M2 |
|---|---|
| item_ |
565072 |
| brand_ |
434 |
| brand_ |
RockJock |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/3e26ee10e309dd1871e2fa83ea7959ee.JPG |
| item_ |
CE-9112M2 |
| item_ |
RockJock Johnny Joint Rod End 2in Machined Press-In 2in X .500in Ball Int. Greased w/ Bolts |
| item_ |
Suspension (Other) |
| item_ |
Suspension Arms & Components |
| item_ |
810038150956 |
| item_ |
73.00 |
| item_ |
73.00 |
| t14_ |
6 |
| mfr_ |
|
| dim_ |
1.10 |
| dim_ |
4.50 |
| dim_ |
4.50 |
| dim_ |
4.50 |
| shipping_ |
14.52 |
| item_ |
rokCE-9112M2 |
| taxonomy_ |
5383 |
| collection_ |
273964630058 |
| collection_ |
Suspension (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Rock Jock |
|---|---|
| Quantity | Sold individually. |
| Part Type | Rod Ends |
| Heat-Treated | Yes |
| Product Line | Rock Jock Johnny Joint Rod Ends |
| Rod End Style | Urethane |
| Grease Fitting | Yes |
| Rod End Finish | Natural |
| Jam Nut Included | No |
| Rod End Material | Steel |
| Rod End Attachment | Weld-in |
| Rod End Construction | 1-piece |
| Rod End Head Diameter | 1.795 in. |
| Rod End Head Bore Size | 0.500 in. |
| Manufacturer's Part Number | CE-9112M2 |
