Moroso Drag/Road Race Oil Pans 20143
Moroso Drag/Road Race Oil Pans 20143
Regular price
$667.19 AUD
Regular price
$663.24 AUD
Sale price
$667.19 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
4 in stock
Couldn't load pickup availability
Product Description

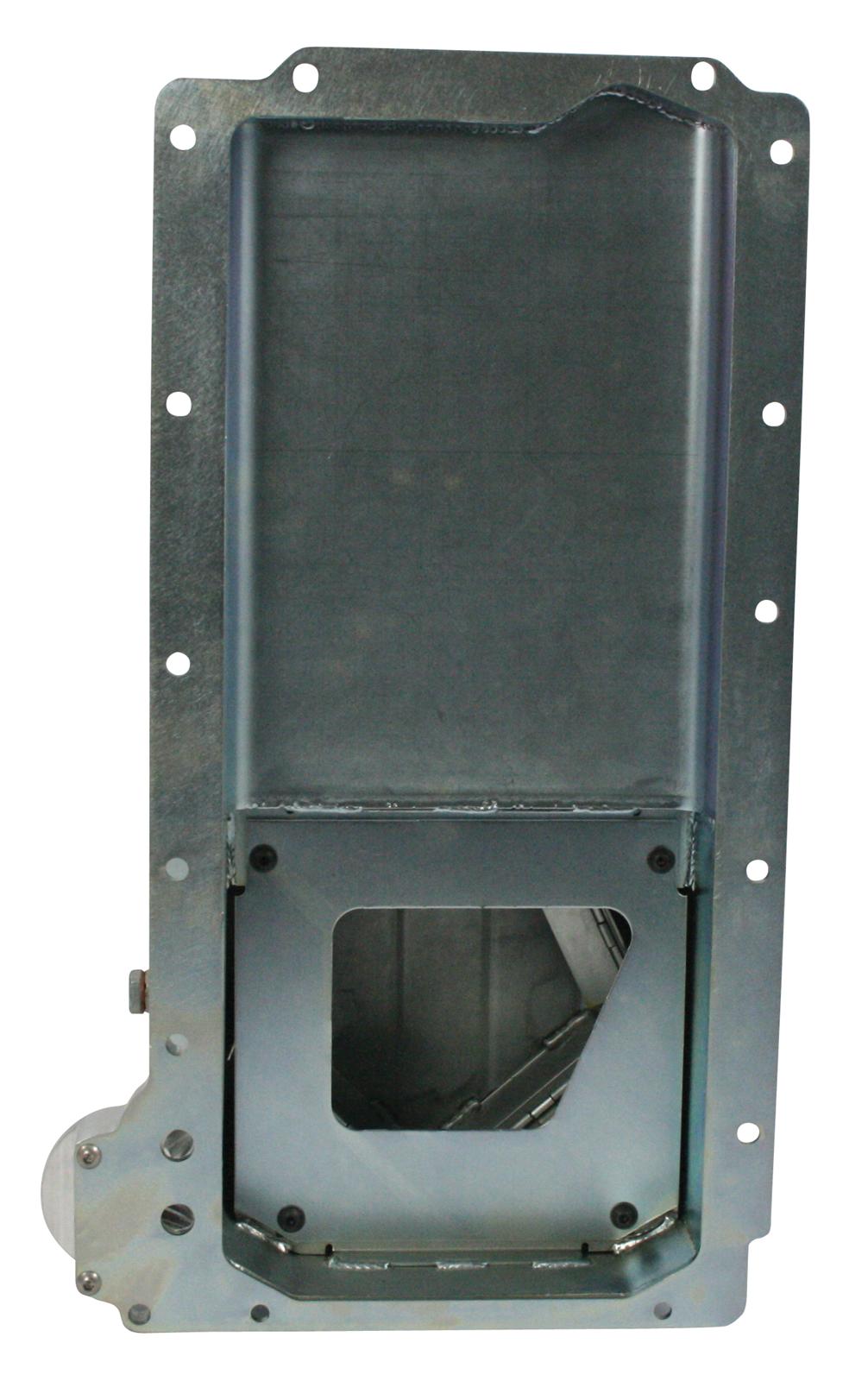

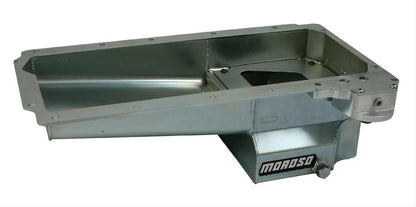

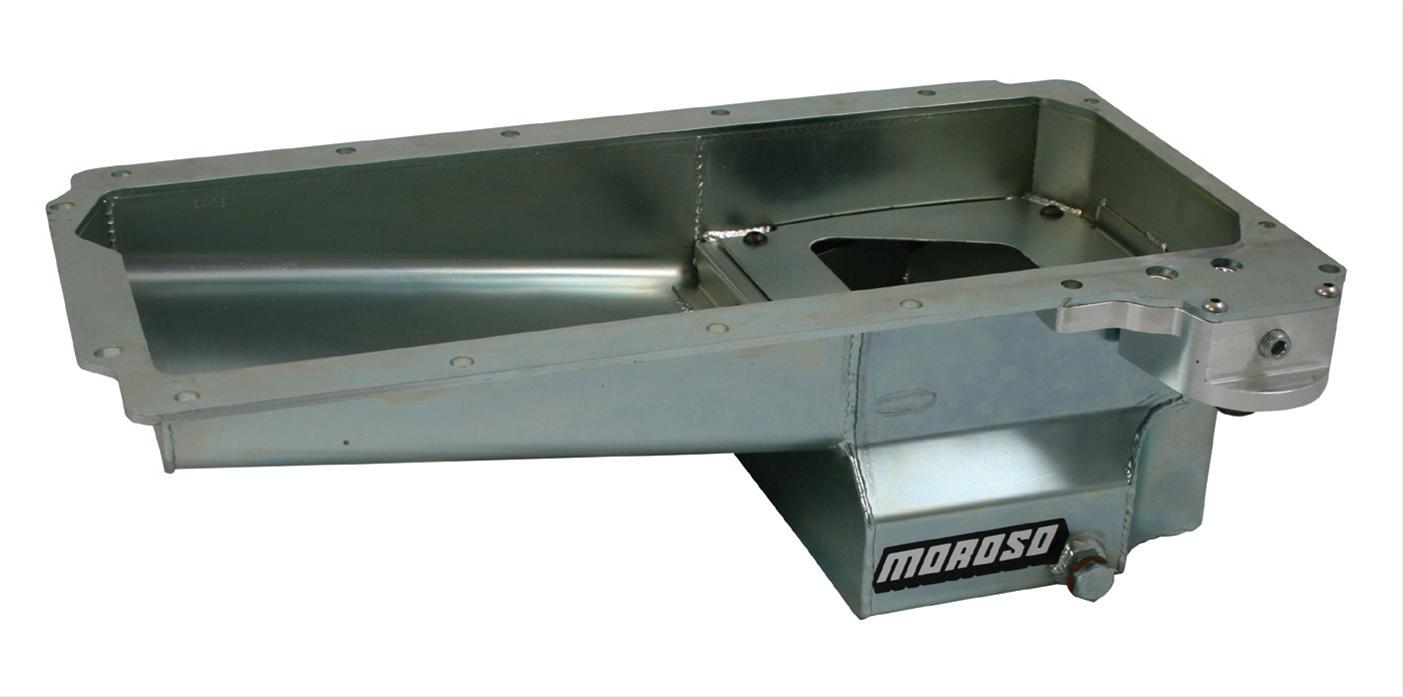

Moroso drag/road racing oil pans are made with thick, precision laser-cut steel rails, and feature a 7 quart capacity that moves oil away from your rotating assembly, offering excellent oil control and horsepower savings. The pans' race-proven diamond shape, four trap door assembly, and anti-slosh baffles keep your oil contained in the oil pump pickup area during road and drag racing. Moroso drag/road race oil pans have a billet aluminum adapter with a 1/4 in. NPT sensor port that allows a 13/16th thread Moroso or OEM filter to be mounted in the stock location--no need to run a remote oil filter. These pans use a stock dipstick.
Application Summary
Part Type
description
| product_ |
Moroso GM LS Swap (w/Rear Sump & Spin-On Oil Filter Adapter) Wet Sump 7qt 6in Angled Steel Oil Pan |
|---|
s_item
| department | Engines & Components |
|---|---|
| section | Oiling Systems |
| name | Moroso Drag/Road Race Oil Pans 20143 |
| brand | Moroso |
| price | 528.99 |
| blurb | Oil Pan, Steel, Clear Zinc, 7 qt., Chevy, Small Block, Each |
| title | Moroso Drag/Road Race Oil Pans |
| description | Moroso drag/road racing oil pans are made with thick, precision laser-cut steel rails, and feature a 7 quart capacity that moves oil away from your rotating assembly, offering excellent oil control and horsepower savings. The pans' race-proven diamond shape, four trap door assembly, and anti-slosh baffles keep your oil contained in the oil pump pickup area during road and drag racing. Moroso drag/road race oil pans have a billet aluminum adapter with a 1/4 in. NPT sensor port that allows a 13/16th thread Moroso or OEM filter to be mounted in the stock location--no need to run a remote oil filter. These pans use a stock dipstick. |
item_row
| handle | MOR-20143 |
|---|---|
| item_ |
404594 |
| brand_ |
350 |
| brand_ |
Moroso |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/949faaaceee85e50c10f8718642df51c.JPG |
| item_ |
20143 |
| item_ |
Moroso GM LS Swap (w/Rear Sump & Spin-On Oil Filter Adapter) Wet Sump 7qt 6in Angled Steel Oil Pan |
| item_ |
Engine Components |
| item_ |
Oil Pans |
| item_ |
84663201431 |
| item_ |
528.99 |
| item_ |
631.66 |
| t14_ |
12 |
| mfr_ |
|
| dim_ |
19.60 |
| dim_ |
26.40 |
| dim_ |
12.20 |
| dim_ |
11.30 |
| shipping_ |
14.52 |
| item_ |
mor20143 |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
Overview
| Brand | Moroso |
|---|---|
| Notes | The sump is 8.375 in. long and 10.250 in. wide. Clears 4.250 in. stroke with most steel rods. Features a billet aluminum spin-on oil filter adapter that accepts a 22mm thread Moroso 22463 or O.E.M. oil filter to be mounted in the stock location. |
| Baffled | Yes |
| Quantity | Sold individually. |
| Part Type | Oil Pans |
| Kicked Out | No |
| Sump Style | Wet |
| Product Line | Moroso Drag/Road Race Oil Pans |
| Oil Pan Style | Road Race |
| Sump Location | Rear |
| Oil Pan Finish | Clear zinc |
| Pickup Included | No |
| Gaskets Included | No |
| Oil Pan Capacity | 7.00 quarts |
| Oil Pan Material | Steel |
| Dipstick Included | No |
| Dipstick Location | Driver side |
| Hardware Included | No |
| Oil Pump Included | No |
| Dipstick Provision | Yes |
| Stroker Clearanced | Yes |
| Windage Tray Included | No |
| Crank Scraper Included | No |
| Manufacturer's Part Number | 20143 |
| Maximum Stroke with OE Rod | 4.250 in. |
| Oil Pump Driveshaft Included | No |
