Mishimoto Performance Radiators MMRAD-BRZ-22
Mishimoto Performance Radiators MMRAD-BRZ-22
23 in stock
Couldn't load pickup availability
Product Description

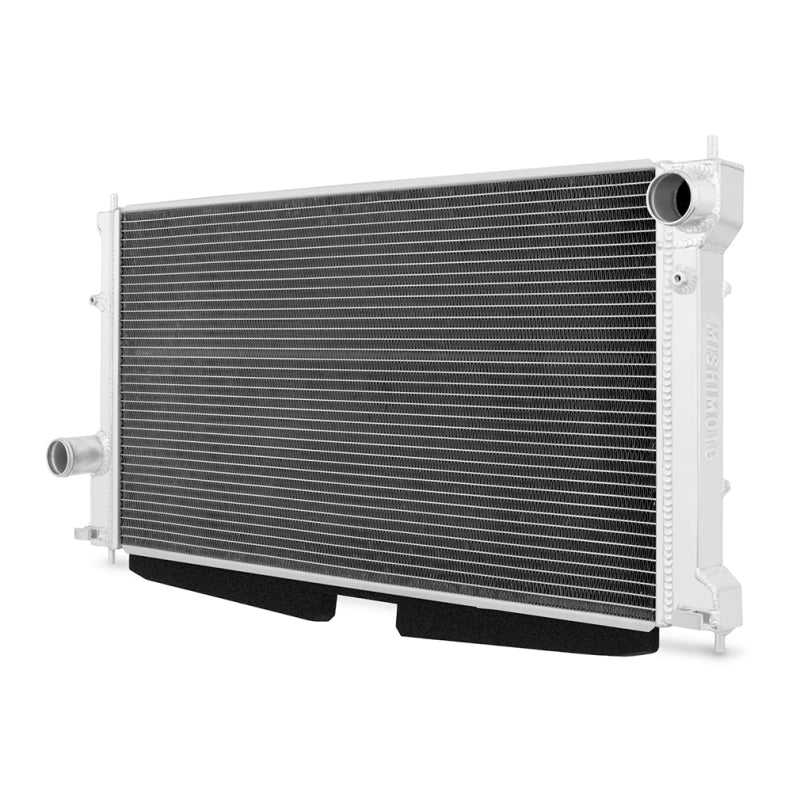

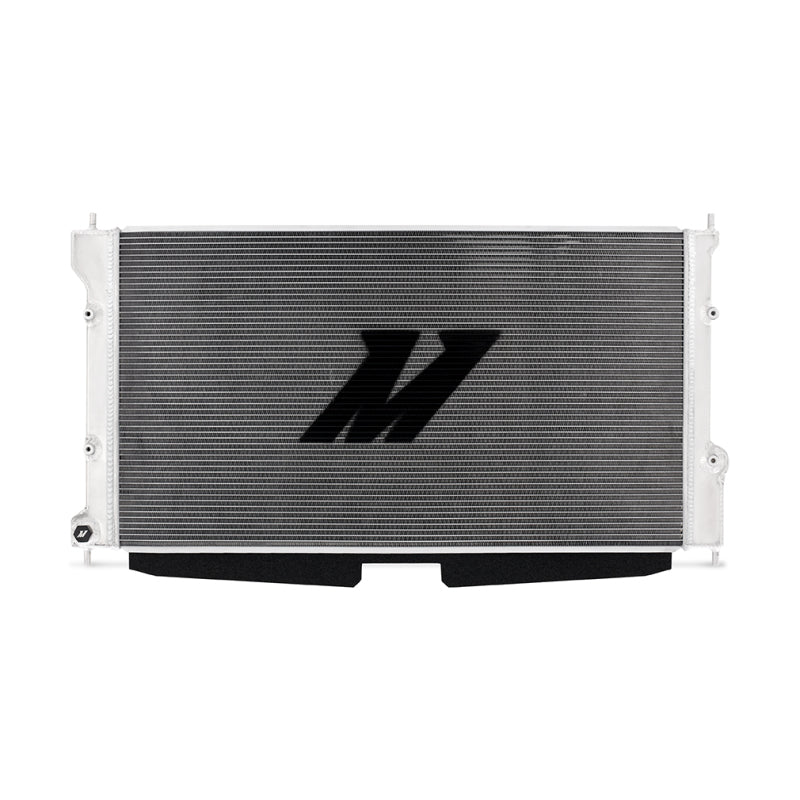

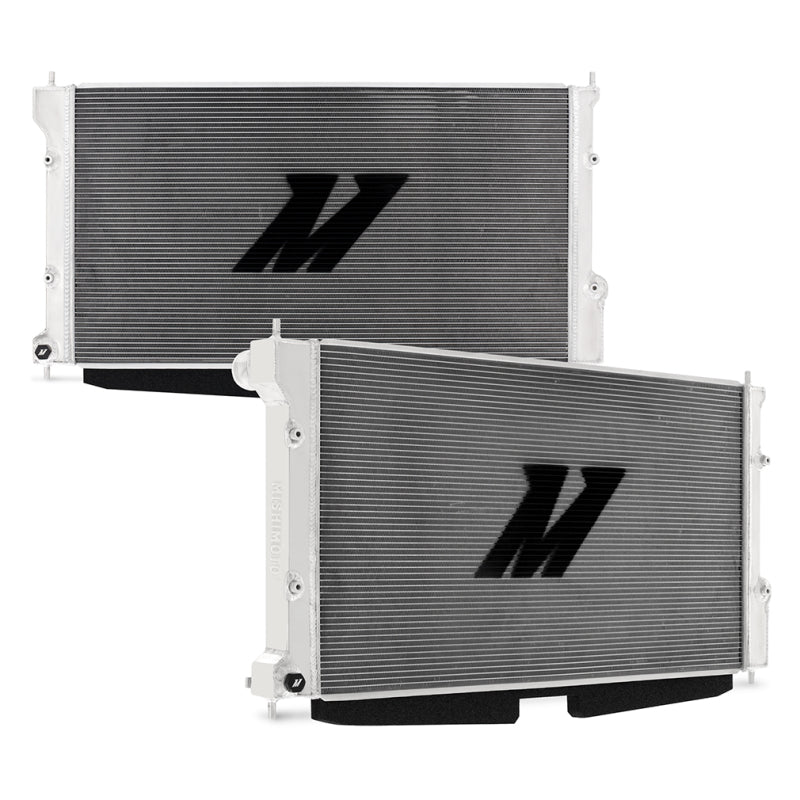

Sliding sideways, banging off the limiter, and having fun are what the BRZ and GR86 were made for. But all that fun translates to a lot of heat, and keeping your FA24 engine cool with limited airflow through the BRZ's small grille is a monumental challenge. Luckily, Mishimoto has developed a performance aluminum radiator for the 2022+ Subaru BRZ and Toyota GR86 that's up to the task.----This all-aluminum performance radiator is a drop-in upgrade for your BRZ that will help keep coolant temps down when you're blasting the corners on the track or just having fun (within the speed limit) on your favorite back road. Our radiator features a 36mm-thick, 2-row core that balances optimal coolant flow with improved heat transfer capability. With a core volume 34 percent greater than stock, our radiator pulls more heat out of a larger volume of coolant than stock to keep your engine cool under even the most demanding conditions. Louvered fins provide a 51 percent increase in cooling surface area over the stock radiator and help slow incoming air, while circulating it across the coolant tubes, improving heat transfer and making the most of every gram of air coming through the grille.----We've even thought of the little things with our 2022+ BRZ/GR86 radiator. The included foam shrouding helps direct air through the core, instead of around it, so none of it is wasted. Our slotted drain plug helps keep maintenance mess-free and your shop floor or driveway dry. And, like all Mishimoto radiators, this 2022+ Subaru BRZ and Toyota GR86 performance aluminum radiator is backed by our Mishimoto Lifetime Warranty for a lifetime of cooling and smiles around every corner.
Mishimoto performance radiators are designed and engineered to maximize cooling efficiency, boost engine functions, and, most of all, protect your engine from overheating. Many stock radiators can't handle the additional heat that comes higher horsepower levels. So, swap out your stock radiator for an all-aluminum Mishimoto. Key features and benefits of Mishimoto performance radiators include: * Available for universal and exact fit applications (no cutting or modifications required) * All-aluminum construction for optimal heat dissipation, improved strength, and reliability * Increased cooling capacity due to their massive core size * 100 percent brazed aluminum core for minimal distortion, low stress, and clean joints * Available in various sizes with 2-row or 3-row cores * TIG-welded for clean, strong welds and increased durability * Magnetic drain plugs capture metallic debris or fragments * Included high-pressure 1.3 bar cap raises the coolant boiling point for greater safety and efficiency * Automatic transmission and accessory coolers included where applicable
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
Sliding sideways, banging off the limiter, and having fun are what the BRZ and GR86 were made for. But all that fun translates to a lot of heat, and keeping your FA24 engine cool with limited airflow through the BRZ's small grille is a monumental challenge. Luckily, Mishimoto has developed a performance aluminum radiator for the 2022+ Subaru BRZ and Toyota GR86 that's up to the task.----This all-aluminum performance radiator is a drop-in upgrade for your BRZ that will help keep coolant temps down when you're blasting the corners on the track or just having fun (within the speed limit) on your favorite back road. Our radiator features a 36mm-thick, 2-row core that balances optimal coolant flow with improved heat transfer capability. With a core volume 34 percent greater than stock, our radiator pulls more heat out of a larger volume of coolant than stock to keep your engine cool under even the most demanding conditions. Louvered fins provide a 51 percent increase in cooling surface area over the stock radiator and help slow incoming air, while circulating it across the coolant tubes, improving heat transfer and making the most of every gram of air coming through the grille.----We've even thought of the little things with our 2022+ BRZ/GR86 radiator. The included foam shrouding helps direct air through the core, instead of around it, so none of it is wasted. Our slotted drain plug helps keep maintenance mess-free and your shop floor or driveway dry. And, like all Mishimoto radiators, this 2022+ Subaru BRZ and Toyota GR86 performance aluminum radiator is backed by our Mishimoto Lifetime Warranty for a lifetime of cooling and smiles around every corner. |
|---|---|
| product_ |
Mishimoto MMRAD-BRZ-22 |
| product_ |
Performance Aluminum Radiator, Fits Subaru BRZ/Toyota GR86 2022+ |
| product_ |
Radiator |
| custom_ |
Mishimoto is a leading manufacturer of performance cooling products for the automotive aftermarket. Founded in 1999, Mishimoto has a long history of innovation and performance, and is known for its high-quality products and customer service. Mishimoto products are designed to improve the cooling performance of your vehicle, which can lead to increased horsepower, better fuel economy, and a longer engine life. Mishimoto's lineup of products includes everything from radiator hoses and water pumps to intercoolers and oil coolers. In addition to its cooling products, Mishimoto also offers a line of high-performance accessories, such as air intakes, exhaust systems, and strut bars. Mishimoto's accessories are designed to improve the performance and handling of your vehicle. Mishimoto is committed to providing its customers with the best possible products and service. All Mishimoto products are backed by a comprehensive warranty, and Mishimoto's customer service department is always available to answer questions and provide assistance. If you're looking for a performance upgrade for your vehicle, look no further than Mishimoto. Mishimoto products are the best way to improve the cooling performance, performance, and handling of your vehicle. Here are some of the benefits of choosing Mishimoto products:
If you're looking for a performance upgrade for your vehicle, I highly recommend Mishimoto products. |
s_item
| department | Cooling & Heating |
|---|---|
| section | Radiators |
| name | Mishimoto Performance Radiators MMRAD-BRZ-22 |
| brand | Mishimoto |
| price | 415.95 |
| blurb | Radiators; 2022+ Subaru BRZ/Toyota GR86 Performance Aluminum Radiator |
| title | Mishimoto Performance Radiators |
| description | Mishimoto performance radiators are designed and engineered to maximize cooling efficiency, boost engine functions, and, most of all, protect your engine from overheating. Many stock radiators can't handle the additional heat that comes higher horsepower levels. So, swap out your stock radiator for an all-aluminum Mishimoto. Key features and benefits of Mishimoto performance radiators include: * Available for universal and exact fit applications (no cutting or modifications required) * All-aluminum construction for optimal heat dissipation, improved strength, and reliability * Increased cooling capacity due to their massive core size * 100 percent brazed aluminum core for minimal distortion, low stress, and clean joints * Available in various sizes with 2-row or 3-row cores * TIG-welded for clean, strong welds and increased durability * Magnetic drain plugs capture metallic debris or fragments * Included high-pressure 1.3 bar cap raises the coolant boiling point for greater safety and efficiency * Automatic transmission and accessory coolers included where applicable |
item_row
| handle | MIS-MMRAD-BRZ-22 |
|---|---|
| item_ |
612851 |
| brand_ |
45 |
| brand_ |
Mishimoto |
| item_ |
|
| item_ |
MMRAD-BRZ-22 |
| item_ |
Mishimoto 2022+ Subaru BRZ / Toyota GR86 H4 2.4L Performance Aluminum Radiator |
| item_ |
Cooling |
| item_ |
Radiators |
| item_ |
840197718810 |
| item_ |
424.95 |
| item_ |
565.69 |
| t14_ |
2 |
| mfr_ |
39 |
| dim_ |
15.70 |
| dim_ |
34.50 |
| dim_ |
18.70 |
| dim_ |
7.30 |
| shipping_ |
15.78 |
| item_ |
misMMRAD-BRZ-22 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| bodyHtml | Fits:
Mishimoto MMRAD-BRZ-22 Radiators Sliding sideways, banging off the limiter, and having fun are what the BRZ and GR86 were made for. But all that fun translates to a lot of heat, and keeping your FA24 engine cool with limited airflow through the BRZ's small grille is a monumental challenge. Luckily, Mishimoto has developed a performance aluminum radiator for the 2022+ Subaru BRZ and Toyota GR86 that's up to the task.----This all-aluminum performance radiator is a drop-in upgrade for your BRZ that will help keep coolant temps down when you're blasting the corners on the track or just having fun (within the speed limit) on your favorite back road. Our radiator features a 36mm-thick, 2-row core that balances optimal coolant flow with improved heat transfer capability. With a core volume 34 percent greater than stock, our radiator pulls more heat out of a larger volume of coolant than stock to keep your engine cool under even the most demanding conditions. Louvered fins provide a 51 percent increase in cooling surface area over the stock radiator and help slow incoming air, while circulating it across the coolant tubes, improving heat transfer and making the most of every gram of air coming through the grille.----We've even thought of the little things with our 2022+ BRZ/GR86 radiator. The included foam shrouding helps direct air through the core, instead of around it, so none of it is wasted. Our slotted drain plug helps keep maintenance mess-free and your shop floor or driveway dry. And, like all Mishimoto radiators, this 2022+ Subaru BRZ and Toyota GR86 performance aluminum radiator is backed by our Mishimoto Lifetime Warranty for a lifetime of cooling and smiles around every corner. Mishimoto performance radiators are designed and engineered to maximize cooling efficiency, boost engine functions, and, most of all, protect your engine from overheating. Many stock radiators can't handle the additional heat that comes higher horsepower levels. So, swap out your stock radiator for an all-aluminum Mishimoto.
Key features and benefits of Mishimoto performance radiators include:
* Available for universal and exact fit applications (no cutting or modifications required)
* All-aluminum construction for optimal heat dissipation, improved strength, and reliability
* Increased cooling capacity due to their massive core size
* 100 percent brazed aluminum core for minimal distortion, low stress, and clean joints
* Available in various sizes with 2-row or 3-row cores

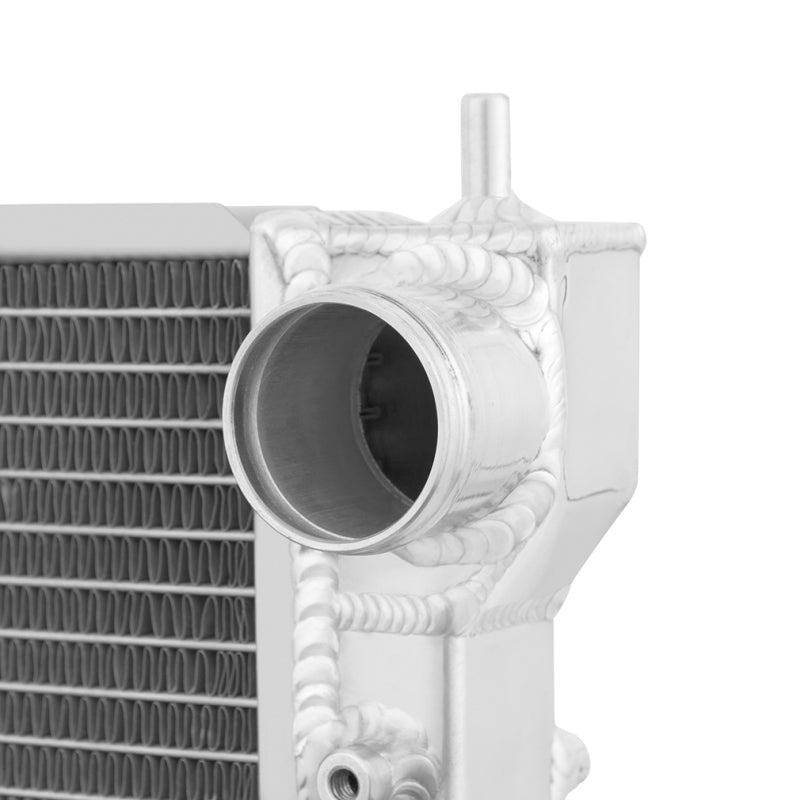

* TIG-welded for clean, strong welds and increased durability

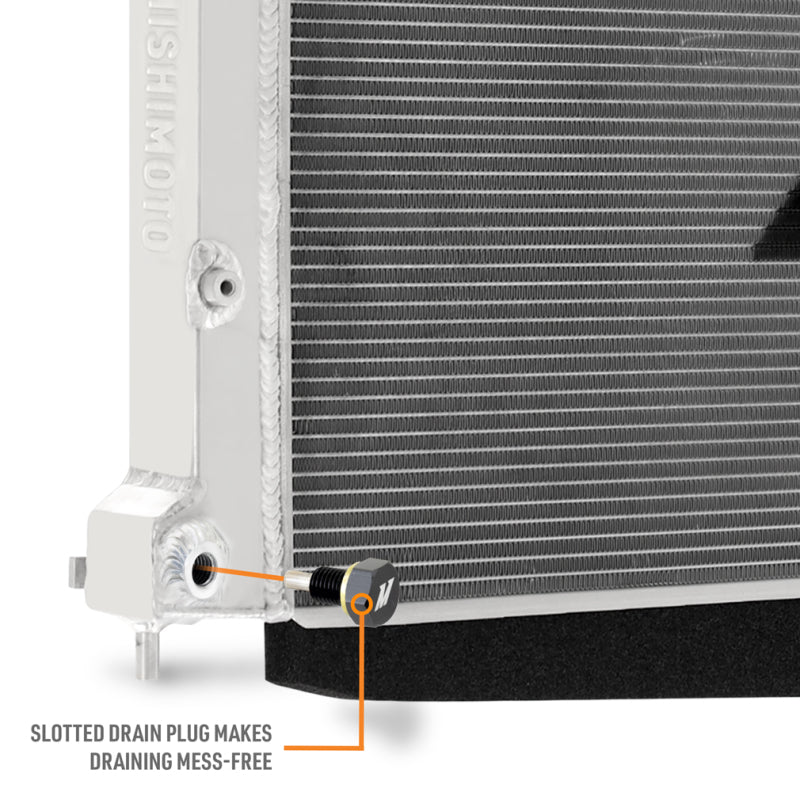

* Magnetic drain plugs capture metallic debris or fragments
* Included high-pressure 1.3 bar cap raises the coolant boiling point for greater safety and efficiency
* Automatic transmission and accessory coolers included where applicable |
Overview
| Brand | Mishimoto |
|---|---|
| Manufacturer's Part Number | MMRAD-BRZ-22 |
| Part Type | Radiators |
| Product Line | Mishimoto Performance Radiators |
| Radiator Material | Aluminum |
| Radiator Style | Crossflow |
| Transmission Cooler | Yes |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
| Overall Width (in.) | 30.10 in. |
| Overall Height (in.) | 15.98 in. |
| Overall Thickness (in.) | 4.43 |
| Row Quantity | 2 |
| Radiator Finish | Natural |
| Core Width (in.) | 25.55 in. |
| Core Height (in.) | 14.02 in. |
| Core Thickness (in.) | 1.42 in. |
| Radiator Inlet Size | 1.580 in. |
| Radiator Outlet Size | 1.580 in. |
| Trans Cooler Adapter Fittings Included | No |
| Fan Included | No |
| Radiator Cap Included | No |
| Quantity | Sold individually. |
