Mishimoto Baffled Oil Catch Cans MMBCC-MUS8-15PBE
Mishimoto Baffled Oil Catch Cans MMBCC-MUS8-15PBE
24 in stock
Couldn't load pickup availability
Tags
Product Description

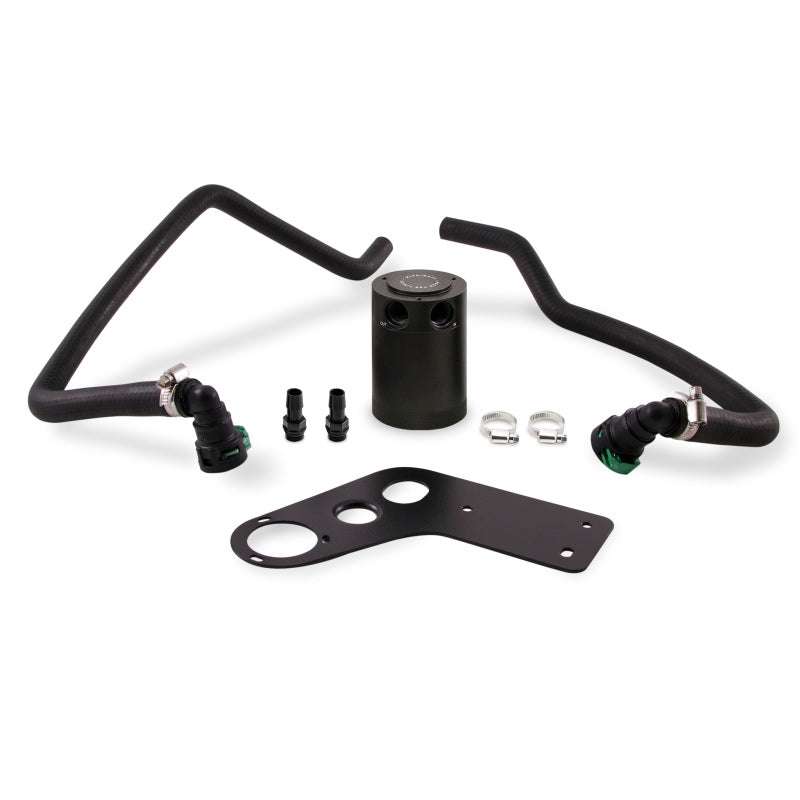

As powerful as the Ford Coyote engine is, it still needs some protection, and the Mishimoto engineers created a baffled catch can kit to do just that. Engine blow-by can cause an oily mess inside intake manifolds and decrease octane levels, potentially increasing chances of detonation. Mishimoto's 2015 Mustang catch can kit features Mishimoto's 2-port Compact Baffled Oil Catch Can with a bronze filter and internal baffle to better separate the oil from the crankcase vapors. Two direct-fit hoses and an application-specific bracket make for a quick and simple installation. Reducing blow-by becomes even more important with the addition of forced induction, so this 2015 Mustang catch can kit mounts away from most intake and supercharger kits to make room for some more horses. When you?re winding out that 5.0L Coyote, you'll have the peace of mind knowing that blow-by isn't stripping any of your treasured HP away. This Mishimoto 2015 Mustang catch can kit increases the aesthetics of your engine bay with direct-fit hoses available in black, blue, or red. To back up Mishimoto's superior craftsmanship each 2015 Mustang catch can kit comes with the renowned Mishimoto Lifetime Warranty! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what we've seen in the bottom of our catch cans, you won't want that draining back into your oil either.
Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application.
Application Summary
Fitment
Fitment
Part Type
Engine Oil Separator
description
| aaia_ |
Engine Oil Separator |
|---|---|
| market_ |
As powerful as the Ford Coyote engine is, it still needs some protection, and the Mishimoto engineers created a baffled catch can kit to do just that. Engine blow-by can cause an oily mess inside intake manifolds and decrease octane levels, potentially increasing chances of detonation. Mishimoto''s 2015 Mustang catch can kit features Mishimoto''s 2-port Compact Baffled Oil Catch Can with a bronze filter and internal baffle to better separate the oil from the crankcase vapors. Two direct-fit hoses and an application-specific bracket make for a quick and simple installation. Reducing blow-by becomes even more important with the addition of forced induction, so this 2015 Mustang catch can kit mounts away from most intake and supercharger kits to make room for some more horses. When you?re winding out that 5.0L Coyote, you''ll have the peace of mind knowing that blow-by isn''t stripping any of your treasured HP away. This Mishimoto 2015 Mustang catch can kit increases the aesthetics of your engine bay with direct-fit hoses available in black, blue, or red. To back up Mishimoto''s superior craftsmanship each 2015 Mustang catch can kit comes with the renowned Mishimoto Lifetime Warranty! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you''ve seen what we''ve seen in the bottom of our catch cans, you won''t want that draining back into your oil either. |
| product_ |
Mishimoto MMBCC-MUS8-15PBE |
| product_ |
Ford Mustang GT Baffled Oil Catch Can, PCV Side, 2015-2017 |
| product_ |
Oil Catch Can Kit |
| custom_ |
Mishimoto is a leading manufacturer of performance cooling products for the automotive aftermarket. Founded in 1999, Mishimoto has a long history of innovation and performance, and is known for its high-quality products and customer service. Mishimoto products are designed to improve the cooling performance of your vehicle, which can lead to increased horsepower, better fuel economy, and a longer engine life. Mishimoto's lineup of products includes everything from radiator hoses and water pumps to intercoolers and oil coolers. In addition to its cooling products, Mishimoto also offers a line of high-performance accessories, such as air intakes, exhaust systems, and strut bars. Mishimoto's accessories are designed to improve the performance and handling of your vehicle. Mishimoto is committed to providing its customers with the best possible products and service. All Mishimoto products are backed by a comprehensive warranty, and Mishimoto's customer service department is always available to answer questions and provide assistance. If you're looking for a performance upgrade for your vehicle, look no further than Mishimoto. Mishimoto products are the best way to improve the cooling performance, performance, and handling of your vehicle. Here are some of the benefits of choosing Mishimoto products:
If you're looking for a performance upgrade for your vehicle, I highly recommend Mishimoto products. |
s_item
| department | Engines & Components |
|---|---|
| section | Oiling Systems |
| name | Mishimoto Baffled Oil Catch Cans MMBCC-MUS8-15PBE |
| brand | Mishimoto |
| price | 213.95 |
| blurb | Oil Catch Can, Baffled, Round, Aluminum, Black with Black Hoses, Ford, Kit |
| title | Mishimoto Baffled Oil Catch Cans |
| description | Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application. |
item_row
| handle | MIS-MMBCC-MUS8-15PBE |
|---|---|
| item_ |
182496 |
| brand_ |
45 |
| brand_ |
Mishimoto |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/df4595d0fdffec28cc80a7c98811a99a.JPG |
| item_ |
MMBCC-MUS8-15PBE |
| item_ |
Mishimoto 2015+ Ford Mustang GT Baffled Oil Catch Can Kit - Black |
| item_ |
Engine Components |
| item_ |
Oil Catch Cans |
| item_ |
811580032721 |
| item_ |
218.95 |
| item_ |
289.19 |
| t14_ |
4 |
| mfr_ |
72 |
| dim_ |
3.80 |
| dim_ |
13.90 |
| dim_ |
10.20 |
| dim_ |
8.50 |
| shipping_ |
15.86 |
| item_ |
misMMBCC-MUS8-15PBE |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
| bodyHtml | Fits:
Mishimoto MMBCC-MUS8-15PBE Oil Catch Cans As powerful as the Ford Coyote engine is, it still needs some protection, and the Mishimoto engineers created a baffled catch can kit to do just that. Engine blow-by can cause an oily mess inside intake manifolds and decrease octane levels, potentially increasing chances of detonation. Mishimoto's 2015 Mustang catch can kit features Mishimoto's 2-port Compact Baffled Oil Catch Can with a bronze filter and internal baffle to better separate the oil from the crankcase vapors. Two direct-fit hoses and an application-specific bracket make for a quick and simple installation. Reducing blow-by becomes even more important with the addition of forced induction, so this 2015 Mustang catch can kit mounts away from most intake and supercharger kits to make room for some more horses. When you?re winding out that 5.0L Coyote, you'll have the peace of mind knowing that blow-by isn't stripping any of your treasured HP away. This Mishimoto 2015 Mustang catch can kit increases the aesthetics of your engine bay with direct-fit hoses available in black, blue, or red. To back up Mishimoto's superior craftsmanship each 2015 Mustang catch can kit comes with the renowned Mishimoto Lifetime Warranty! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what we've seen in the bottom of our catch cans, you won't want that draining back into your oil either. Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions.
These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application. |
Overview
| Brand | Mishimoto |
|---|---|
| Manufacturer's Part Number | MMBCC-MUS8-15PBE |
| Part Type | Oil Catch Cans |
| Product Line | Mishimoto Baffled Oil Catch Cans |
| Separator Tank Shape | Round |
| Separator Tank Height (in.) | 3.80 in. |
| Capacity | 3 oz. |
| Separator Tank Material | Aluminum |
| Separator Tank Finish | Black |
| Fitting Attachment 1 | Female threads |
| Fitting Size 1 | 1/2 in. |
| Fitting Attachment 2 | Female quick-connect |
| Fitting Size 2 | 1/2 in. |
| Quantity | Sold as a kit. |
| Notes | Catch can uses a 50-micron bronze filter. Kit includes bracket. |
