Mishimoto Baffled Oil Catch Cans MMBCC-F2D-08BE
Mishimoto Baffled Oil Catch Cans MMBCC-F2D-08BE
24 in stock
Couldn't load pickup availability
Product Description

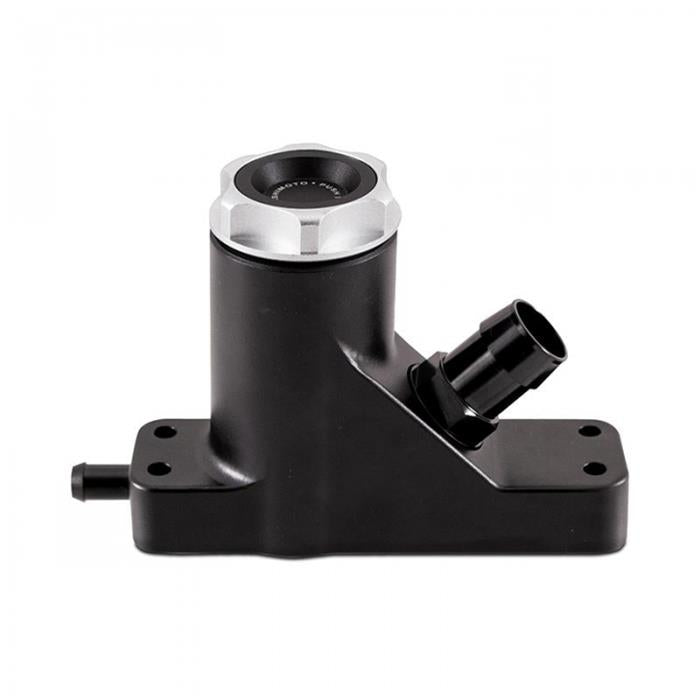

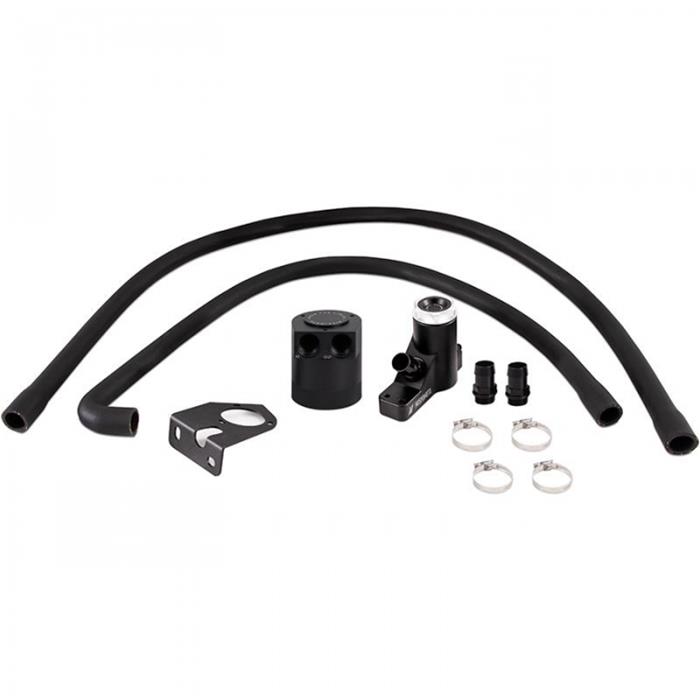

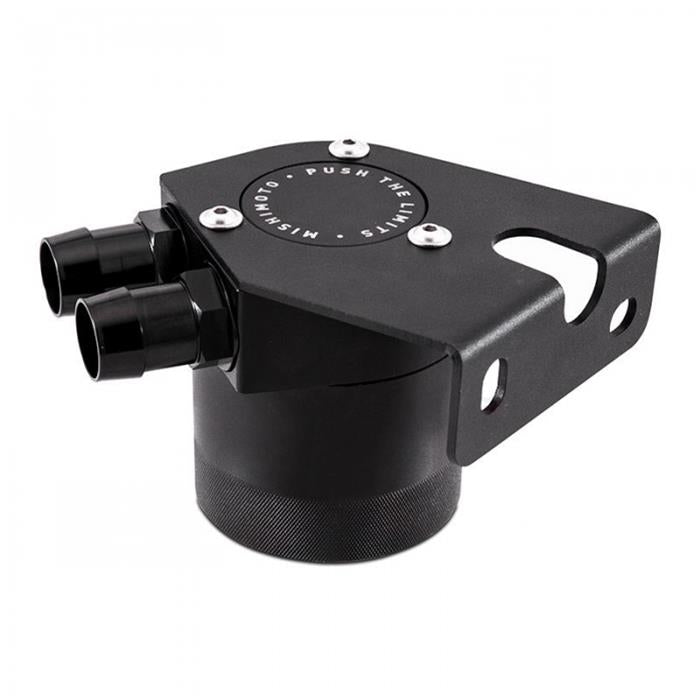

High-output engines require high-flow crankcase ventilation. Our high-flow catch can utilizes a high-capacity bottom with a 5.3 fl. oz. capacity. The CNC-machined lid includes large, M27 x 2.0 inlets and outlets to let your crankcase breathe. Inside the can is a CNC-machined baffle with integrated filter that lets crankcase gases flow through while filtering out potentially harmful fuel, oil, and water vapors. Like our compact baffled oil catch can, our high-flow catch can and filter are fully serviceable for easy draining and cleaning. To make this kit a direct fit for your 2008?2010 Ford 6.4L Powerstroke, Mishimoto includes a custom-engineered, 3mm-thick steel bracket. This bracket mounts the can in an easy-to-access location under the truck using existing mounting holes. This mounting location allows for quick and easy servicing, without even opening the hood. The catch can bracket is powder coated black to protect it from the elements and includes stainless steel hardware to withstand the test of time. Our kit also includes a CNC-machined, black anodized, aluminum oil fill neck and machined aluminum cap. This fill neck doesn't just improve your truck's under-hood aesthetics, it also eliminates the stock air-oil-separator that drains blow-by vapors back into the engine, keeping your engine running cleaner. The durable Mishimoto aluminum oil cap replaces the failure prone ratcheting cap so you never have to worry about a stuck cap preventing you from adding oil. Also included with this kit is a set of direct-fit hoses to carry blow-by away from your engine and into the Mishimoto catch can. For even more protection, this 2008?2010 Ford 6.4L Powerstroke Baffled Oil Catch Can is backed by our Mishimoto Lifetime Warranty.

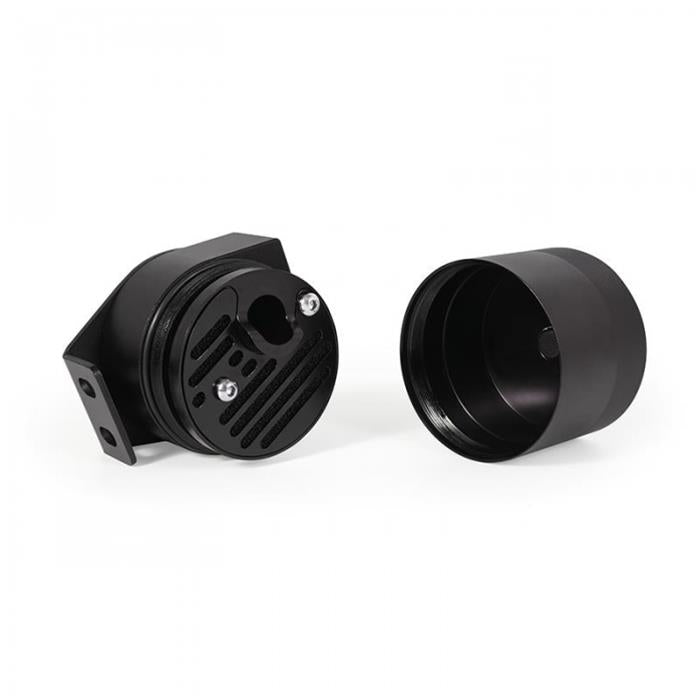

Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application.
Extended Description
- Ford 6.4L Powerstroke Baffled Oil Catch Can Kit, 2008–2010
Application Summary
Fitment
Fitment
Part Type
Engine Oil Catch Can Kit
description
| aaia_ |
Engine Oil Catch Can Kit |
|---|---|
| market_ |
High-output engines require high-flow crankcase ventilation. Our high-flow catch can utilizes a high-capacity bottom with a 5.3 fl. oz. capacity. The CNC-machined lid includes large, M27 x 2.0 inlets and outlets to let your crankcase breathe. Inside the can is a CNC-machined baffle with integrated filter that lets crankcase gases flow through while filtering out potentially harmful fuel, oil, and water vapors. Like our compact baffled oil catch can, our high-flow catch can and filter are fully serviceable for easy draining and cleaning. To make this kit a direct fit for your 2008?2010 Ford 6.4L Powerstroke, Mishimoto includes a custom-engineered, 3mm-thick steel bracket. This bracket mounts the can in an easy-to-access location under the truck using existing mounting holes. This mounting location allows for quick and easy servicing, without even opening the hood. The catch can bracket is powder coated black to protect it from the elements and includes stainless steel hardware to withstand the test of time. Our kit also includes a CNC-machined, black anodized, aluminum oil fill neck and machined aluminum cap. This fill neck doesn''t just improve your truck''s under-hood aesthetics, it also eliminates the stock air-oil-separator that drains blow-by vapors back into the engine, keeping your engine running cleaner. The durable Mishimoto aluminum oil cap replaces the failure prone ratcheting cap so you never have to worry about a stuck cap preventing you from adding oil. Also included with this kit is a set of direct-fit hoses to carry blow-by away from your engine and into the Mishimoto catch can. For even more protection, this 2008?2010 Ford 6.4L Powerstroke Baffled Oil Catch Can is backed by our Mishimoto Lifetime Warranty. |
| product_ |
Ford 6.4L Powerstroke Baffled Oil Catch Can Kit, 2008–2010 |
| product_ |
Mishimoto MMBCC-F2D-08BE |
| product_ |
Ford 6.4L Powerstroke Baffled Oil Catch Can Kit, 2008?2010 |
| product_ |
Oil Catch Can Kit |
| custom_ |
Mishimoto is a leading manufacturer of performance cooling products for the automotive aftermarket. Founded in 1999, Mishimoto has a long history of innovation and performance, and is known for its high-quality products and customer service. Mishimoto products are designed to improve the cooling performance of your vehicle, which can lead to increased horsepower, better fuel economy, and a longer engine life. Mishimoto's lineup of products includes everything from radiator hoses and water pumps to intercoolers and oil coolers. In addition to its cooling products, Mishimoto also offers a line of high-performance accessories, such as air intakes, exhaust systems, and strut bars. Mishimoto's accessories are designed to improve the performance and handling of your vehicle. Mishimoto is committed to providing its customers with the best possible products and service. All Mishimoto products are backed by a comprehensive warranty, and Mishimoto's customer service department is always available to answer questions and provide assistance. If you're looking for a performance upgrade for your vehicle, look no further than Mishimoto. Mishimoto products are the best way to improve the cooling performance, performance, and handling of your vehicle. Here are some of the benefits of choosing Mishimoto products:
If you're looking for a performance upgrade for your vehicle, I highly recommend Mishimoto products. |
s_item
| department | Engines & Components |
|---|---|
| section | Oiling Systems |
| name | Mishimoto Baffled Oil Catch Cans MMBCC-F2D-08BE |
| brand | Mishimoto |
| price | 430.95 |
| blurb | Oil Catch Can, Ford 6.4L Powerstroke Baffled Oil Catch Can Kit, 2008?2010 |
| title | Mishimoto Baffled Oil Catch Cans |
| description | Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application. |
item_row
| handle | MIS-MMBCC-F2D-08BE |
|---|---|
| item_ |
348911 |
| brand_ |
45 |
| brand_ |
Mishimoto |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/8a68b5ac944cbe8814f976d48233e684.JPG |
| item_ |
MMBCC-F2D-08BE |
| item_ |
Mishimoto 2008-2010 Powerstroke Baffled Oil Catch Can Kit |
| item_ |
Engine Components |
| item_ |
Oil Catch Cans |
| item_ |
811580036972 |
| item_ |
439.95 |
| item_ |
486.62 |
| t14_ |
4 |
| mfr_ |
71 |
| dim_ |
10.30 |
| dim_ |
18.70 |
| dim_ |
13.30 |
| dim_ |
9.90 |
| shipping_ |
15.86 |
| item_ |
misMMBCC-F2D-08BE |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
| bodyHtml | Fits:
Mishimoto MMBCC-F2D-08BE Oil Catch Cans High-output engines require high-flow crankcase ventilation. Our high-flow catch can utilizes a high-capacity bottom with a 5.3 fl. oz. capacity. The CNC-machined lid includes large, M27 x 2.0 inlets and outlets to let your crankcase breathe. Inside the can is a CNC-machined baffle with integrated filter that lets crankcase gases flow through while filtering out potentially harmful fuel, oil, and water vapors. Like our compact baffled oil catch can, our high-flow catch can and filter are fully serviceable for easy draining and cleaning. To make this kit a direct fit for your 2008?2010 Ford 6.4L Powerstroke, Mishimoto includes a custom-engineered, 3mm-thick steel bracket. This bracket mounts the can in an easy-to-access location under the truck using existing mounting holes. This mounting location allows for quick and easy servicing, without even opening the hood. The catch can bracket is powder coated black to protect it from the elements and includes stainless steel hardware to withstand the test of time. Our kit also includes a CNC-machined, black anodized, aluminum oil fill neck and machined aluminum cap. This fill neck doesn't just improve your truck's under-hood aesthetics, it also eliminates the stock air-oil-separator that drains blow-by vapors back into the engine, keeping your engine running cleaner. The durable Mishimoto aluminum oil cap replaces the failure prone ratcheting cap so you never have to worry about a stuck cap preventing you from adding oil. Also included with this kit is a set of direct-fit hoses to carry blow-by away from your engine and into the Mishimoto catch can. For even more protection, this 2008?2010 Ford 6.4L Powerstroke Baffled Oil Catch Can is backed by our Mishimoto Lifetime Warranty. Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions.
These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application. |
Overview
| Brand | Mishimoto |
|---|---|
| Capacity | 5.3 oz. |
| Quantity | Sold as a kit. |
| Part Type | Oil Catch Cans |
| Product Line | Mishimoto Baffled Oil Catch Cans |
| Fitting Size 1 | M27 x 2.0 |
| Fitting Size 2 | M27 x 2.0 |
| Fitting Attachment 1 | Female threads |
| Fitting Attachment 2 | Female threads |
| Separator Tank Shape | Round |
| Separator Tank Finish | Black |
| Separator Tank Material | Aluminum |
| Manufacturer's Part Number | MMBCC-F2D-08BE |
