Mishimoto Baffled Oil Catch Cans MMBCC-CSS-10APBE
Mishimoto Baffled Oil Catch Cans MMBCC-CSS-10APBE
24 in stock
Couldn't load pickup availability
Tags
Product Description

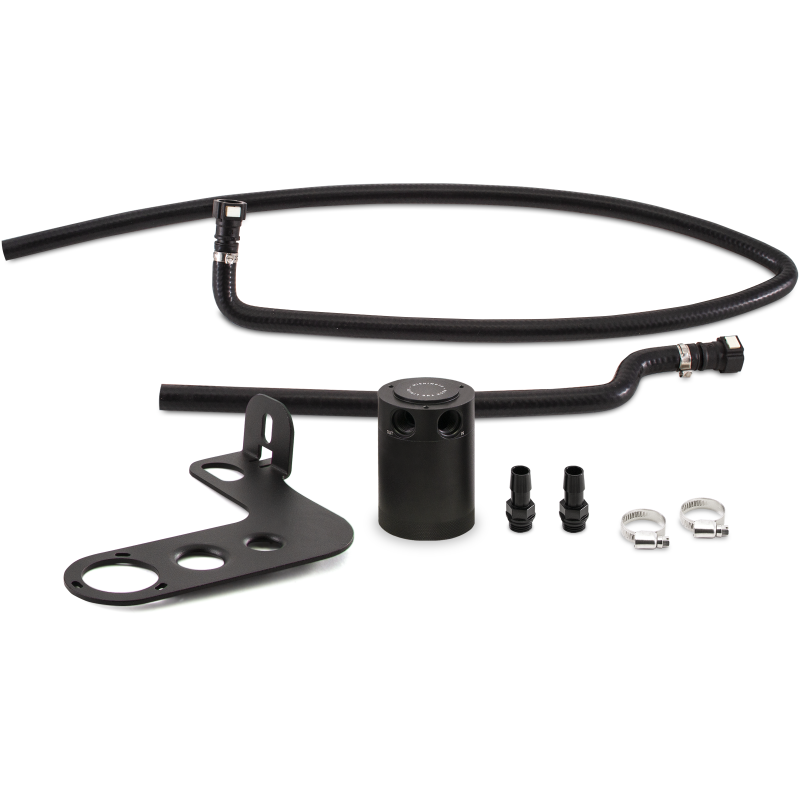

The L99 engines fitted to the automatic 5th Gen Camaro SS generate an impressive 400+ horsepower from their eight cylinders. But those eight cylinders produce something a little less impressive: blow-by. Oil, fuel, and other by-products of combustion squeeze their way past piston rings with each stroke. Left unchecked, that blow-by can work its way into your Camaro?s intake and rob the engine of power and efficiency. Enter the Mishimoto 2010-15 Camaro SS L99 direct-fit catch can kit. Our catch cans feature air diverters and an internal baffle to help slow incoming air, condensing oil and fuel vapors. To further prevent any blow-by from escaping, the catch can outlet employs a 50-micron bronze filter. This kit will ensure that blow-by vapors never make their way back into your intake. The catch can mounts to your automatic Camaro via a bracket that has been custom designed to fit without any drilling or cutting. Direct-fit lines, complete with quick-disconnect fittings, mate our can to your factory Chevrolet PCV system for an easy and seamless install. Of course, this kit is backed by Mishimoto?s Lifetime Warranty for lifetime peace of mind. Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you?ve seen what we?ve seen in the bottom of our catch cans, you won?t want that draining back into your oil either.
Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application.
Application Summary
Fitment
Fitment
Part Type
Engine Oil Separator
description
| aaia_ |
Engine Oil Separator |
|---|---|
| market_ |
The L99 engines fitted to the automatic 5th Gen Camaro SS generate an impressive 400+ horsepower from their eight cylinders. But those eight cylinders produce something a little less impressive: blow-by. Oil, fuel, and other by-products of combustion squeeze their way past piston rings with each stroke. Left unchecked, that blow-by can work its way into your Camaro?s intake and rob the engine of power and efficiency. Enter the Mishimoto 2010-15 Camaro SS L99 direct-fit catch can kit. Our catch cans feature air diverters and an internal baffle to help slow incoming air, condensing oil and fuel vapors. To further prevent any blow-by from escaping, the catch can outlet employs a 50-micron bronze filter. This kit will ensure that blow-by vapors never make their way back into your intake. The catch can mounts to your automatic Camaro via a bracket that has been custom designed to fit without any drilling or cutting. Direct-fit lines, complete with quick-disconnect fittings, mate our can to your factory Chevrolet PCV system for an easy and seamless install. Of course, this kit is backed by Mishimoto?s Lifetime Warranty for lifetime peace of mind. Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you?ve seen what we?ve seen in the bottom of our catch cans, you won?t want that draining back into your oil either. |
| product_ |
Mishimoto MMBCC-CSS-10APBE |
| product_ |
Chevrolet Camaro SS Auto Baffled Oil Catch Can, 2010-2015 |
| product_ |
Oil Catch Can Kit |
| custom_ |
Mishimoto is a leading manufacturer of performance cooling products for the automotive aftermarket. Founded in 1999, Mishimoto has a long history of innovation and performance, and is known for its high-quality products and customer service. Mishimoto products are designed to improve the cooling performance of your vehicle, which can lead to increased horsepower, better fuel economy, and a longer engine life. Mishimoto's lineup of products includes everything from radiator hoses and water pumps to intercoolers and oil coolers. In addition to its cooling products, Mishimoto also offers a line of high-performance accessories, such as air intakes, exhaust systems, and strut bars. Mishimoto's accessories are designed to improve the performance and handling of your vehicle. Mishimoto is committed to providing its customers with the best possible products and service. All Mishimoto products are backed by a comprehensive warranty, and Mishimoto's customer service department is always available to answer questions and provide assistance. If you're looking for a performance upgrade for your vehicle, look no further than Mishimoto. Mishimoto products are the best way to improve the cooling performance, performance, and handling of your vehicle. Here are some of the benefits of choosing Mishimoto products:
If you're looking for a performance upgrade for your vehicle, I highly recommend Mishimoto products. |
s_item
| department | Engines & Components |
|---|---|
| section | Oiling Systems |
| name | Mishimoto Baffled Oil Catch Cans MMBCC-CSS-10APBE |
| brand | Mishimoto |
| price | 212.95 |
| blurb | Oil Catch Can, Baffled, Round, Aluminum, Black Anodized, Chevrolet, Bracket, Kit |
| title | Mishimoto Baffled Oil Catch Cans |
| description | Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application. |
item_row
| handle | MIS-MMBCC-CSS-10APBE |
|---|---|
| item_ |
206518 |
| brand_ |
45 |
| brand_ |
Mishimoto |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/16d3a53344d1762c18bb0e4c22bd165b.JPG |
| item_ |
MMBCC-CSS-10APBE |
| item_ |
Mishimoto 10-15 Chevrolet Camaro SS (Automatic) Baffled Oil Catch Can Kit - Black |
| item_ |
Engine Components |
| item_ |
Oil Catch Cans |
| item_ |
811580034701 |
| item_ |
217.95 |
| item_ |
289.66 |
| t14_ |
4 |
| mfr_ |
63 |
| dim_ |
3.90 |
| dim_ |
13.80 |
| dim_ |
10.30 |
| dim_ |
8.80 |
| shipping_ |
15.86 |
| item_ |
misMMBCC-CSS-10APBE |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
| bodyHtml | Fits:
Mishimoto MMBCC-CSS-10APBE Oil Catch Cans The L99 engines fitted to the automatic 5th Gen Camaro SS generate an impressive 400+ horsepower from their eight cylinders. But those eight cylinders produce something a little less impressive: blow-by. Oil, fuel, and other by-products of combustion squeeze their way past piston rings with each stroke. Left unchecked, that blow-by can work its way into your Camaro?s intake and rob the engine of power and efficiency. Enter the Mishimoto 2010-15 Camaro SS L99 direct-fit catch can kit. Our catch cans feature air diverters and an internal baffle to help slow incoming air, condensing oil and fuel vapors. To further prevent any blow-by from escaping, the catch can outlet employs a 50-micron bronze filter. This kit will ensure that blow-by vapors never make their way back into your intake. The catch can mounts to your automatic Camaro via a bracket that has been custom designed to fit without any drilling or cutting. Direct-fit lines, complete with quick-disconnect fittings, mate our can to your factory Chevrolet PCV system for an easy and seamless install. Of course, this kit is backed by Mishimoto?s Lifetime Warranty for lifetime peace of mind. Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you?ve seen what we?ve seen in the bottom of our catch cans, you won?t want that draining back into your oil either. Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions.
These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application. |
Overview
| Brand | Mishimoto |
|---|---|
| Manufacturer's Part Number | MMBCC-CSS-10APBE |
| Part Type | Oil Catch Cans |
| Product Line | Mishimoto Baffled Oil Catch Cans |
| Separator Tank Shape | Round |
| Capacity | 3 oz. |
| Separator Tank Material | Aluminum |
| Separator Tank Finish | Black |
| Fitting Attachment 1 | Female threads |
| Fitting Size 1 | 1/2 in. NPT |
| Fitting Attachment 2 | Female threads |
| Fitting Size 2 | 1/2 in. NPT |
| Quantity | Sold as a kit. |
| Notes | Includes black silicone hoses, fittings, and bracket. Fits models with automatic transmission. |
