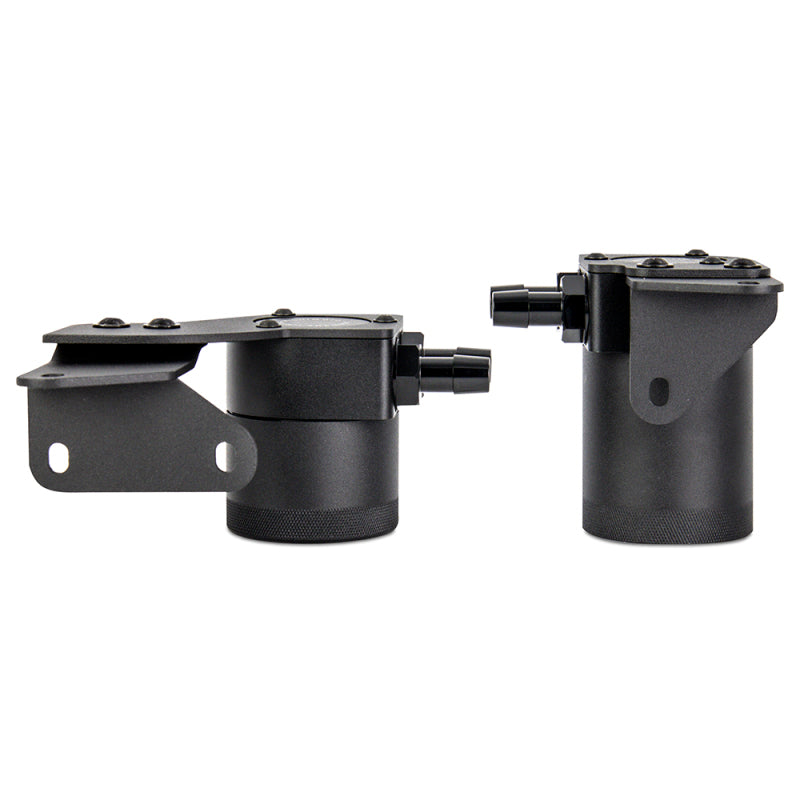

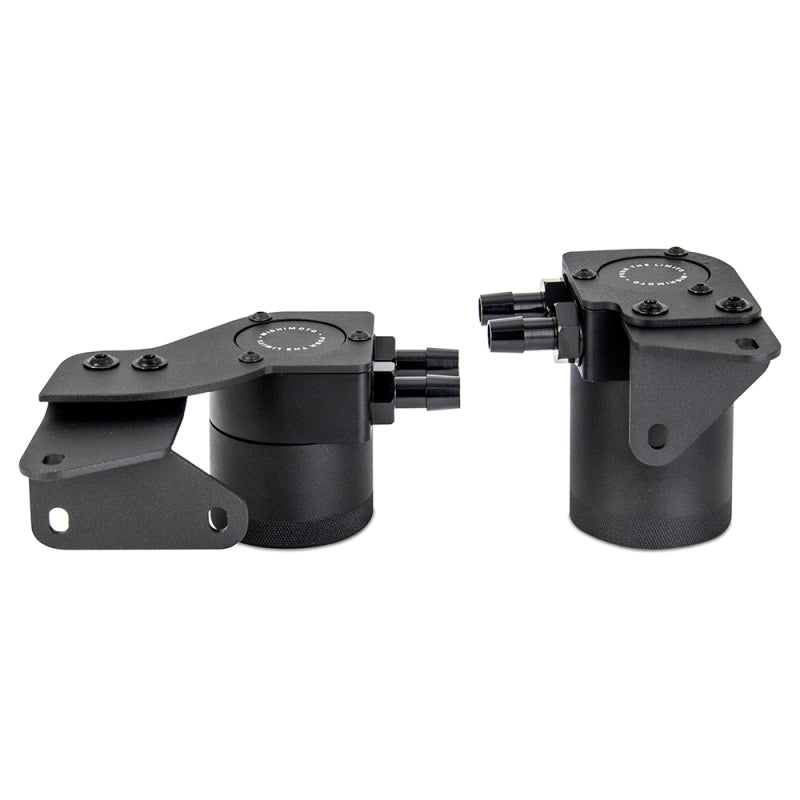

Mishimoto Baffled Oil Catch Cans MMBCC-350Z-07PBE
Mishimoto Baffled Oil Catch Cans MMBCC-350Z-07PBE
13 in stock
Couldn't load pickup availability
Tags
Product Description

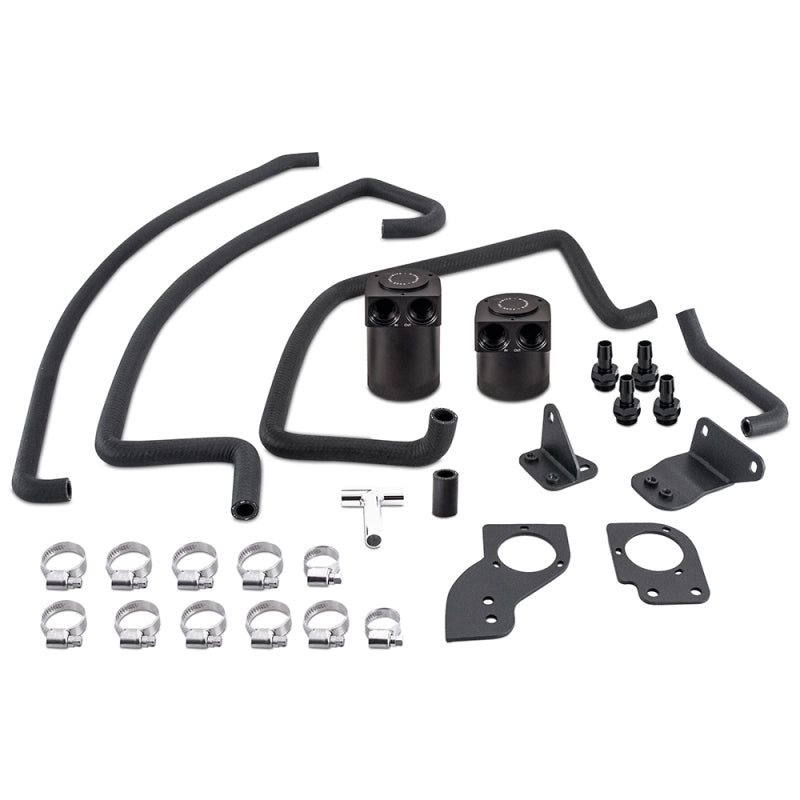

The VQ35HR is the ultimate evolution of the VQ35 series. The HR was built to be driven at the limit, but over a decade of daily driving and banging the limiter takes its toll. As the VQ35HR ages, it produces more and more blow-by, which makes its way back through the intake system and into the cylinders. More blow-by equals a higher chance of detonation, and the high-revving, high compression HR can't afford more risk. That's why Mishimoto has developed a baffled oil catch can for your VQ35HR-powered 2007-2009 Nissan 350Z or Infiniti.Our complete kit utilizes two 6061-aluminum catch cans that mount in line with the VQ35HR's PCV and CCV systems for protection from idle to wide-open throttle. Blow-by is routed away from the intake and into our catch cans using direct-fit, chemical-resistant lines and CNC-machined aluminum fittings. Our cans are suspended in the engine bay by sturdy 3mm-thick steel brackets that can withstand everything from dirt drops to potholes without flinching.Inside the catch cans, air diverters and a baffle help condense oil, fuel, and water, while a 50-micron bronze filter further cleans crankcase gases before returning them to your intake. Like all our 350Z products, this baffled oil catch can kit for the 2007-2009 350Z VQ35HR is backed by our Mishimoto Lifetime Warranty for a lifetime of protection. So, whether you're hitting the track or the street, protect your VQ35HR with this Mishimoto baffled oil catch can kit.

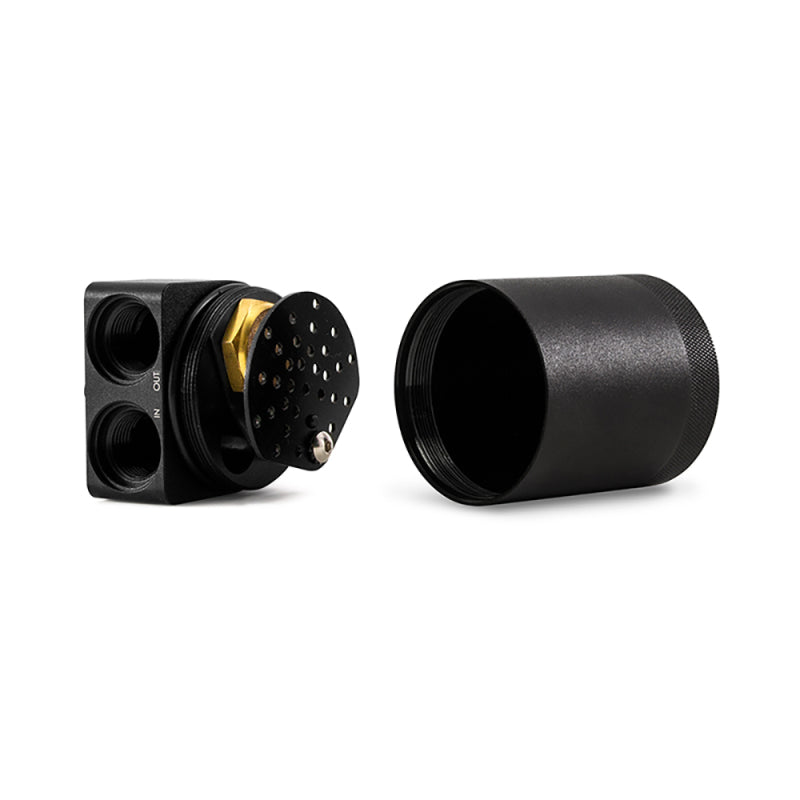

Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application.
Application Summary
Fitment
Fitment
Part Type
Engine Oil Catch Can Kit
description
| aaia_ |
Engine Oil Catch Can Kit |
|---|---|
| market_ |
The VQ35HR is the ultimate evolution of the VQ35 series. The HR was built to be driven at the limit, but over a decade of daily driving and banging the limiter takes its toll. As the VQ35HR ages, it produces more and more blow-by, which makes its way back through the intake system and into the cylinders. More blow-by equals a higher chance of detonation, and the high-revving, high compression HR can't afford more risk. That's why Mishimoto has developed a baffled oil catch can for your VQ35HR-powered 2007-2009 Nissan 350Z or Infiniti.Our complete kit utilizes two 6061-aluminum catch cans that mount in line with the VQ35HR's PCV and CCV systems for protection from idle to wide-open throttle. Blow-by is routed away from the intake and into our catch cans using direct-fit, chemical-resistant lines and CNC-machined aluminum fittings. Our cans are suspended in the engine bay by sturdy 3mm-thick steel brackets that can withstand everything from dirt drops to potholes without flinching.Inside the catch cans, air diverters and a baffle help condense oil, fuel, and water, while a 50-micron bronze filter further cleans crankcase gases before returning them to your intake. Like all our 350Z products, this baffled oil catch can kit for the 2007-2009 350Z VQ35HR is backed by our Mishimoto Lifetime Warranty for a lifetime of protection. So, whether you're hitting the track or the street, protect your VQ35HR with this Mishimoto baffled oil catch can kit. |
| product_ |
Mishimoto MMBCC-350Z-07PBE |
| product_ |
Direct-Fit Catch Can Kit, Fits Nissan 350Z 2007-2009 VQ35HR |
| product_ |
Catch Can Kit |
| custom_ |
Mishimoto is a leading manufacturer of performance cooling products for the automotive aftermarket. Founded in 1999, Mishimoto has a long history of innovation and performance, and is known for its high-quality products and customer service. Mishimoto products are designed to improve the cooling performance of your vehicle, which can lead to increased horsepower, better fuel economy, and a longer engine life. Mishimoto's lineup of products includes everything from radiator hoses and water pumps to intercoolers and oil coolers. In addition to its cooling products, Mishimoto also offers a line of high-performance accessories, such as air intakes, exhaust systems, and strut bars. Mishimoto's accessories are designed to improve the performance and handling of your vehicle. Mishimoto is committed to providing its customers with the best possible products and service. All Mishimoto products are backed by a comprehensive warranty, and Mishimoto's customer service department is always available to answer questions and provide assistance. If you're looking for a performance upgrade for your vehicle, look no further than Mishimoto. Mishimoto products are the best way to improve the cooling performance, performance, and handling of your vehicle. Here are some of the benefits of choosing Mishimoto products:
If you're looking for a performance upgrade for your vehicle, I highly recommend Mishimoto products. |
s_item
| department | Engines & Components |
|---|---|
| section | Oiling Systems |
| name | Mishimoto Baffled Oil Catch Cans MMBCC-350Z-07PBE |
| brand | Mishimoto |
| price | 439.95 |
| blurb | Oil Catch Can, Dual, CCV, PCV, Baffled, Round, Aluminum, Black Anodized, Nissan, VQ35HR, Kit |
| title | Mishimoto Baffled Oil Catch Cans |
| description | Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application. |
item_row
| handle | MIS-MMBCC-350Z-07PBE |
|---|---|
| item_ |
433321 |
| brand_ |
45 |
| brand_ |
Mishimoto |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/a93a2720f89a439b068ca09c493b6afa.JPG |
| item_ |
MMBCC-350Z-07PBE |
| item_ |
Mishimoto 07-09 Nissan 350Z PCV-Side Catch Can Kit |
| item_ |
Engine Components |
| item_ |
Oil Catch Cans |
| item_ |
811580039812 |
| item_ |
448.95 |
| item_ |
632.61 |
| t14_ |
4 |
| mfr_ |
15 |
| dim_ |
6.60 |
| dim_ |
13.80 |
| dim_ |
10.20 |
| dim_ |
8.60 |
| shipping_ |
15.78 |
| item_ |
misMMBCC-350Z-07PBE |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
| bodyHtml | Fits:
Mishimoto MMBCC-350Z-07PBE Oil Catch Cans The VQ35HR is the ultimate evolution of the VQ35 series. The HR was built to be driven at the limit, but over a decade of daily driving and banging the limiter takes its toll. As the VQ35HR ages, it produces more and more blow-by, which makes its way back through the intake system and into the cylinders. More blow-by equals a higher chance of detonation, and the high-revving, high compression HR can't afford more risk. That's why Mishimoto has developed a baffled oil catch can for your VQ35HR-powered 2007-2009 Nissan 350Z or Infiniti.Our complete kit utilizes two 6061-aluminum catch cans that mount in line with the VQ35HR's PCV and CCV systems for protection from idle to wide-open throttle. Blow-by is routed away from the intake and into our catch cans using direct-fit, chemical-resistant lines and CNC-machined aluminum fittings. Our cans are suspended in the engine bay by sturdy 3mm-thick steel brackets that can withstand everything from dirt drops to potholes without flinching.Inside the catch cans, air diverters and a baffle help condense oil, fuel, and water, while a 50-micron bronze filter further cleans crankcase gases before returning them to your intake. Like all our 350Z products, this baffled oil catch can kit for the 2007-2009 350Z VQ35HR is backed by our Mishimoto Lifetime Warranty for a lifetime of protection. So, whether you're hitting the track or the street, protect your VQ35HR with this Mishimoto baffled oil catch can kit. Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions.
These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application. |
Overview
| Brand | Mishimoto |
|---|---|
| Manufacturer's Part Number | MMBCC-350Z-07PBE |
| Part Type | Oil Catch Cans |
| Product Line | Mishimoto Baffled Oil Catch Cans |
| Separator Tank Shape | Round |
| Separator Tank Material | Aluminum |
| Separator Tank Finish | Black |
| Quantity | Sold as a kit. |
| Notes | Dual can system captures blow-by from both CCV and PCV systems. |
