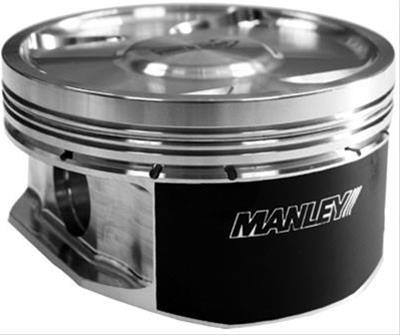

Manley Platinum Series Pistons 625GR1-1
Manley Platinum Series Pistons 625GR1-1
Regular price
$259.24 AUD
Regular price
$234.82 AUD
Sale price
$259.24 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Product Description
Manley Platinum Series pistons are designed to provide trouble-free installation, excellent reliability, and maximum horsepower for your application. Available in 2618 and 4032 forgings, they provide the optimum balance between strength and weight, with no grain-interrupting internal milling. The Platinum Series pistons' 2618 alloy offers maximum high-temperature strength and fatigue resistance, while the 4032 alloy is ideal for moderate-horsepower street applications. Order the style and size pistons designed for your vehicle and engine.
Application Summary
Part Type
description
| product_ |
Manley Nissan GT-R 3.8L VR38DETT 88.4mm Stroke Flat Top Grade 1 Single Platinum Series Piston w/Ring |
|---|
s_item
| department | Engines & Components |
|---|---|
| section | Pistons & Piston Rings |
| name | Manley Platinum Series Pistons 625GR1-1 |
| brand | Manley |
| price | 209.74 |
| blurb | Piston, Forged, 95.5mm Bore/GRADE 1, GT-R VR38DETT, Moly Coated Skirt, 6.500 Rod Length, Flat Top, Includes Rings, Each |
| title | Manley Platinum Series Pistons |
| description | Manley Platinum Series pistons are designed to provide trouble-free installation, excellent reliability, and maximum horsepower for your application. Available in 2618 and 4032 forgings, they provide the optimum balance between strength and weight, with no grain-interrupting internal milling. The Platinum Series pistons' 2618 alloy offers maximum high-temperature strength and fatigue resistance, while the 4032 alloy is ideal for moderate-horsepower street applications. Order the style and size pistons designed for your vehicle and engine. |
item_row
| handle | MAN-625GR1-1 |
|---|---|
| item_ |
279888 |
| brand_ |
43 |
| brand_ |
Manley Performance |
| item_ |
|
| item_ |
625GR1-1 |
| item_ |
Manley Nissan GT-R 3.8L VR38DETT 88.4mm Stroke Flat Top Grade 1 Single Platinum Series Piston w/Ring |
| item_ |
Engine Components |
| item_ |
Pistons - Forged - Single |
| item_ |
807298077543 |
| item_ |
209.74 |
| item_ |
227.98 |
| t14_ |
0 |
| mfr_ |
|
| dim_ |
1.60 |
| dim_ |
5.40 |
| dim_ |
5.20 |
| dim_ |
3.50 |
| shipping_ |
14.52 |
| item_ |
man625GR1-1 |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
Overview
| Brand | Manley |
|---|---|
| Notes | Includes Premium top ring, Napier second rig, 9-13 lbs. tension oil ring and Moly coated skirt. OEM Grade 1,2 or 3 bores resulting in piston wall clearance. Check the bore grades on back of block to order appropriate pistons. |
| Stroke | 88.40mm |
| Gapless | No |
| File Fit | No |
| Quantity | Sold individually. |
| Bore (mm) | 95.500mm |
| Part Type | Pistons |
| Bore (in.) | 3.780 in. |
| Rod Length | 6.500 in. |
| Piston Style | Flat top, with no valve reliefs |
| Product Line | Manley Platinum Series Pistons |
| Piston Material | Forged aluminum |
| Wrist Pin Style | Floating |
| Oil Ring Material | Stainless steel |
| Top Ring Material | Steel |
| Engine Stroke Type | Stock |
| Oil Ring Thickness | 3.0mm |
| Pin Diameter (in.) | 0.905 in. |
| Top Ring Thickness | 1.2mm |
| Wrist Pin Included | Yes |
| Second Ring Material | Steel |
| Piston Ring Thickness | 1.20mm x 1.20mm x 3.00mm |
| Piston Rings Included | Yes |
| Second Ring Thickness | 1.2mm |
| Piston Head Volume (cc) | +1.50cc |
| Compression Height (in.) | 1.350 in. |
| Manufacturer's Part Number | 625GR1-1 |
| Wrist Pin Retainers Included | Yes |
