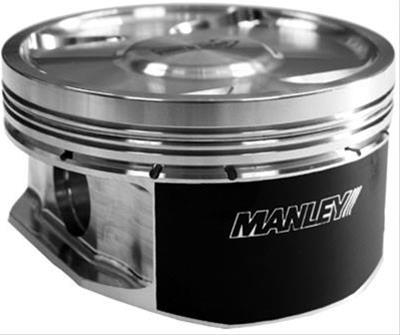

Manley Platinum Series Pistons 598010C-8
Manley Platinum Series Pistons 598010C-8
Regular price
$1,040.14 AUD
Regular price
$1,019.74 AUD
Sale price
$1,040.14 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
Product Description
Manley Platinum Series pistons are designed to provide trouble-free installation, excellent reliability, and maximum horsepower for your application. Available in 2618 and 4032 forgings, they provide the optimum balance between strength and weight, with no grain-interrupting internal milling. The Platinum Series pistons' 2618 alloy offers maximum high-temperature strength and fatigue resistance, while the 4032 alloy is ideal for moderate-horsepower street applications. Order the style and size pistons designed for your vehicle and engine.
Application Summary
Part Type
description
| product_ |
Manley Ford Coyote 5.0L DOHC 4 Valve 3.640in Bore +3.75cc Dome 11.0 CR Piston Set |
|---|
s_item
| department | Engines & Components |
|---|---|
| section | Pistons & Piston Rings |
| name | Manley Platinum Series Pistons 598010C-8 |
| brand | Manley |
| price | 841.53 |
| blurb | PIST-3.640/1.165 CD/6.75cc DOME |
| title | Manley Platinum Series Pistons |
| description | Manley Platinum Series pistons are designed to provide trouble-free installation, excellent reliability, and maximum horsepower for your application. Available in 2618 and 4032 forgings, they provide the optimum balance between strength and weight, with no grain-interrupting internal milling. The Platinum Series pistons' 2618 alloy offers maximum high-temperature strength and fatigue resistance, while the 4032 alloy is ideal for moderate-horsepower street applications. Order the style and size pistons designed for your vehicle and engine. |
item_row
| handle | MAN-598010C-8 |
|---|---|
| item_ |
4326677 |
| brand_ |
43 |
| brand_ |
Manley Performance |
| item_ |
|
| item_ |
598010C-8 |
| item_ |
Manley Ford Coyote 5.0L DOHC 4 Valve 3.640in Bore +3.75cc Dome 11.0 CR Piston Set |
| item_ |
Engine Components |
| item_ |
Piston Sets - Forged - 8cyl |
| item_ |
807298075563 |
| item_ |
841.53 |
| item_ |
990.04 |
| t14_ |
6 |
| mfr_ |
|
| dim_ |
9.80 |
| dim_ |
9.60 |
| dim_ |
8.60 |
| dim_ |
8.40 |
| shipping_ |
14.83 |
| item_ |
man598010C-8 |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
Overview
| Brand | Manley |
|---|---|
| Notes | Coated skirts. Will accommodate +1.00mm larger valves. |
| Stroke | 3.650 in. |
| Gapless | No |
| File Fit | No |
| Quantity | Sold as a set of 8. |
| Bore (mm) | 92.456mm |
| Part Type | Pistons |
| Bore (in.) | 3.640 in. |
| Rod Length | 5.933 in. |
| Piston Style | Dome, with four valve reliefs |
| Product Line | Manley Platinum Series Pistons |
| Piston Material | Forged aluminum |
| Wrist Pin Style | Press-fit or floating |
| Engine Stroke Type | Stock |
| Pin Diameter (in.) | 0.866 in. |
| Wrist Pin Included | Yes |
| Piston Ring Thickness | 1.20mm x 1.20mm x 3.00mm |
| Piston Rings Included | No |
| Piston Head Volume (cc) | -3.75cc |
| Compression Height (in.) | 1.165 in. |
| Actual Engine Displacement | 5.0L/303 |
| Manufacturer's Part Number | 598010C-8 |
| Wrist Pin Retainers Included | Yes |
