Manley Steel H-Beam Connecting Rods 14056R-8
Manley Steel H-Beam Connecting Rods 14056R-8
Regular price
$1,012.69 AUD
Regular price
$937.67 AUD
Sale price
$1,012.69 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
11 in stock
Couldn't load pickup availability
Product Description

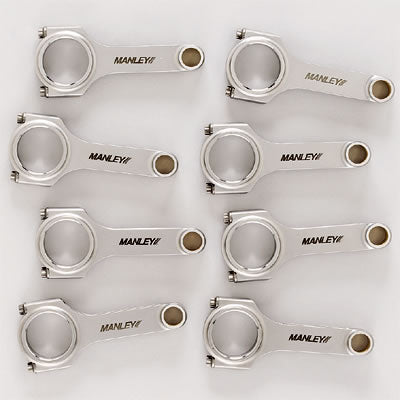

Manley steel H-beam connecting rods are made from forged 4340 steel alloy. They're packed full of performance features, such as a compact uniform-grain structure for ultimate strength, full machining, stress relieving, and magnafluxing. The wrist pin and big end bores are honed to a +/-.0002 in. tolerance, and the wrist pins get a bronze alloy bushing. These units include cap screw ARP 8740 alloy rod bolts, and each rod set is weight-matched to within 2 grams. Available individually or in a set, order the model recommended for your vehicle year/make and engine application.
Application Summary
Part Type
description
| product_ |
Manley Chrysler 6.1L Hemi ARP 2000 2.125in Bore 1.060in Pin H Beam Connecting Rod Set |
|---|
s_item
| department | Engines & Components |
|---|---|
| section | Connecting Rods |
| name | Manley Steel H-Beam Connecting Rods 14056R-8 |
| brand | Manley |
| price | 843.91 |
| blurb | Connecting Rods, 4340 H-Beam, Cap Screw, Bushed, 6.125 in., Chevy, Small Block, Set of 8 |
| title | Manley Steel H-Beam Connecting Rods |
| description | Manley steel H-beam connecting rods are made from forged 4340 steel alloy. They're packed full of performance features, such as a compact uniform-grain structure for ultimate strength, full machining, stress relieving, and magnafluxing. The wrist pin and big end bores are honed to a +/-.0002 in. tolerance, and the wrist pins get a bronze alloy bushing. These units include cap screw ARP 8740 alloy rod bolts, and each rod set is weight-matched to within 2 grams. Available individually or in a set, order the model recommended for your vehicle year/make and engine application. |
item_row
| handle | MAN-14056R-8 |
|---|---|
| item_ |
107612 |
| brand_ |
43 |
| brand_ |
Manley Performance |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/1fdef596a98501bd9eb687967102df2f.JPG |
| item_ |
14056R-8 |
| item_ |
Manley Chrysler 6.1L Hemi ARP 2000 2.125in Bore 1.060in Pin H Beam Connecting Rod Set |
| item_ |
Engine Components |
| item_ |
Connecting Rods - 8Cyl |
| item_ |
807298068411 |
| item_ |
843.91 |
| item_ |
937.67 |
| t14_ |
13 |
| mfr_ |
|
| dim_ |
12.90 |
| dim_ |
11.20 |
| dim_ |
9.00 |
| dim_ |
4.40 |
| shipping_ |
14.83 |
| item_ |
man14056R-8 |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
Overview
| Brand | Manley |
|---|---|
| Notes | Custom pistons are required when using connecting rods with any length other than OE length. These connecting rods are rated at 775 hp for circle track, and 900 hp for drag race applications. |
| Quantity | Sold as a set of 8. |
| Part Type | Connecting Rods |
| Magnafluxed | Yes |
| Product Line | Manley Steel H-Beam Connecting Rods |
| Remanufactured | No |
| Wrist Pin Style | Floating |
| Weight Matched Set | Yes |
| Big End Width (in.) | 0.941 |
| Cap Retention Style | Cap screw |
| Pin End Width (in.) | 1.060 in. |
| Connecting Rod Color | Shot-peened |
| Pin End Bore Diameter | 0.928 in. |
| Clearanced for Stroker | Yes |
| Connecting Rod Material | Forged 4340 steel |
| Connecting Rod Beam Style | H-beam |
| Connecting Rod Bolt Brand | ARP |
| Manufacturer's Part Number | 14056R-8 |
| Big End Bore Diameter (in.) | 2.1250 |
| Advertised Horsepower Rating | 775 hp |
| Connecting Rod Bolt Diameter | 7/16 in. |
| Connecting Rod Bolt Material | ARP2000 alloy |
| Connecting Rod Bolt Head Style | 12-point |
| Fastener Tensile Strength (psi) | 200,000 psi |
| Approximate Connecting Rod Weight (g) | 642 |
| Connecting Rod Length Center to Center (in.) | 6.125 in. |
