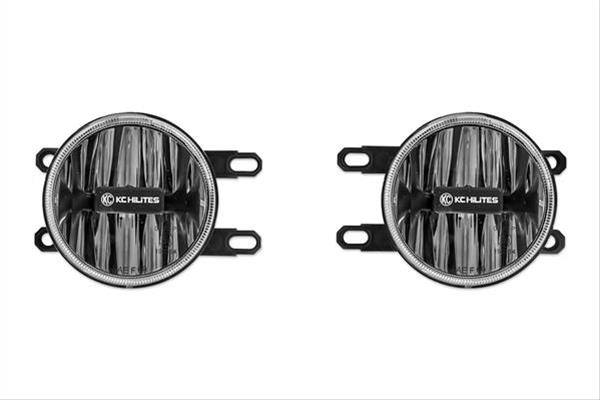

KC HiLiTES Gravity LED G4 Fog Lights 500
KC HiLiTES Gravity LED G4 Fog Lights 500
Low stock: 3 left
Couldn't load pickup availability
Tags
Product Description
FEATURES-2 x 10W 4" Gravity LED Fog Lights-Lightweight Magnesium Housing for Maximum Heat Dissipation-UV Treated Shatter Resistant Polycarbonate Lens-Street Legal Fog Beam PatternLIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 866 lm-Compliance: SAE J583 & ECE-R19-Lux @ 10 Meters: 150 lx-Candela: 15,000 cd-Beam Distance (Meters): 245mSPECIFICATIONS(PER LIGHT)-Wattage: 10W-LED Source: CREE XP-G R4-Color: 5000K-Amp Draw: .74A-Voltage: 9V-32V-IP Rating: IP69-Dimensions: W - 3.94" x H - 3.94" x D - 2.97"Parts Included-(2) 10W 4" Gravity G4 LED Fog lights and Brackets for 12-18 Toyota Tacoma-H11 Wiring Harness w/ 2-Pin weather-proof connectorsTOYOTA AND LEXUS OE FOG LIGHT MOUNTING KC's G4 LEDs fits various 06-18 Toyota/Lexus/ models, mounting to OEM bolt holes to deliver powerful light output.KC's Gravity G4 Toyota LED Fog Light Fits:-12-18 Toyota Tacoma-14-18 Toyota Tundra-10-18 Toyota 4Runner-06-12 Toyota Rav4-13-15 Lexus: IS,ES,GS,RX,LXGravityEXTREME OUTPUT AND EFFICIENCYThe 4" Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode(GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision designed reflectors to capture all the light and project it forward.STREET LEGAL FOG BEAM PATTERNFog Beam- Provides a low, wide angle light pattern that increases visibility in conditions like dust, fog, snow and rain.STRENGTH & DURABILITY Using high quality electroplated aluminum housing and Polycarbonate lens in a self contained housing, impermeable to dust and moisture.
KC HiLiTES Gravity LED G4 fog lights are the brightest and most efficient performance fog lights on the market for a variety of cars, trucks, Jeeps, and SUVs. KC's patented Gravity Reflective Diode (GRD) technology allows them to combine all the benefits of LEDs—such as output and power efficiency, solid-state rigidity, and digital fabric—with precision machined optical reflectors. With the LEDs and reflectors combined within one unit maximizes light output (an exponential increase over typical forward-facing LEDs), while shaping virtually any beam pattern for distance and usable light. For challenging driving conditions such as dust, fog, snow and rain, you can rely on KC HiLiTES Gravity LED G4 fog lights to illuminate the way.
Extended Description

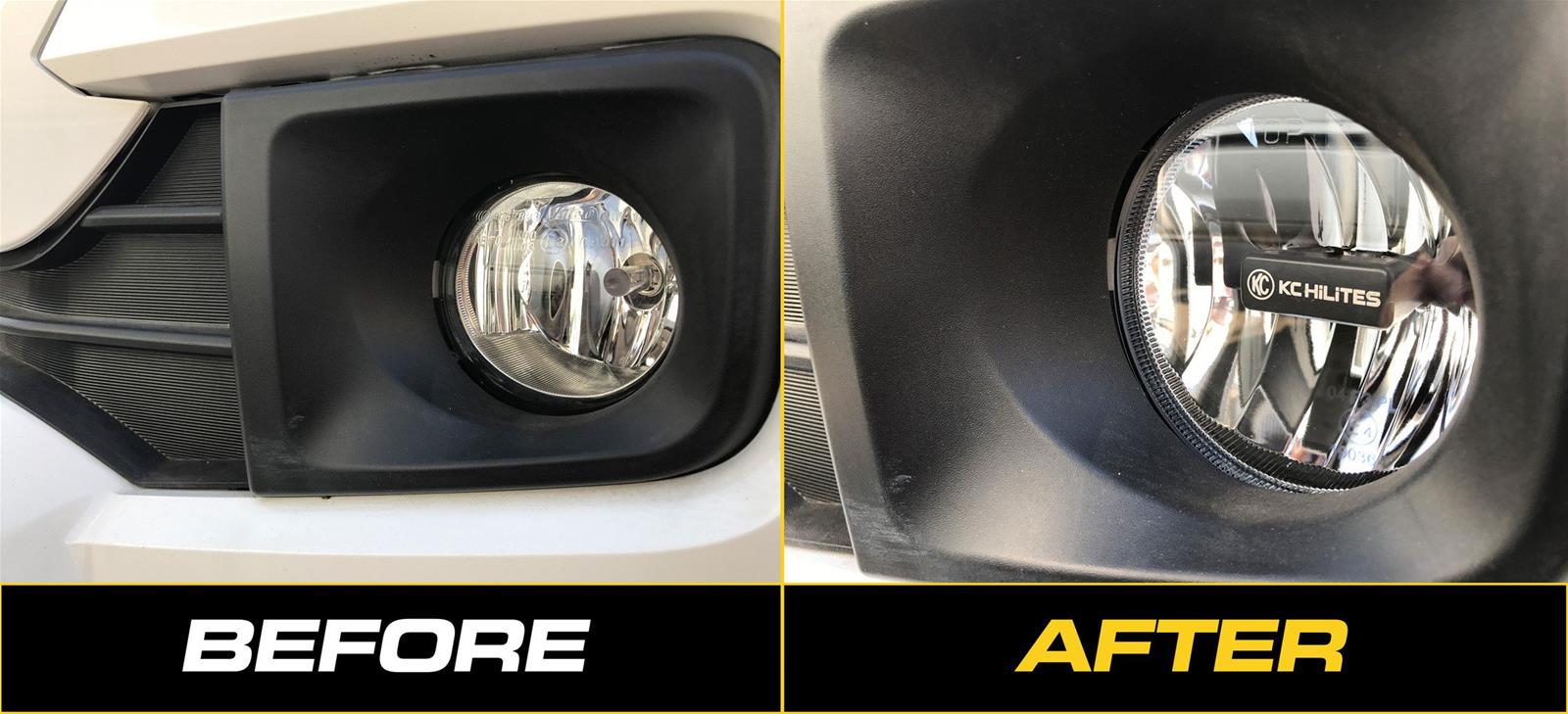

- KC's Fog Light Bracket/LED upgrade allows mounting of KC Gravity G4 LED fog lights to Tacoma's OEM fog lamp locations. Brackets gives your G4 fog lights a clean, factory installed look without having to drill or cut your bumper.
Application Summary
2010-2018
Fitment
Fitment
Part Type
Fog Light
Additional Information 2
- FEATURES-2 x 10W 4in. Gravity LED Fog Lights w/Brackets-Electroplated Aluminum Housing-Plug-N-Play H11 Connector-Clear LED-Street Legal Fog Beam PatternLIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 866 lm-Compliance: SAE J583/ECE-R19-Lux @ 10 Meters: 150 lx-Candela: 15
- 000 cd-Beam Distance (Meters): 245mSPECIFICATIONS(PER LIGHT)-Wattage: 10W-LED Source: CREE XP-G R4-Color: 5000K-Amp Draw: .74A-Voltage: 9V-32V-IP Rating: IP69-Dimensions: W-3.94in. x H-3.94in. x D-2.97in.Parts Included-(2) 10W 4in. Gravity G4 LED Fog lights and Brackets for Toyota Tacoma-H11 Wiring Harness w/2-Pin weather-proof connectors-30A LED Switch w/PanelTOYOTA TACOMA OE MOUNTINGThe Toyota Tacoma is arguably one of the toughest compact pickups on the road today
- offering versatile performance and unrivaled durability
- much like our Gravity G4 LEDs which pair perfectly with your Tacoma with OEM factory bolt design for easy mounting.GravityEXTREME OUTPUT AND EFFICIENCYThe 4in. Gravity LED Fog Lights are powered by KC s patented Gravity Reflective Diode(GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision designed reflectors to capture all the light and project it forward.STREET LEGAL FOG BEAM PATTERNFog Beam-Provides a low
- wide angle light pattern that increases visibility in conditions like dust
- fog
- snow and rain.STRENGTH/DURABILITY Using high quality electroplated aluminum housing and UV treated shatter-proof Polycarbonate lens in a self contained housing
- impermeable to dust and moisture.
description
| aaia_ |
Fog Light |
|---|---|
| application_ |
2010-2018 |
| associated_ |
FEATURES-2 x 10W 4in. Gravity LED Fog Lights w/Brackets-Electroplated Aluminum Housing-Plug-N-Play H11 Connector-Clear LED-Street Legal Fog Beam PatternLIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 866 lm-Compliance: SAE J583/ECE-R19-Lux @ 10 Meters: 150 lx-Candela: 15;000 cd-Beam Distance (Meters): 245mSPECIFICATIONS(PER LIGHT)-Wattage: 10W-LED Source: CREE XP-G R4-Color: 5000K-Amp Draw: .74A-Voltage: 9V-32V-IP Rating: IP69-Dimensions: W-3.94in. x H-3.94in. x D-2.97in.Parts Included-(2) 10W 4in. Gravity G4 LED Fog lights and Brackets for Toyota Tacoma-H11 Wiring Harness w/2-Pin weather-proof connectors-30A LED Switch w/PanelTOYOTA TACOMA OE MOUNTINGThe Toyota Tacoma is arguably one of the toughest compact pickups on the road today; offering versatile performance and unrivaled durability; much like our Gravity G4 LEDs which pair perfectly with your Tacoma with OEM factory bolt design for easy mounting.GravityEXTREME OUTPUT AND EFFICIENCYThe 4in. Gravity LED Fog Lights are powered by KC s patented Gravity Reflective Diode(GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision designed reflectors to capture all the light and project it forward.STREET LEGAL FOG BEAM PATTERNFog Beam-Provides a low; wide angle light pattern that increases visibility in conditions like dust; fog; snow and rain.STRENGTH/DURABILITY Using high quality electroplated aluminum housing and UV treated shatter-proof Polycarbonate lens in a self contained housing; impermeable to dust and moisture. |
| label_ |
KC Gravity LED Aux Light |
| market_ |
FEATURES-2 x 10W 4" Gravity LED Fog Lights-Lightweight Magnesium Housing for Maximum Heat Dissipation-UV Treated Shatter Resistant Polycarbonate Lens-Street Legal Fog Beam PatternLIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 866 lm-Compliance: SAE J583 & ECE-R19-Lux @ 10 Meters: 150 lx-Candela: 15,000 cd-Beam Distance (Meters): 245mSPECIFICATIONS(PER LIGHT)-Wattage: 10W-LED Source: CREE XP-G R4-Color: 5000K-Amp Draw: .74A-Voltage: 9V-32V-IP Rating: IP69-Dimensions: W - 3.94" x H - 3.94" x D - 2.97"Parts Included-(2) 10W 4" Gravity G4 LED Fog lights and Brackets for 12-18 Toyota Tacoma-H11 Wiring Harness w/ 2-Pin weather-proof connectorsTOYOTA AND LEXUS OE FOG LIGHT MOUNTING KC''s G4 LEDs fits various 06-18 Toyota/Lexus/ models, mounting to OEM bolt holes to deliver powerful light output.KC''s Gravity G4 Toyota LED Fog Light Fits:-12-18 Toyota Tacoma-14-18 Toyota Tundra-10-18 Toyota 4Runner-06-12 Toyota Rav4-13-15 Lexus: IS,ES,GS,RX,LXGravityEXTREME OUTPUT AND EFFICIENCYThe 4" Gravity LED Fog Lights are powered by KC''s patented Gravity Reflective Diode(GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision designed reflectors to capture all the light and project it forward.STREET LEGAL FOG BEAM PATTERNFog Beam- Provides a low, wide angle light pattern that increases visibility in conditions like dust, fog, snow and rain.STRENGTH & DURABILITY Using high quality electroplated aluminum housing and Polycarbonate lens in a self contained housing, impermeable to dust and moisture. |
| product_ |
KC''s Fog Light Bracket/LED upgrade allows mounting of KC Gravity G4 LED fog lights to Tacoma''s OEM fog lamp locations. Brackets gives your G4 fog lights a clean, factory installed look without having to drill or cut your bumper. |
| product_ |
KC HiLiTES LED Fog Light |
| product_ |
Toy Tacoma; G4 Clear LED Fog Light 12-18 (pr) |
| product_ |
Gravity LED |
s_item
| department | Lights & Lighting |
|---|---|
| section | Off-Road Lighting |
| name | KC HiLiTES Gravity LED G4 Fog Lights 500 |
| brand | KC HiLiTES |
| price | 359.99 |
| blurb | Auxiliary Lights, Gravity LED G4 Fog, 3.940 in. Round, 10 watt, Clear Lens, Clear Bulb, Magnesium Housing, Lexus, Scion, Toyota, Pair |
| title | KC HiLiTES Gravity LED G4 Fog Lights |
| description | KC HiLiTES Gravity LED G4 fog lights are the brightest and most efficient performance fog lights on the market for a variety of cars, trucks, Jeeps, and SUVs. KC's patented Gravity Reflective Diode (GRD) technology allows them to combine all the benefits of LEDs—such as output and power efficiency, solid-state rigidity, and digital fabric—with precision machined optical reflectors. With the LEDs and reflectors combined within one unit maximizes light output (an exponential increase over typical forward-facing LEDs), while shaping virtually any beam pattern for distance and usable light. For challenging driving conditions such as dust, fog, snow and rain, you can rely on KC HiLiTES Gravity LED G4 fog lights to illuminate the way. |
item_row
| handle | KCL-500 |
|---|---|
| item_ |
322566 |
| brand_ |
310 |
| brand_ |
KC HiLiTES |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/c1a0ed1673acdbfde619d28e6dc54a20.JPG |
| item_ |
500 |
| item_ |
KC HiLiTES 12-18 Toyota Tacoma Gravity G4 LED Light Clear Fog Beam (Pair Pack System) |
| item_ |
Lights |
| item_ |
Fog Lights |
| item_ |
084709005009 |
| item_ |
359.99 |
| item_ |
|
| t14_ |
3 |
| mfr_ |
1 |
| dim_ |
2.00 |
| dim_ |
12.40 |
| dim_ |
4.60 |
| dim_ |
4.30 |
| shipping_ |
14.52 |
| item_ |
kcl500 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
Overview
| Brand | KC HiLiTES |
|---|---|
| Notes | For use with models equipped with factory fog lights. |
| Lumens | 866 |
| Amp Draw | 0.74 amps |
| Quantity | Sold as a pair. |
| Bulb Type | LED |
| Part Type | Light Bars, Light Pods and Fog Lights |
| Bulb Color | Clear |
| Lens Color | Clear |
| Light Type | Driving/Fog light |
| Product Line | KC HiLiTES Gravity LED G4 Fog Lights |
| Beam Distance | 245.00 m |
| Housing Color | Black |
| Diameter (in.) | 3.940 in. |
| Relay Included | No |
| Maximum Voltage | 32 V |
| Housing Material | Magnesium |
| Hardware Included | Yes |
| Light Cover Included | No |
| Wiring Harness Included | Yes |
| Manufacturer's Part Number | 500 |
