KC HiLiTES Gravity LED Driving Lights 497
KC HiLiTES Gravity LED Driving Lights 497
Low stock: 3 left
Couldn't load pickup availability
Tags
Product Description

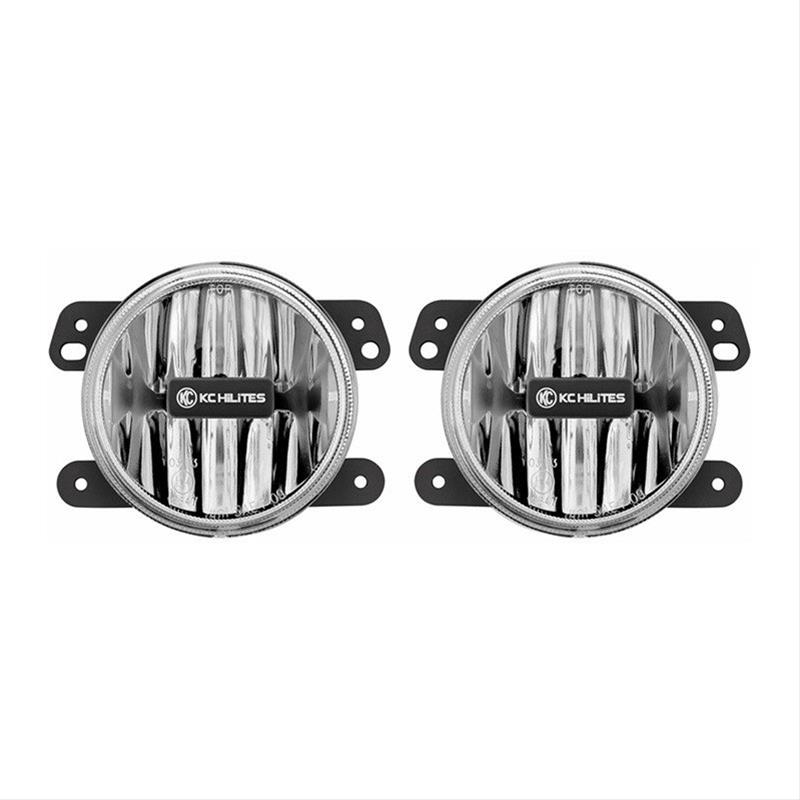

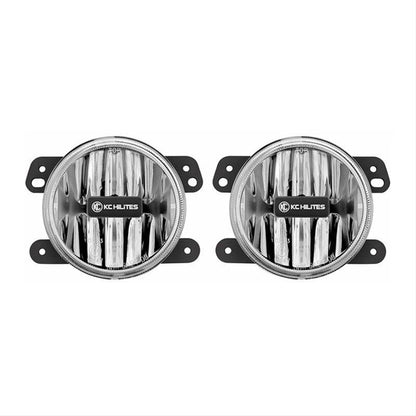

FEATURES-2 x 10W 4" Gravity LED Fog Lights-Lightweight Magnesium Housing for Maximum Heat Dissipation-Street Legal 10-18 Jeep JK Application-Shatter Resistant Polycarbonate Lens-Fog Beam Pattern (SAE & ECE Street Legal)LIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 866 lm -Compliance: SAE J583 & ECE-R19 Street Legal-Lux @ 10 Meters: 150 lx-Candela: 15,000 cd-Beam Distance (Meters): 245mSPECIFICATIONS(PER LIGHT)-Wattage: 10W-LED Source: CREE LED-Color Temperature: 5000K-Amp Draw: .74A-Voltage: 9V-32V-IP Rating: IP69-Product Dimensions: W - 3.94" x H - 3.94" x D - 3.44" Parts Included-(2) 10W 4" Gravity G4 LED Fog lights-Universal Adjustable Bracket-Deluxe Wiring Harness w/ 2-Pin weather proof connectors-30A LED Switch w/PanelGravityEXTREME OUTPUT AND EFFICIENCY4" Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC's patented GRD system aims LEDs into precision reflectors, capturing all light to project it forward.AVAILABLE BEAM PATTERN AND ADVANTAGES Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain.ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISIONKC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's mounting system bolts directly to OE 10-18 Jeep JK bumper and fog light harness.STRENGTH & DURABILITY Constructed from an IP69 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing.
KC HiLiTES Gravity LED driving lights offer you 100 percent street legal LED lighting performance for on- or off-road adventures. They feature KC's patented gravity-reflective diode (GRD), which facilitates all of the benefits of LEDs, such as efficiency, solid-state rigidity, and digital fabric with the use of optical reflectors. This maximizes light output while allowing precise bream pattern shaping. The lights include CREE LEDs, high-grade aluminum housing with signature air-cooled fin design, hard-coated polycarbonate lens--and they're fully self-contained and sealed. A universal bracket and bolt ensure easy mounting and installation.
Extended Description
- KC Hilites 4" Gravity LED Fog Light feature bright CREE LEDs in a street legal fog beam pattern. Sealed magnesium housing and polycarbonate lens. Pair pack includes factory wire connectors and bracket for easy mounting on 10-18 Jeep JKs.
Application Summary
2010-2018
Fitment
Fitment
Part Type
Fog Light
Additional Information 2
- FEATURES-2 x 10W 4in. Gravity LED Fog Lights-Lightweight Magnesium Housing for Maximum Heat Dissipation-Street Legal 10-16 Jeep JK Application-Shatter Proof Polycarbonate Lens-Fog Beam Pattern (SAE/ECE Street Legal)LIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 866 lm-Compliance: SAE J583/ECE-R19 Street Legal-Lux @ 10 Meters: 150 lx-Candela: 15
- 000 cd-Beam Distance (Meters): 245mSPECIFICATIONS(PER LIGHT)-Wattage: 10W-LED Source: CREE LED-Color Temperature: 5000K-Amp Draw: .74A-Voltage: 9V-32V-IP Rating: IP69-Product Dimensions: W-3.94in. x H-3.94in. x D-3.44in. Parts Included-(2) 10W 4in. Gravity G4 LED Fog lights-Universal Adjustable Bracket-Deluxe Wiring Harness w/2-Pin weather proof connectors-30A LED Switch w/PanelGravityEXTREME OUTPUT AND EFFICIENCY4in. Gravity LED Fog Lights are powered by KC s patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC s patented GRD system aims LEDs into precision reflectors
- capturing all light to project it forward.AVAILABLE BEAM PATTERN AND ADVANTAGES Fog Beam-Provides a low
- wide angle light pattern that increases short-range visibility in conditions like dust
- fog
- snow and rain.ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISIONKC s Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC s mounting system bolts directly to OE 10-16 Jeep JK bumper and fog light harness.STRENGTH/DURABILITY Constructed from an IP69 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing.
description
| aaia_ |
Fog Light |
|---|---|
| application_ |
2010-2018 |
| associated_ |
FEATURES-2 x 10W 4in. Gravity LED Fog Lights-Lightweight Magnesium Housing for Maximum Heat Dissipation-Street Legal 10-16 Jeep JK Application-Shatter Proof Polycarbonate Lens-Fog Beam Pattern (SAE/ECE Street Legal)LIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 866 lm-Compliance: SAE J583/ECE-R19 Street Legal-Lux @ 10 Meters: 150 lx-Candela: 15;000 cd-Beam Distance (Meters): 245mSPECIFICATIONS(PER LIGHT)-Wattage: 10W-LED Source: CREE LED-Color Temperature: 5000K-Amp Draw: .74A-Voltage: 9V-32V-IP Rating: IP69-Product Dimensions: W-3.94in. x H-3.94in. x D-3.44in. Parts Included-(2) 10W 4in. Gravity G4 LED Fog lights-Universal Adjustable Bracket-Deluxe Wiring Harness w/2-Pin weather proof connectors-30A LED Switch w/PanelGravityEXTREME OUTPUT AND EFFICIENCY4in. Gravity LED Fog Lights are powered by KC s patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC s patented GRD system aims LEDs into precision reflectors; capturing all light to project it forward.AVAILABLE BEAM PATTERN AND ADVANTAGES Fog Beam-Provides a low; wide angle light pattern that increases short-range visibility in conditions like dust; fog; snow and rain.ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISIONKC s Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC s mounting system bolts directly to OE 10-16 Jeep JK bumper and fog light harness.STRENGTH/DURABILITY Constructed from an IP69 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing. |
| label_ |
KC Gravity LED Aux Light |
| market_ |
FEATURES-2 x 10W 4" Gravity LED Fog Lights-Lightweight Magnesium Housing for Maximum Heat Dissipation-Street Legal 10-18 Jeep JK Application-Shatter Resistant Polycarbonate Lens-Fog Beam Pattern (SAE & ECE Street Legal)LIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 866 lm -Compliance: SAE J583 & ECE-R19 Street Legal-Lux @ 10 Meters: 150 lx-Candela: 15,000 cd-Beam Distance (Meters): 245mSPECIFICATIONS(PER LIGHT)-Wattage: 10W-LED Source: CREE LED-Color Temperature: 5000K-Amp Draw: .74A-Voltage: 9V-32V-IP Rating: IP69-Product Dimensions: W - 3.94" x H - 3.94" x D - 3.44" Parts Included-(2) 10W 4" Gravity G4 LED Fog lights-Universal Adjustable Bracket-Deluxe Wiring Harness w/ 2-Pin weather proof connectors-30A LED Switch w/PanelGravityEXTREME OUTPUT AND EFFICIENCY4" Gravity LED Fog Lights are powered by KC''s patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC''s patented GRD system aims LEDs into precision reflectors, capturing all light to project it forward.AVAILABLE BEAM PATTERN AND ADVANTAGES Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain.ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISIONKC''s Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC''s mounting system bolts directly to OE 10-18 Jeep JK bumper and fog light harness.STRENGTH & DURABILITY Constructed from an IP69 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing. |
| product_ |
KC Hilites 4" Gravity LED Fog Light feature bright CREE LEDs in a street legal fog beam pattern. Sealed magnesium housing and polycarbonate lens. Pair pack includes factory wire connectors and bracket for easy mounting on 10-18 Jeep JKs. |
| product_ |
KC HiLiTES LED Fog Light |
| product_ |
Jeep JK; Gravity LED G4 Clear Fog Sys SAE/ECE 10-18 (pr) |
| product_ |
Gravity LED |
s_item
| department | Lights & Lighting |
|---|---|
| section | Off-Road Lighting |
| name | KC HiLiTES Gravity LED Driving Lights 497 |
| brand | KC HiLiTES |
| price | 349.99 |
| blurb | Auxiliary Lights, Gravity LED Fog, 4 in. Round, 20 watt, Clear Lens, Clear Bulb, Magnesium Housing, Jeep, Pair |
| title | KC HiLiTES Gravity LED Driving Lights |
| description | KC HiLiTES Gravity LED driving lights offer you 100 percent street legal LED lighting performance for on- or off-road adventures. They feature KC's patented gravity-reflective diode (GRD), which facilitates all of the benefits of LEDs, such as efficiency, solid-state rigidity, and digital fabric with the use of optical reflectors. This maximizes light output while allowing precise bream pattern shaping. The lights include CREE LEDs, high-grade aluminum housing with signature air-cooled fin design, hard-coated polycarbonate lens--and they're fully self-contained and sealed. A universal bracket and bolt ensure easy mounting and installation. |
item_row
| handle | KCL-497 |
|---|---|
| item_ |
322563 |
| brand_ |
310 |
| brand_ |
KC HiLiTES |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/af3f4ce46f1564286e715c36ffb9ef52.JPG |
| item_ |
497 |
| item_ |
KC HiLiTES 10-18 Jeep JK 4in. Gravity G4 LED Light 10w SAE/ECE Clear Fog Beam (Pair Pack System) |
| item_ |
Lights |
| item_ |
Fog Lights |
| item_ |
084709004972 |
| item_ |
349.99 |
| item_ |
|
| t14_ |
4 |
| mfr_ |
1 |
| dim_ |
2.00 |
| dim_ |
8.00 |
| dim_ |
6.60 |
| dim_ |
4.80 |
| shipping_ |
14.53 |
| item_ |
kcl497 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
Overview
| Brand | KC HiLiTES |
|---|---|
| Notes | Not compatible with 2015-16 Rubicon Hard Rock Editions. |
| Lumens | 1,732 |
| Amp Draw | 1.48 amps |
| Quantity | Sold as a pair. |
| Bulb Type | LED |
| Part Type | Light Bars, Light Pods and Fog Lights |
| Bulb Color | Clear |
| Lens Color | Clear |
| Light Type | Driving/Fog light |
| Product Line | KC HiLiTES Gravity LED Driving Lights |
| Housing Color | Black |
| Diameter (in.) | 4.000 in. |
| Number of LEDs | 2 |
| Relay Included | Yes |
| Maximum Voltage | 32 V |
| Housing Material | Magnesium |
| Hardware Included | Yes |
| Light Cover Included | No |
| Wiring Harness Included | Yes |
| Manufacturer's Part Number | 497 |
