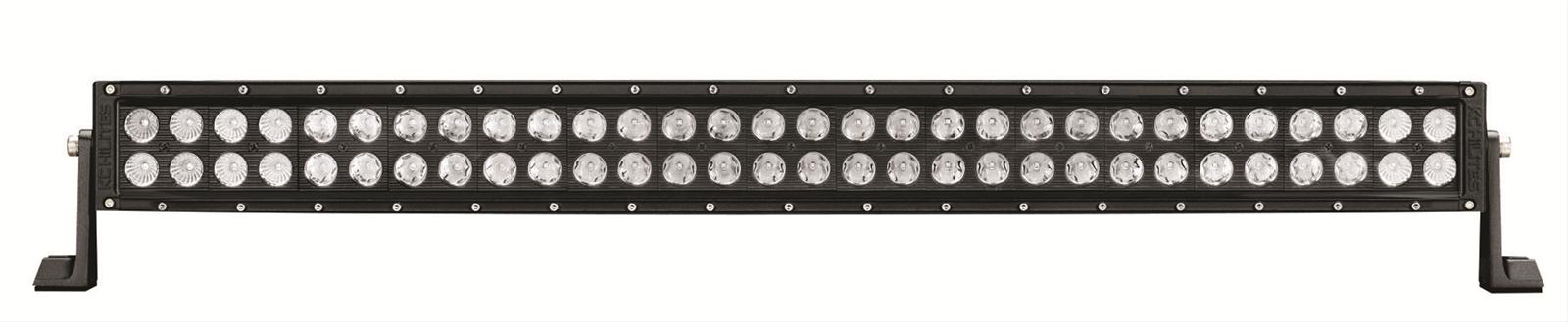

KC HiLiTES C-Series LED Lights 336

KC HiLiTES C-Series LED Lights 336

$563.99 AUD
$563.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 1 left

Product Description

FEATURES-30" 180W C-SERIES LED Light Bar-Precision reflectors with forward facing LEDs-Combo Beam Pattern: 8 Spot & 90 Spread-Extruded Aluminum Housings-GORE Membrane BarrierLIGHT PERFORMANCE-Raw Lumens: 16,200 lm-Lux @ 10 Meters: 2,050 lx-Candela: 205,000 cd-Beam Distance (Meters): 906mSPECIFICATIONS-Wattage: 180W-LED Source: CREE LED-Color Temperature: 6000K-Amp Draw: 15.0A-Voltage: 9V-32V-IP Rating: IP67-Product Dimensions: L - 31.38" x H - 3.09" x D - 3.40" Parts Included with C-SERIES Light Bars-Wiring Harness w/ 2-Pin weather proof connectors-Die-Cast Mounting Brackets with hardwarePERFORMANCE OUTPUT AND CLARITYThe 30" C-Series uses an advanced dual row CREE LED design delivering 16,200 Lumens of output with maximum power efficiency. They are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination.HIGH PERFORMANCE MEETS AFFORDABILITYC-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency.COMBO BEAM PATTERN AND ADVANTAGESWhen it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8 Spot & 90 Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.DESIGNED FOR DURABILITYOff road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE Membranes, the C-Series is resistant to moisture and dust.

KC HiLiTES C-Series LED lights are the perfect blend of value and performance, making them a great addition for the everyday off-road enthusiast. They're available in spot and flood beam patterns—in square and rectangular light bar styles—to accommodate your specific lighting needs. C-Series LEDs are built using a durable aluminum housing for long-lasting performance. Select the size the wattage needed for your application.

Extended Description

  • KC's C30- 30" LED Light Bar provides 180W of Performance, featuring a versatile combo beam pattern, both 8 Spot and 90 Spread reflectors. Great for hood, front bumper, and grille applications on Jeeps, Trucks, UTVs and more.

Application Summary

Part Type

Off-Road Light

Additional Information 2

  • FEATURES-30in. 180W C-SERIES LED Light Bar-Precision reflectors with forward facing LEDs-Combo Beam Pattern: 12 Spot/30 Spread-Extruded Aluminum Housings-GORE Membrane BarrierLIGHT PERFORMANCE-Raw Lumens: 16

  • 200 lm-Lux @ 10 Meters: 2

  • 050 lx-Candela: 205

  • 000 cd-Beam Distance (Meters): 906mSPECIFICATIONS-Wattage: 180W-LED Source: CREE LED-Color Temperature: 6000K-Amp Draw: 15.0A-Voltage: 9V-32V-IP Rating: IP67-Product Dimensions: L-31.38in. x H-3.09in. x D-3.40in. Parts Included with C-SERIES Light Bars-Wiring Harness w/2-Pin weather proof connectors-Die-Cast Mounting Brackets with hardwarePERFORMANCE OUTPUT AND CLARITYThe 30in. C-Series uses an advanced dual row CREE LED design delivering 16

  • 200 Lumens of output with maximum power efficiency. They are perfect for hood

  • front bumper

  • windshield and grille applications providing balanced and powerful light illumination.HIGH PERFORMANCE MEETS AFFORDABILITYC-Series light bar features an extruded aluminum housing

  • aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency.COMBO BEAM PATTERN AND ADVANTAGESWhen it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 12 Spot/30 Spread reflectors

  • for maximum forward distance and increased peripheral illumination along road edges.DESIGNED FOR DURABILITYOff road race tested

  • the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE Membranes

  • the C-Series is resistant to moisture and dust.

Overview

Brand KC HiLiTES
Notes Includes wiring harness with weather proof connectors and mounting brackets.
Watts 180.0 watts
Lumens 16,200
Amp Draw 12.00 amps
Quantity Sold individually.
Bulb Type LED
Part Type Light Bars, Light Pods and Fog Lights
Bulb Color White
Lens Color Clear
Light Type Light bar
Optics Style Flood/Spot
Product Line KC HiLiTES C-Series LED Lights
Housing Color Black
Light Bar Type Straight dual row
Number of LEDs 60
Relay Included Yes
Maximum Voltage 32 V
Housing Material Aluminum
Hardware Included Yes
Light Bar Size (in.) 30 in.
Light Cover Included No
Wiring Harness Included Yes
Manufacturer's Part Number 336
