ION WHEELS 143-2136MB
729419145439

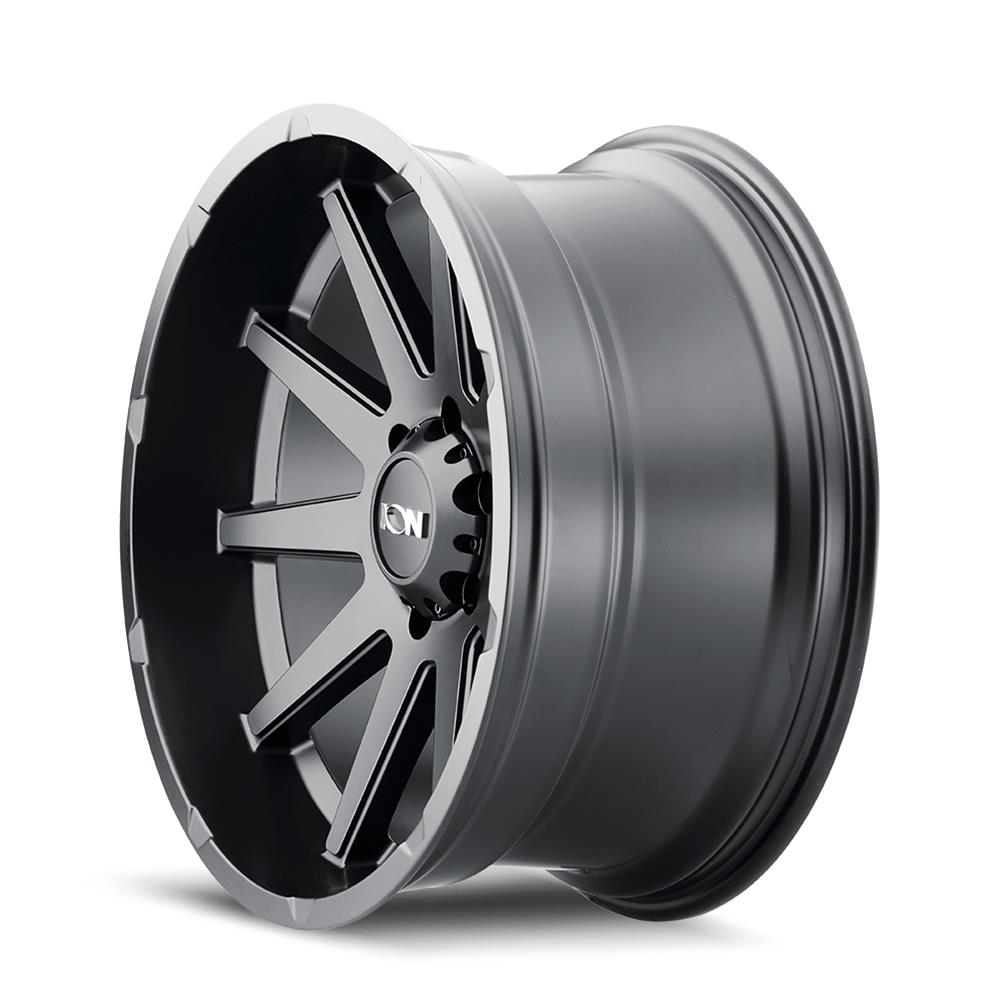

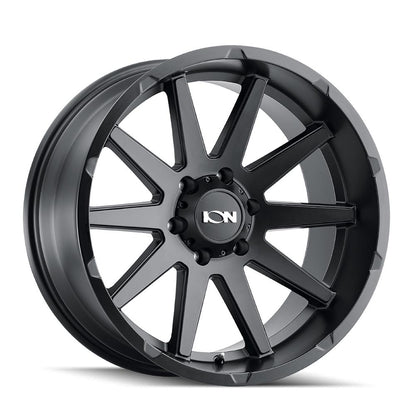

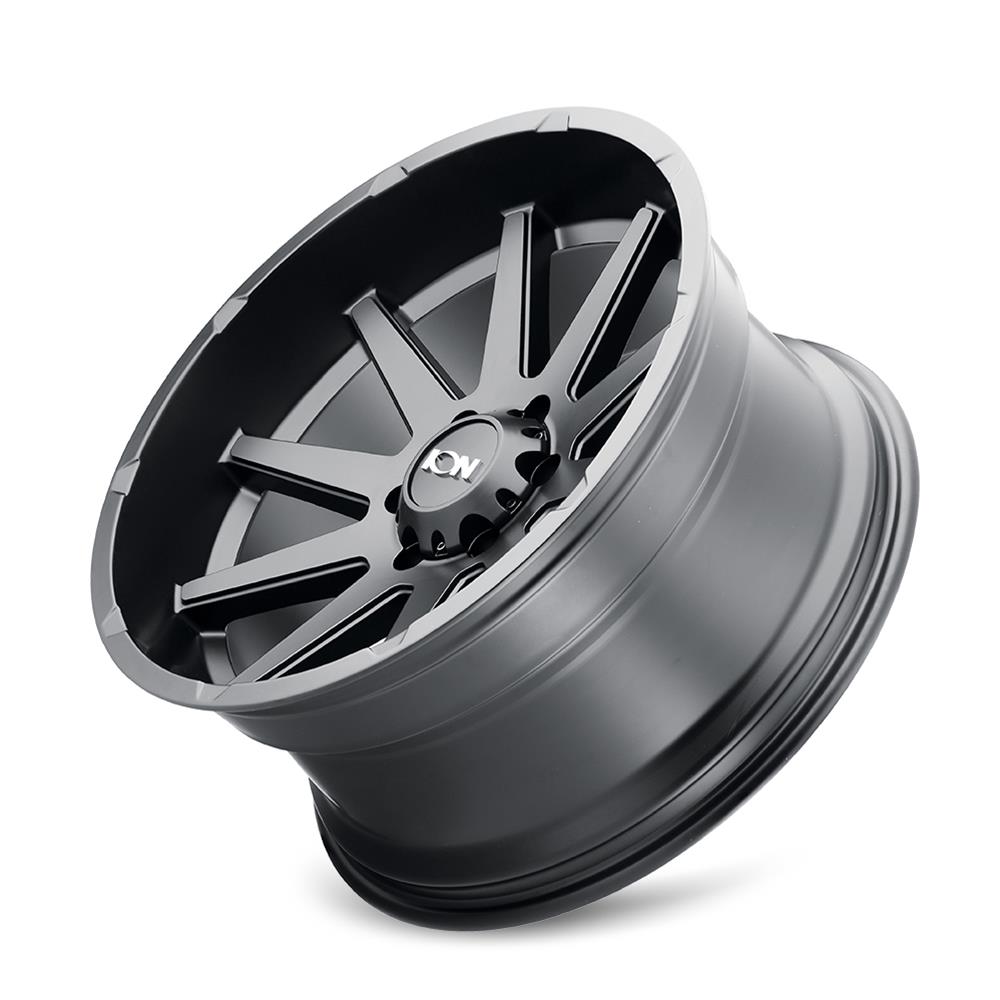

ION Alloy Series 143 Matte Black Wheels 143-2136MB

ION Alloy Series 143 Matte Black Wheels 143-2136MB

Regular price $230.10 AUD
Regular price Sale price $230.10 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

13 in stock

Product Description

ION Alloy Series 143 matte black wheels have a durable cast aluminum one-piece construction covered in a black finish and feature an aggressive concave style and creative design using dynamic spokes with sharp angles to separate the wheel from the rest. Each spoke features smooth faces as they blend into the barrel of the wheel. The wheel is covered in a matte black finish that is offset by the contoured wheel lip around the outer edge. Included center cap is adorned with the ION Alloy logo to complete the look of the wheel. ION offers superior aftermarket custom wheels that deliver style and performance. They make sure that value never takes a back seat to quality, which is why ION Wheels has become an industry leader for nearly 20 years. Order the ION Alloy Series 143 matte black wheels in the size needed to fit your application.

Application Summary

Specifications

Brand ION
Name Type 143
Diameter 20 inches
Width 10 inches
Bolt Pattern 6x135
Offset -19 millimeters
Bore Diameter 87.1 millimeters
Finish Matte Black

Part Type

Overview

Brand ION Alloy Wheels
Offset -19.00mm
Quantity Sold individually.
Part Type Wheels
Wheel Size 20x10
Product Line ION Alloy Series 143 Matte Black Wheels
Wheel Diameter 20 in.
Wheel Material Cast aluminum
Wheel Face Color Black
Backspacing (in.) 4.75
Beadlock Included No
Lug Nuts Included No
Wheel Face Finish Matte/Satin
Wheel Width (in.) 10.00
Load Rating (lbs.) 2,500 lbs.
Lug Nut Seat Style Conical seat - 60 degree
Wheel Construction 1-piece
Beadlock Functional No
Center Cap Included Yes
Valve Stems Included No
TPMS Sensor Compatible Yes
Wheel Barrel/Lip Color Black
Wheel Barrel/Lip Finish Matte/Satin
Center Bore Diameter (mm) 87.10mm
Designed for Dually Truck No
Center Bore Diameter (in.) 3.43
Manufacturer's Part Number 143-2136MB
Manufacturers Wheel Series ION Alloy 143 Series
Hub Centric Ring Compatible Yes
Small Diameter Lug Nuts Required No
Wheel Bolt Pattern (application) 6 x 135mm
