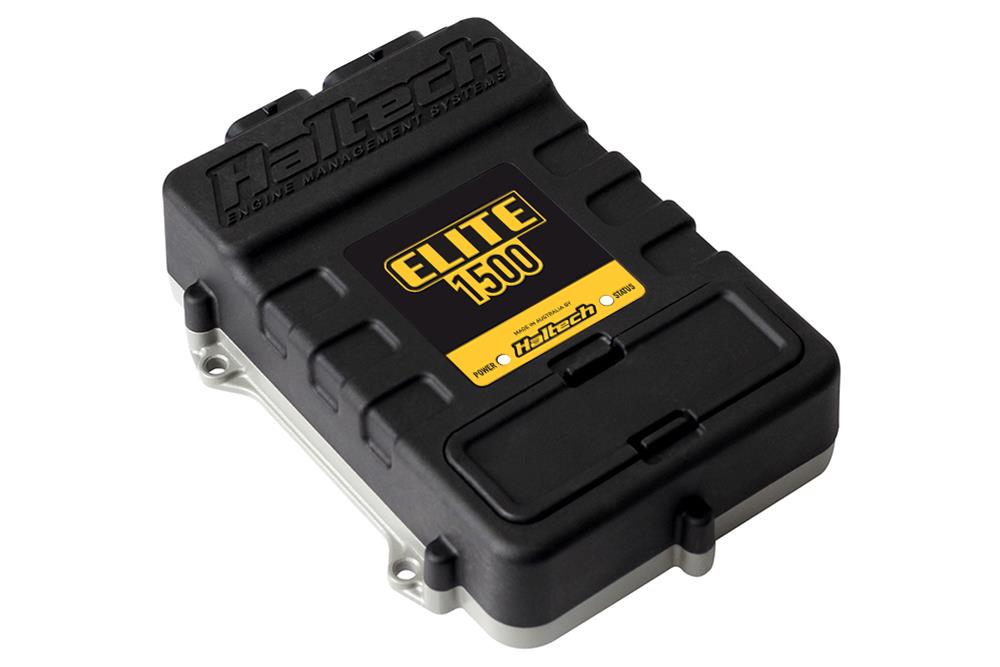

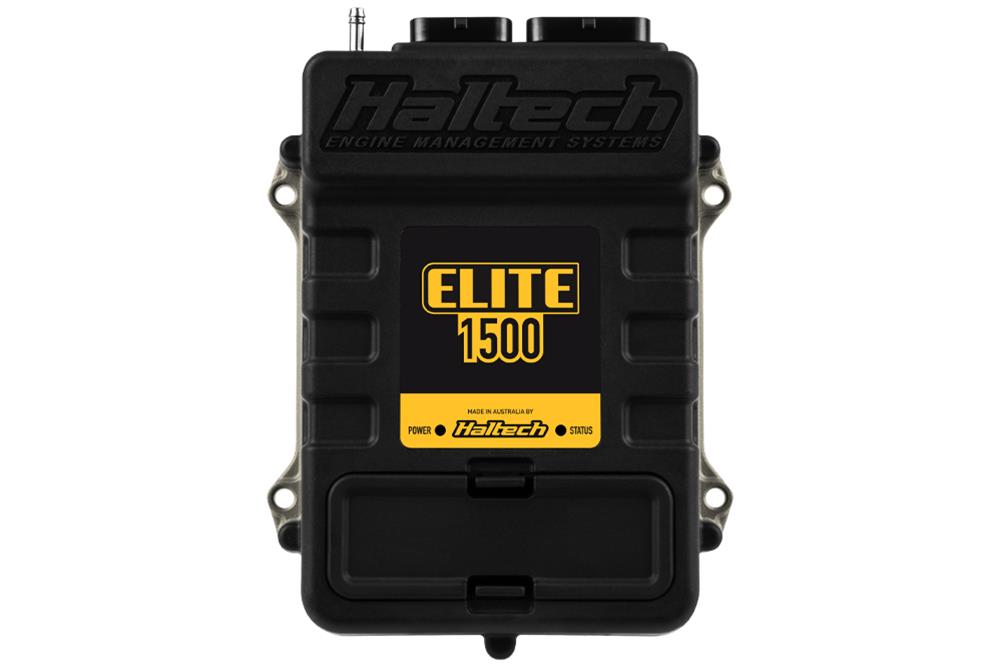

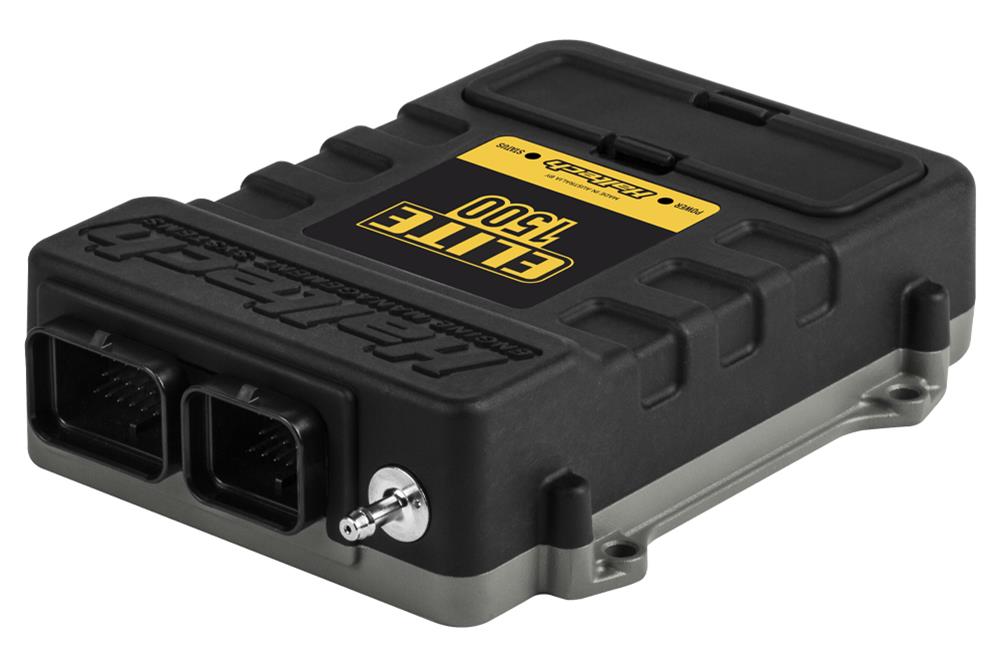

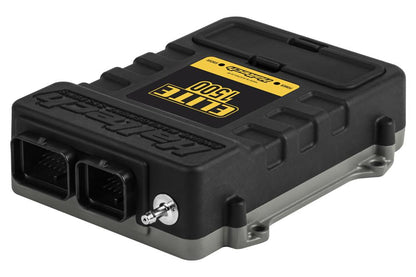

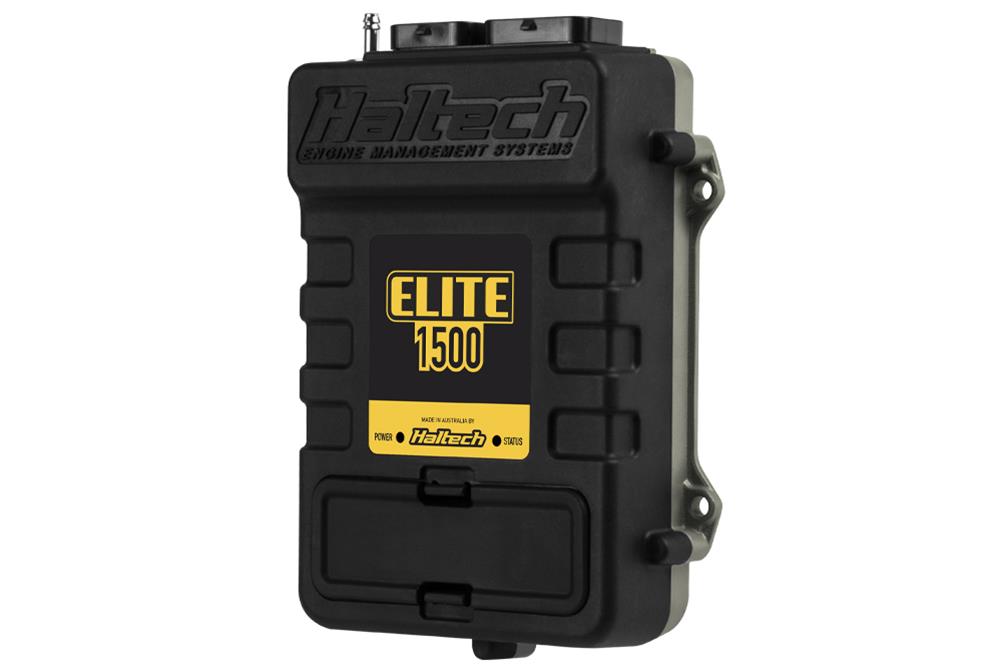

HalTech Elite 1500 ECU HT-150900

HalTech's Elite 1500 is a 2-connector, standalone ECU ideal for popular late model performance and racing applications. Recommended for 4-cylinder, drive-by-wire (DBW) or 2-rotor engines, EFI conversions, and engines with multiple variable camshafts. Featuring a robust environmentally sealed water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and much more, the Elite 1500 ECU provides engine calibrators with the tools they need to get the job done right. The Elite 1500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide. Additional product details: * Supports 1 to 12 cylinder engines * 2 rotor engines * Normally aspirated or forced induction * Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF) * Staged, sequential, semi sequential, batch or multipoint injection patterns * Distributor ignition systems, multi-coil systems, expand CDI range, or HalTech Multiplex CDI systems * Connect to a wide range of display dashes and expansion devices via CAN * 4 x fuel injection outputs * 4 x ignition outputs * 12 x digital outputs * 10 x analog voltage inputs * 4 x synchronized pulsed inputs * 3 x dedicated inputs (knock, ignition switch and onboard MAP Sensor) * 2 x dedicated engine position inputs with extensive trigger-type support * Up to 45 channels of Input & Output (I/O) expansion (via CAN) * USB laptop communication (Windows) * NSP Calibration Software, intuitive and easy to use * Outputs: Up to 4 injector and 4 ignition * Suits: Popular late-model performance and racing applications. Recommended for 4-cylinder, DBW or 2-rotor engines, EFI conversions, and engines with multiple variable camshafts. * Includes: Elite 1500 ECU with DBW and Race Functions, USB programming cable and software on a USB drive * Notes: Available with universal wiring, terminated engine harnesses, or model-specific plug-n-play adapter kits
