HalTech IO 12 Expander HT-059902

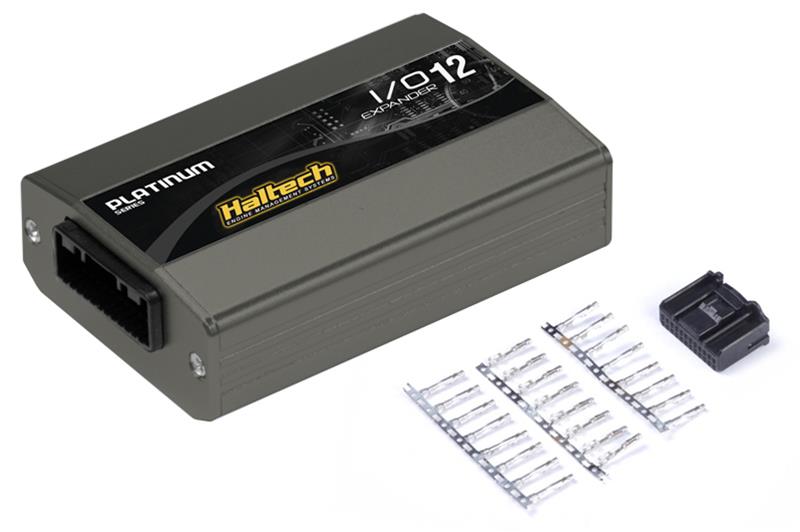

HalTech offers a variety of data acquisition components, like the IO 12 Expander. As supplied, this product is direct plug-and-play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector, or mutiple CAN device installation using an Elite 4 Port CAN HUB. If you're connecting this product with a Platinum Pro Plug-in, Sport or Sprint ECU, please order a Haltech CAN Cable (8-pin Black Tyco to 8-pin Black Tyco) in a suitable length for your specific installation. If you're connecting this product with a multiple CAN device installation using a Platinum 3 or 6-port CAN HUB, please order a Haltech CAN Cable (8-pin White Tyco to 8-pin White Tyco) in a suitable length for your specific installation. Cables are available from 75mm (3 in.) to 3600mm (144 in.) Please see the product Quick Start Guide for further information on selecting the correct color CAN cable for your specific installation. * Outputs: 4 Digital Pulsed Outputs (DPO), 4 Digital Pulsed Inputs (DPI), 4 Analogue Voltage Inputs (AVI) * Includes: IO 12 Expander with matching 24-Pin TYCO plug and pins, Elite CAN cable DTM-4 to 8-pin Black TYCO - 300mm (12 in.) * Notes: Combine two IO 12 Expanders with different CAN ID's (Box A or B) for up to 24 additional channels (subject to ECU compatibility)
