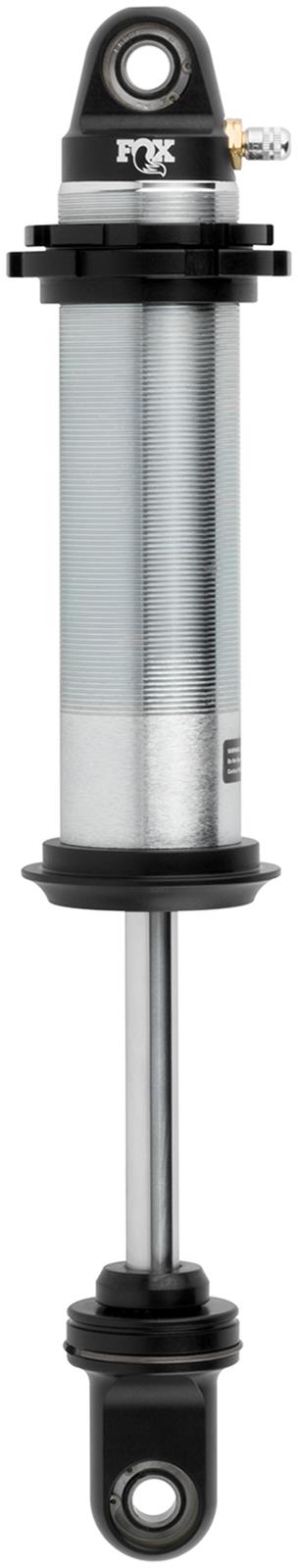

Fox Racing Shox 2.0 Factory Race Series Race Coilover Emulsion Race Shocks 980-02-000

Fox Racing Shox 2.0 Factory Race Series Race Coilover Emulsion Race Shocks 980-02-000

Regular price $359.94 AUD
Regular price $299.95 AUD Sale price $359.94 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

6 in stock

Product Description

PACKED RACE WINNING TECHNOLOGY; DURABLE ZINC PLATED SEAMLESS ALLOY BODY; CHROME PLATED HEAT TREATED ALLOY STEEL SHAFT; FOX RACING OIL DEVELOPED FOR ULTIMATED PERFORMANCE; BLACK ANODIZED CNC MACHINED ALUMINUM COMPONENTS

What's the foundation of a race-winning suspension? The answer is simple—it's the 2.0 Factory Race Series coilover emulsion race shocks from Fox Racing Shox! These coilover shocks epitomize efficiency by combining Fox's race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly. Regardless of whether you're flying high over the desert or struggling to stick to a rock face on an off-camber climb, these coilovers will deliver the damping performance, suspension control, and proper spring rate to get the job done. They're available in several size and performance options to fit your application! Features of Fox Racing Shox 2.0 Factory Race Series coilover emulsion race shocks: * Body: Smooth bore and honed seamless steel * Body plating: Zinc plated for a long-lasting finish * Components: Black anodized, CNC-machined 6061-T6 billet aluminum * Piston: 7075 hard-anodized high-flow aluminum (excludes 2.0 with 5/8 in. shaft) * Valving: Tunable, velocity-sensitive deburred valve shims * Hose: Reusable ORB O-ring port hose fittings for superior seal with remote reservoirs * Seals: High-temp Viton® redundant sealing pack system with main seal, wiper seal, and scraper seal * Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures * Shafts: 7/8 in. 17-4 H900 hard chrome plated stainless steel, hard chrome plated (excludes 2.0 with 5/8 in. shaft) * Bearing: Spherical, PFTE-lined, heat-treated alloy steel Adjustments: * RRB (Rotating Reservoir Bridge) * Spring preload ring * Dual-stage crossover ring * Compression valving * Rebound valving * Optional DSC adjuster

Extended Description

  • Rebuildable and serviceable. Custom valving options availavble.

Application Summary

2.0 x 5.0 COIL-OVER EMULSION - 5/8" SHAFT

Part Type

Shock Absorber

Overview

Brand Fox Shox
Quantity Sold individually.
Part Type Coilover Shocks and Struts
Gas Charged Yes
Lower Mount Eyelet
Upper Mount Eyelet
Product Line Fox Racing Shox 2.0 Factory Race Series Race Coilover Emulsion Race Shocks
Bushing Color Natural
Internal Design Monotube
Bushing Material Spherical bearing
Hardware Included No
Shock Body Finish Zinc plated
Adjustable Valving No
Body Diameter (in.) 2.000
Coilover Shock Type Double-adjustable
Shock Body Material Steel
Extended Length (in.) 16.42
Collapsed Length (in.) 11.42
Coilover Springs Included No
Manufacturer's Part Number 980-02-000
Adjustable Mounting Bracket Included No
