Firestone Air Tanks WR17609126
Firestone Air Tanks WR17609126
14 in stock
Couldn't load pickup availability
/update?link=products%2Ffip-9126_w.jpg){kind=link}
Product Description
This Firestone air tank provides a source of compressed air for an air spring system. Tank has 2-gallon capacity and (2) 1/4 in. NPT ports. Tank is enamel coated to resist corrosion, tested to be SAE J10 compliant and capable of 150 psi. Features: Provides compressed air source for an air helper spring system Allows for faster inflation of air springs Holds 2 gallons of compressed air Includes 1/4 in. NPT ports (2) Steel tank with brass fittings Resists corrosion with internal and external enamel coating Is SAE J10 compliant Operates at up to 150 psi of maximum pressure Specs: Tank dimensions: 14.5 in. long x 7 in. diameter Tank capacity: 2 gallons Inflation ports: 1/4 in. NPT PSI: Maximum of 150 2-Year limited warranty
These Firestone air tanks can be used in conjunction with an on-board compressor system to reduce the air springs' fill time. Each of these tanks is internally and externally coated to resist corrosion. The tanks are capable of 150 psi of maximum pressure.
Extended Description
- Air Tank 2 Gal 2 Ports
Application Summary
Part Type
Suspension Self-Leveling Unit
description
| aaia_ |
Suspension Self-Leveling Unit |
|---|---|
| market_ |
This Firestone air tank provides a source of compressed air for an air spring system. Tank has 2-gallon capacity and (2) 1/4 in. NPT ports. Tank is enamel coated to resist corrosion, tested to be SAE J10 compliant and capable of 150 psi. Features: Provides compressed air source for an air helper spring system Allows for faster inflation of air springs Holds 2 gallons of compressed air Includes 1/4 in. NPT ports (2) Steel tank with brass fittings Resists corrosion with internal and external enamel coating Is SAE J10 compliant Operates at up to 150 psi of maximum pressure Specs: Tank dimensions: 14.5 in. long x 7 in. diameter Tank capacity: 2 gallons Inflation ports: 1/4 in. NPT PSI: Maximum of 150 2-Year limited warranty |
| product_ |
Air Tank 2 Gal 2 Ports |
| product_ |
AirTank |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Firestone Air Tanks WR17609126 |
| brand | Firestone |
| price | 66.99 |
| blurb | Air Tank, 2 Gallons, Steel, Black, 7 in. Diameter, 14.5 in. Length, Two 1/4 in. NPT Ports, Each |
| title | Firestone Air Tanks |
| description | These Firestone air tanks can be used in conjunction with an on-board compressor system to reduce the air springs' fill time. Each of these tanks is internally and externally coated to resist corrosion. The tanks are capable of 150 psi of maximum pressure. |
item_row
| handle | FIR-9126 |
|---|---|
| item_ |
167576 |
| brand_ |
253 |
| brand_ |
Firestone |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/59c4423beeeaa647bdee2ce346385892.JPG |
| item_ |
9126 |
| item_ |
Firestone Air Tank 2 Gallon 7in. x 14.5in. (2) 1/4in. NPT Ports 150 PSI Max - Black (WR17609126) |
| item_ |
Suspension (Other) |
| item_ |
Air Tanks |
| item_ |
767555033111 |
| item_ |
78.28 |
| item_ |
102.88 |
| t14_ |
6 |
| mfr_ |
|
| dim_ |
8.40 |
| dim_ |
14.90 |
| dim_ |
8.90 |
| dim_ |
7.70 |
| shipping_ |
14.52 |
| item_ |
fir9126 |
| taxonomy_ |
5383 |
| collection_ |
273964630058 |
| collection_ |
Suspension (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Firestone |
|---|---|

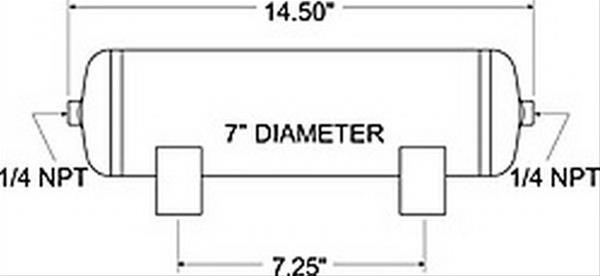

| Notes | Tank includes two 1/4 in. NPT ports. Tank measures 14.50 in. long, 8.00 in. tall, and 7.00 in. in diameter. |
| Portable | No |
| Quantity | Sold individually. |
| Part Type | Air Tanks |
| Maximum PSI | 150 |
| Product Line | Firestone Air Tanks |
| Hose Included | No |
| Air Tank Color | Black |
| Air Tank Material | Steel |
| Pressure Gauge Included | No |
| Air Tank Volume (gallons) | 2.0 gallons |
| Manufacturer's Part Number | WR17609126 |
